Neumann KH 750 DSP 10 inch Powered Studio Subwoofer with MA-1 mic

Perfect Your Neumann KH DSP Studio Monitors

Embrace this KH 750 DSP Sub and MA1 Monitor Alignment Calibration Bundle. The Neumann MA 1 automatic alignment system requires a stereo set of KH 80 DSP studio monitors or a KH 750 DSP subwoofer to operate. An audio interface with a balanced analog input, +48V phantom power, and two balanced analog outputs are required. The KH 750 DSP subwoofer also accepts AES3.

The KH 750 DSP from Neumann is the ideal Subwoofer for smaller rooms and smaller studio monitors. It has a unique and flexible Bass Manager (2.0/0.1), analog and digital inputs, four routing modes and adaptable acoustical controls to be used in many different configurations.

Whats included in this bundle:

1 x Neumann KH 750 DSP Powered Subwoofer.

1 x Neumann MA 1 Monitor Alignment Microphone and Calibration System.

Sub Control and Monitor Alignment like never before

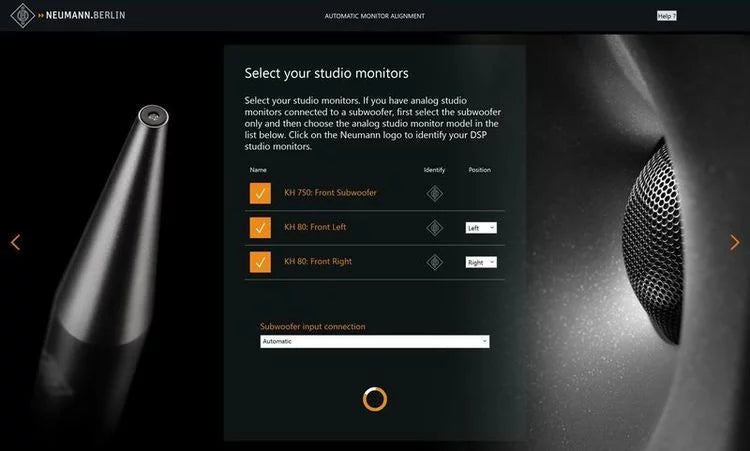

By combining the KH 750 DSP with the freely available iPad® app (version 3.0 or newer), the subwoofer becomes the intelligent control center of every Neumann stereo setup. In addition to the KH 80 DSP, the KH 120, KH 310 and KH 410** analogue monitors now also benefit from the DSP power of the KH 750 DSP.

The iPad® connects to the subwoofer via a standard IP network with an Ethernet cable between the router and subwoofer. The stereo pair receives the analog audio signal directly from the subwoofer.

Main features:

• 10″ DSP Powered Subwoofer
• Designed for Small Rooms & Monitors
• 18 to 300 Hz Response
• Can Handle up to 105 dB SPL
• Integrates with Neumann Monitors
• Ethernet Control over Alignment & Setup
• Low-Pass Filtering, 180° Phase Inversion
• Analog XLR & BNC-AES I/O
• For LFE or Sub Channels

Tech Specs:

• Powered: Yes
• Speaker Size: 10"
• Driver Type: Long-throw with Pressed-steel basket
• Total Power: 256W
• Frequency Range: 20Hz-300Hz
• Crossover Frequency: 80Hz
• Maximum Peak SPL: 105 dB SPL @ 1m
• Input Types: 2 x XLR
• Output Types: 2 x XLR
• Other I/O: AES3 In/Out (digital)

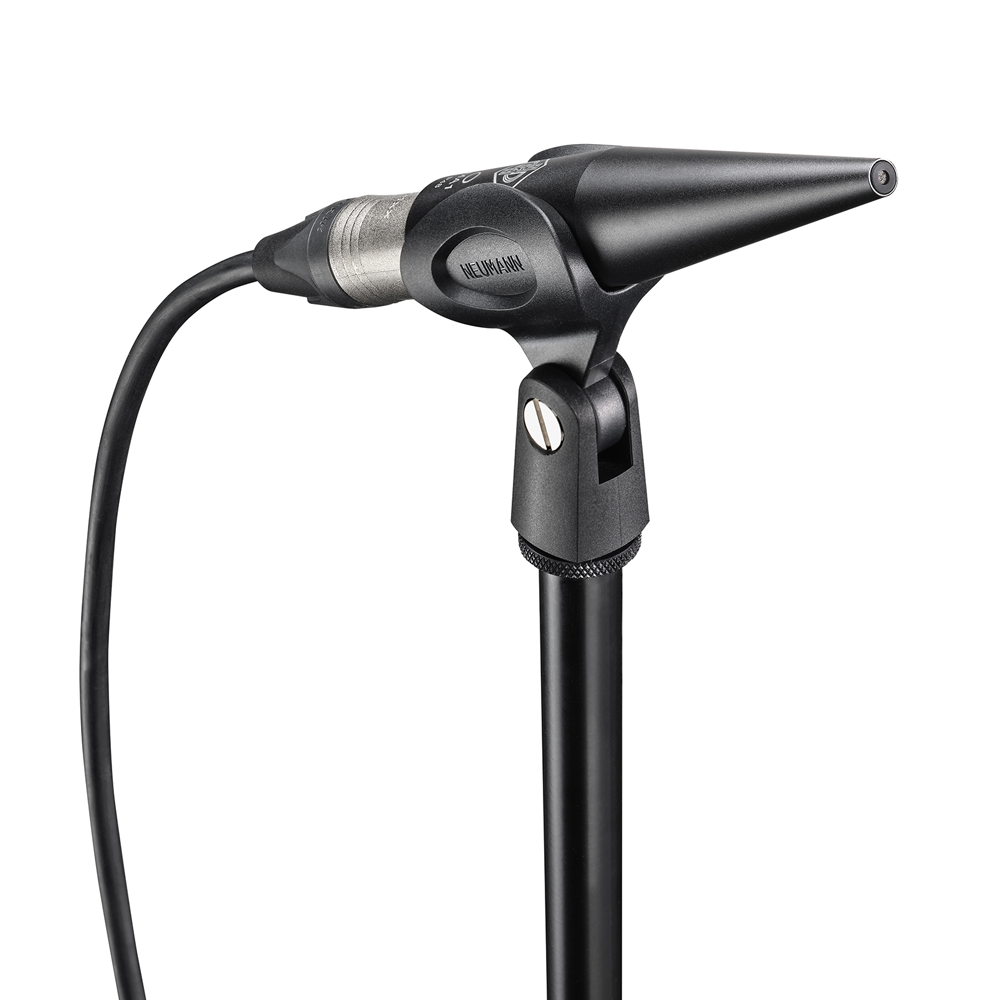

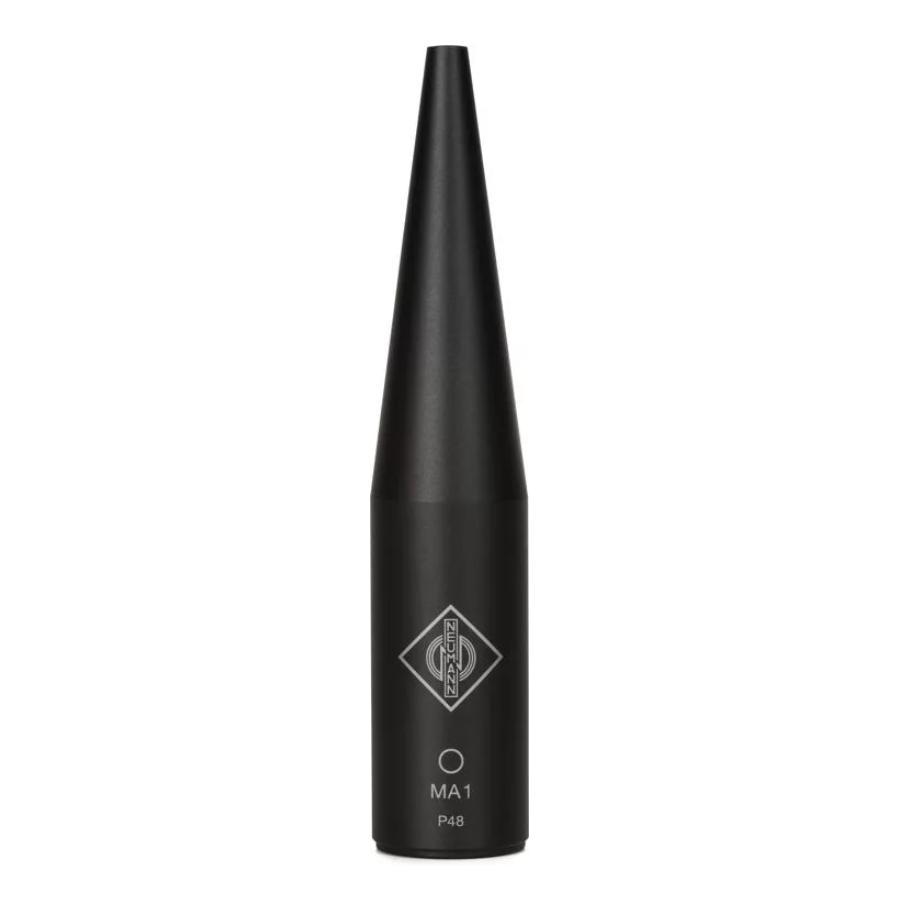

Neumann MA 1 Automatic Monitor Alignment Features:

• Provides automatic monitor alignment for KH 80 DSP loudspeakers or non-DSP KH monitors via a KH 750 DSP subwoofer
• Employs calibration algorithms developed in cooperation with Fraunhofer IIS
• Comes with an individually calibrated measurement microphone
• Adjusts the frequency curve of your DSP-powered monitors
• Optimizes the amplitude response and phase of all the speakers in your setup
• Calibration settings stored directly inside of your DSP-powered monitors — no plug-in required
• Ethernet connections may be disconnected after optimization has been completed

 Tech Specs:

• Microphone Type:Pressure Transducer
• Polar Pattern:Omnidirectional
• Frequency Response:20Hz-20kHz
• Max SPL:132dB
• Output Impedance:50 ohms
• Signal to Noise Ratio:67dB (A weighted)
• Self Noise:27dB (A weighted)
• Sensitivity:30mV/Pa (-30 dB)
• Connector:XLR

Order the Neumann KH 750 10" Powered Studio Subwoofer with the MA1 measurement Microphone From Audiosaurus. The online Pro Audio specialist in South Africa.
