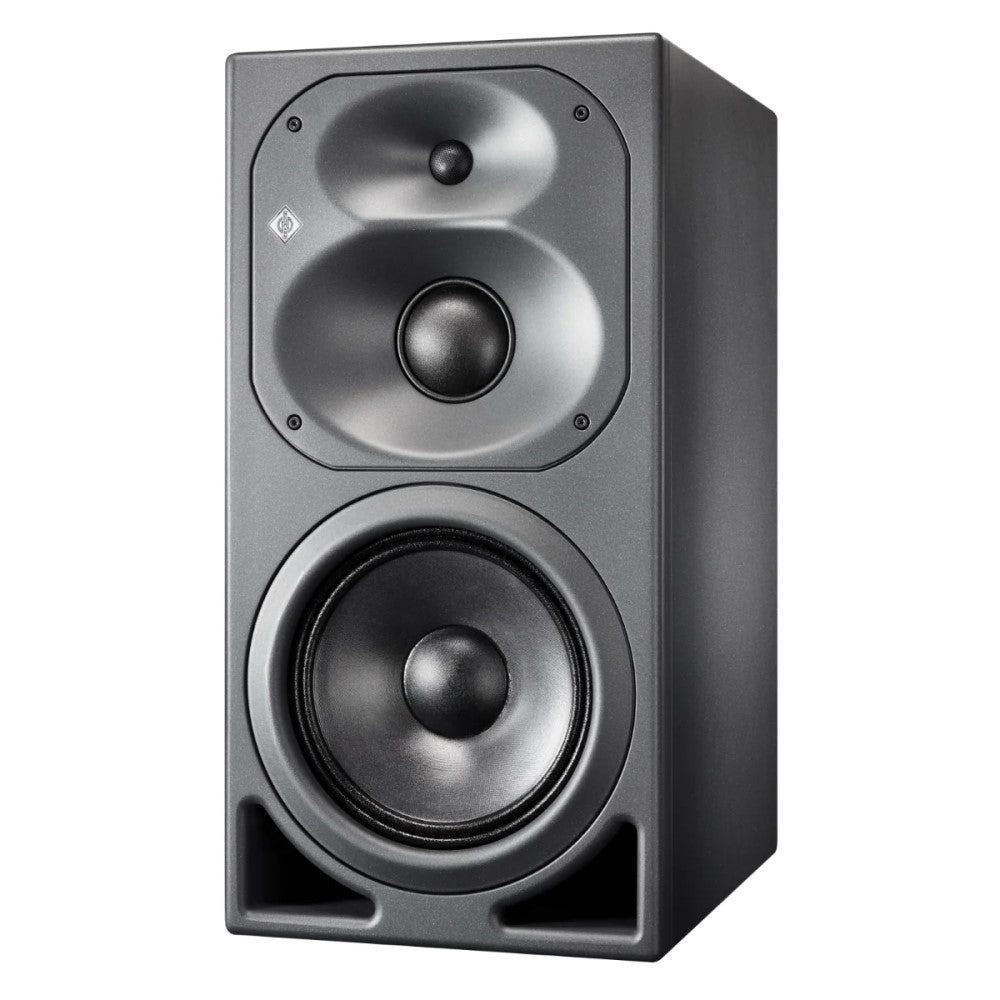

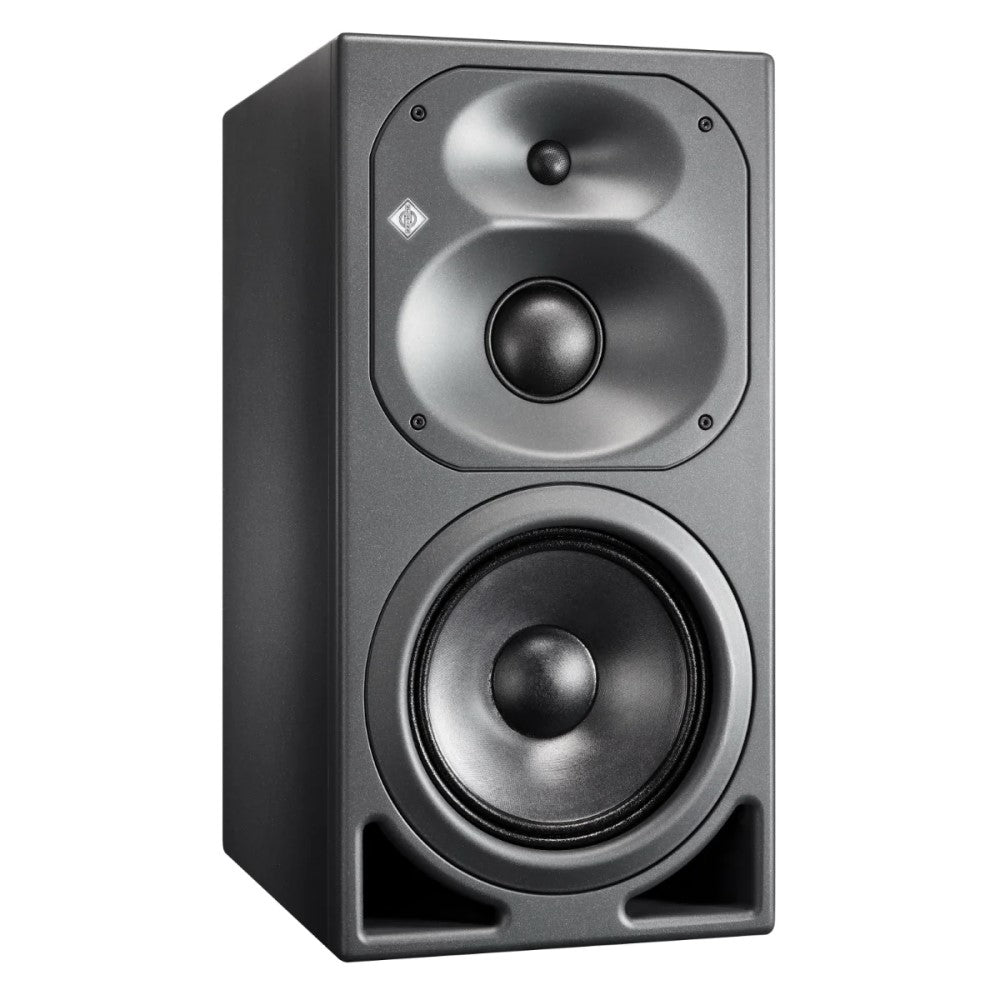

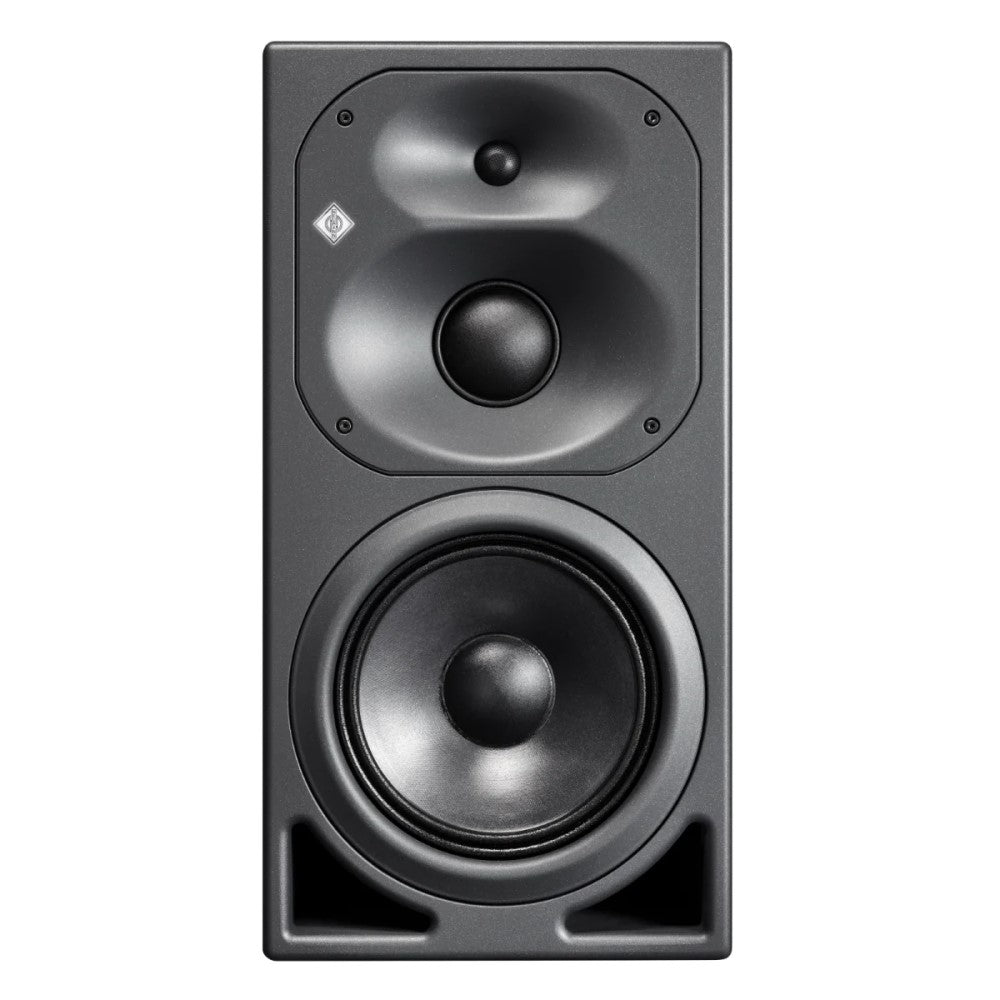

Neumann KH 420 AG Active Studio Monitor (Single)

GOLD STANDARD IN MIDFIELD SOUND

The KH 420 Active Studio Monitor from Neumann is designed for a working distance of 1.5m to 3m (5” to 9”). It handles this space effortlessly thanks to great power reserves and precisely concentrated dispersion. Even in diverse acoustical environments the KH 420 remains neutral and clear in every detail down to the subtlest nuances. No subtlety is lost; every sound element can be localized.

Best Working Environment: Close to Pro Ears
The KH 420 is designed for midfield applications and as main monitor in project, music, broadcast and post-production studios for recording, mixing and mastering. And in a multi-channel system, it can also be freely combined with all other Neumann studio monitors.

Ports & High Dynamics
With its tri-channel amplifiers the KH 420 also realizes sound pressures of up to 122.4 dB. And it thereby retains high-resolution and neutral representation across the entire frequency response. This also includes an exceptional bass response down to 26 Hz. Despite using ports, there is no “overhang” or audible resonance in the low frequency range and the transient response is precisely controlled at all times.
The computer modeled chassis is constructed of LRIM™ materials which eliminates standing wave resonances and suppresses intermodulation distortion, especially in the midrange.

Main Features:

• 3-way tri-amplified active midfield monitor designed for working distances of 5–9 feet (1.5–3m)
• Tailor-made for music production, post-production processes, broadcast, and more
• Delivers a powerful, natural sound with absolute clarity; incredible precision in the mid/high range

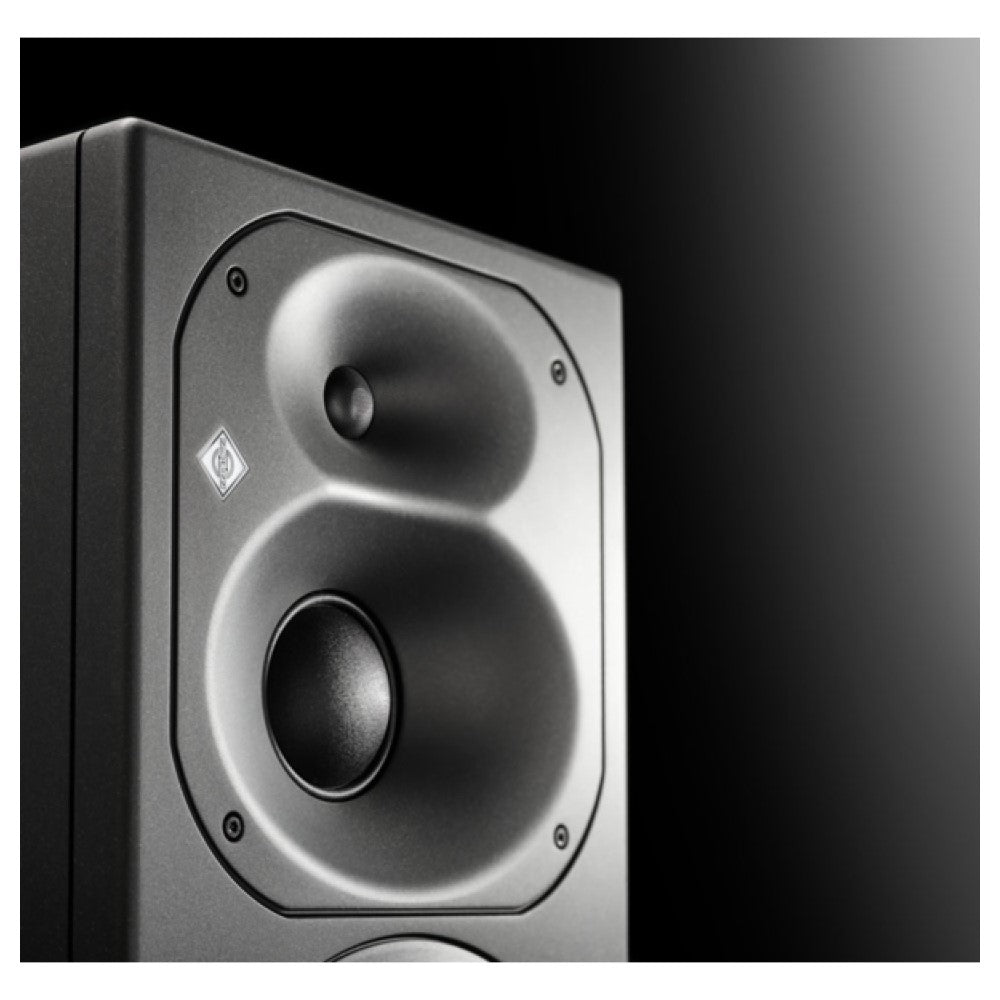

• Mathematically Modeled Dispersion waveguide distributes sound in horizontally precise manner for ultimate flexibility; narrower vertical dispersion reduces nearby reflections
• Sound pressures up to 122.4dB; bass response down to 26Hz
• Chassis constructed from Low Resonance Integral Molding materials ensures no unwanted resonances or distortions affect your sound
• Optional Digital Input Module expands functionality with digital connectivity and delay options

Tech Specs:

• Type: Headphone Amp
• Powered: Yes
• Power Configuration: Tri-amped
• Quantity: Single
• LF Driver Size: 10" Woofer
• MF Driver Size: 3"
• HF Driver Size: 1" Tweeter
• LF Driver Power Amp: 295W
• MF Driver Power Amp: 130W
• HF Driver Power Amp: 130W
• Total Power: 800W
• Frequency Response: 28Hz-20kHz
• Crossover Frequency: 570Hz, 2.0kHz; 24dB/oct.
• Maximum Peak SPL: 109dB SPL @ 1m
• Input Types: 1 x XLR
• Enclosure Type: Front Ported
• Enclosure Material: Painted wood and polyurethane
• Dimensions: 645 x 330 x 444 mm
• Weight: 30.3 kg
• Warranty: 24 months
• Discover more from Neumann [KH 420]: https://www.neumann.com/en-en/products/monitors/kh-420/
