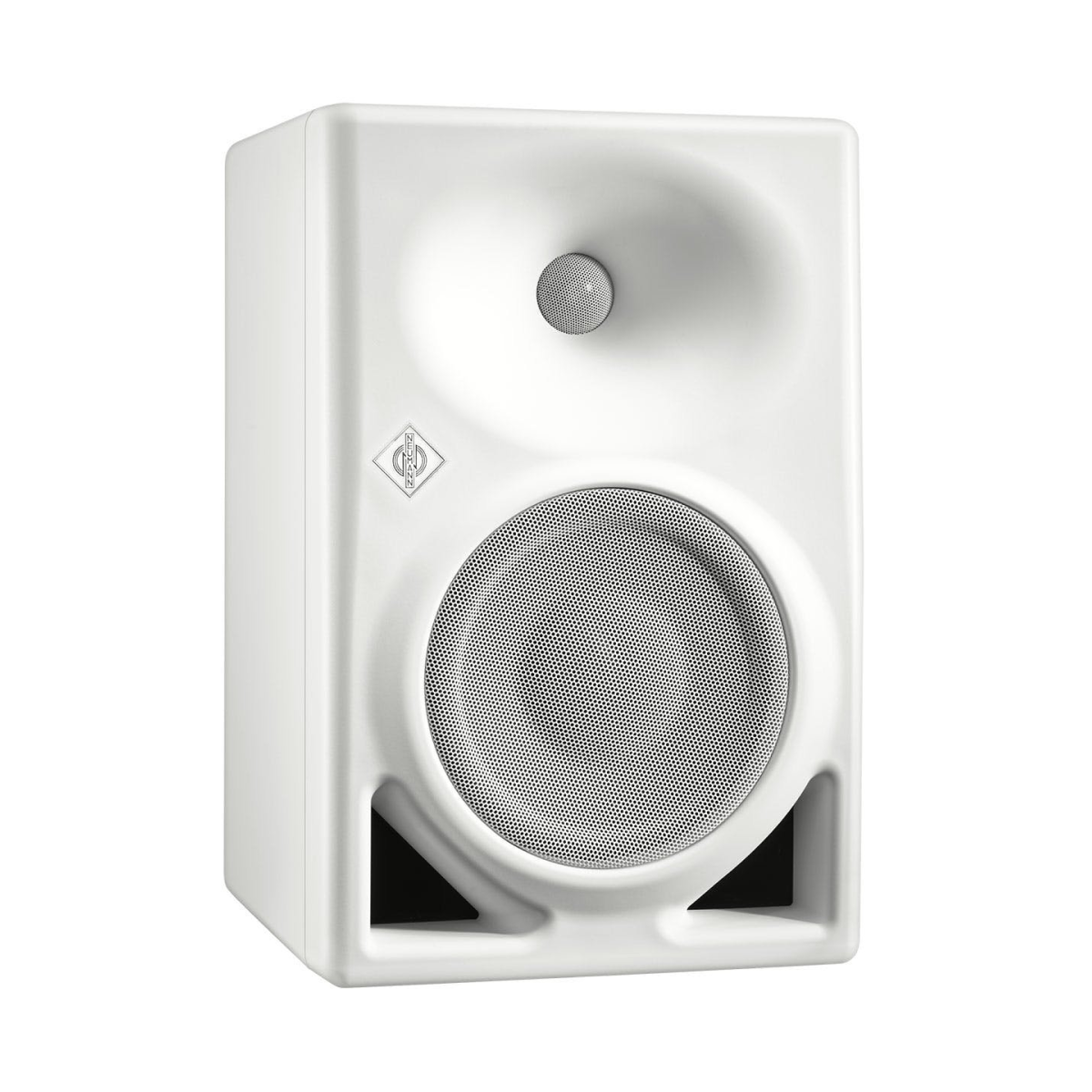

Neumann KH 150 W Two Way, DSP-Powered Nearfield Monitor
Tax included.
Hear the Truth. Mix with Confidence.
The Neumann KH 150 W is a high-performance, bi-amplified nearfield monitor designed to bridge the gap between compact monitors and large-scale studio systems. Engineered for those who refuse to compromise on bandwidth or power, it features a sophisticated DSP engine that ensures surgical accuracy and seamless room integration. Whether you are a mixing engineer handling complex sessions, a film composer requiring deep low-end, or a broadcast professional demanding absolute transparency, the KH 150 W provides the honest, uncoloured sound required to make confident decisions.
Deep Bass from a Compact Footprint
While its size is convenient for nearfield setups, the KH 150 W delivers the low-frequency authority of a much larger speaker. Thanks to a newly developed 6.5-inch high-precision woofer and a meticulously tuned 20-liter bass reflex cabinet, this monitor reaches down to 39 Hz. For producers of urban music, EDM, or cinematic scores, this means massive headroom and a physical low-end character that eliminates the guesswork in the sub-frequencies.
DSP-Driven Linear Phase Accuracy
The true genius of the KH 150 W lies in its internal DSP, which manages sophisticated digital crossovers to eliminate the phase distortion inherent in traditional analogue filters. This results in a linear phase response that produces razor-sharp stereo imaging and astonishing midrange transparency. You can hear every minute detail, from the subtle placement of a vocal to the fine resolution of low-volume reverb tails, with perfect time-domain accuracy.
Surgical Calibration with MA 1
No room is acoustically perfect, but the KH 150 W is designed to adapt. The internal DSP works in perfect harmony with the optional MA 1 Automatic Monitor Alignment system to calibrate the speaker specifically for your unique environment. By optimizing the amplitude and phase to match your listening position, it minimizes desk reflections and room-related coloration, ensuring that your mixes translate perfectly to any playback system.
Main features:
- Bi-amplified nearfield studio monitor with 145 W woofer and 100 W tweeter.

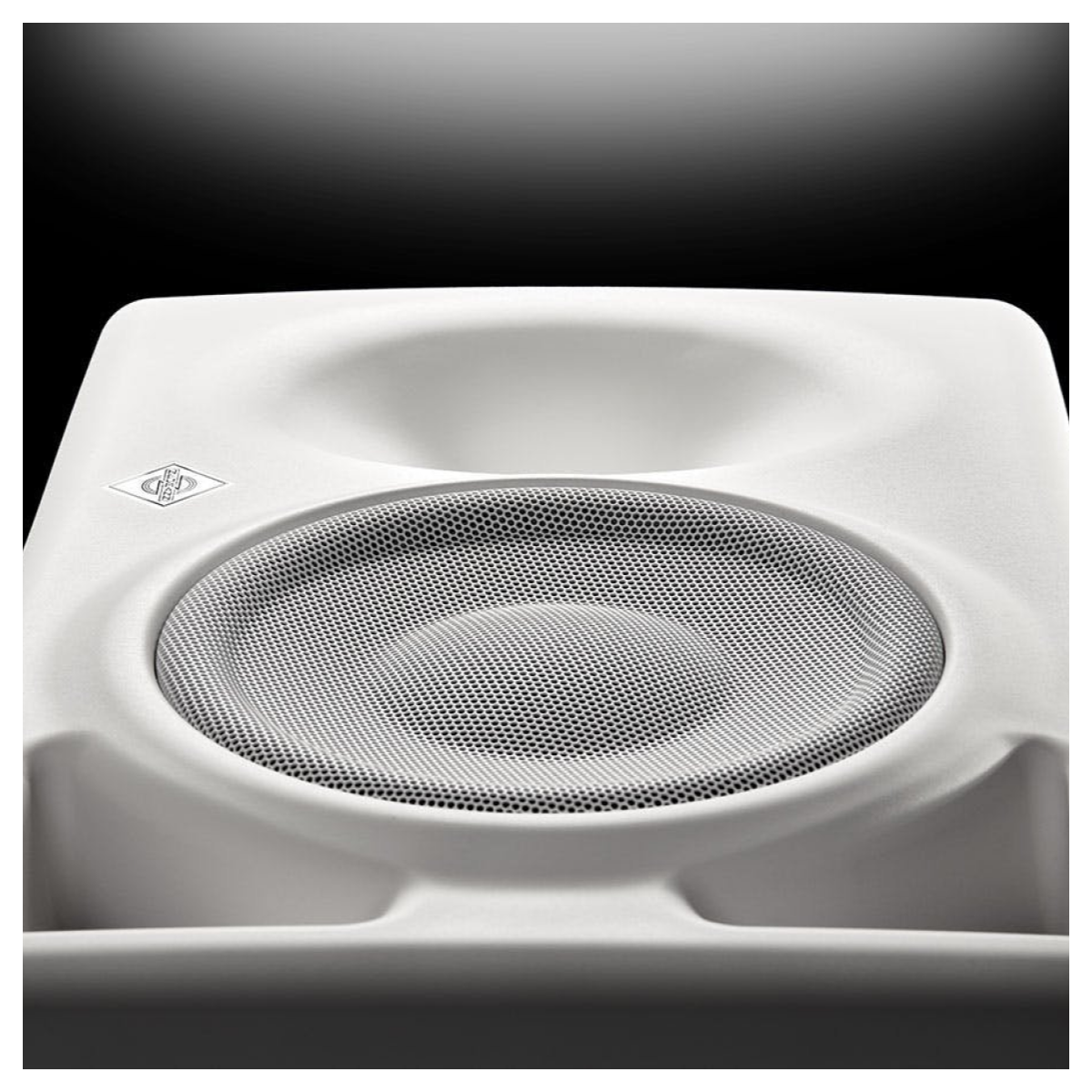

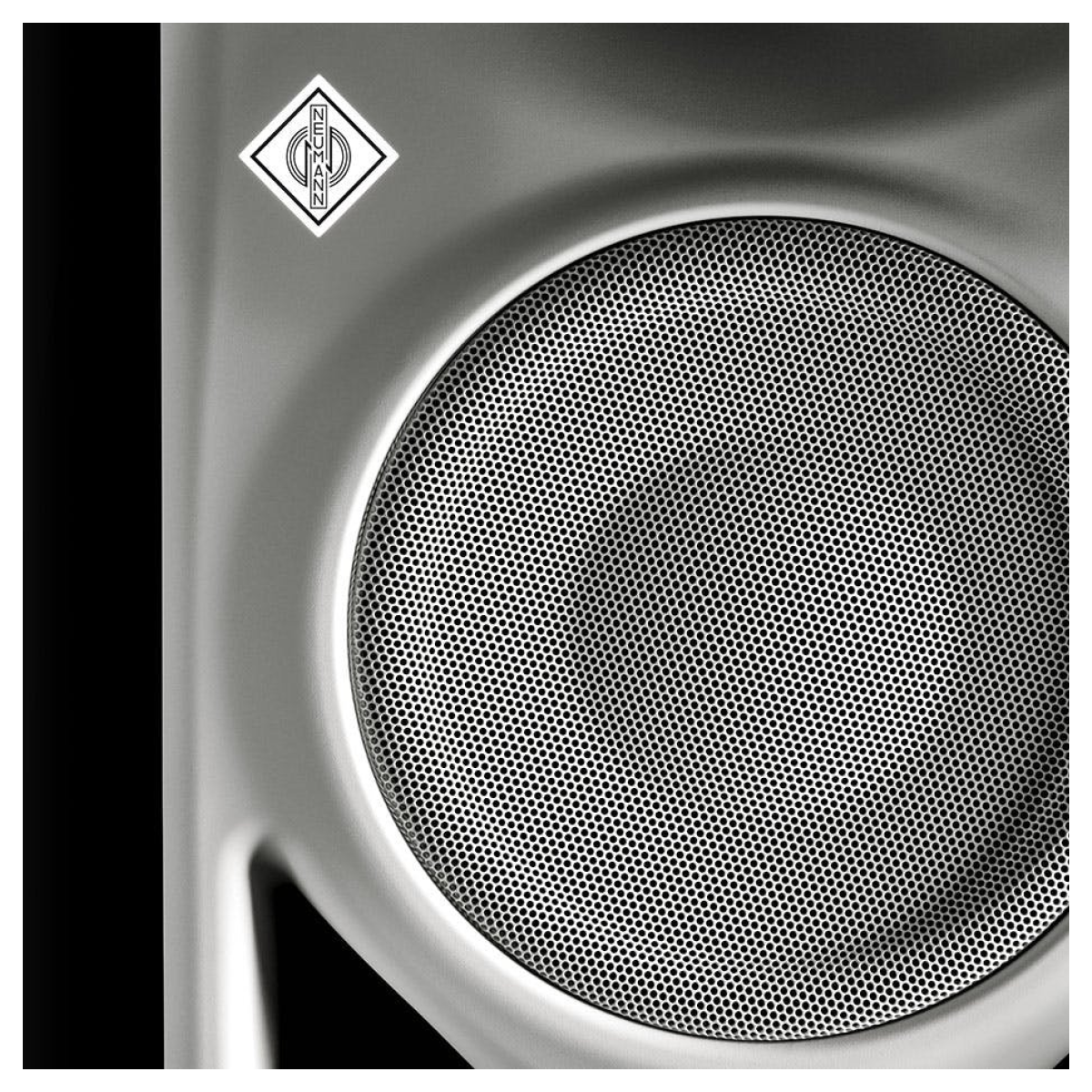

- High-precision 6.5-inch woofer and 1-inch fabric dome tweeter.
- Extended deep bass response down to 39 Hz.
- High sound pressure level capability reaching up to 118.7 dB.
- Internal DSP engine that enables automatic room alignment via the optional MA 1 system.
- Linear frequency response across 39 Hz to 21 kHz (±3 dB).
- Linear phase response from 105 Hz to 16 kHz (±45°) for improved stereo imaging.
- Mathematically Modelled Dispersion (MMD) waveguide to minimize desk reflections and provide a wide sweet spot.

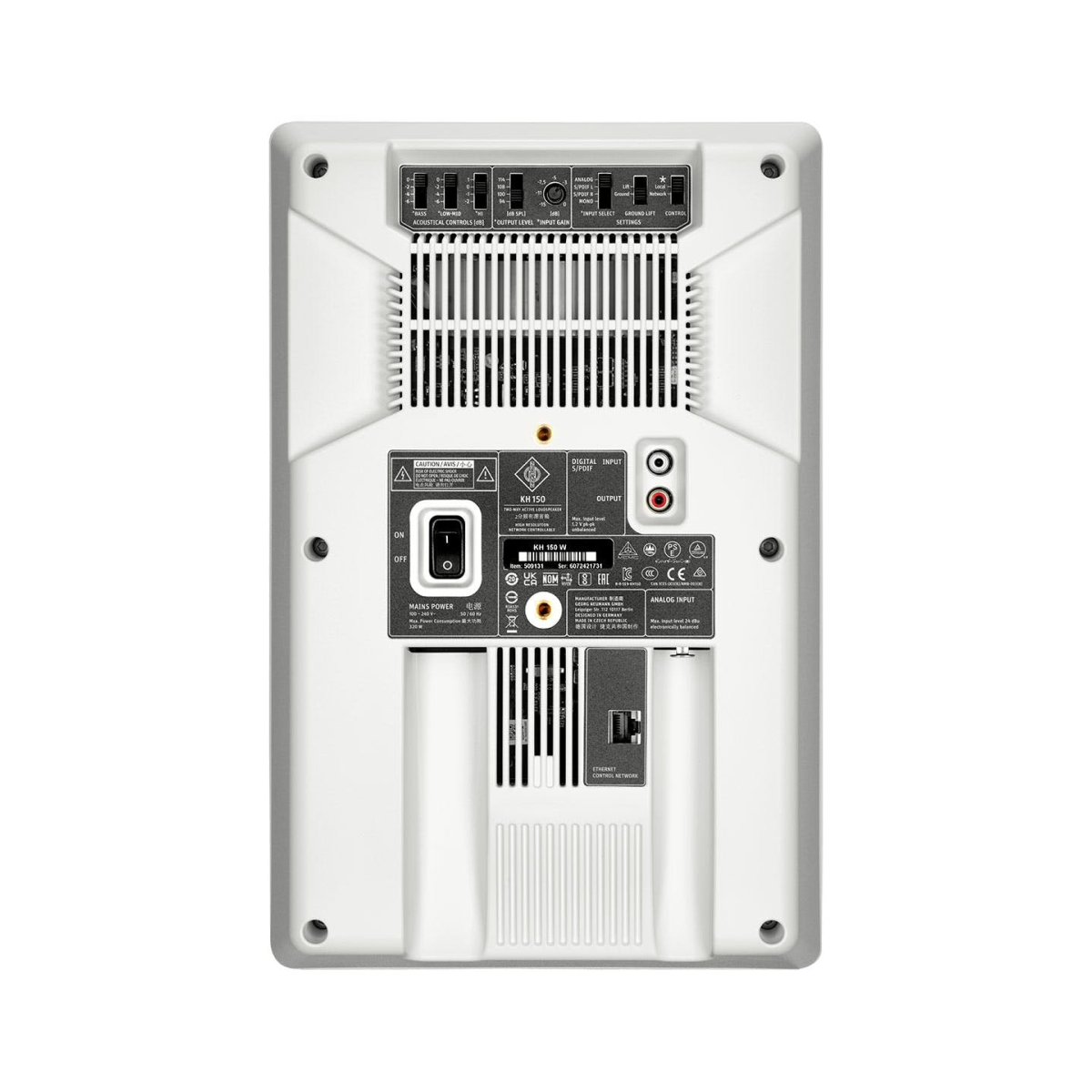

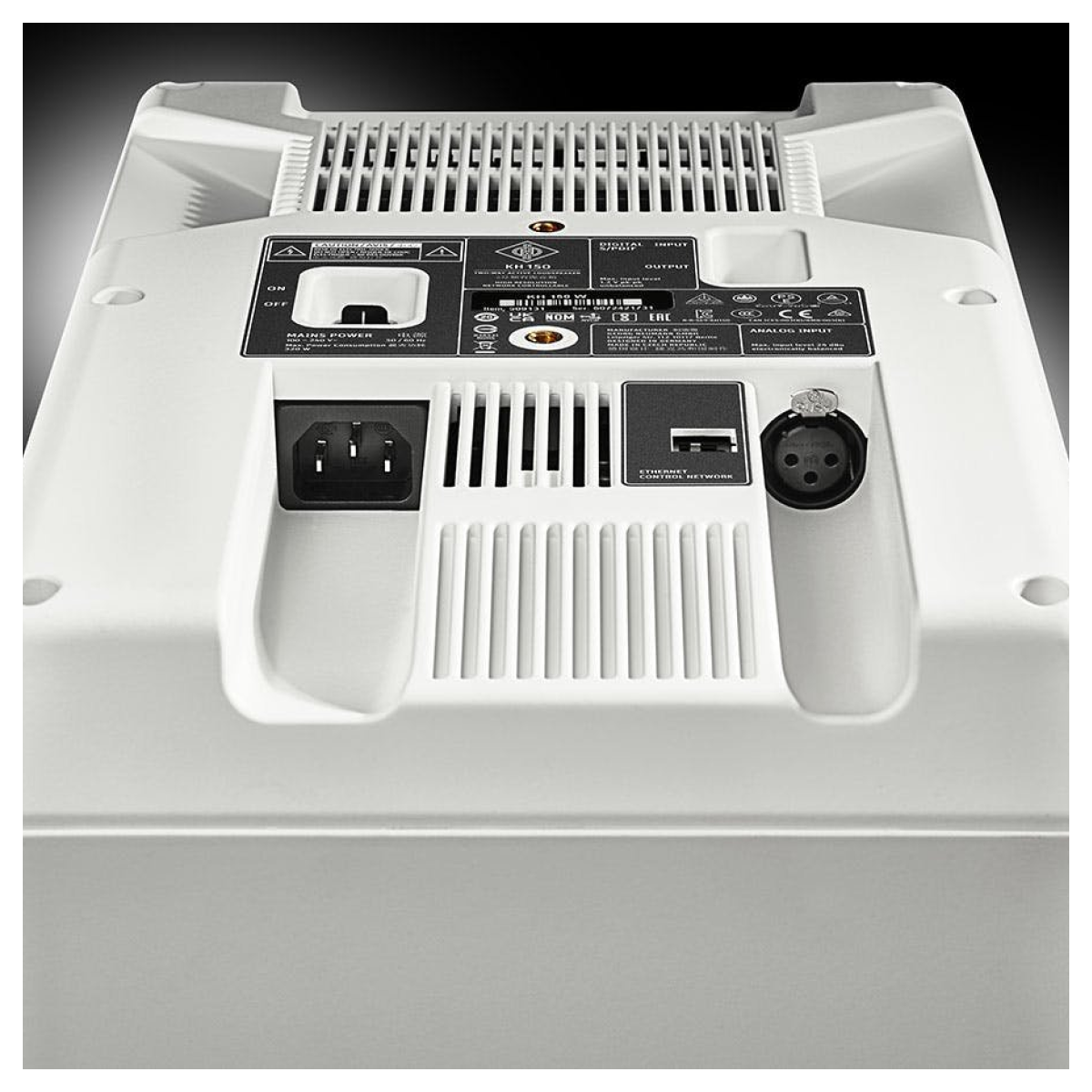

- Connectivity options featuring both analogue XLR and digital S/PDIF inputs and outputs.
- Network control capabilities via a standard Ethernet port.
- High manufacturing consistency with extremely low tolerances of ±0.8 dB.
- Energy-efficient Class D amplifier technology with an automatic standby mode.
- Advanced protection circuitry including independent peak and thermo limiters for both drivers.

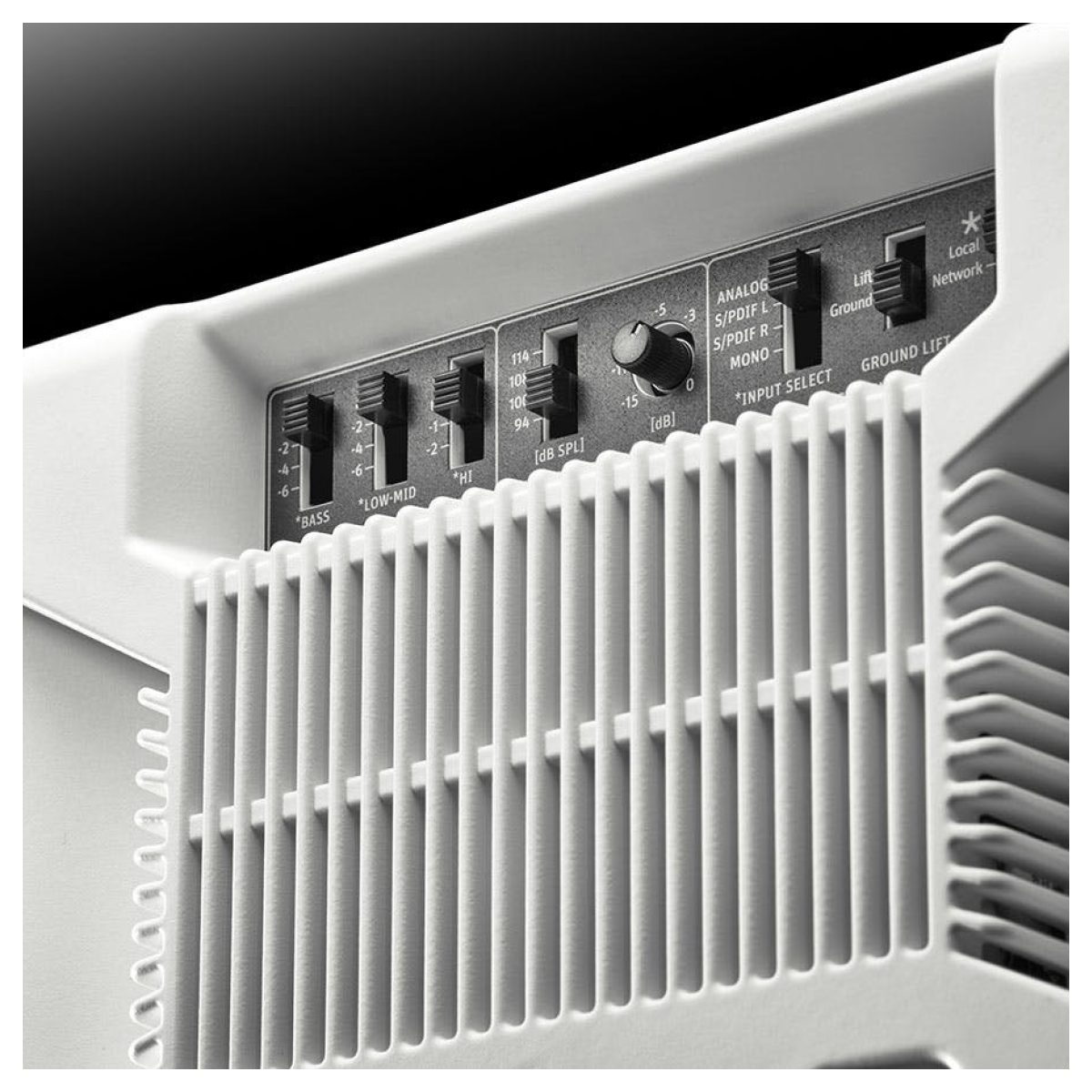

- Manual rear-panel acoustical controls for bass, low-mid, and treble adjustment.
Tech Specs:
- Powered: Yes
- Power Configuration: Bi-amped
- Quantity: Single
- LF Driver: 6.5" Woofer
- HF Driver: 1" Tweeter
- Total Power: 245W (145W LF / 100W HF)
- Frequency Response: 39Hz - 21kHz (±3dB)
- Crossover Frequency: 1.7kHz
- Maximum Peak SPL: 118.7dB @ 1m
- Inputs: 1 x XLR (Analog), 1 x Coax (S/PDIF Digital)
- Outputs: 1 x Coax (S/PDIF Digital)
- Other I/O: 1 x RJ45 (Ethernet Control Network)
- Features: DSP, Room Tuning
- Software: Neumann MA 1 Monitor Alignment App
- Enclosure: Front Ported (Composite polycarbonate front/rear, wooden sleeve)
- Power Source: Standard IEC AC Cable
- Dimensions (HxWxD): 345 x 225 x 273 mm (13.6" x 8.8" x 10.7")
- Weight: 8.0 kg (17.6 lbs)
- Explore Neumann Studio Monitors [KH 150 W]: https://www.neumann.com/en-us/products/monitors/kh-150-w
