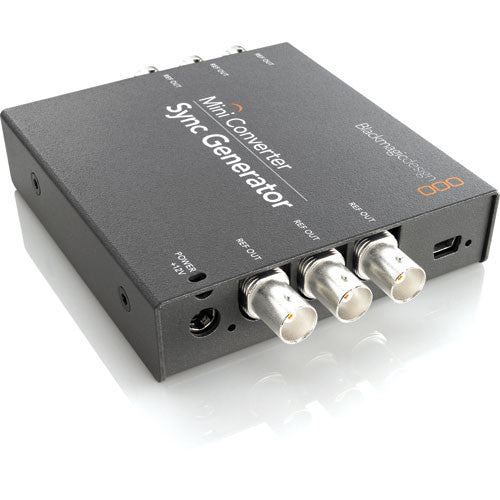

Blackmagic Design Mini Converter - Sync Generator
Tax included.
Description
Includes 6 crystal stabilized video reference outputs for referencing all the video equipment in your studio in either high definition Tri-Sync or standard definition Blackburst television standards. Perfect for small studios and outside broadcasts!
Connections
Analog Video

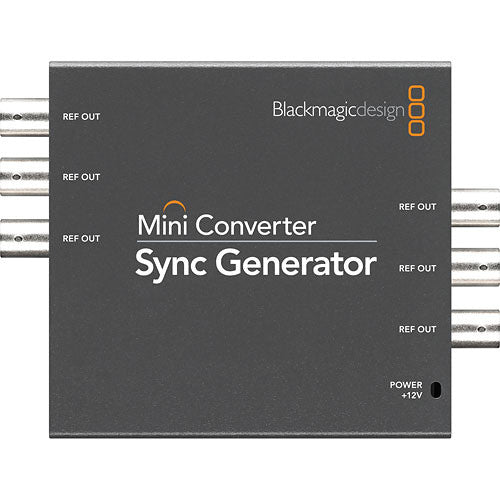

6 x common reference outputs.
Multi Rate Support

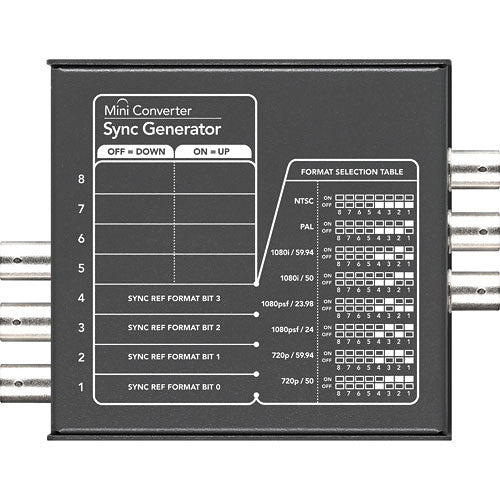

Via mini switches
Updates and Configuration
USB
Standards
Analog Format Support
625/25 PAL, 525/29.97 NTSC
720p50, 59.94, 60
1080PsF23.98, 24
1080p23080i50, 59.94, 60
1080p23.98, 24, 25, 29.97, 30
Software
Software Control
Mac OS X? and Windows? software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac OS X 10.9 Mavericks,
Mac OS X 10.10 Yosemite or later.
Windows 7 or Windows 8.
Settings Control
Mini Switches or USB software.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
3.00 Watts
Operational Voltage Range
12V DC
Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Mini Converter Sync Generator
Software and manual SD card
12V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer's Warranty.
