Blackmagic Design Mini Converter - SDI to Audio 4K
Tax included.
Mini Converter SDI to Audio 4K includes everything you need to de-embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can access the audio in any SDI video connection for output to a massive range of audio equipment such as audio mixers, analog broadcast decks, audio monitors and more!
Connections
SDI Video Input
Switchable between SD, HD, 3G and6G-SDI.
SDI Video Output
Automatically matches the SD, HD, 3G and 6G-SDI video input.
SDI Redundant Input
Automatically switches over if main SDI input is lost.
Analog Audio
4 channels of professional balanced analog audio with standard 1/4 inchjack connections.
AES/EBU Digital Audio
8 channels of professional balanced digital with standard 1/4 inchjack connections.
Multi Rate Support
Auto detection of 4K, UHD, 2K, HD or SD-SDI inputs.
Updates and Configuration
USB
Reclocking
Yes
Standards
SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE424M-B, SMPTE 425M, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601.
SDI Video Rates
SDI video connections are switchable between standard definition and
high definition.
SDI Video Sampling
4:2:2, 4:4:4
SDI Audio Sampling
Television standard sample rate of48 kHz and 24 bit.
SDI Color Precision
4:2:2, 4:4:4
SDI Color Space
YUV, RGB
SDI Auto Switching
Automatically selects between SD, HD, 3G and 6G-SDI.
SDI Format Support
525/29.97 NTSC, 525/23.98 NTSC,625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30 and 1080PsF30, 1080p50, 1080p59.94, 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30.
Software
Software Control
Mac OS X? and Windows? software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac OS X 10.9 Mavericks,
Mac OS X 10.10 Yosemite or later.
Windows 7 or Windows 8.

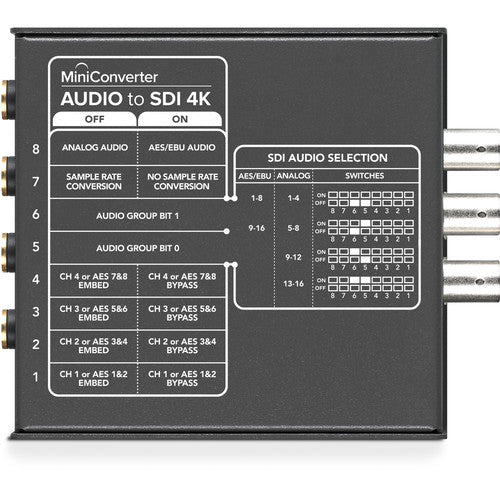

Settings Control
Mini Switches or USB software.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
5.52 Watts
Operational Voltage Range
12V - 31V DC
Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 60° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Mini Converter SDI to Audio 4K
12V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer's Warranty.
If you would like to confirm availability first or inquire for possible price-matching send us a quick mail.
