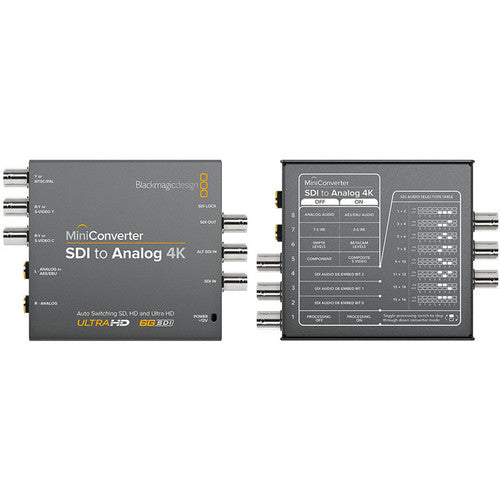

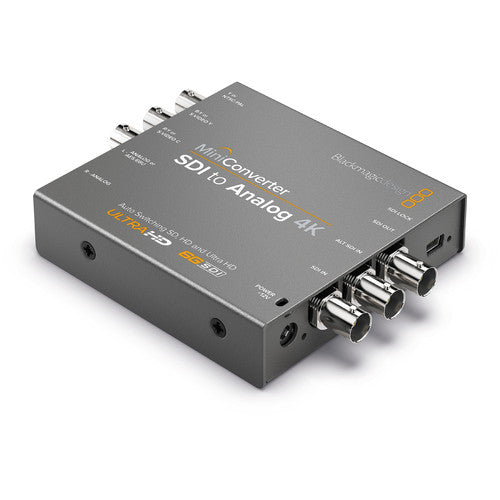

Blackmagic Design Mini Converter - SDI to Analog 4K
Tax included.
Mini Converter SDI to Analog 4K includes everything you need to convert from SD, HD, 3G and 6G-SDI video to analog in HD/SD component, NTSC and PAL video. The built in down converter means you can even connect Ultra HD sources to component video in SD or HD as well as NTSC and PAL video! Easily connect any analog equipment such as Betacam SP, VHS, and video monitors!
Connections
SDI Video Input
Switchable between SD, HD and
6G-SDI.
SDI Video Output
Automatically matches the SD, HD and6G-SDI video input.
Analog Video
NTSC, PAL, S-Video and component SD/HD from 6G-SDI input.
Analog Audio
2 channels of professional balanced analog audio with standard 1/4 inchjack connections.
AES/EBU Digital Audio
2 channels of professional balanced digital with standard 1/4 inch jack connections.
SDI Redundant Input
Automatically switches over if main SDI input is lost.
Multi Rate Support
Auto detection of SD, HD or 6G-SDI.
Updates and Configuration
USB
Reclocking
Yes
Standards
SD Format Support
525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL.
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60
2K Format Support
2048 x 1080PsF23.98, 2048 x 1080p23.98, 2048 x 1080PsF24, 2048 x 1080p24, 2048 x 1080PsF25, 2048 x 1080p25
4K Format Support
3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p24
SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601.
SDI Video Rates
SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.
SDI Video Sampling
4:2:2
SDI Audio Sampling
Television standard sample rate of48 kHz and 24 bit.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically detects SD, HD or6G-SDI.
Analog Format Support
625/25 PAL, 525/23.98 NTSC,525/29.97 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
Analog Color Space
YUV
Analog Color Precision
4:2:2
Format Conversion
HD down conversion
Software
Software Control
Mac OS X? and Windows? software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac OS X 10.9 Mavericks,
Mac OS X 10.10 Yosemite or later.
Windows 7 or Windows 8.
Settings Control
Mini Switches or USB software.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
8.04 Watts
Operational Voltage Range
12 - 31V DC
Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Mini Converter SDI to Analog 4K
Software CD
12V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer's Warranty.
