Blackmagic Design Mini Converter - SDI to Analog
Tax included.
The perfect way to convert from SD and HD-SDI to analog component, s-video or NTSC/PAL composite. Mini Converter SDI to analog supports all SD and HD input formats up to 1080p60 and includes a down converter for when you need to convert from HD to standard definition analog formats such as s-video and composite. Audio can be de-embedded to balanced analog or AES/EBU. Mini Converter SDI to Analog is ideal for converting to older analog equipment when you don't need the extra cost of the 6G-SDI 4K model.

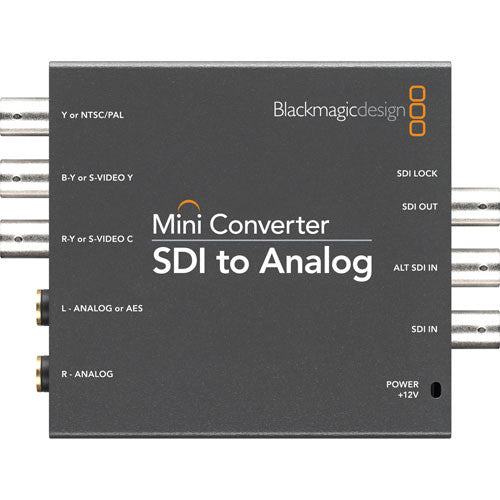

Connections
SDI Video Input
Switchable between SD, HD and
3G-SDI.
SDI Video Output
Automatically matches the SD, HD and3G-SDI video input.
Analog Video
NTSC, PAL, S-Video and component SD/HD from 3G-SDI input.
Analog Audio
2 channels of professional balanced analog audio with standard 1/4 inchjack connections.
AES/EBU Digital Audio
2 channels of professional balanced digital with standard 1/4 inch jack connections.
SDI Redundant Input
Automatically switches over if main SDI input is lost.
Multi Rate Support
Auto detection of SD, HD, 2K or 3G-SDI.
Updates and Configuration
USB
Reclocking
Yes
Standards
SD Format Support
525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL.
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60.
2K Format Support
2048 x 1080PsF23.98, 2048 x 1080p23.98, 2048 x 1080PsF24, 2048 x 1080p24, 2048 x 1080PsF25, 2048 x 1080p25
SDI Compliance
SMPTE 292M, SMPTE 259M,SMPTE 296M, SMPTE 372M,SMPTE 424M?-B, SMPTE 425M,ITU-R BT.656 and ITU?-R BT.601.
SDI Video Rates
SDI video connections are switchable between SD, HD, and DCI 2K.
SDI Video Sampling
4:2:2
SDI Audio Sampling
Television standard sample rate of48 kHz and 24 bit.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Auto detection of SD, HD or 3G-SDI.
Analog Format Support
625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC. 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
Analog Color Space
YUV
Analog Color Precision
4:2:2
Format Conversion
SD down conversion
Software
Software Control
Mac OS X? and Windows? software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac OS X 10.9 Mavericks,
Mac OS X 10.10 Yosemite or later.
Windows 7 or Windows 8.

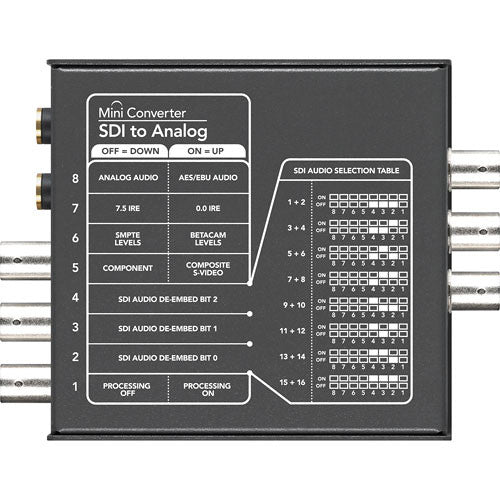

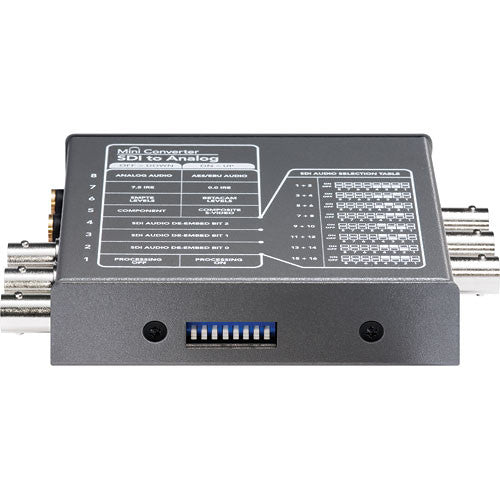

Settings Control
Mini Switches or USB software.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
8.04 Watts
Operational Voltage Range
12V DC
Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Mini Converter SDI to Analog
Software CD
12V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer's Warranty.
