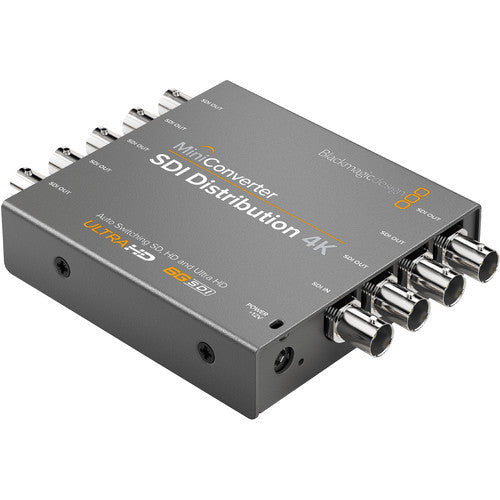

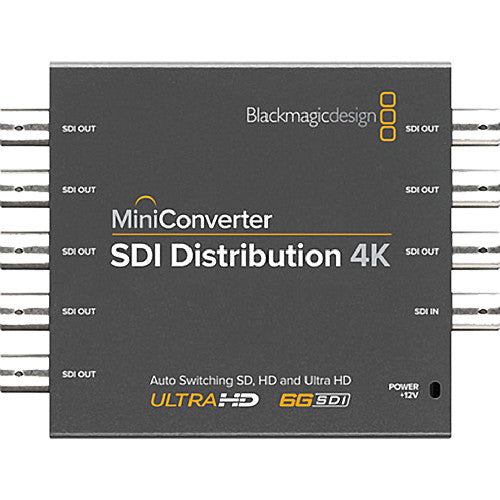

Blackmagic Design Mini Converter - SDI Distribution 4K
Tax included.
Description
When you need to connect to multiple SDI devices, then Mini Converter SDI Distribution 4K is the perfect solution! Connect a single SDI source to 8 re-clocked SDI outputs with automatic switching between all SD-SDI, HD-SDI, 3G-SDI and 6G-SDI video formats, plus all ASI, ancillary and embedded audio formats.
Connections
SDI Video Input
Switchable between SD, HD and
6G-SDI.
Reclocking
Yes
SDI Video Output
8 outputs automatically match the SDI video input.
Multi Rate Support
Auto detection of SD, HD or 6G-SDI.
Standards
SD Format Support
525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL.
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60
2K Format Support
2048 x 1080PsF23.98, 2048 x 1080p23.98, 2048 x 1080PsF24, 2048 x 1080p24, 2048 x 1080PsF25, 2048 x 1080p25
4K Format Support
3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p24
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE ST-2081
SDI Video Rates
SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of48 kHz and 24 bit.
SDI Color Precision
4:2:2 and 4:4:4
SDI Color Space
YUV and RGB
SDI Auto Switching
Automatically detects SD, HD or6G-SDI.
ASI Support
Yes
Operating Systems
Mac OS X 10.9 Mavericks,
Mac OS X 10.10 Yosemite or later.
Windows 7 or Windows 8.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
4.80 Watts
Operational Voltage Range
12 - 31V DC
Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Mini Converter SDI Distribution 4K
Software CD
12V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer's Warranty.
But If you want to confirm availability first or inquire for possible discounts send us a quick mail or open the chat tab.
