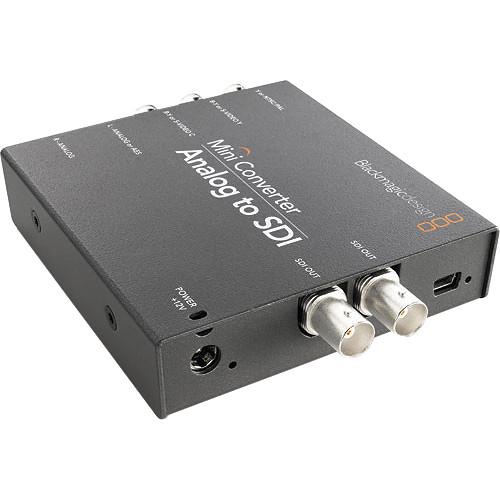

Blackmagic Design Mini Converter - Analog to SDI 2
Tax included.
The ideal solution for converting analog component, s-video, NTSC/PAL composite to SDI video. Audio can be embedded from balanced analog or AES/EBU inputs. Now you can convert analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD-SDI video.

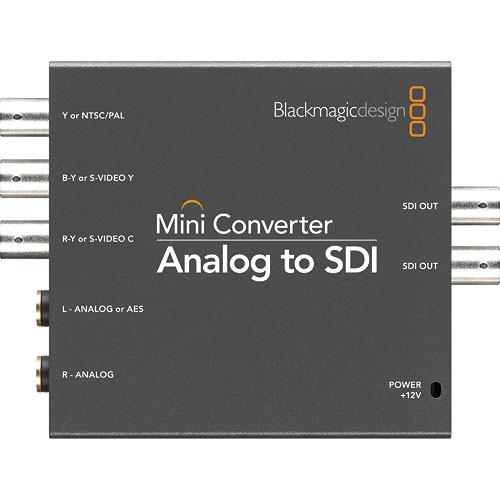

Connections
SDI Video Output
Automatically matches the SD and HD video input.
Analog Audio
2 channels of professional balanced analog audio with standard 1/4 inchjack connections.
Analog Video
Component SD/HD, NTSC, PAL and
S-Video.
AES/EBU Digital Audio
2 channels of professional balanced digital with standard 1/4 inch jack connections.
Multi Rate Support
Auto detection of HD or standard definition inputs.
Updates and Configuration
USB
Reclocking
Yes
Standards
SDI Compliance
SMPTE 292M, SMPTE 259M,SMPTE 296M, SMPTE 424M-?-B,ITU-R BT.656 and ITU-R BT.601.
SDI Video Rates
SDI video connections are switchable between standard definition and high definition.
SDI Video Sampling
4:2:2
SDI Audio Sampling
Television standard sample rate of48 kHz and 24 bit.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically follows format of analog input.
SDI Format Support
625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, 720p60.
Analog Format Support
625/25 PAL, 525/23.98 NTSC,525/29.97 NTSC, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
Analog Color Space
YUV
Analog Color Precision
4:2:2
Software
Software Control
Mac OS X? and Windows? software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac OS X 10.9 Mavericks,
Mac OS X 10.10 Yosemite or later.
Windows 7 or Windows 8.

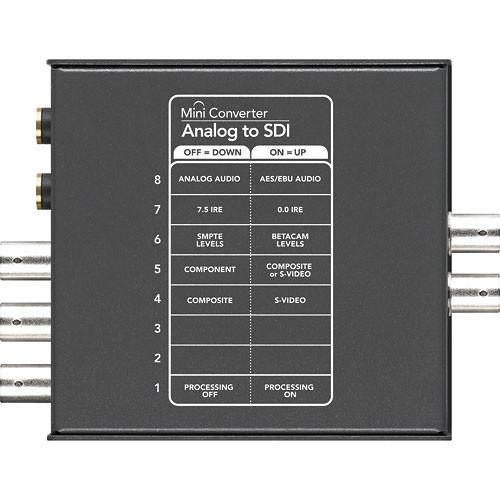

Settings Control
Mini Switches or USB software.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
6.50 Watts
Operational Voltage Range
12 - 31 V DC
Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Mini Converter Analog to SDI
Software CD
12V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer's Warranty.
