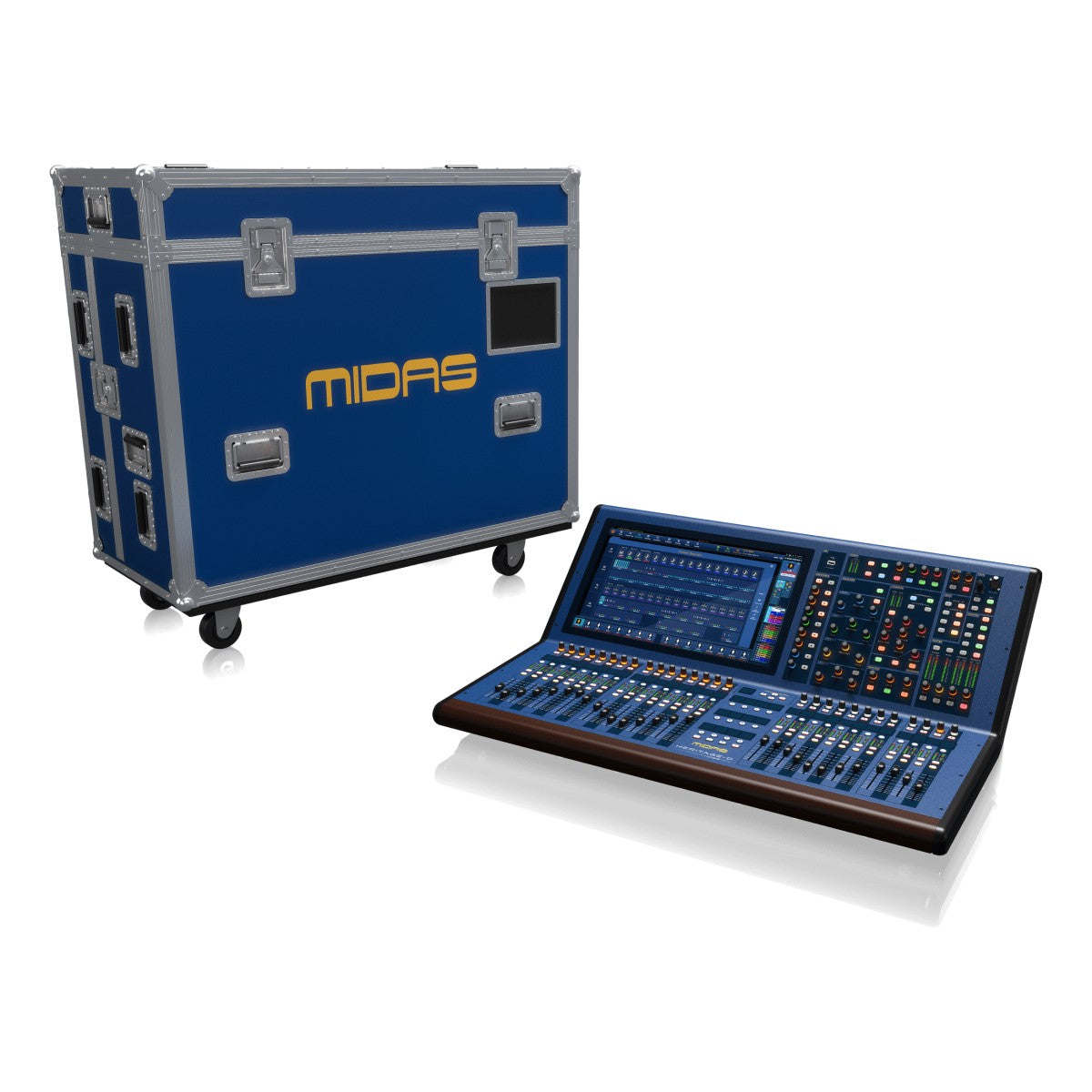

Midas Heritage D HD96-24-CC-TP (Tour Pack) - Price on request
Tax included.
The Future of Professional Mixing is Here

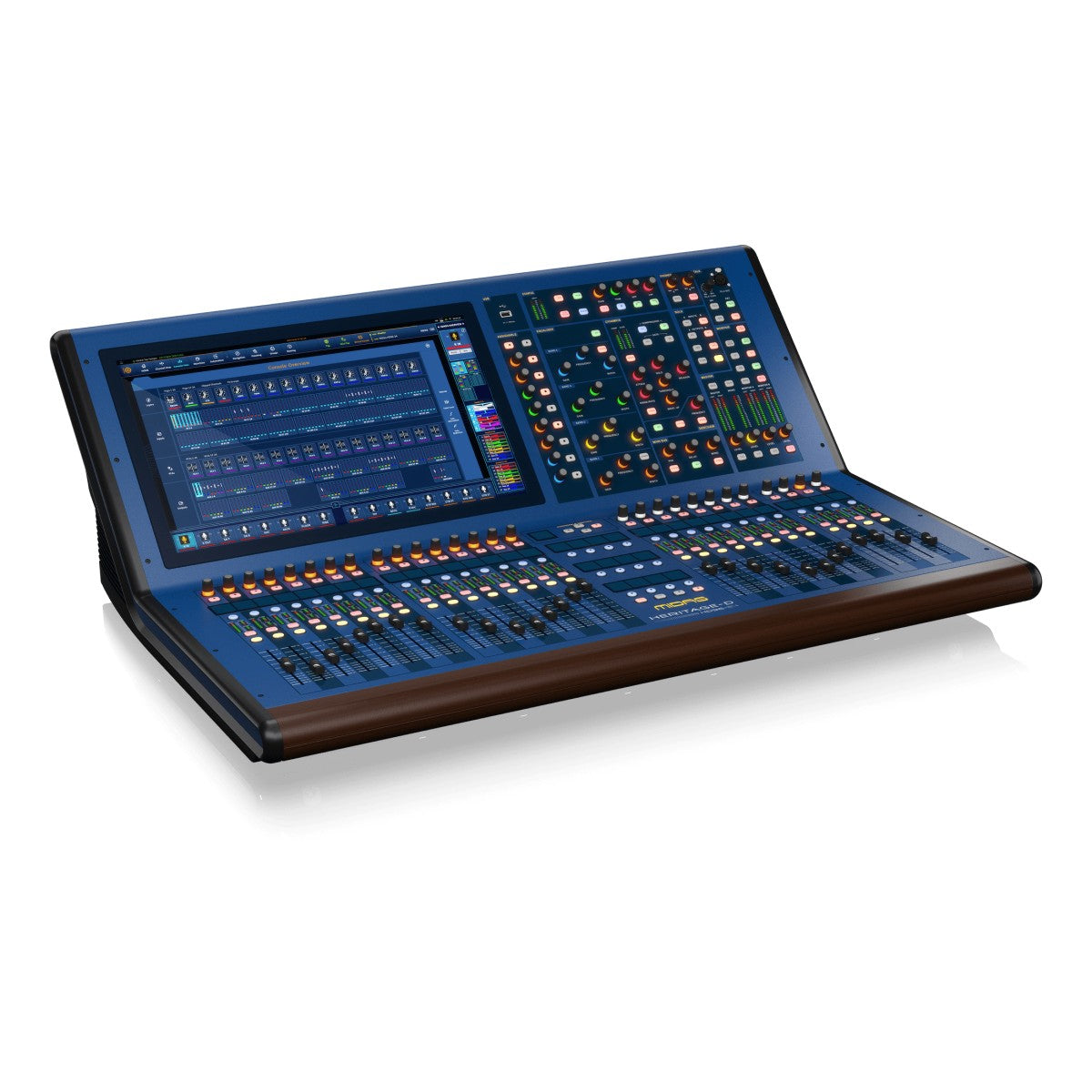

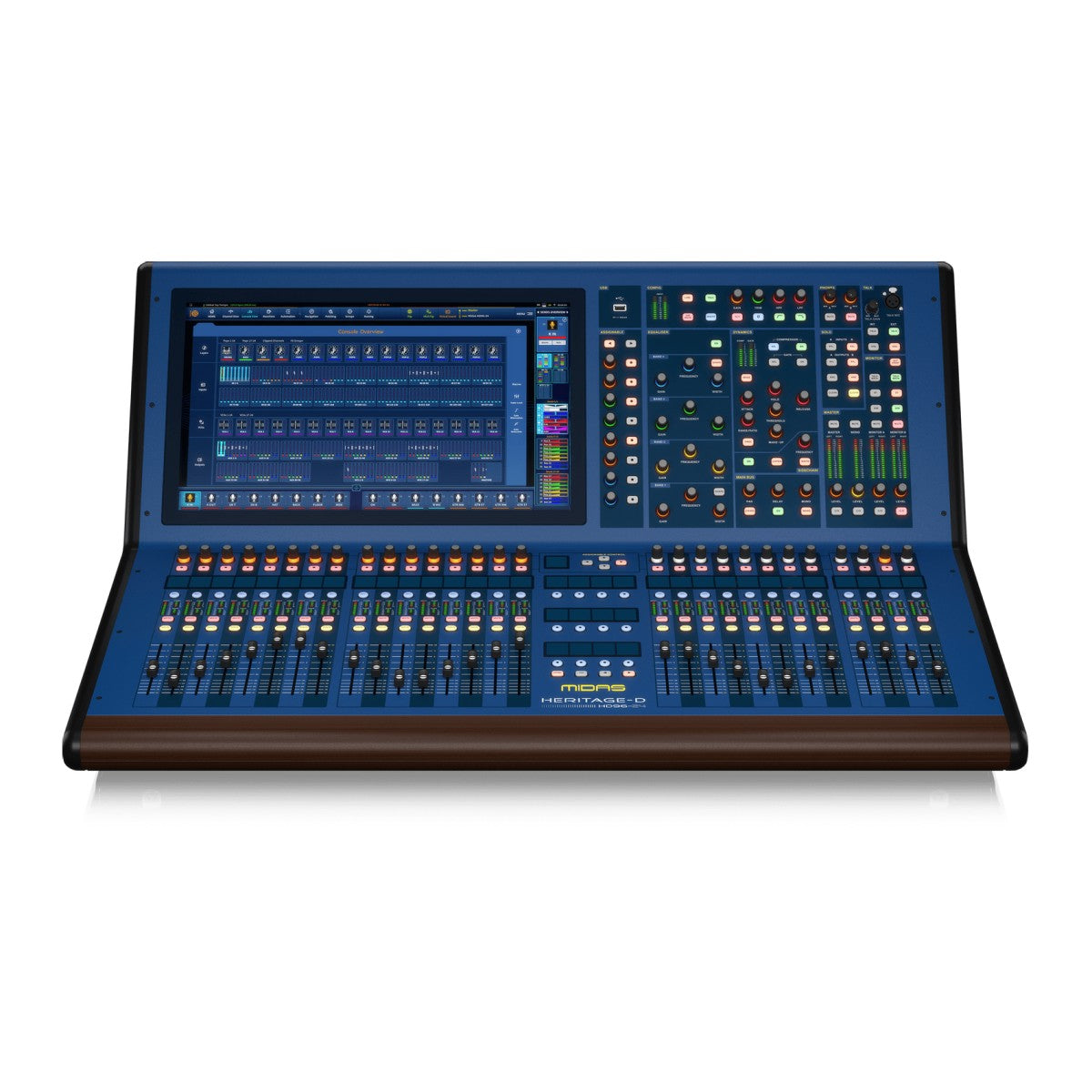

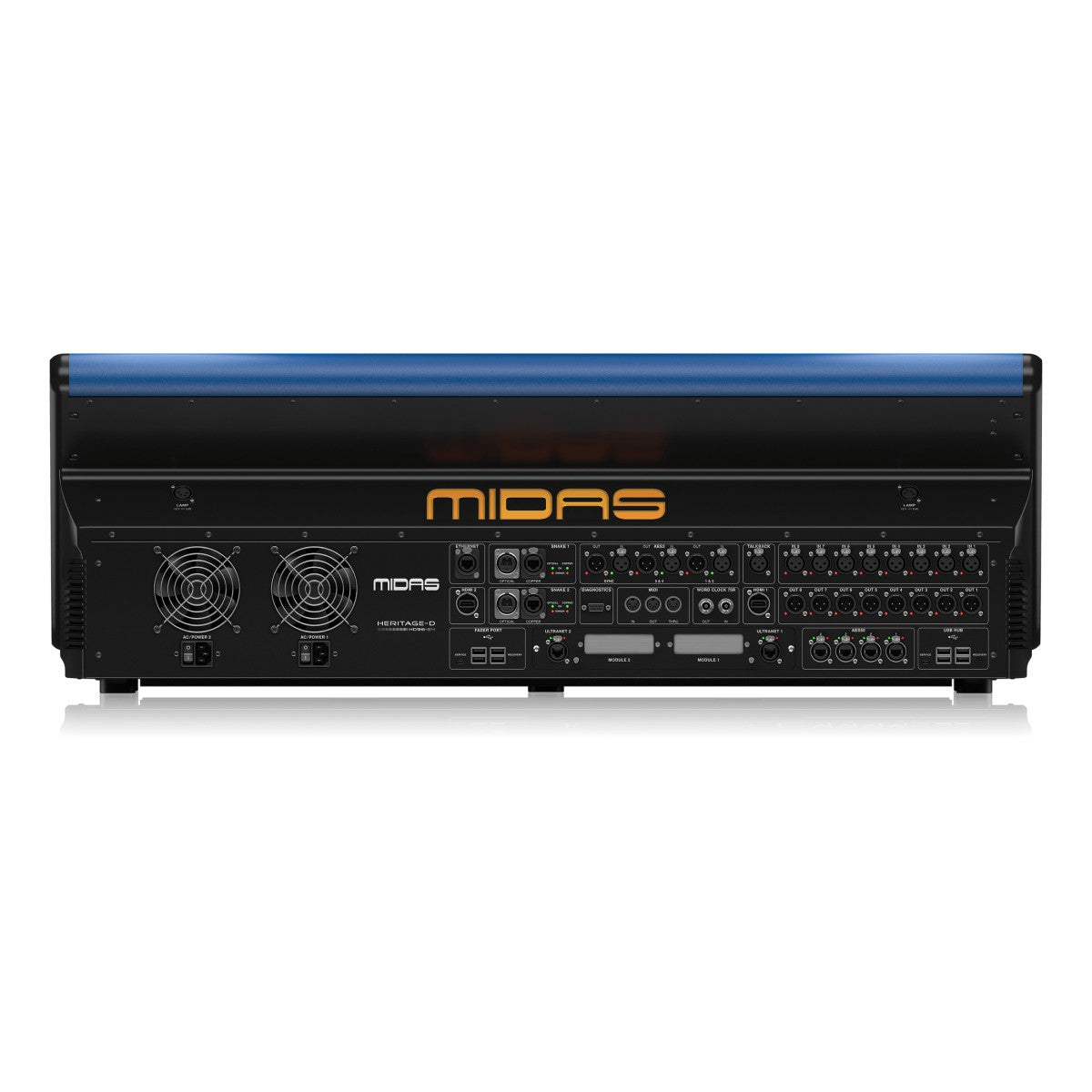

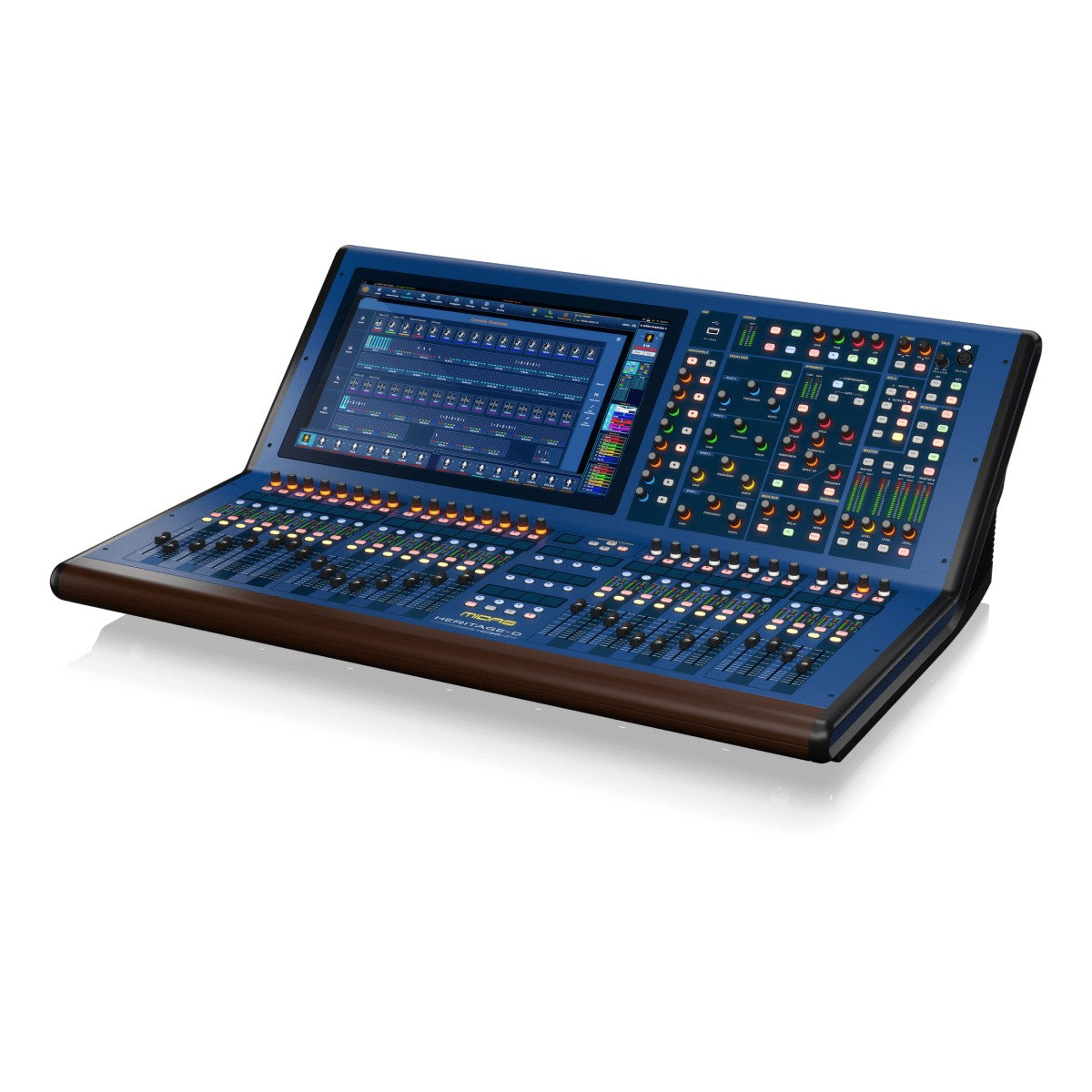

The Midas Heritage D HD96-24-CC-TP is a world-class, 144-input digital mixing console designed for elite audio engineers, touring professionals, and high-end venues. Building on the legendary legacy of the Heritage 3000 and PRO Series, this powerhouse provides unparalleled control and sonic purity for concert halls, houses of worship, and broadcast environments. Whether you are managing complex stage setups or high-stakes live broadcasts, the Heritage D offers a seamless, high-performance workflow in a tour-ready package.
Graviton Mk 2: Unrivalled Sonic Transparency
At the heart of the Heritage D is the Graviton Mk 2 processing engine, a 64-bit summing mix engine that provides an immense dynamic range. This state-of-the-art technology delivers the classic "Midas sound" with industry-leading delay compensation, effectively eliminating the comb filtering artifacts that plague lesser consoles. The result is a mix with incredible headroom, warmth, and a clean, pure audio character that brings every instrument to life.
Channel AI: The World’s Smartest Assistant
The Heritage D introduces a revolutionary Channel AI system that actually "listens" to your sources. It can identify the instrument, suggest optimal Gain, EQ, Compression, and Gate settings, and present them in an intuitive interface. This allows engineers to make lightning-fast adjustments during soundcheck, ensuring a polished, professional mix even when time is of the essence.
Ultimate Tactile Control and Flexi-Routing
Take command with a stunning 21-inch full-color capacitive touch display and 28 motorized Midas PRO faders. The innovative Flexi Aux system allows for aux-to-aux routing, enabling complex group or stem-style mixing, such as sending a parallel-compressed drum bus directly to an artist's in-ear monitors. With 120 time-aligned, phase-coherent mix buses, your routing possibilities are virtually limitless.
Main features:
- Live performance digital control centre with up to 144 simultaneous input channels and 96 kHz sample rate
- 123 time-aligned and phase-coherent mix buses
- 21" full colour TFT display screen with capacitive touch sensing
- Advanced and multi gesture, touchscreen user interface
- Award-winning Midas microphone preamplifiers
- HyperMAC and AES50 networking allows up to 480 inputs and 480 outputs @ 96 kHz sample rate
- Dual Network Bridge Format Converter with up to 128 Bidirectional Channels and Asynchronous Sample Rate Conversion
- 24 VCA (variable control association) groups, and 24 POPulation groups
- Up to 48 assignable 1/3 octave Klark Teknik DN370 graphic equalisers
- Up to 24 multi-channel digital signal processing effects engines
- Integrated Bluetooth and wireless transceiver module
- Dual ULTRANET Ports providing 32 additional digital outputs
- 28 MIDAS PRO motorised 100 mm faders
- Fully interpolated touch sensitive controls
- Optional wireless remote control with remote application
- Dual redundant auto-ranging universal switch-mode power supplies
Tech Specs:
-
I/O Capacity: 144x Input / 96x Output (with Optional Hardware)
-
Analogue Inputs: 8x XLR Balanced Mic/Line; 1x XLR Balanced Talkback
-
Analogue Outputs: 8x XLR 3-Pin Balanced Main Outputs
-
Mic Preamps: 8x Award-winning Midas Preamplifiers
-
Digital I/O: 2x AES3 In/Out; 4x AES50 In/Out (HyperMAC & AES50 Networking)
-
Sample Rate: 96 kHz (24-bit AD/DA conversion)
-
Faders: 28x 3.9" (100 mm) Motorized Midas PRO Faders
-
Display: 21" Full-Color Capacitive Multi-Gesture Touchscreen
-
Mix Buses: 120 Time-Aligned, Phase-Coherent Mix Buses
-
VCA / POP Groups: 24 VCA Groups; 24 POPulation Groups
-
DSP Engine: 18 Sharc DSPs, 5 FPGAs, and 2 GPU Co-processors
-
Effects: Up to 96 Effects (TC Electronic, VSS4, VSS3, etc.)
-
Connectivity: 8x USB-A 3.0; Dual Ultranet Ports; Wi-Fi/Bluetooth 4.0
- Power: Dual Redundant Auto-Ranging Power Supplies
- Explore Midas Live Digital Console Control Centres [HD96-24-CC-TP]: https://www.midasconsoles.com/product.html?modelCode=0603-AED
