Midas DL32 32-input / 16-output Digital Stage Rack

32-in/16-out Stage Box with 32 Midas Microphone Preamplifiers, Ultranet Ethernet Compatibility, and ADAT Digital Connectivity.

Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. The DL32 is the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world – the I/O packed and highly affordable DL32 digital stage box. The DL32 provides 32 Midas PRO Series remote-controllable mic preamps, plus 16 balanced analog XLR returns at the stage end – and all it takes is a single Cat 5e cable (up to 100 m / 328'). While Klark Teknik, the industry-leader in high-end digital audio processing, invented the AES50 SuperMAC technology that made it all possible – our superb scale of production makes the DL32 so very affordable.

When used as part of a complete M32 system, two DL32 Stage Boxes can be cascaded via the built-in AES50 ports, providing connectivity for up to 64 mic/line inputs, 32 balanced outputs and the ULTRANET port allows direct connection to Turbosound iQ Series loudspeakers and the Behringer POWERPLAY P-16 Personal Monitoring System – which can feed up to 48 individual monitor mixers. We also included 2 optical ADAT sockets and AES-3 (AES/EBU) for connecting to outboard devices, a convenient USB port for system updates via your PC – plus MIDI I/O for lighting systems and sound module control.

Midas DL32 Stage Box Features:

• Flexible professional digital stage box that works with Powerplay monitor systems and AES50-ready digital consoles
• 32 x fully programmable and remote-controllable Midas Pro mic preamps give you exceptional sound, right from the stage
• 16 x analog, servo-balanced XLR outputs let you send complete monitor mixes to the stage
• AES50 network ports provide you with ultra-low latency digital audio that's in-ear compatible
• Up to 328' of networking capability via a single lightweight Cat 5e cable (not included)
• Dual AES50 ports let you cascade up to 2 DL32 units together for an up to 64-in/32-out system
• Precise LED metering plus 7-segment displays let you keep a close eye on your levels
• Headphones output assignable to any of the inputs/outputs for on-stage monitoring
• Ultranet connectivity for Behringer's Powerplay P16 personal monitoring system is perfect for in-ear applications
• Dual ADAT outputs for use in splitter mode and stand-alone digital multicore applications
• MIDI In/Out provide bidirectional communication between FOH console and on-stage MIDI devices
• Durable yet compact, all-steel 3U rack-mount chassis provides flexible mounting

Tech Specs:

• Type:Digital Stage Box
• Compatibility:AES50/Ultranet systems
• Channels:32 x 16

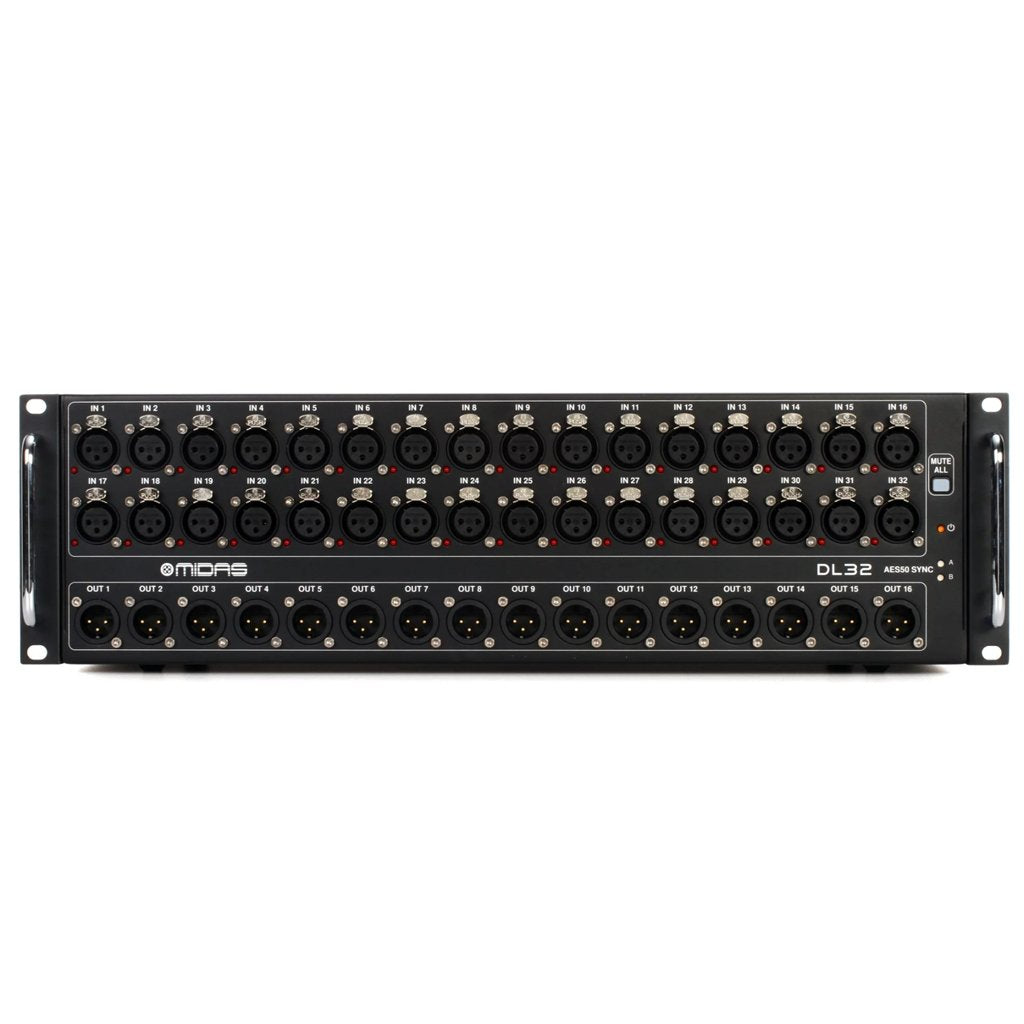

• Inputs - Mic Preamps:32 x XLR
• Phantom Power:Yes
• Outputs - Main:16 x XLR (line)

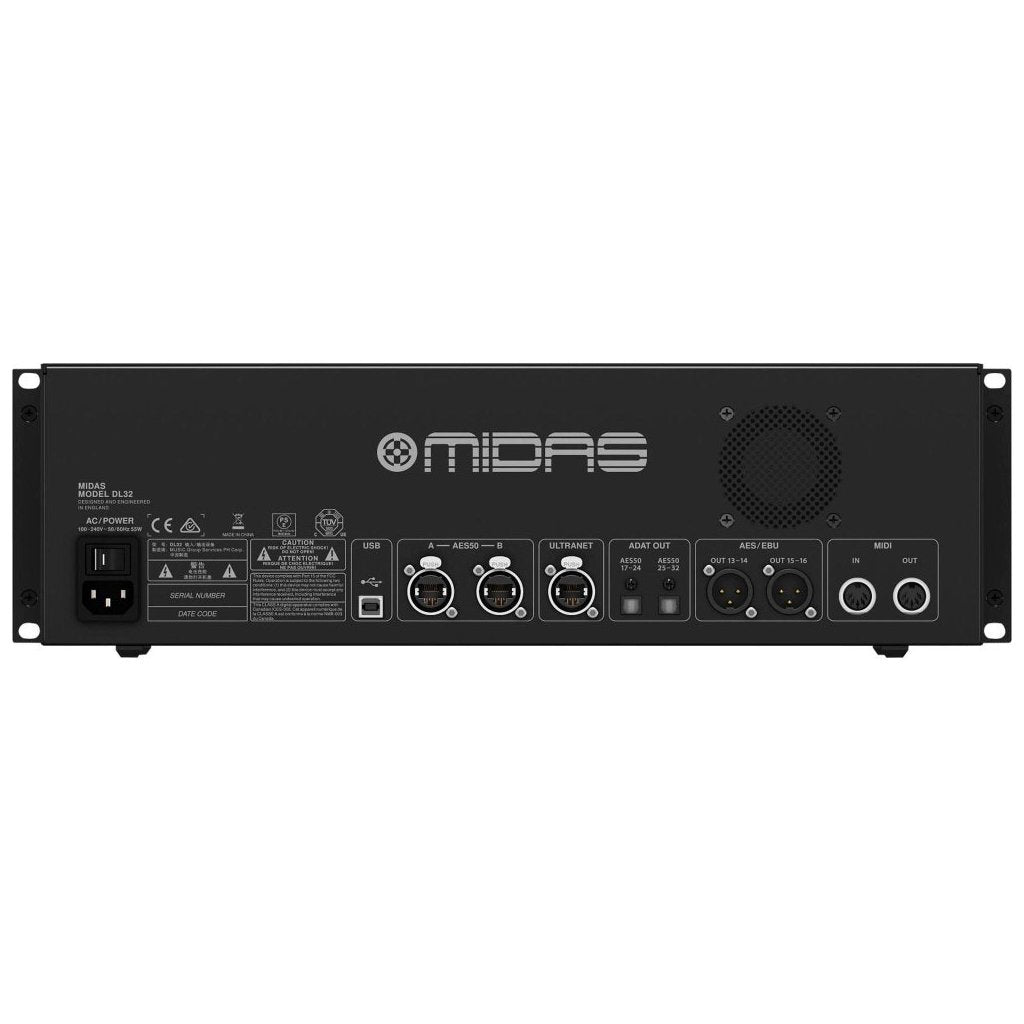

• Inputs - Digital:2 x EtherCon (AES50)
• Outputs - Digital:2 x EtherCon (AES50), 2 x XLR (AES/EBU), 2 x Optical Toslink (ADAT)
• Data I/O:1 x Ethernet (Ultranet monitoring)
• USB:1 x Type B
• Computer Connectivity:USB, Ethernet
• MIDI I/O:In/Out
• Rackmountable:3U
• Depth:9.5"
• Width:19"
