Merging Technologies HAPI MkII Converter + ADA8S Combo 2 - Contact us for pricing

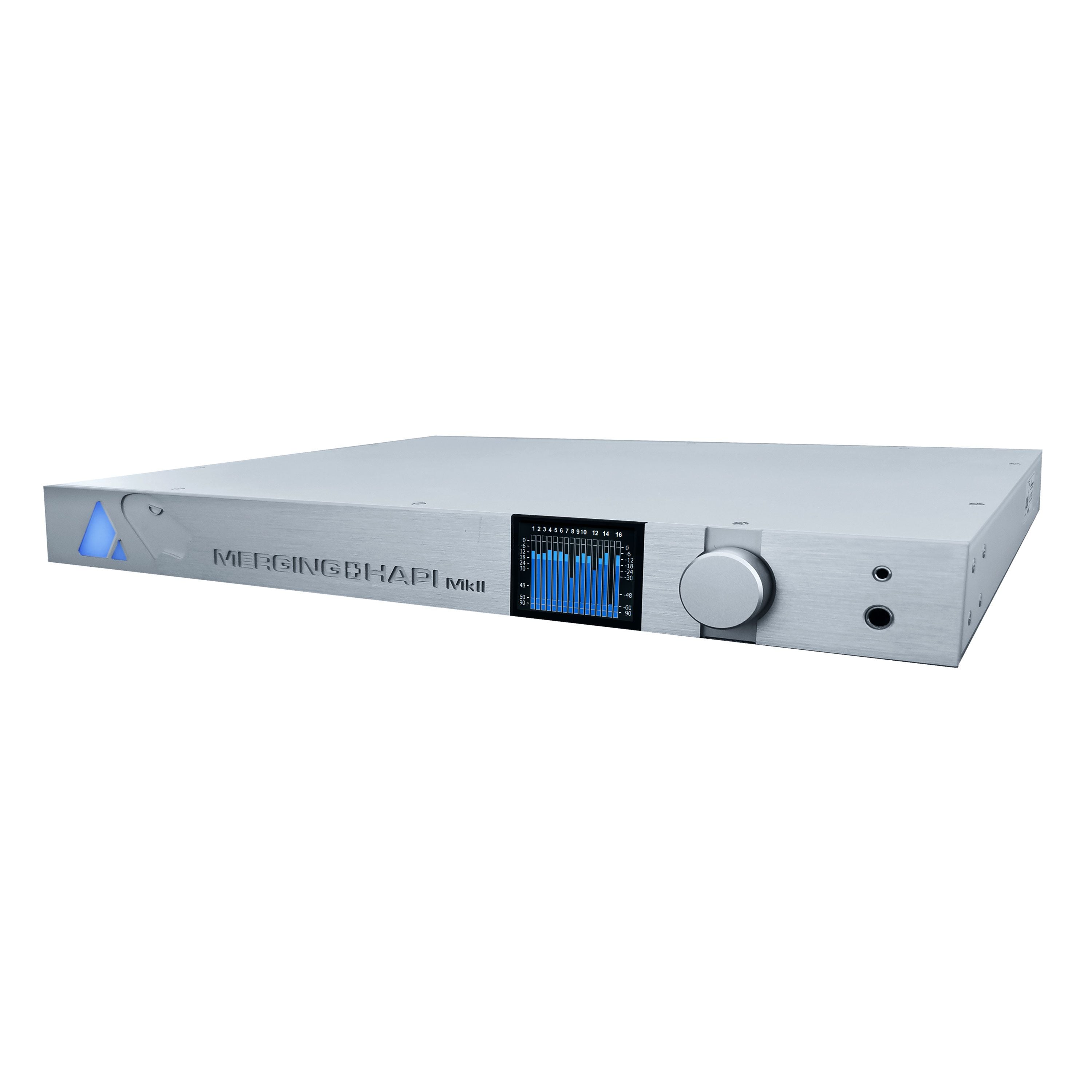

The Merging Technologies HAPI MkII is a flexible and transparent 24-bit/192kHz audio interface using the same RAVENNA / AES67 connectivity as the Horus.

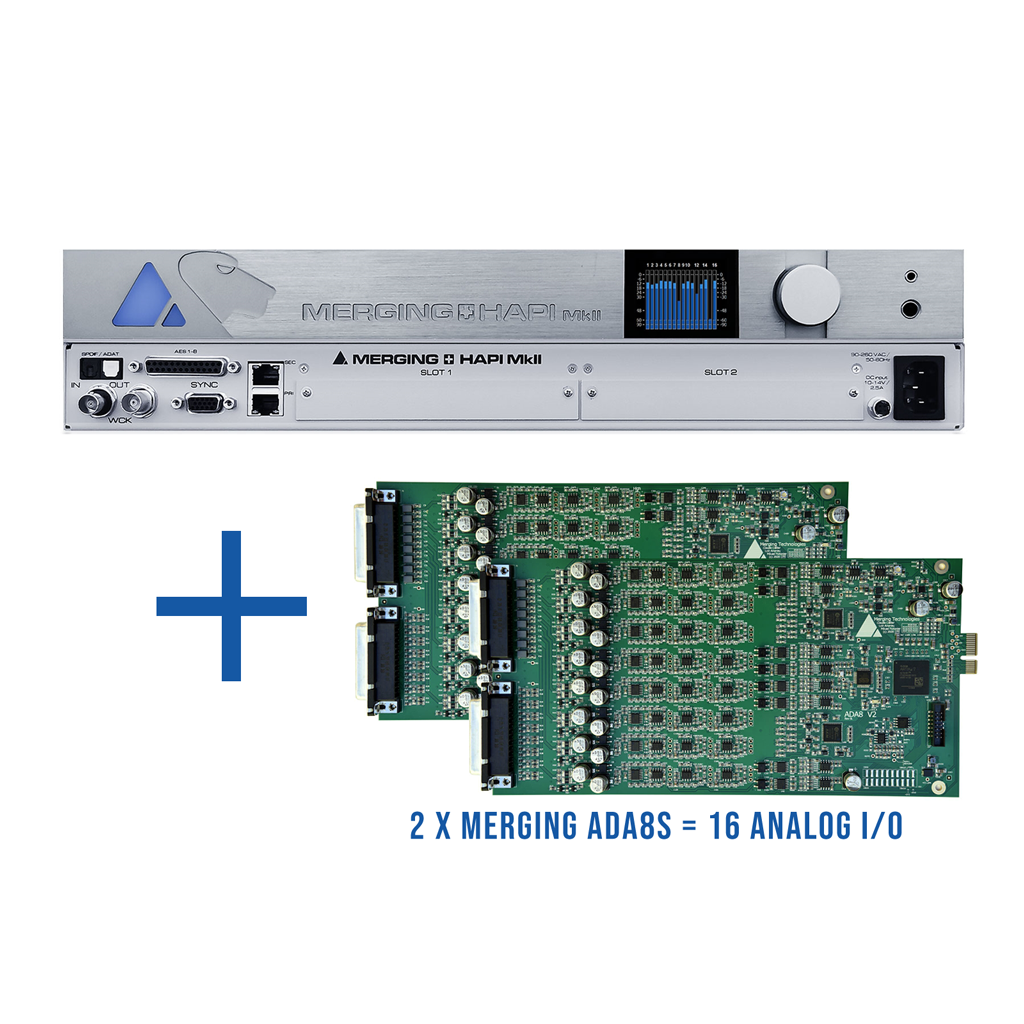

Includes two stunning ADA8S version 2 cards for 16 channels of pristine mastering grade analog I/O.

The Merging Technologies HAPI MkII is compact and ideally suited for smaller systems and can be used as a primary interface or as part of a larger Horus system providing control room I/O connectivity. The diminutive audio interface is capable of holding both standard and premium analogue cards used in Horus ensuring that users get the exact same sound quality as the highly respected Horus. An optional MADI card is also available for additional digital I/O.

HAPI MkII uses RAVENNA connections which is compatible with AES67 protocols and offers flexible connectivity of every single I/O used across standard networks. Designed to fit in places that are hard to reach, HAPI comes with a web-browser control interface allowing the user to access all the parameters of each HAPI unit via any web-enabled device on a network. HAPI comes with ASIO and Core Audio drivers to work with both Mac and PC audio workstations using the Ethernet socket. Furthermore, HAPI MkII features a second ethernet port connect to another interface and computer without an external switch.

HAPI MkII now includes the ZMAN DSP processor first introduced in the Anubis offering noticeable performance upgrades. Combined with the latest ADA8S and ADA8P and their improved headroom, the HAPI mkII can offer twice the amount of analogue I/O to 16-in/16-out in DSD/DXD format.

Designed to offer the ultimate in flexibility, HAPI can be used with a choice of AC or DC power supplies including battery packs, wall warts to the conventional built-in PSU.

Main Features:

Tech Specs:

Digital I/O

• 8 AES/EBU I/O (D-SUB)
• 8 ADAT / 2 SPDIF (Switching)
• RAVENNA / AES67 (RJ45)
• Word Clock I/O

Synchronization I/O

• LTC
• MIDI
• Video Reference

Sample Rate support

• 44.1 – 384 kHz PCM
• DXD and DSD64/128/256

User Interface

• Remote control over LAN (CAT5E/CAT6)
• Direct access on unit with rotary control

Redundant Power Options:

• Optional DC power input to be used as a redundant or alternate power source

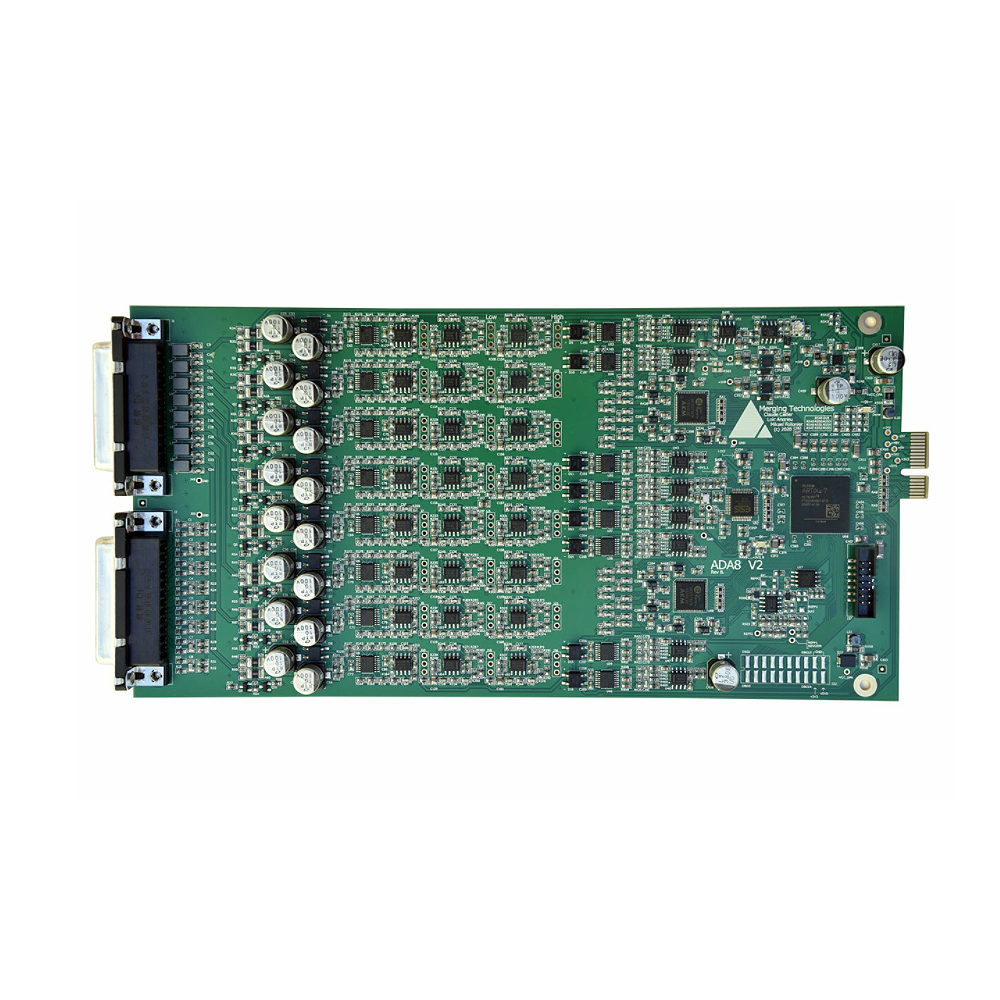

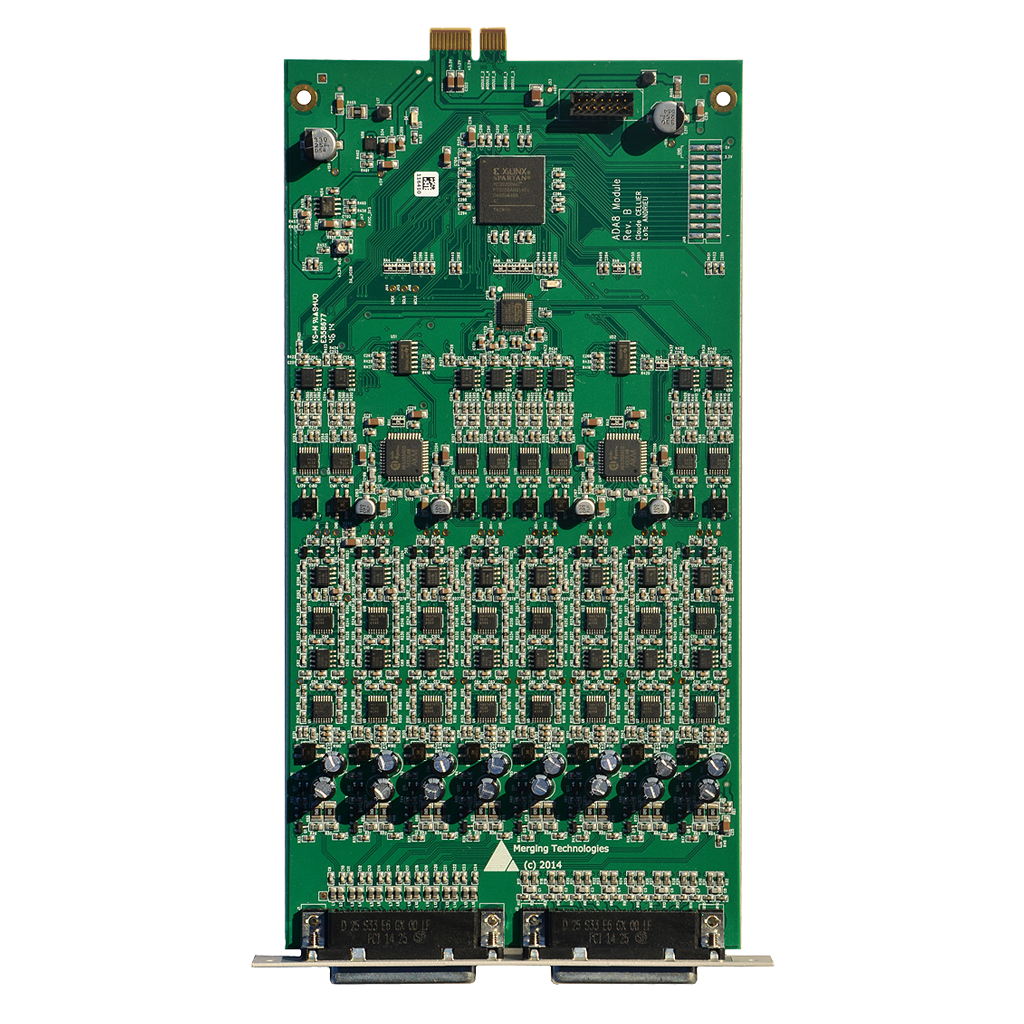

INCLUDED 2 x ADA8S OPTION CARDS

MIC PRE-AMP + ADC SECTION
Mic Pre Max Input (Mic+Pad / Mic / Mic Boost) +24 dBu / +12 dBu / +0 dBu
Input Impedance (Differential, Software Switchable Per Channel) 3 kΩ / 10.4 kΩ
Frequency response +0/-0.3dB @ fs = 48 kHz 9 Hz – 22 kHz
Frequency response +0/-0.3dB @ fs = 96 kHz 9 Hz – 46 kHz
Frequency response +0/-0.3dB @ fs = 192 kHz 11 Hz – 94 kHz
Dynamic Range (A-weighted, typ.), ref +12 dBu 137 dB
Dynamic Range Mic Boost (A-weighted, typ.), ref 0 dBu 128 dB
Gain Range (software controlled) 0 dB to +66 dB
THD+N Pre + A/D (20 Hz - 20 kHz) @ -2 dBFS < -111 dB (0.00028 %)
Interchannel Crosstalk @ 1kHz < -130 dB
EIN @ > 40 dB Gain (150Ω Source Impedance, A-weighted) < -127 dBu
Common Mode Rejection Rate (20 Hz – 20 kHz) > 75 dB
Phantom Power (Software Switchable Per Channel) +48V
Polarity Invert (Software Switchable Per Channel) YES
Low Cut filter (Software Switchable Per Channel) -12 dB/octave, 80 Hz

LINE INPUT
Max Line Input for 0 dBFS +24 dBu
Input Impedance (Differential) 10.4 kΩ
Dynamic Range (A-weighted, typ), ref +24 dBu 139 dB
THD+N Line+A/D (20 Hz - 20 kHz) @ -2 dBFS < -111 dB (0.00028 %)
Interchannel Crosstalk @ 1kHz, typ. < -135 dB
Sensitivity Range for 0 dBFS (software controlled) -42 dBu to +24 dBu
Gain Step 0.5 dB
Common Mode Rejection Rate (20 Hz – 20 kHz) > 70 dB
Connector Pinout DB-25 / AES59 (Tascam Ana.)

LINE OUTPUT SECTION
Max Output level software switchable for 0 dBFS +24 dBu / +18 dBu +0/-0.5 dB
Frequency response +0/-0.3dB @ fs = 48 kHz 0 Hz – 22 kHz
Frequency response +0/-3dB @ fs = 96 kHz 0 Hz – 46 kHz
Frequency response +0/-3dB @ fs = 192 kHz 0 Hz – 92 kHz
Output Impedance (Differential) < 80 Ω
Dynamic Range (A-weighted, typ.) 125 dB / 126 dB
THD+N (1 kHz) @ 0dBFS < -115 dB (0.00017 %)
Interchannel Crosstalk @ 1kHz < -139 dB
Connector Pinout DB-25 / AES59 (Tascam Ana.)

LATENCIES
Input latency at 44.1/48kHz 8 samples
Input latency at 88.2/96kHz 8 samples
Input latency at 176.4/192kHz 8 samples
Input latency at DXD/384kHz 10 samples
Output latency at 44.1/48kHz 9* samples
Output latency at 88.2/96kHz 9* samples
Output latency at 176.4/192kHz 9* samples
Output latency at DXD/384kHz 9* samples

* Filter setting
- Slow Roll Off Filter option = 9 Samples
- Sharp Roll Off Filter option = 38 Samples
