[DRAFT] The ORCA BAY is the new flagship analogue hardware equalizer from MANULTEC – Smart Audio Controls. The unit stands out with unique sonic character...

Vendor :Manultec

Type :Stereo Analog EQ

R80,902.00

Add to wishlist

[DRAFT]

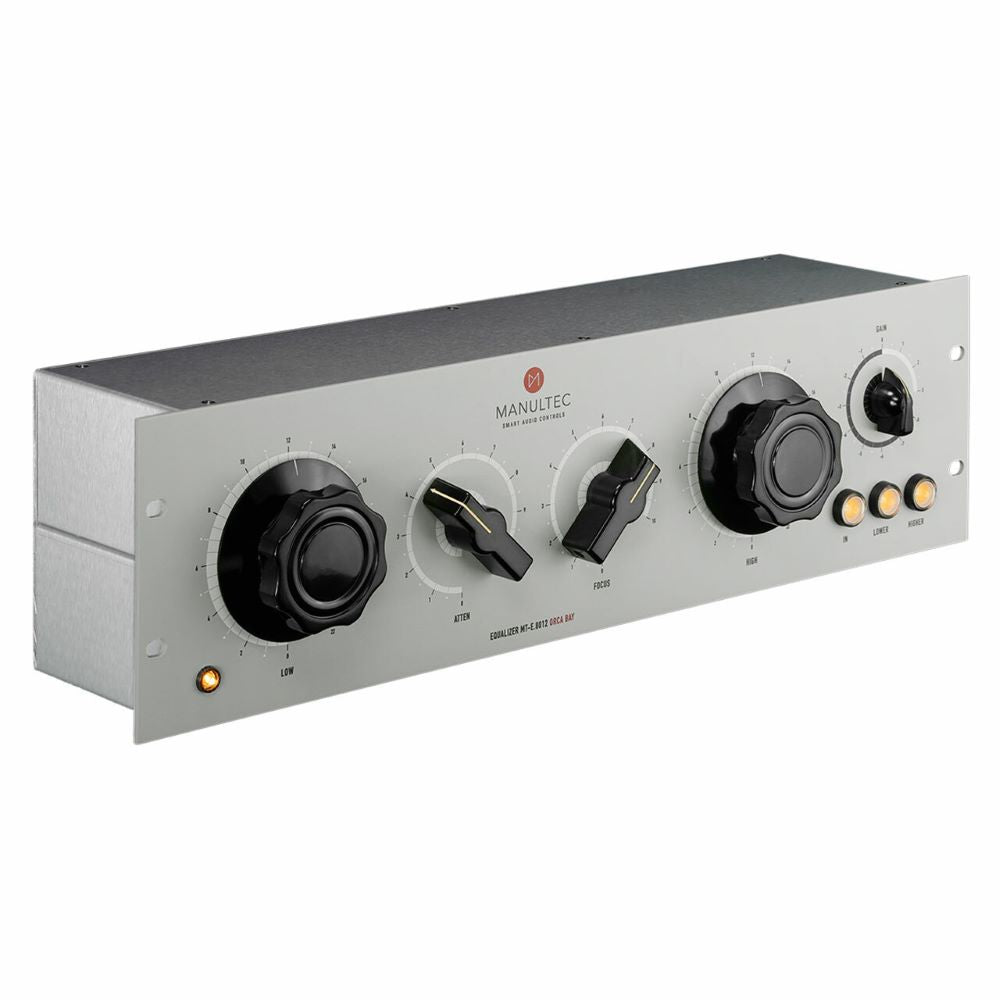

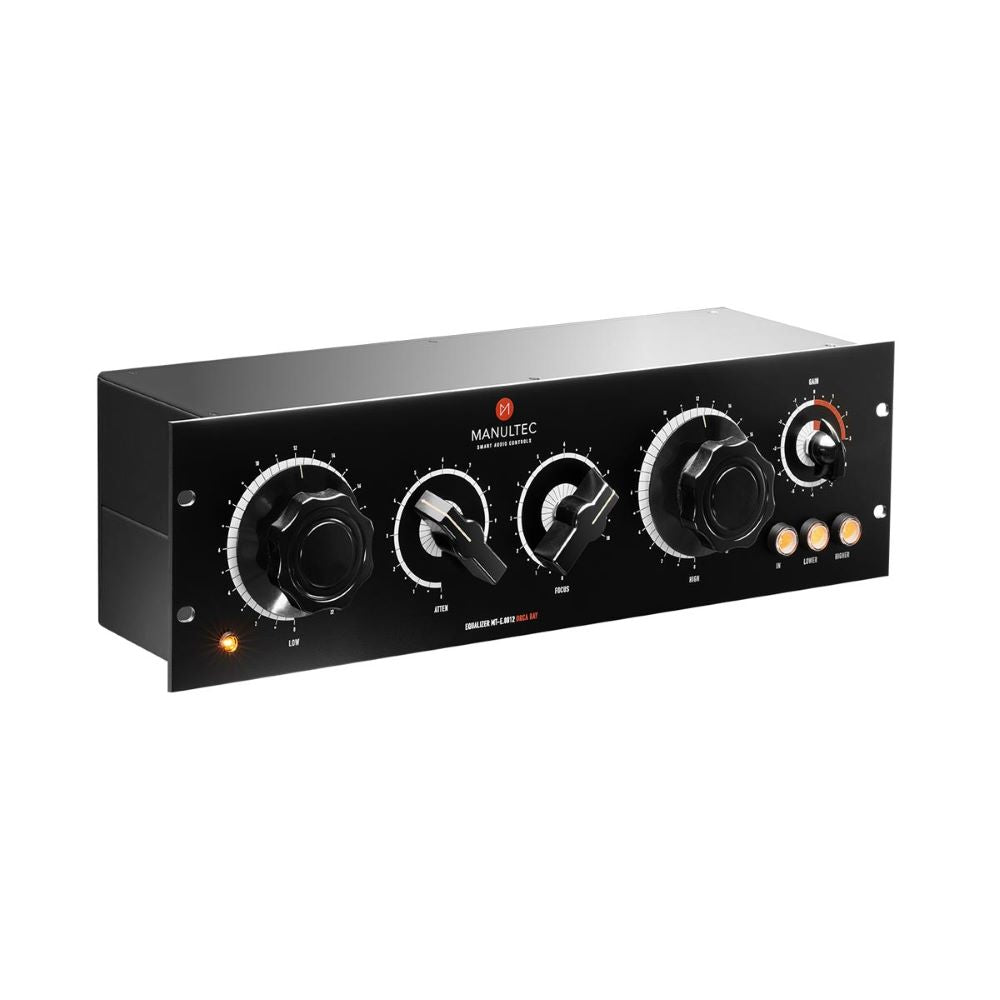

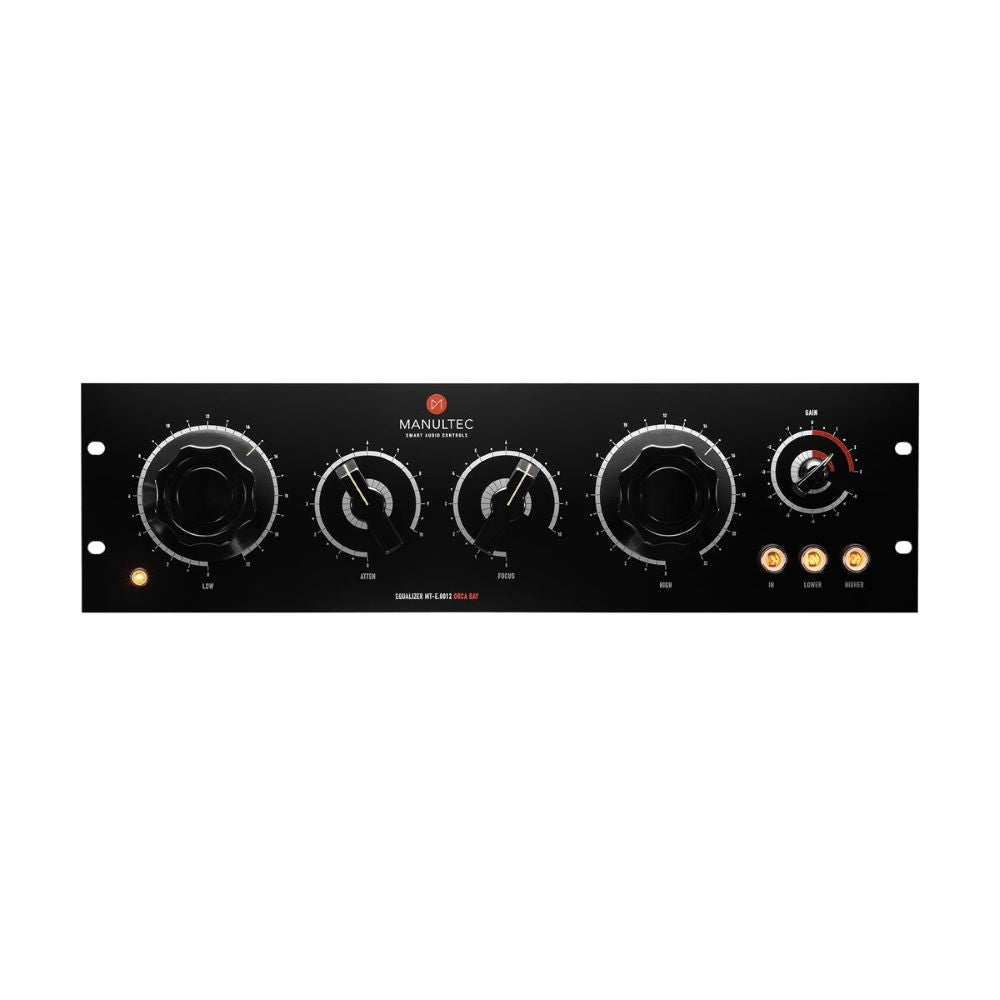

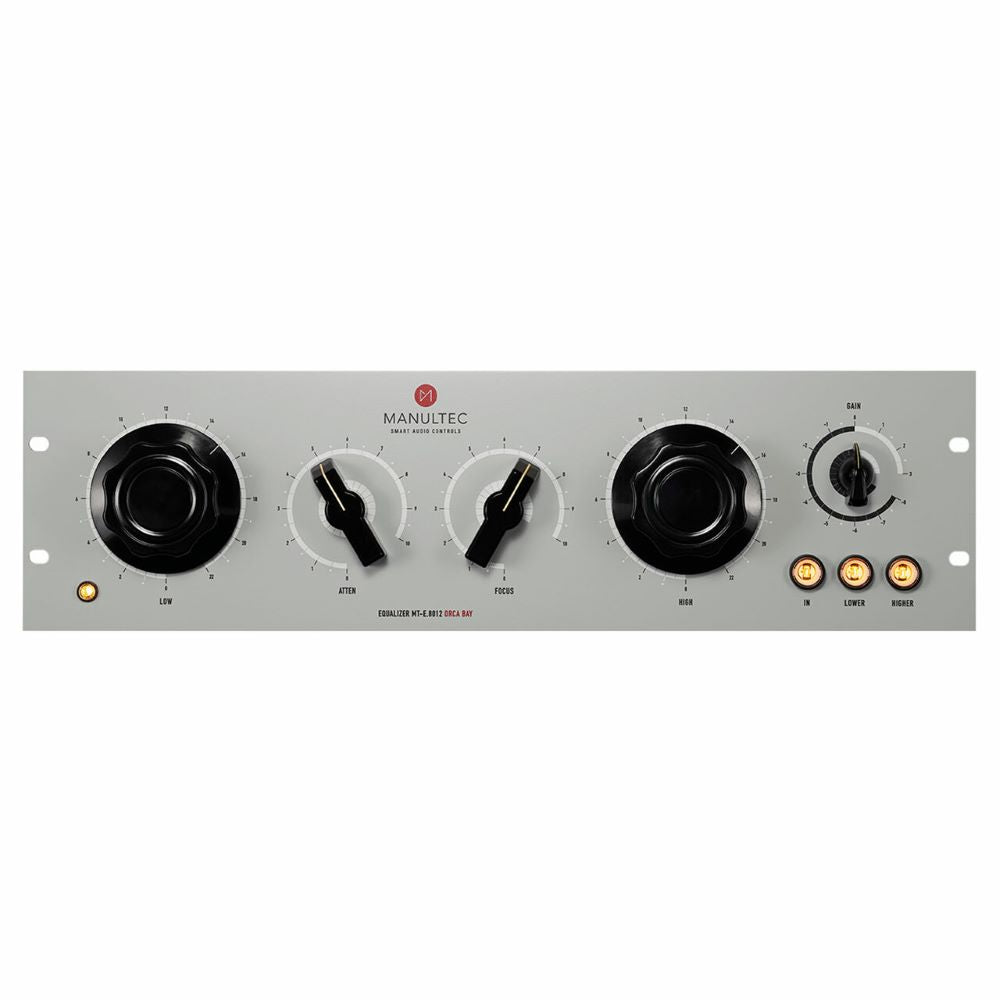

The ORCA BAY is the new flagship analogue hardware equalizer from MANULTEC – Smart Audio Controls. The unit stands out with unique sonic character only met by its exquisite beauty. It takes the knowledge and research we cultivated in the last years to the next level, by re-examining every detail to enhance sound and feel. MANULTEC´s sophisticated circuit provides ultra tight low end and vibrant dynamic projection to highlight the distinct sound of the MT-E.8012 ORCA. The minimal, yet beautiful design offers a timeless appearance and makes this equalizer an absolute joy to use.

Main features:

  • Powerful stereo solid state equalizer with all passive tone sculpting circuit
  • Manufactured with premium selected components
  • Ease of operation through clearly arranged interface design
  • Antique bakelite knobs for comfortable handling (New Old Stock)
  • Subbass meter “DUBBY’s Lämple” indicating low frequency content
  • Hand-crafted in Germany

  • Functions:

  • Lamp: Subbass meter “DUBBY’s Lämple” indicating low frequency content
  • Low: low boost (shelf), stepped, + 14 db – 80 Hz / 100 Hz
  • Atten: low cut (shelf), – 14 db – 150 Hz / 330 Hz (switch out)

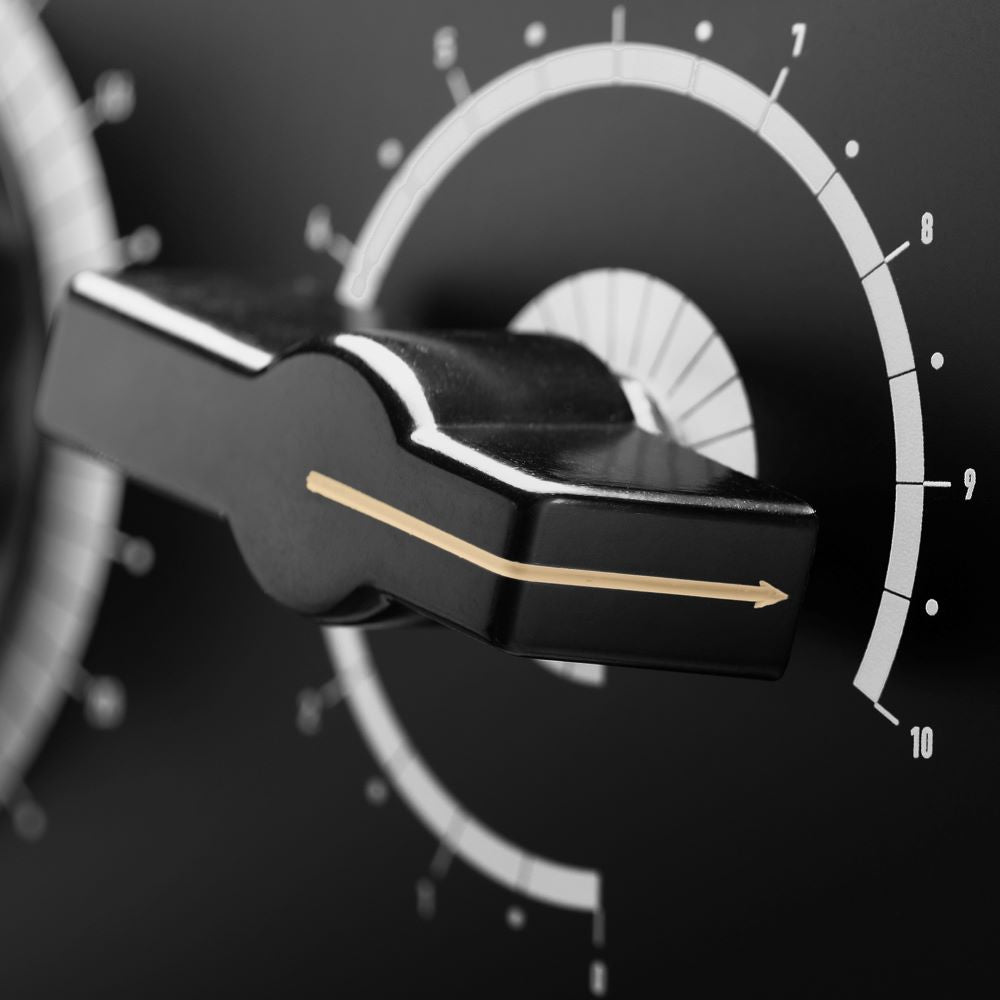

  • Focus: Bandwidth control, high boost (bell)
  • High: high boost (bell), stepped, switchable 3 KHz / 12 kHz, + 11 db (FOCUS: 0) / + 21 db (FOCUS: 10)

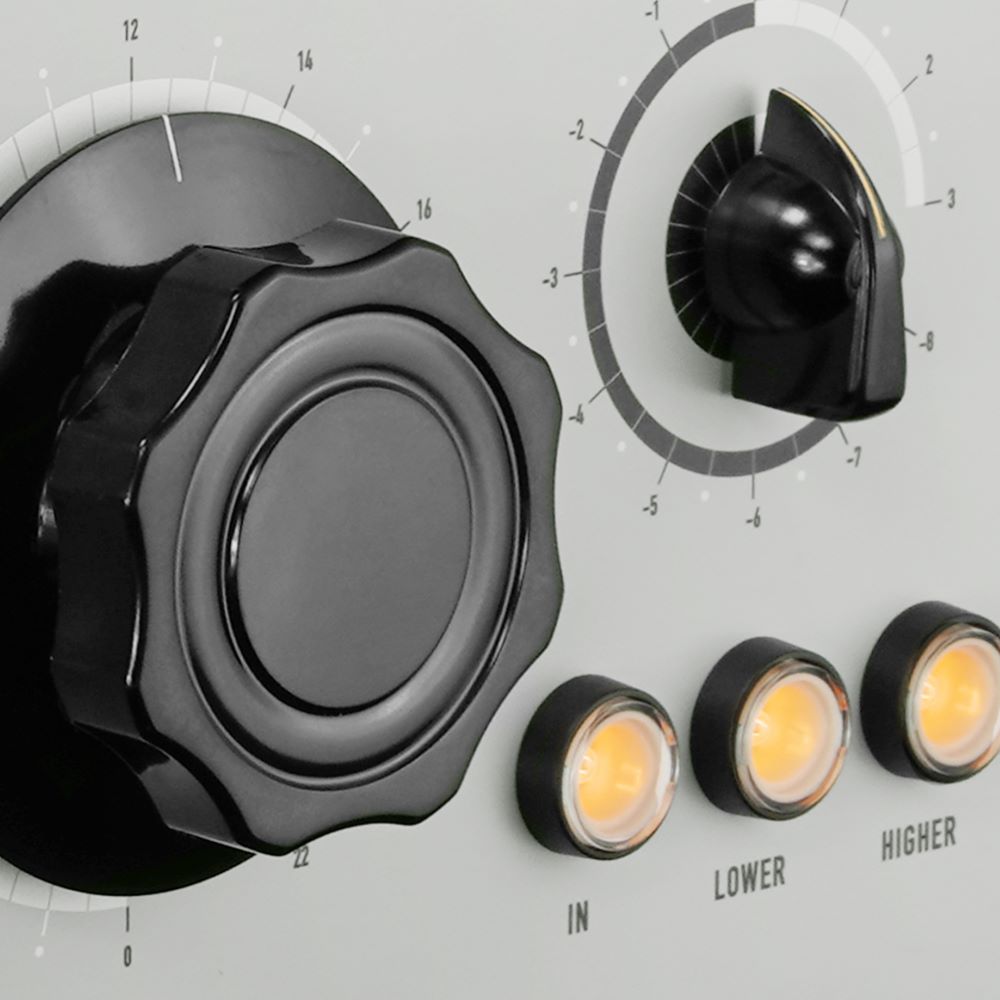

  • In: True Bypass, hardwired (switch out)
  • Lower: Frequency selector LOW 80 Hz / ATTEN 150 Hz (switch in), LOW 100 Hz
  • Higher: Frequency selector HIGH 12 kHz (switch in) / 3 kHz (switch out)
  • Gain: + 3 dB, – 8 dB (half dB steps)

  • Tech Specs:

    • Input Impedance: > 12 kΩ (transformer balanced with current booster)

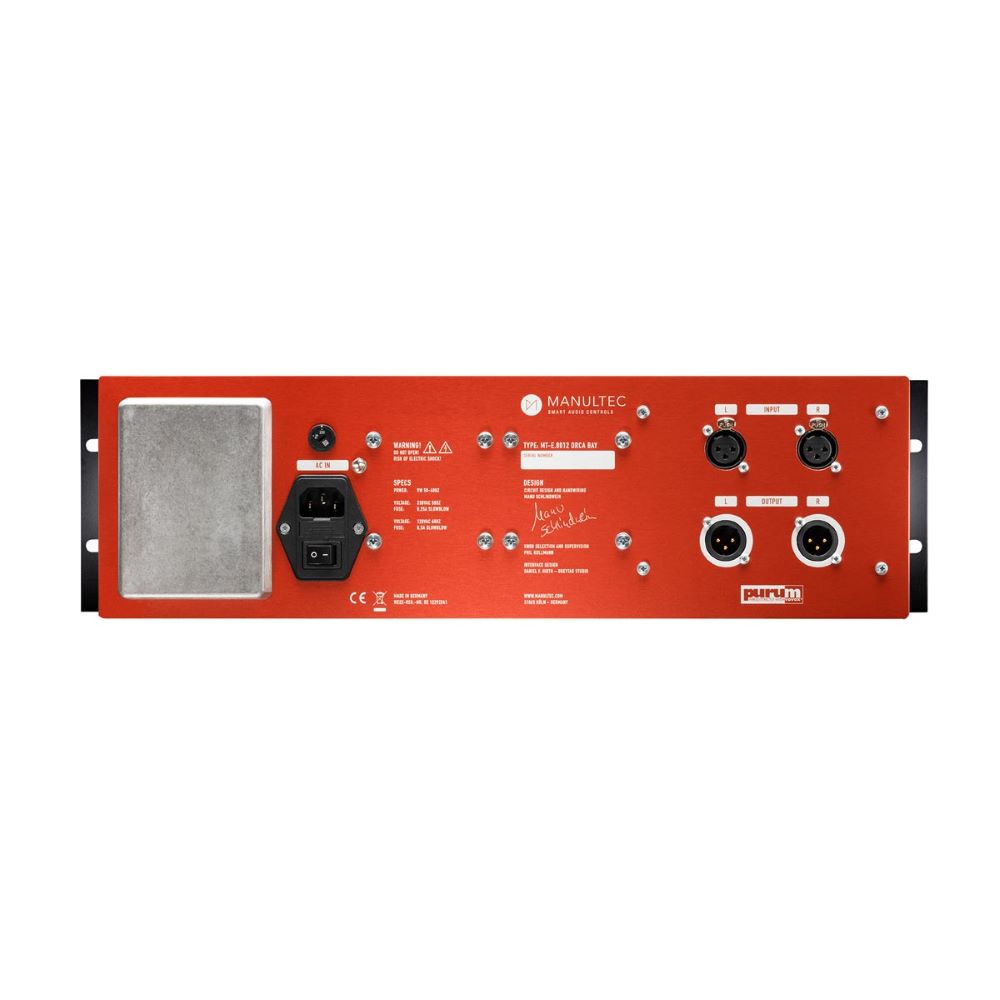

      Input-/Output transformer balanced
    • Input Level (max): + 27 dBu (1% THD)
    • Output Level (max): + 29,5 dBu (1% THD)
    • Noise: -87 dBu (IEC-A, GAIN position @ +3 dB)
    • Dynamic Range: 114 dB (GAIN position @ +3 dB)
    • Frequency Response: 6 Hz – 70 kHz (0/-1 dB) / 20 Hz – 20 Khz (+/-0,2 dB)
    • Mains Voltage: 120V or 240V
    • Dimensions (W x H x D): 483 x 133 x 147 mm (19” / 3U)
    • Weight: 4,5 kg
