The Art of Mastering Sound Equalization

The EQ4M is Mäag audio’s flagship mastering equalizer. It is based on the company’s original 6-band NTI EQ3 and like that original 2 unit equalizer, the 1 unit EQ4m also includes Cliff Maag’s unique and noteworthy AIR BRAND® shelving equalizer first introduced in 1993 with the NTI EQ3.

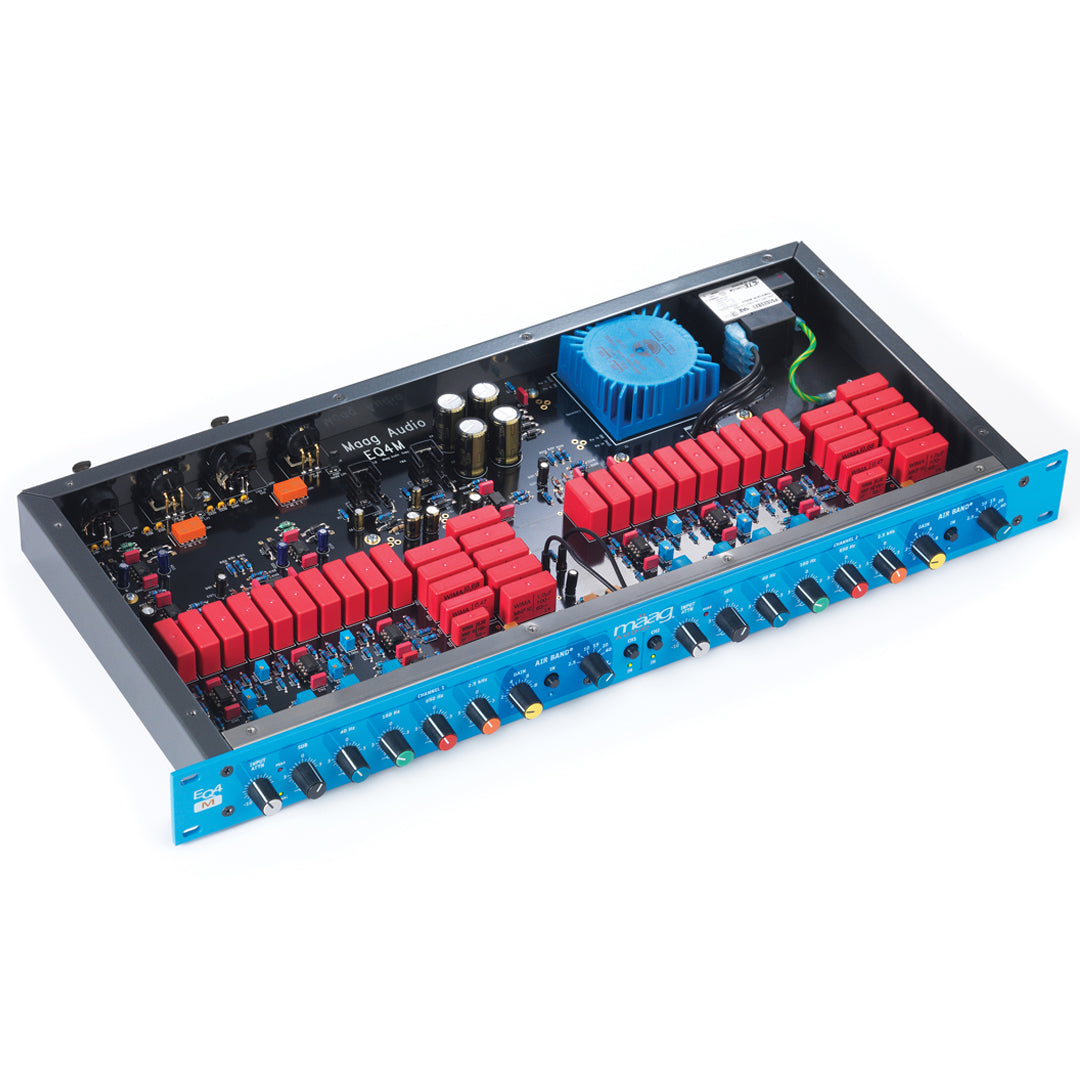

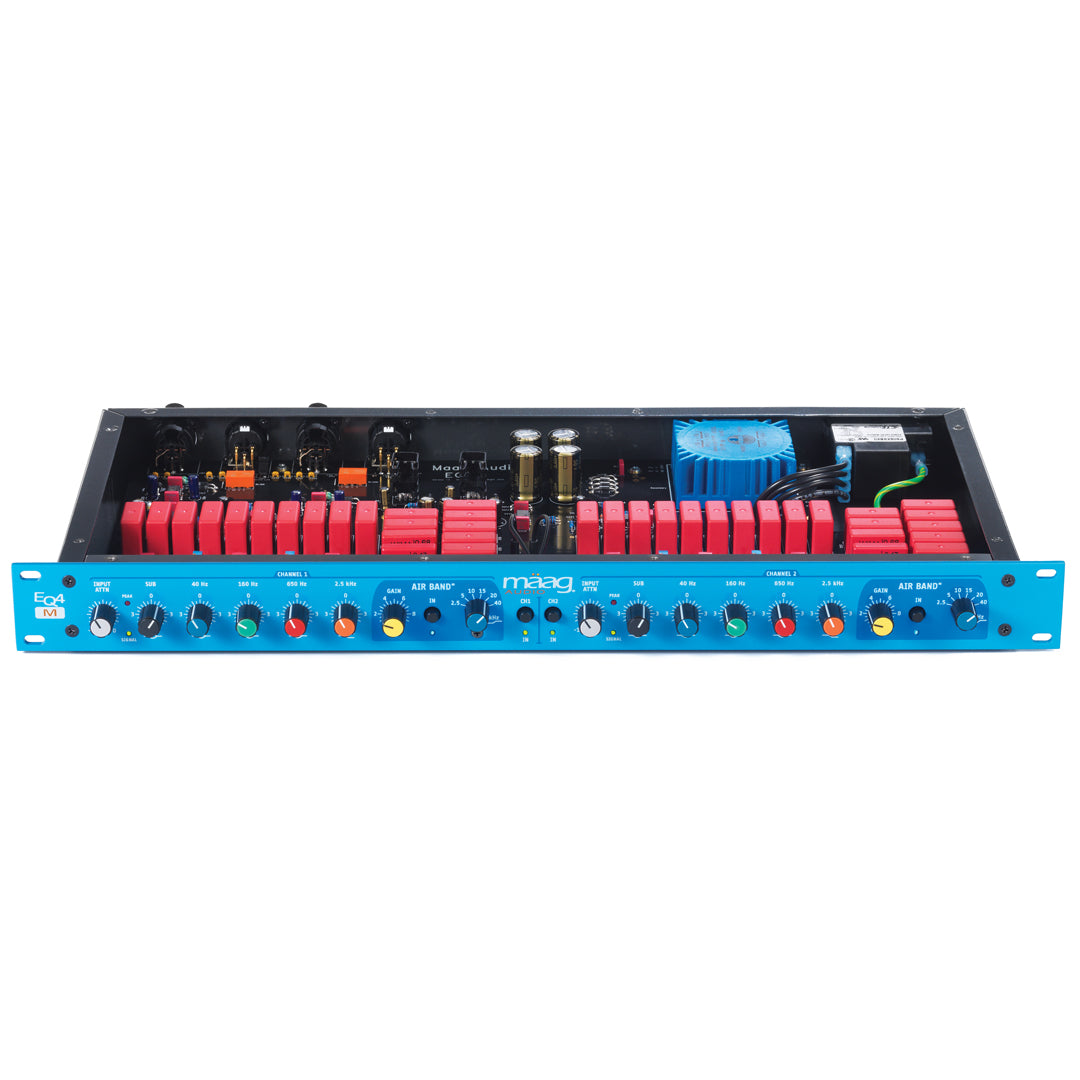

The EQ4M has reached global praise and emense respect within the industry. This is due to its classic design, high quality build, and strong voltage power supply. Powered by an internal high current +/- 18-volt regulated power supply, the EQ4M has a maximum output level of +28.5 dbu while driving 600-ohm load impedances. The unit measures only -2 db down at the extremes of 10hz and 75khz—essentially a flat frequency response in the audio range.

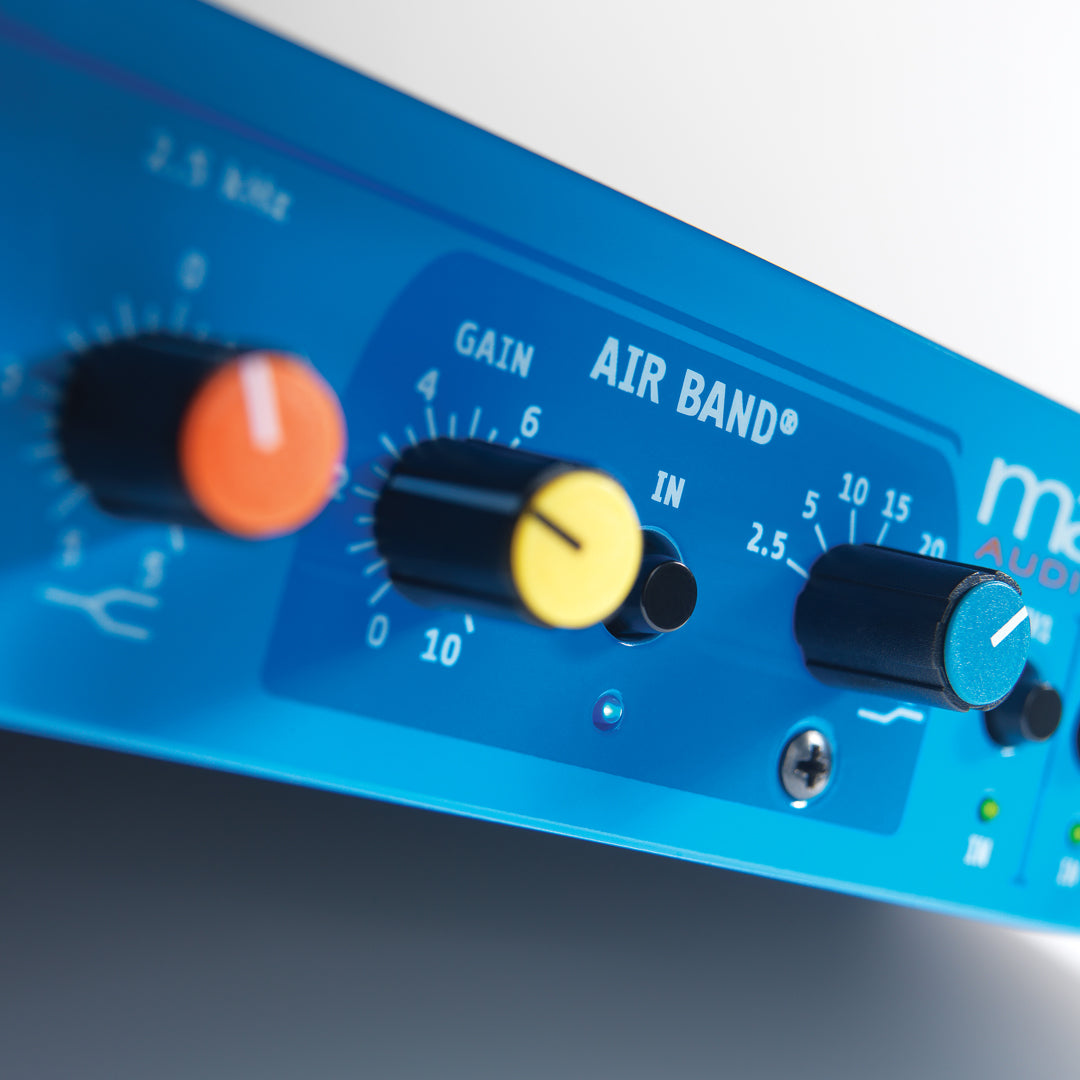

The Air Band is key to EQ4M's magic

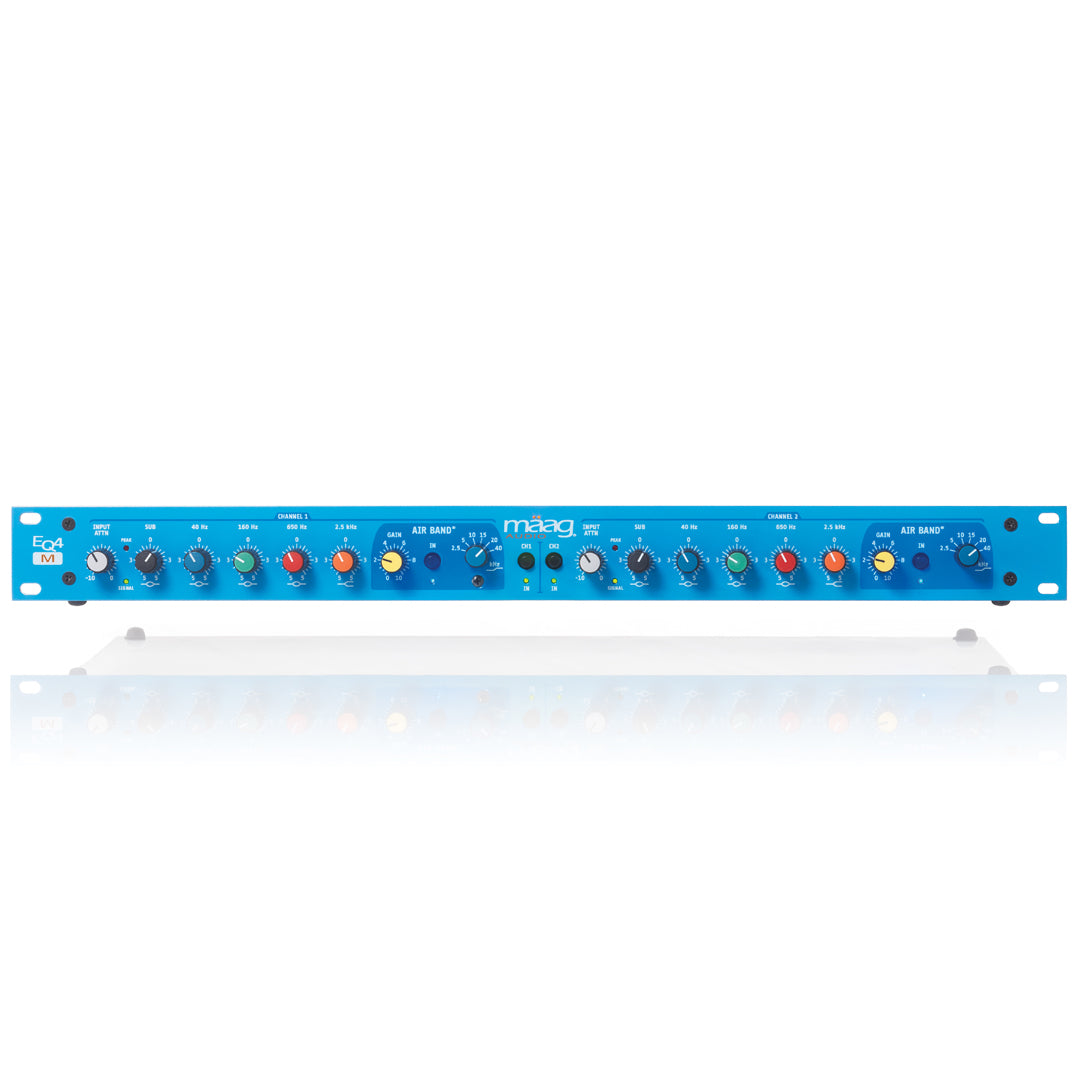

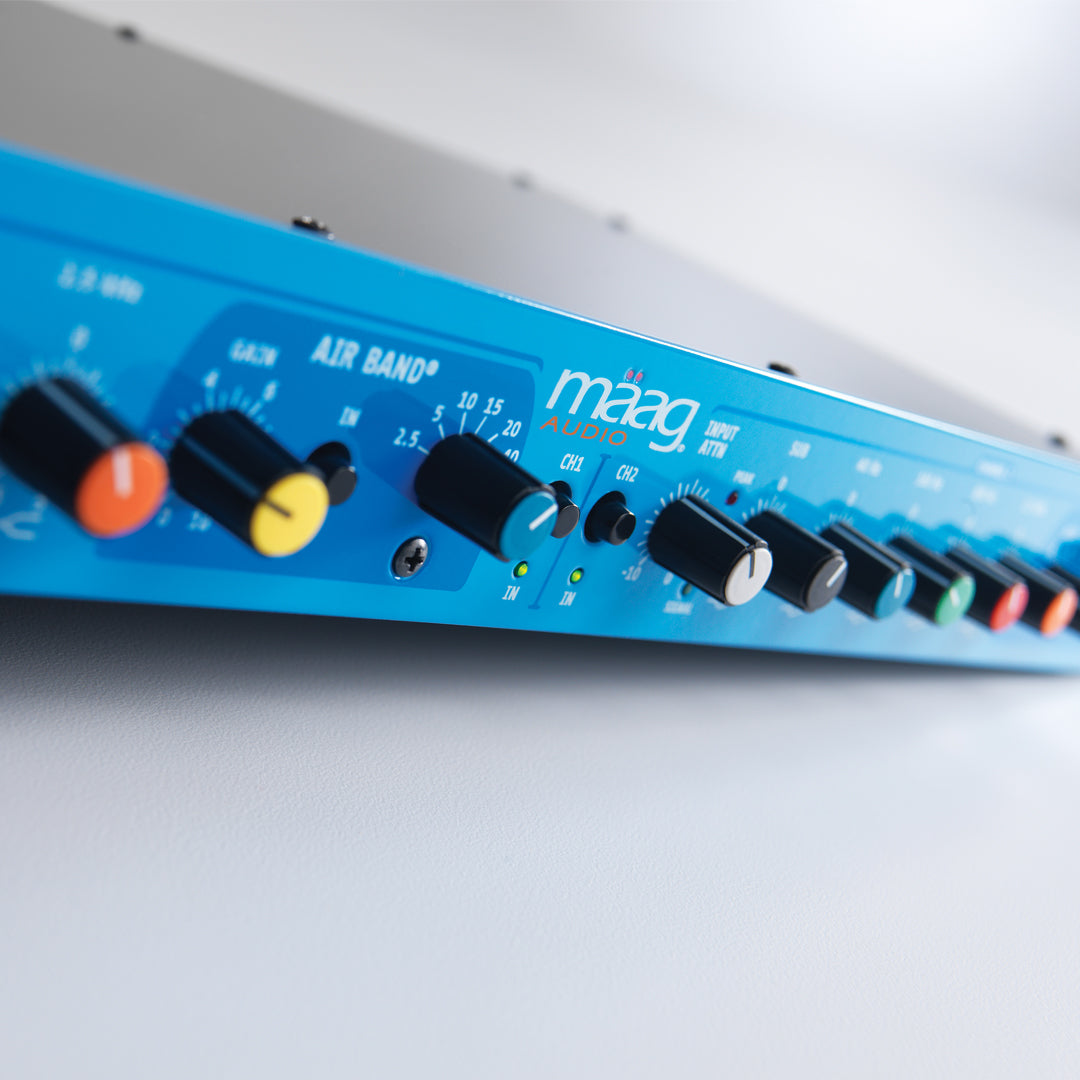

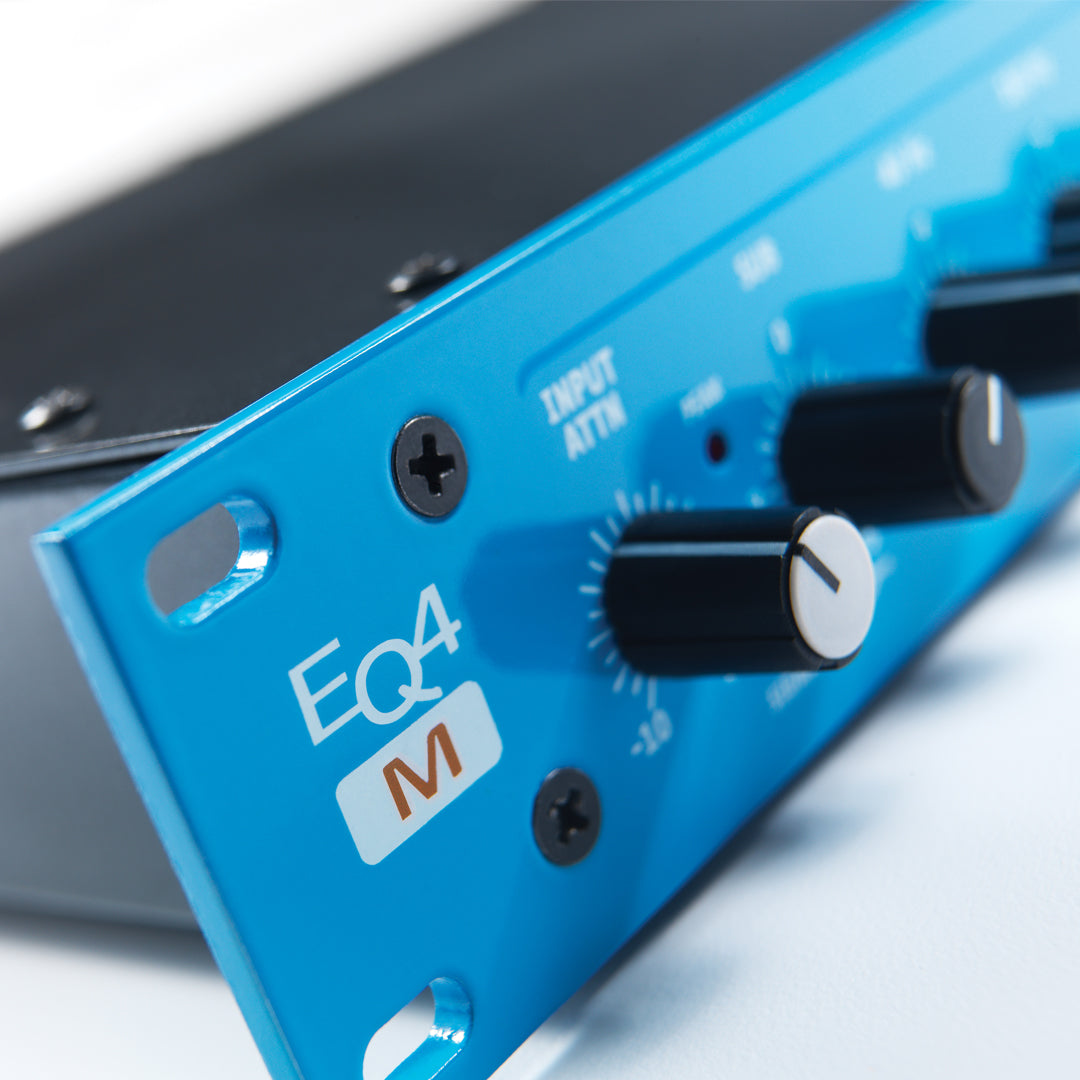

All EQ sections have a boost/cut range of +15db and -4.5 db with centre position detent at 0 db. The AIR BRAND® section has its own bypass button and there are separate hardwire bypass switches for each channel. Each channel also has an input attenuator control with a 0 to -10db range and both a green signal present led (-20 dbu) and a red peak led that flashes with +23 dbu peaks.

Main features:

  • ​No-compromise dual-channel, 6-band mastering equalizer
  • 6 bands of sound-shaping control from 10Hz-40kHz
  • Frequency response: 10Hz-75kHz (-2dB)
  • Headroom: +29dBu at 10 kohms, +28.5dBu at 600 ohms
  • Rides on ultra-clean +/-18-volt rails​

  • Tech Specs:

    • Number of Channels: 2
    • Number of Bands: 6
    • Q Type: Fixed
    • Boost/Cut Range: +15 dB, -4.5 dB
    • Freq Range High: 2.5-40kHz
    • Freq Range Hi-Mid: 650Hz
    • Freq Range Mid: 160Hz
    • Freq Range Lo-Mid: 40Hz
    • Freq Range Low: 10Hz

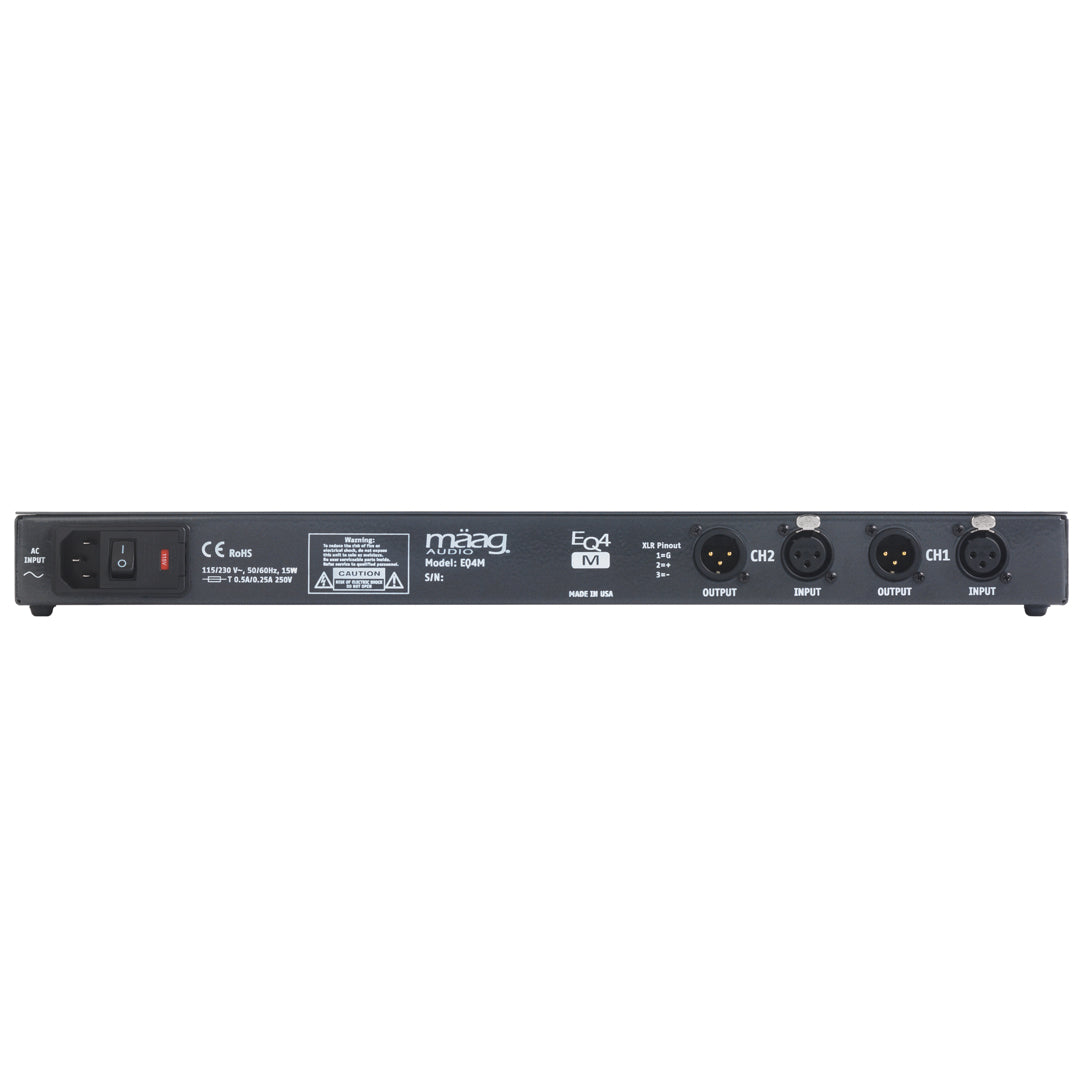

    • Inputs: 2 x XLR
    • Outputs: 2 x XLR
    • Frequency Response: 10 Hz-40kHz
    • Rack Spaces: 1U
    • Height:1.75"
    • Width:19"
