LAKE PEOPLE G103-D4 Dante Headphone Amp - Coming Soon
Tax included.
Description

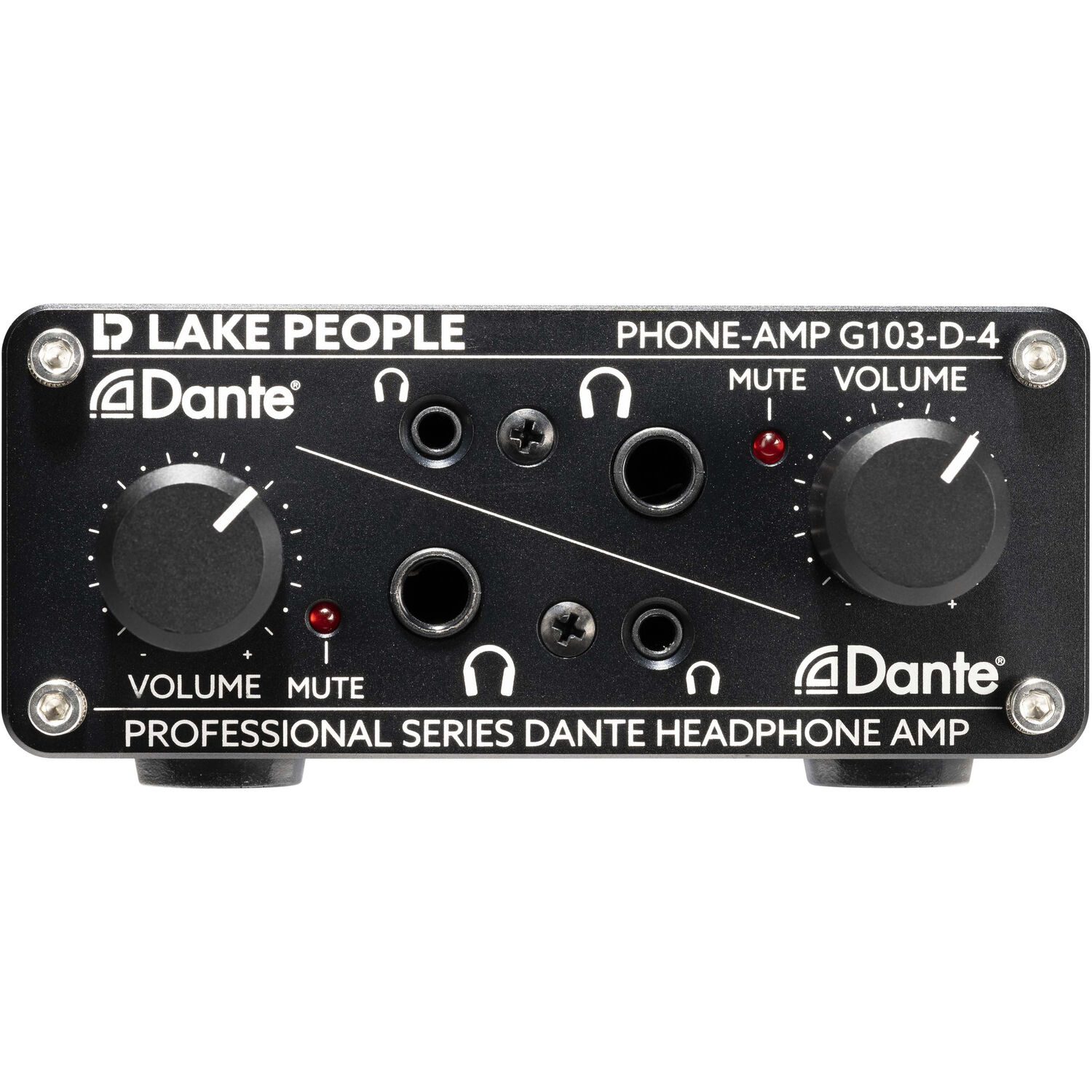

The new Phone-Amp G103-D is a headphone amplifier intended for Dante networks.
The G103-D4 model comes with a Dante 4/4 input and two independent stereo amplifiers.
24 Bit / 192 kHz D/A converters with a Signal-to-noise ratio >105 dB and THD+N as low as 0,002 % are driving the powerful headphone amplifiers. These are best suited to drive any headphones from low to high impedance and with low or high sensitivity. To adapt the amp to demanding headphones, to further reduce the noise level or to maximize the travel of the volume control, the gain is internally
adaptable by Dip-Switches to optimize the amp.
Main features:
- 4/4 Dante network input via RJ45
- 24 Bit D/A converter with SNR > 105 dB
- Alps volume control with good channel balance and low crosstalk
- Powerful amplifiers
- 3 internal gains switchable
- 1/4” and 3.5 mm headphone connectors
- Flexible power supply covering PoE, USB-B, -C

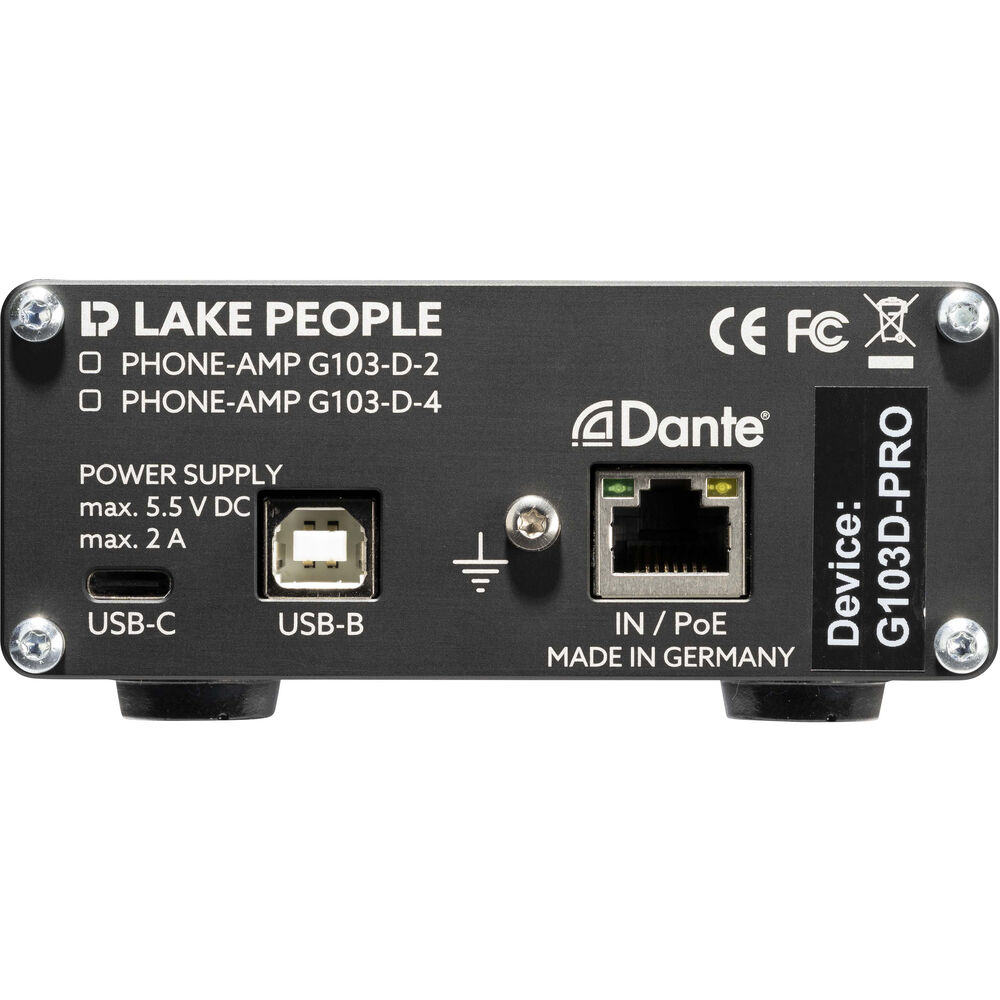

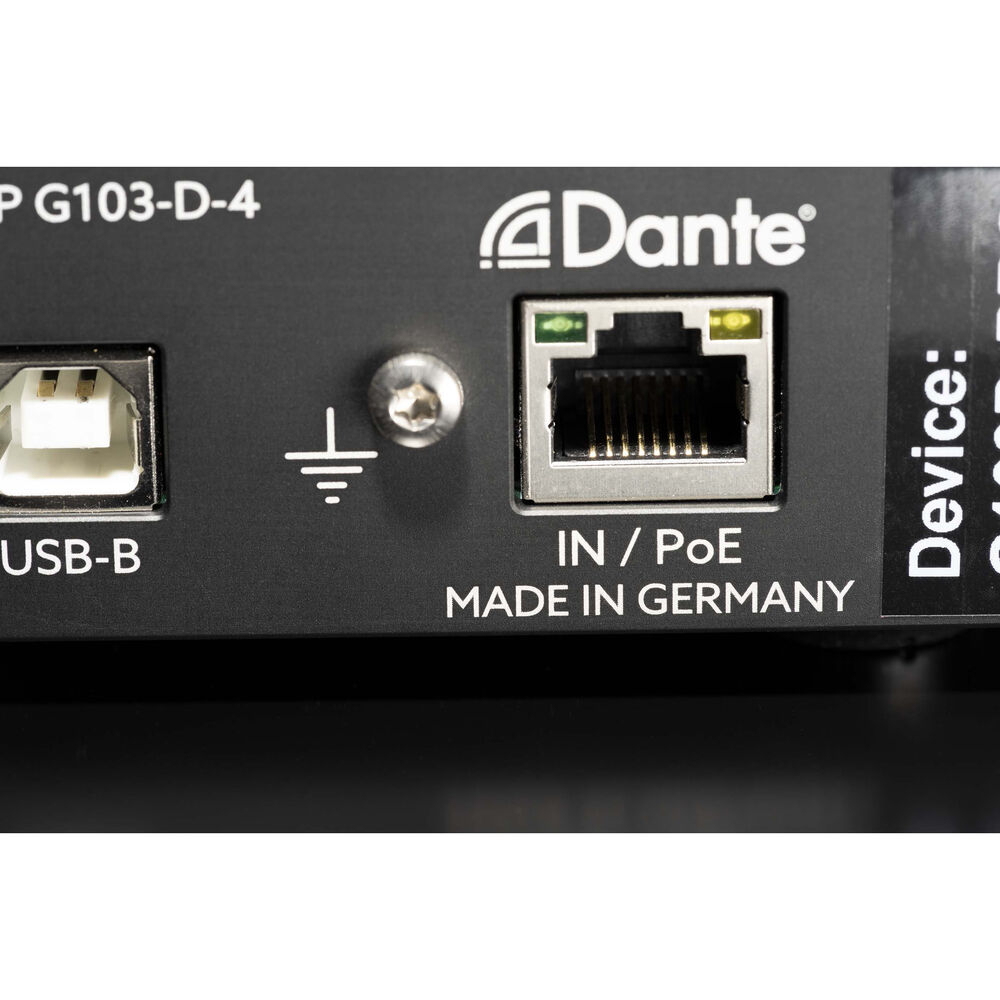

The Dante digital audio signals are input via a standard RJ45 connector. G103-D4 will accept 4 audio channels. The unpacked audio signals are input to two high quality D/A converters. The recovered analogue signals are buffered, attenuated in the analogue domain and then sent to powerful headphone amplifiers. If required, additional gain of +6 dB or +12 dB can be set by Dip-Switches inside the amp. Each amp section offers a 1/4” and 3.5 mm phone jack which may be used simultaneously. Power supply for the amp is acomplished either by PoE (Power-over-Ethernet) or by a USB wall plug adaptor (not supplied) with USB-B or USB-C connector. The case, front and backpanel of G103-D is made of rugged black anodized aluminum, the lettering is laser engraved. The volume knobs are also made of solid
aluminium.
Accessories:
Mounting brackets for the over/under desk attachment and a fixture for microphone stands are available.
Tech Specs:
- Input: Dante digital audio
- Connector: RJ45
- Channels: 4 (2x Stereo)
- D/A converter: 24 Bit (up to 192 kHz)
- Analogue level: +9 dB for 0 dBFs
- Additional Gain: +6 / +12 dB, int. selectable
- Frequency range: 5 Hz ... 90 kHz (-0,5 dB)
- Dynamic range: > 105 dB (A-wtd)
- THD+N: < 0,01 % (500mW / 100R)
- Crosstalk: < -80 dB (@ 15 kHz)
- Output Impedance: < 1 Ohm
- Damping Factor: 50 (load 50 Ohms)
- Max. output level: > 9,5 Veff in 600 ohms = 115 mW
- > 8,1 Veff in 300 ohms = 220 mW
- > 7,1 Veff in 100 ohms = 500 mW
- > 6,1 Veff in 50 ohms = 750 mW
- > 5,2 Veff in 32 ohms = 830 mW
- > 2,7 Veff in 16 ohms = 440 mW
- Outputs: 1 x 1/4”, 1 x 3,5 mm phone jacks
- Power supply: PoE / USB-B, -C (5V max. 10 VA)
- Case Dimensions: 105 x 42 x 165 mm (W x H x D)
- Front Panel: 108 x 45 mm
- Case Material: black anodized Aluminium
But If you want to confirm availability first or inquire for possible discounts send us a quick mail or open the chat tab.
