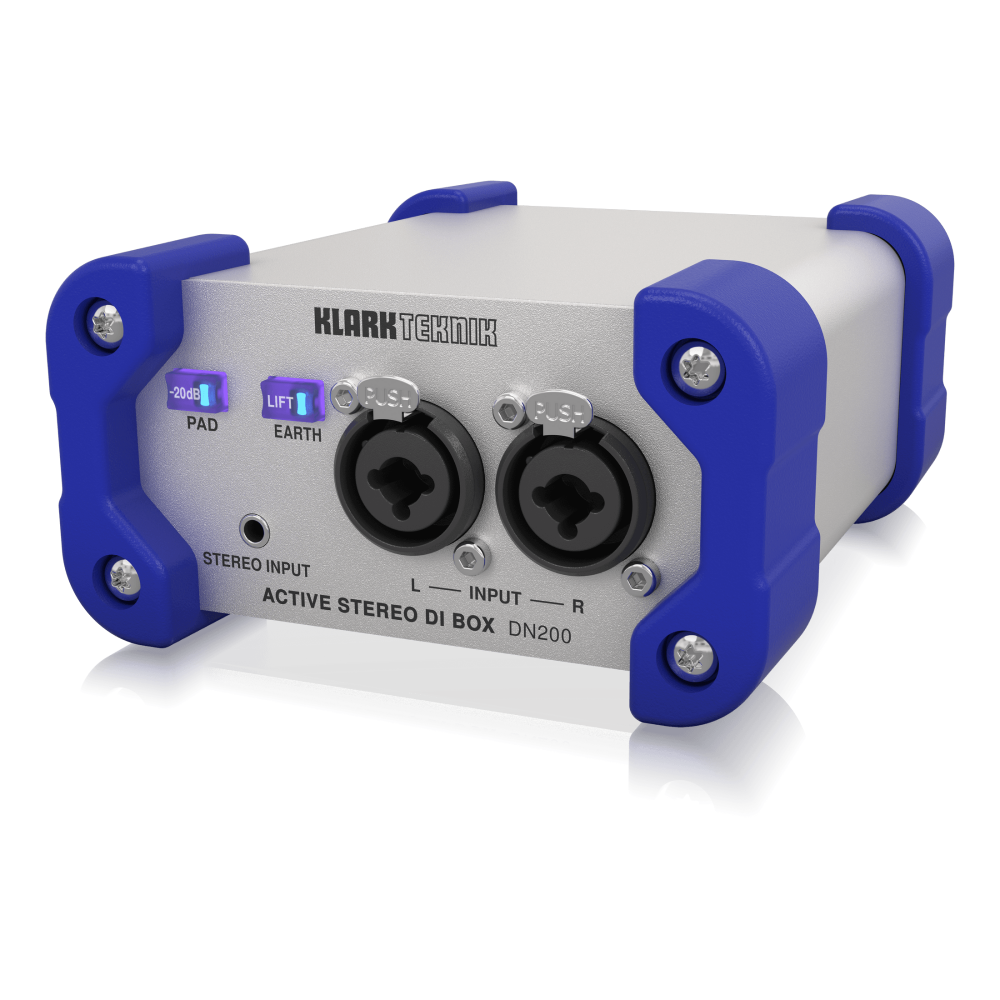

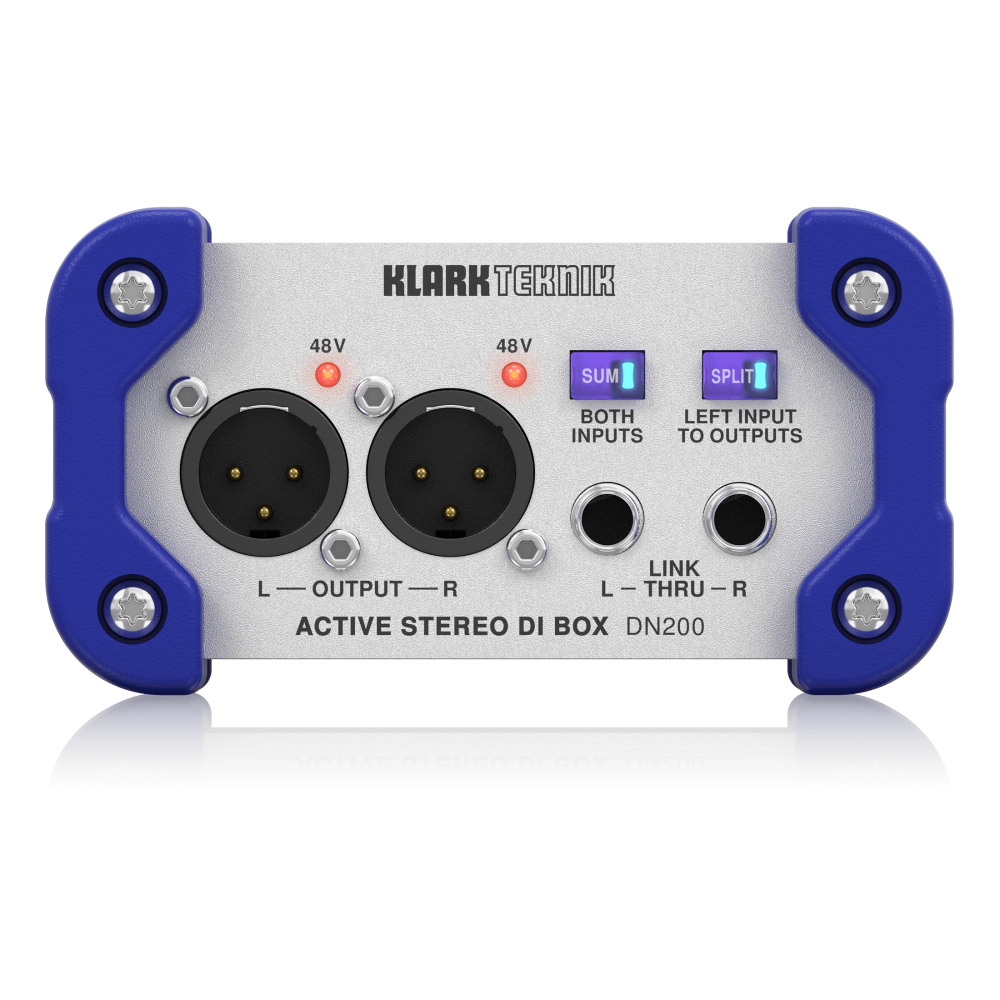

Klark Teknik DN200 V2 2-Channel Active DI Box
Tax included.
Active DI Box with Extended Dynamic Range
and Sum/Split Options
The DN200 has become an established favorite amongst both engineers and musicians alike. With its high headroom, dynamic response and sonic clarity, DN200 faithfully reproduces the character of electric and acoustic instruments and allows far more of the detail of musical performances to be captured.
The DN200 is intended for professional applications where +48 V phantom power is a standard feature on all mixing consoles and its innovative design results in a significantly higher clipping point than many other active DI Boxes, providing +10 dBu output into a 2 KΩ load. This increased headroom means that much higher-level input signals can be accommodated without the need for an attenuating pad. Combined with a very low noise input circuit topology, DN200 offers a very wide dynamic range and only requires the -20 dB pad when connecting directly to instrument amplifier outputs or other very high-level signal sources.
Main features:
- High headroom and wide dynamic range
- Ultra-clean active circuitry
- Dual XLR combo inputs for stereo amp modellers and keyboards
- 1/8-inch TRS input for laptops and phones
- Sum switch: folds stereo inputs down to a single mono output
- Split switch: sends identical mono inputs to 2 destinations
- Powered by 48-volt console phantom power
- A convenient way to get stage signals into your board over long distances
- Output and power transformers optimized for performance and isolation
- Durable aluminium housing with silicone rubber bumpers
- -20dB pad protects against unwanted overages
- Earth lift switch eliminates ground loop problems
Tech Specs:
- Type: Active
- Channels: 2
- Pads: -20dB
- Ground Lift: Yes
- Inputs: 2 x XLR
- Outputs: 2 x XLR
- Other I/O: 2 x 1/4" (link thru)
- Power Source: 48V Phantom Power
- Dimensions: 118mm x 63mm x 142mm (H x W x D)
- Weight: 650 g
- Warranty: 3-years
- Discover more Klark Teknik Direct Boxes [DN200]: https://klarkteknik.com/product.html?modelCode=P0E3G
