Kato Vision KT-KC20N Pro PTZ Camera Controller - Price on request

Precision Control at Your Fingertips

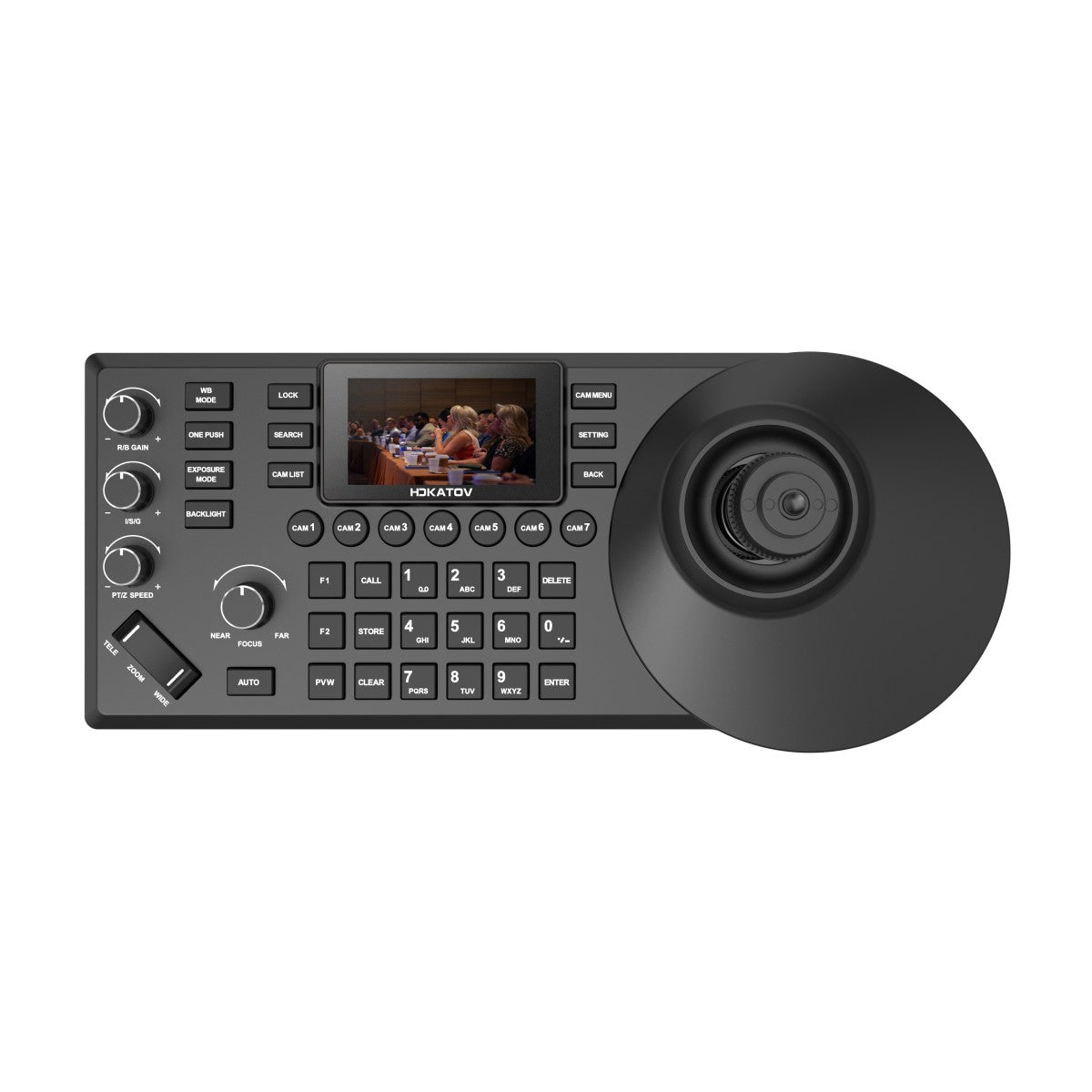

The Kato Vision KC Pro/KC20N is a professional-grade NDI camera controller engineered for the rigorous demands of modern production environments. Designed for broadcasters, house of worship tech teams, and high-end podcasters, this unit serves as the nerve centre for your visual setup, allowing you to manage complex multi-camera configurations with absolute confidence and millimetre precision. Whether you are tracking a live speaker or switching between pre-set cinematic angles, the KT-KC20N ensures your workflow remains fluid and professional.

Seamless Multicam Command
Efficiency is at the heart of the KT-KC20N. With dedicated shortcut buttons, you can control up to seven different cameras simultaneously, while the system supports a massive total capacity of up to 1,000 devices. This allows operators to recall any of the 255 preset positions instantly, making it an indispensable tool for fast-paced live environments where missing a shot is not an option.

Tactile Precision and Real-Time Feedback

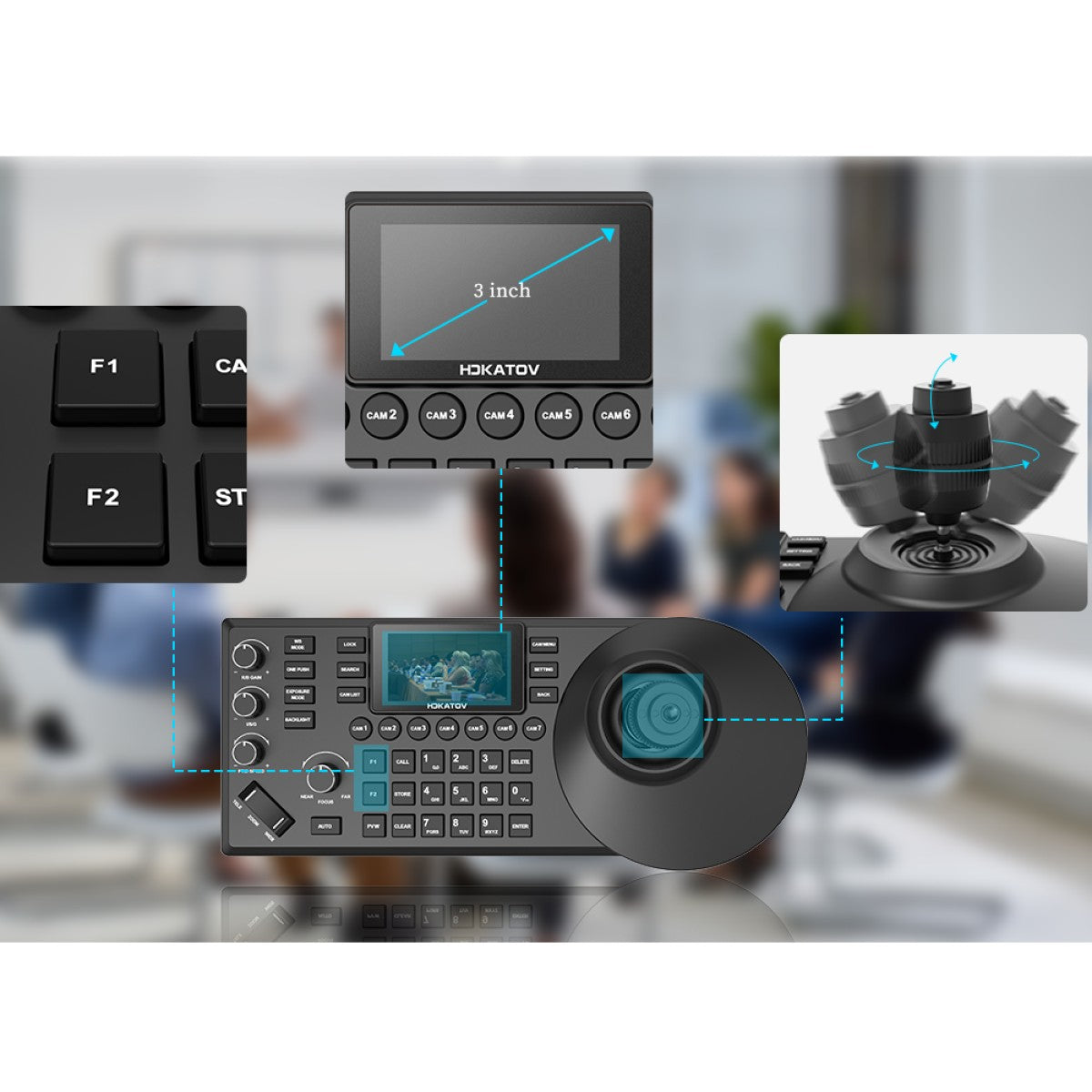

Experience total authority over your frame with the 4D precision joystick and intuitive 3D knobs that support scale rotation for fine parameter adjustments. The integrated 3-inch LCD color display provides a clear interface for menu navigation and live setting checks, while high-quality silicone buttons with red and white backlighting offer clear visual cues even in dimmed studio environments.

Advanced Connectivity and Simplified Rigging
The KT-KC20N is built for the future of networking, supporting NDI, VISCA Over IP, and Onvif protocols. By utilizing Power over Ethernet (POE) via the RJ45 interface, you can significantly reduce cable clutter by delivering both power and control data over a single line. This versatility ensures the controller integrates perfectly into legacy serial setups (RS-232/RS-422) and cutting-edge IP-based workflows alike.

Main features:

• Supports NDI, VISCA Over IP, Pelco P/D, and Onvif protocols for maximum system compatibility

• 4D precision joystick enables millimetre-perfect PTZ camera movements

• Power over Ethernet (POE) support reduces cable clutter by combining power and data over RJ45

• Manage up to 1,000 devices and control 7 cameras simultaneously via dedicated shortcut buttons

• Store and recall up to 255 preset positions for rapid multi-angle transitions

• 3-inch LCD color screen offers live monitoring of camera positions and settings

• Tactile 3D knobs and backlit silicone buttons provide intuitive control in any lighting condition

• Integrated 8-channel tally support ensures seamless communication in professional studio environments

• Physical lock button prevents accidental setting changes during live broadcasts

• Versatile serial and network interfaces including RS-232 and RS-422/485 for flexible integration

Tech Specs:

• Joystick: 4D precision Joystick
• Knobs: 3D knobs with scale rotation & button function

• Buttons: Silicone with red/white backlight

• Display: 3" LCD color screen

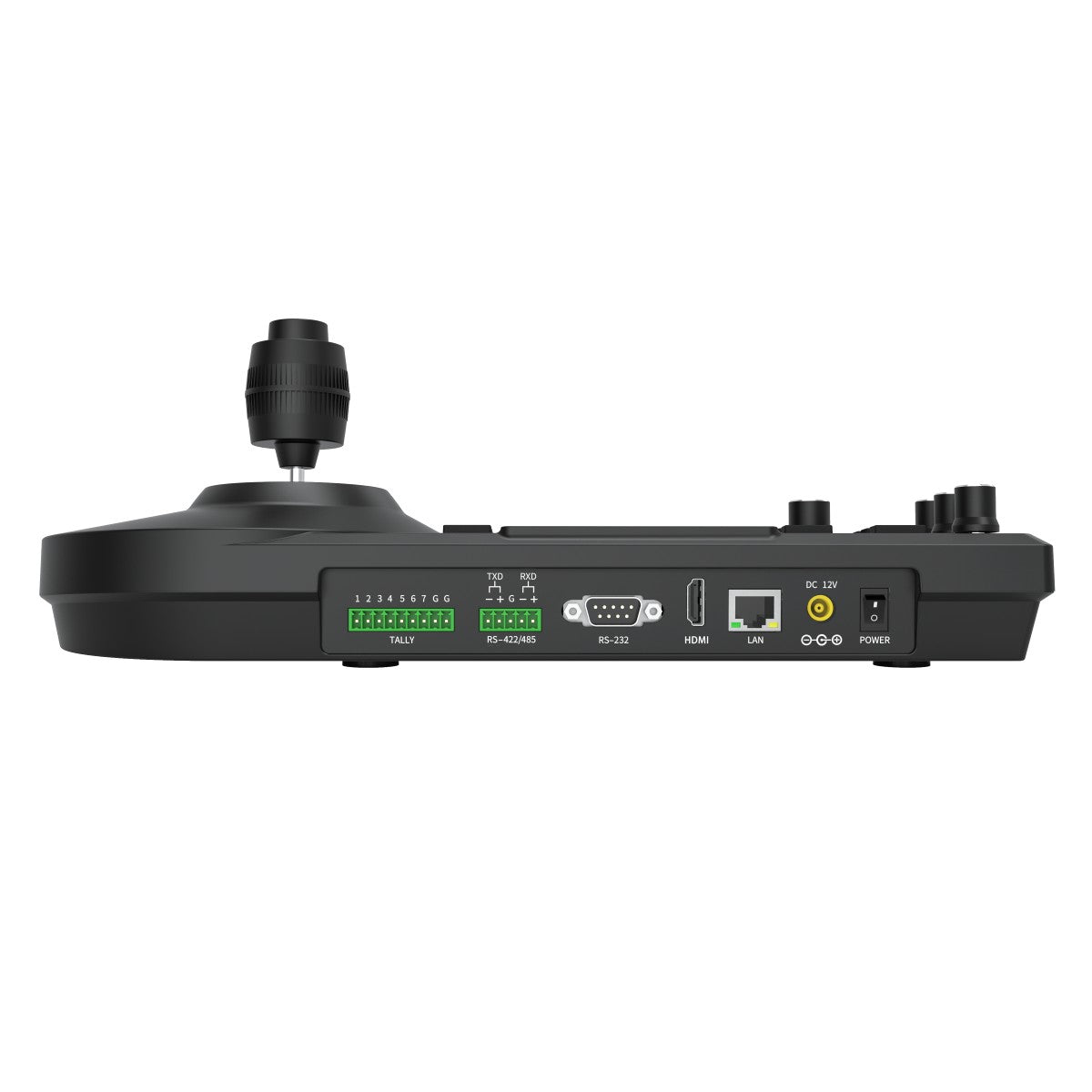

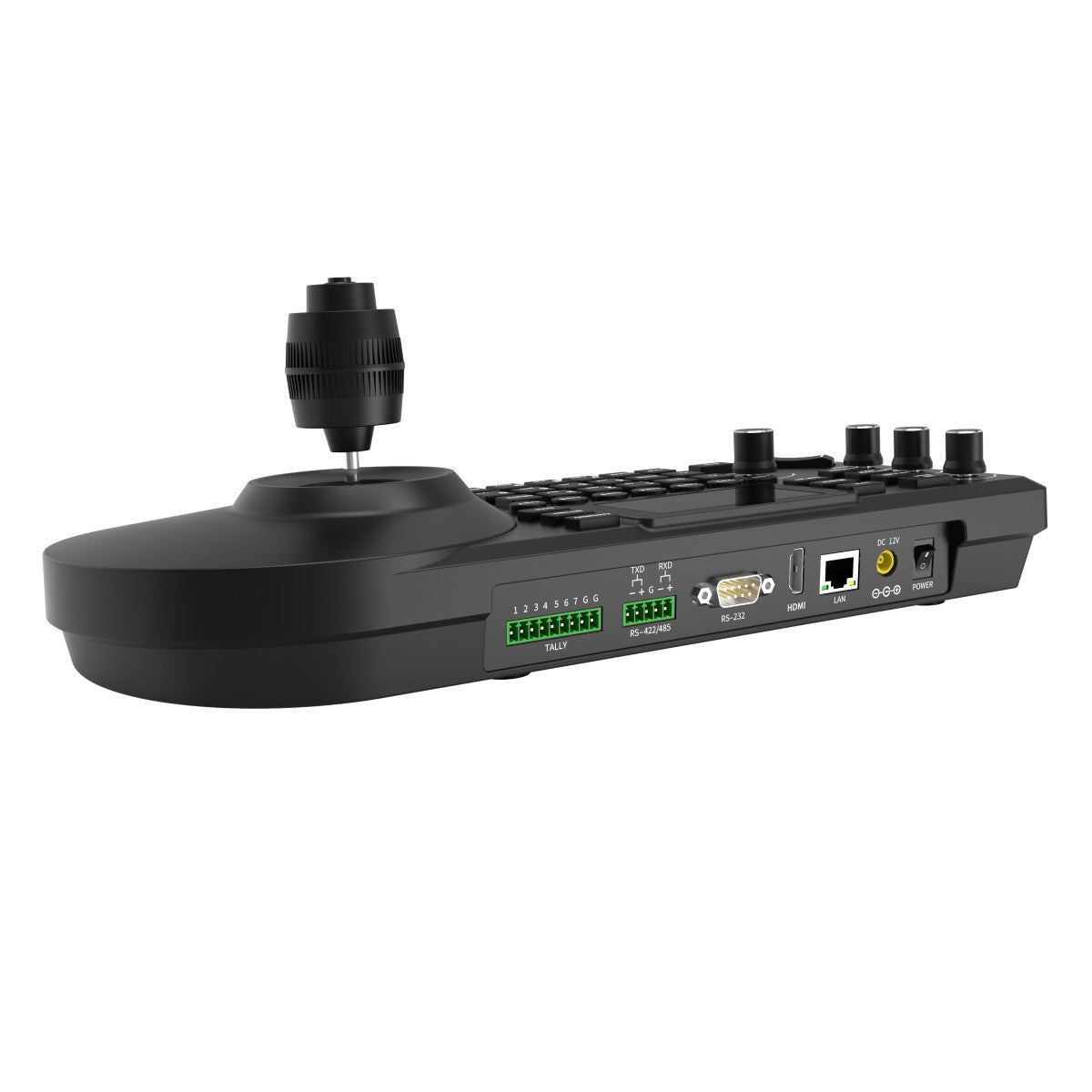

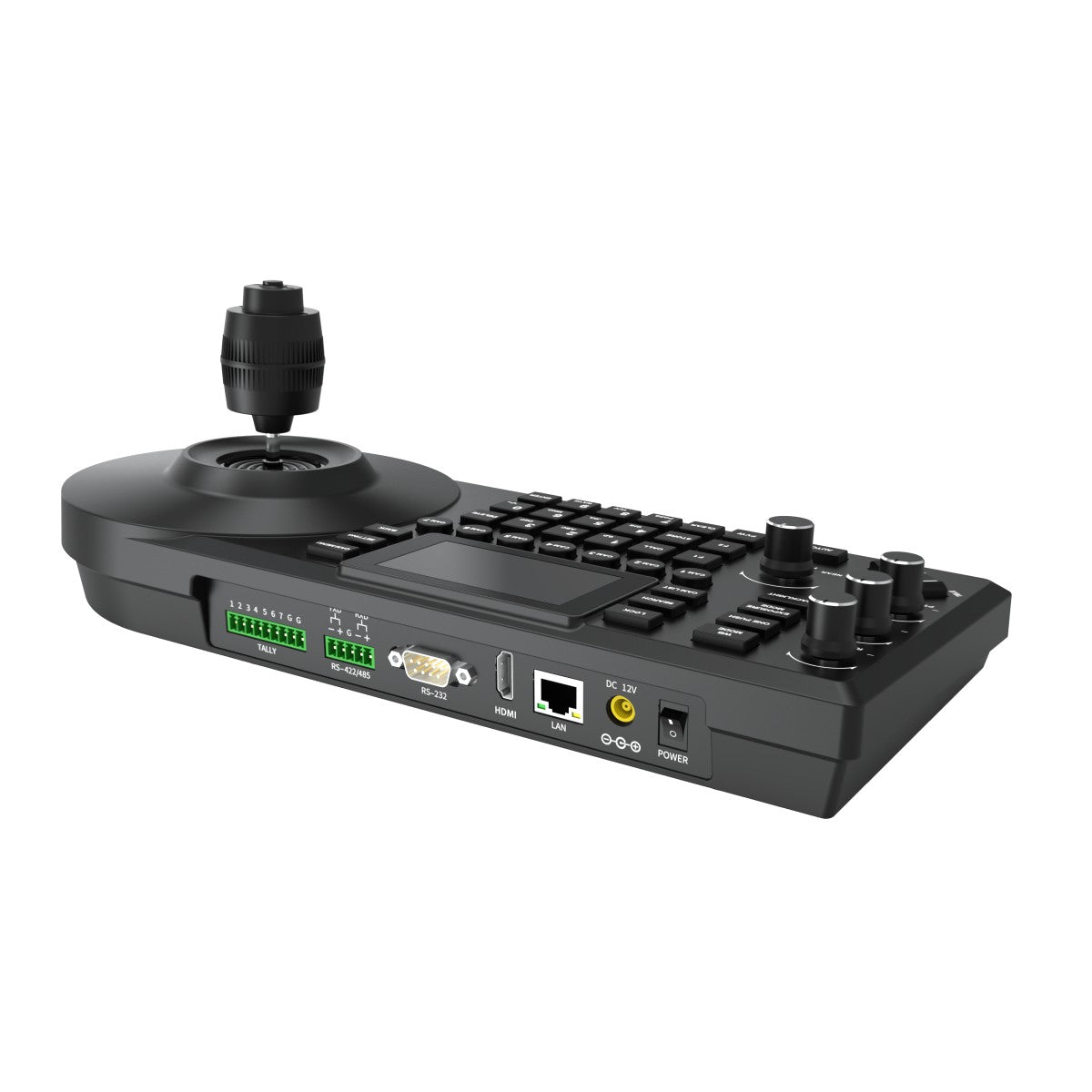

• Control Interfaces: RJ45 (POE/NDI HX2), RS-232, RS-422 / 485

• Tally Support: Up to 8 channels
• IP Protocols: NDI, VISCA Over IP, VISCA TCP, Onvif

• Serial Protocols: VISCA, Pelco D, Pelco P

• Max Control Qty: 1,000 devices

• Preset Positions: 255

• Input Voltage/Current: 12V / 0.25A

• POE Standard: 802.3af

• Dimensions: 332 x 136 x 116mm (including joystick)

• Weight: Approx. 0.8 kg
