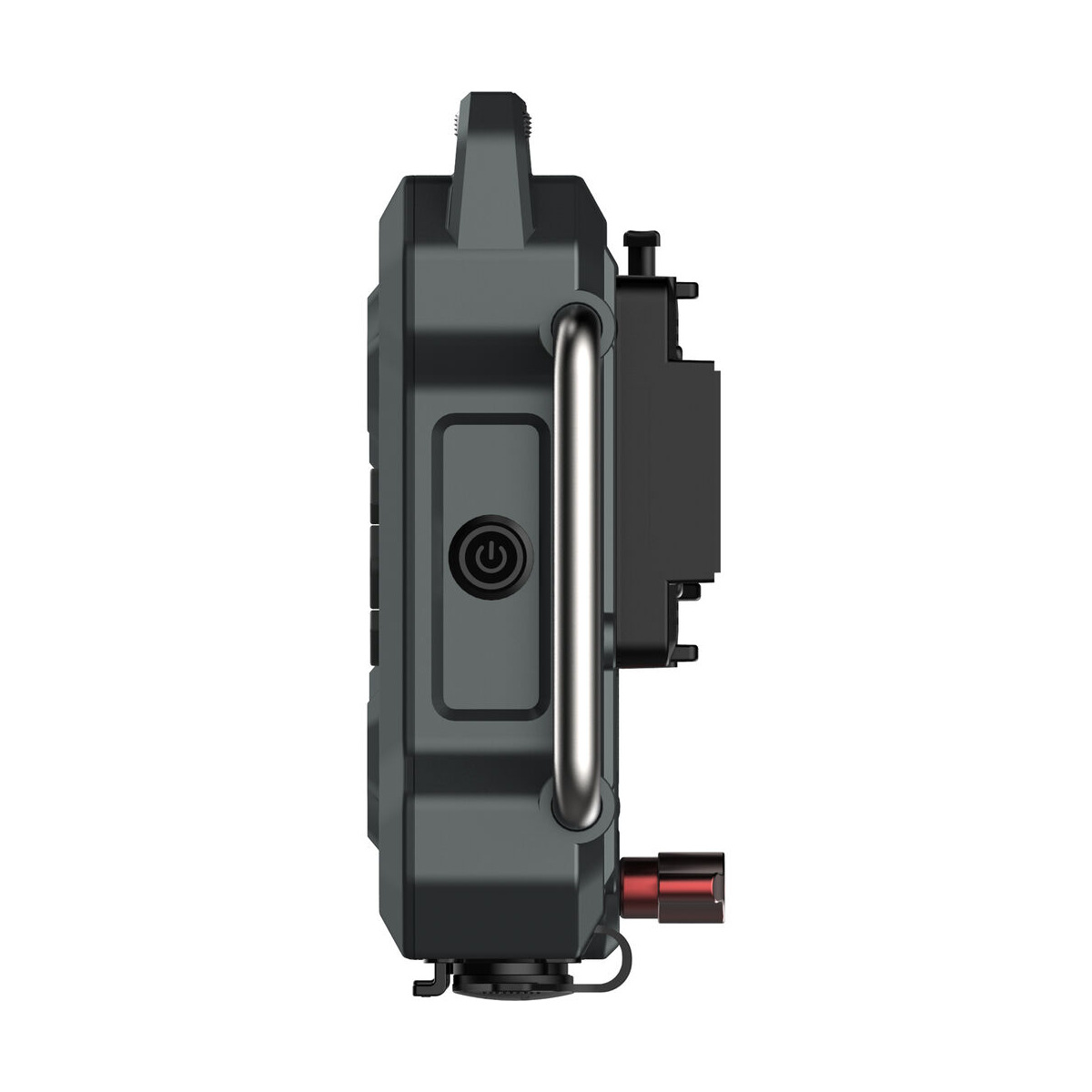

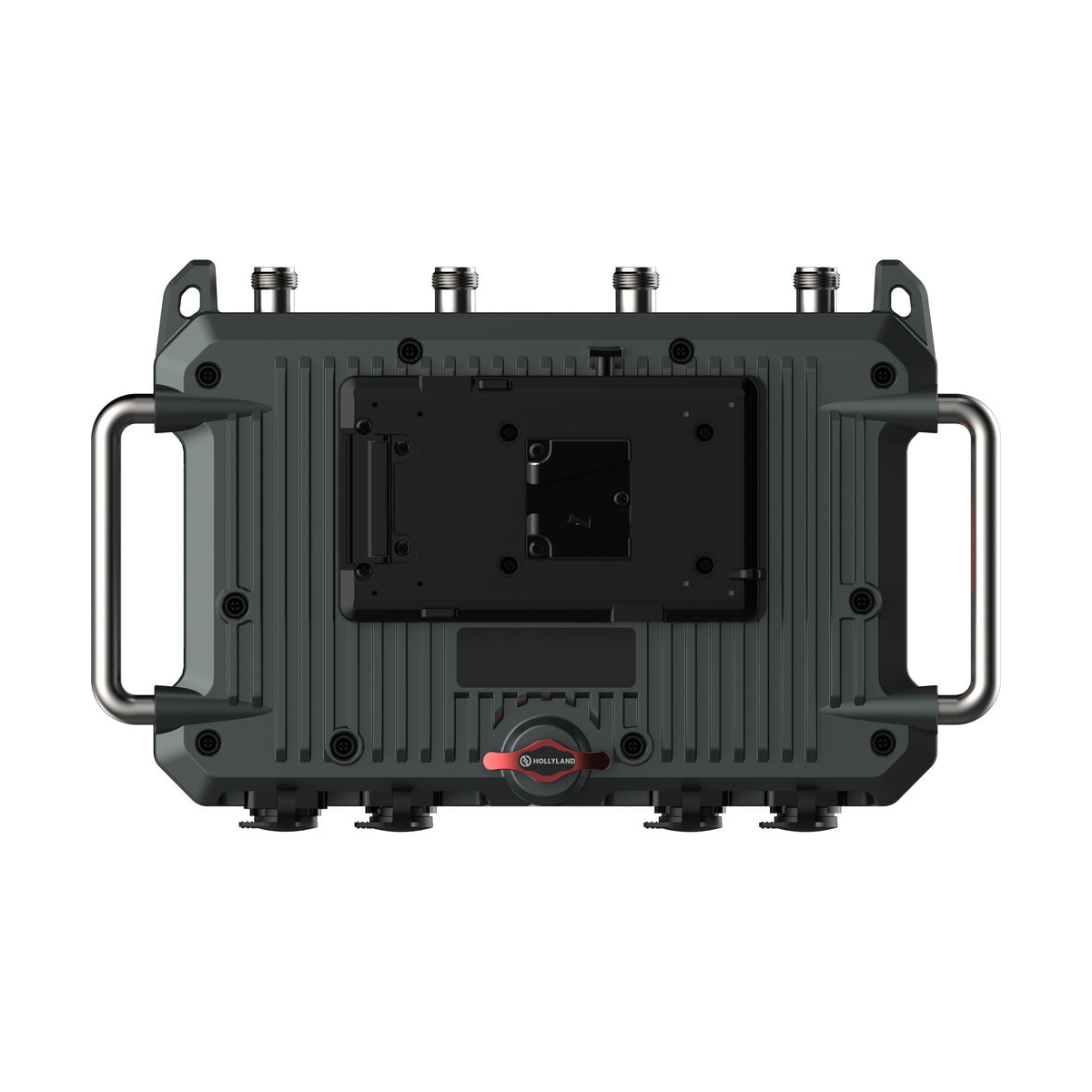

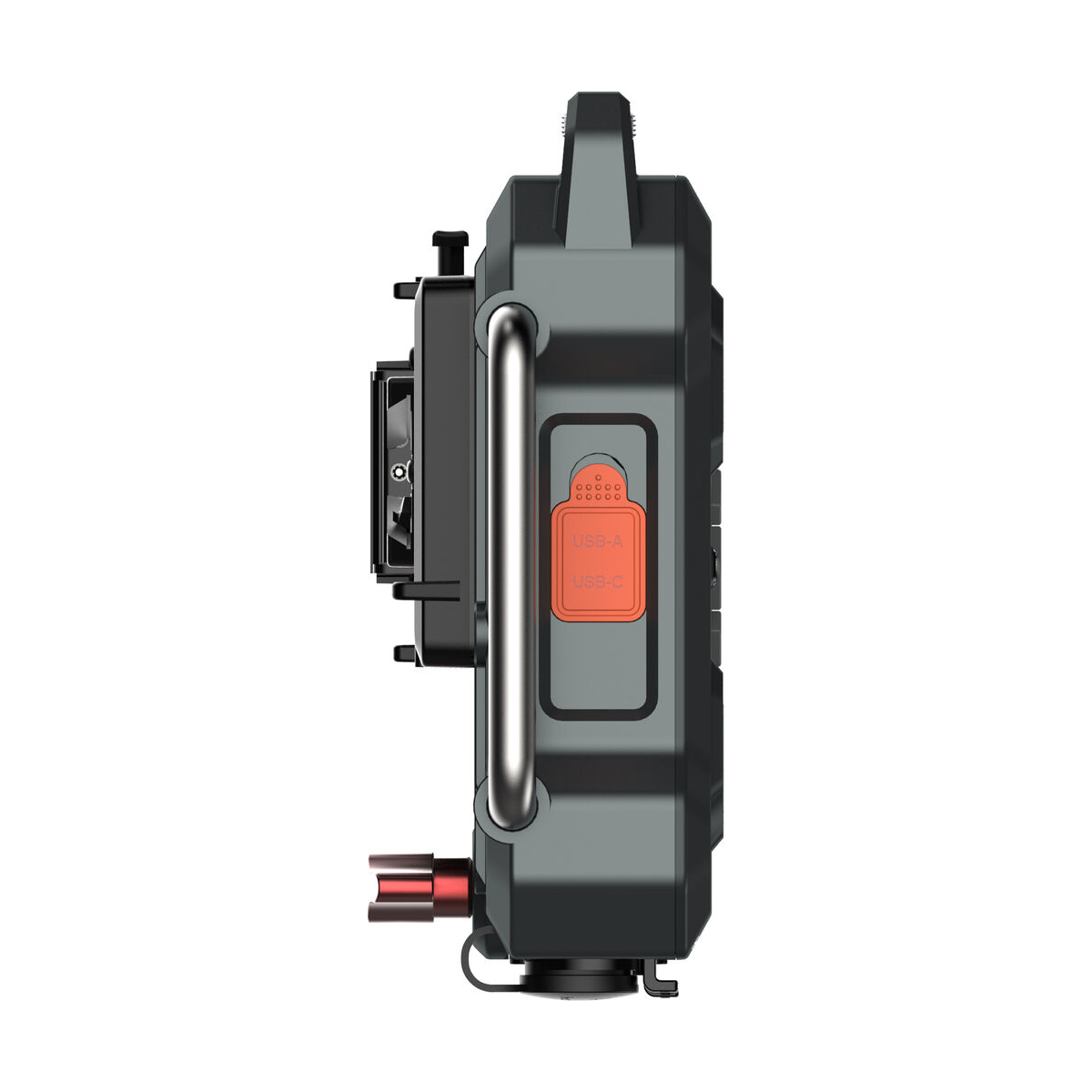

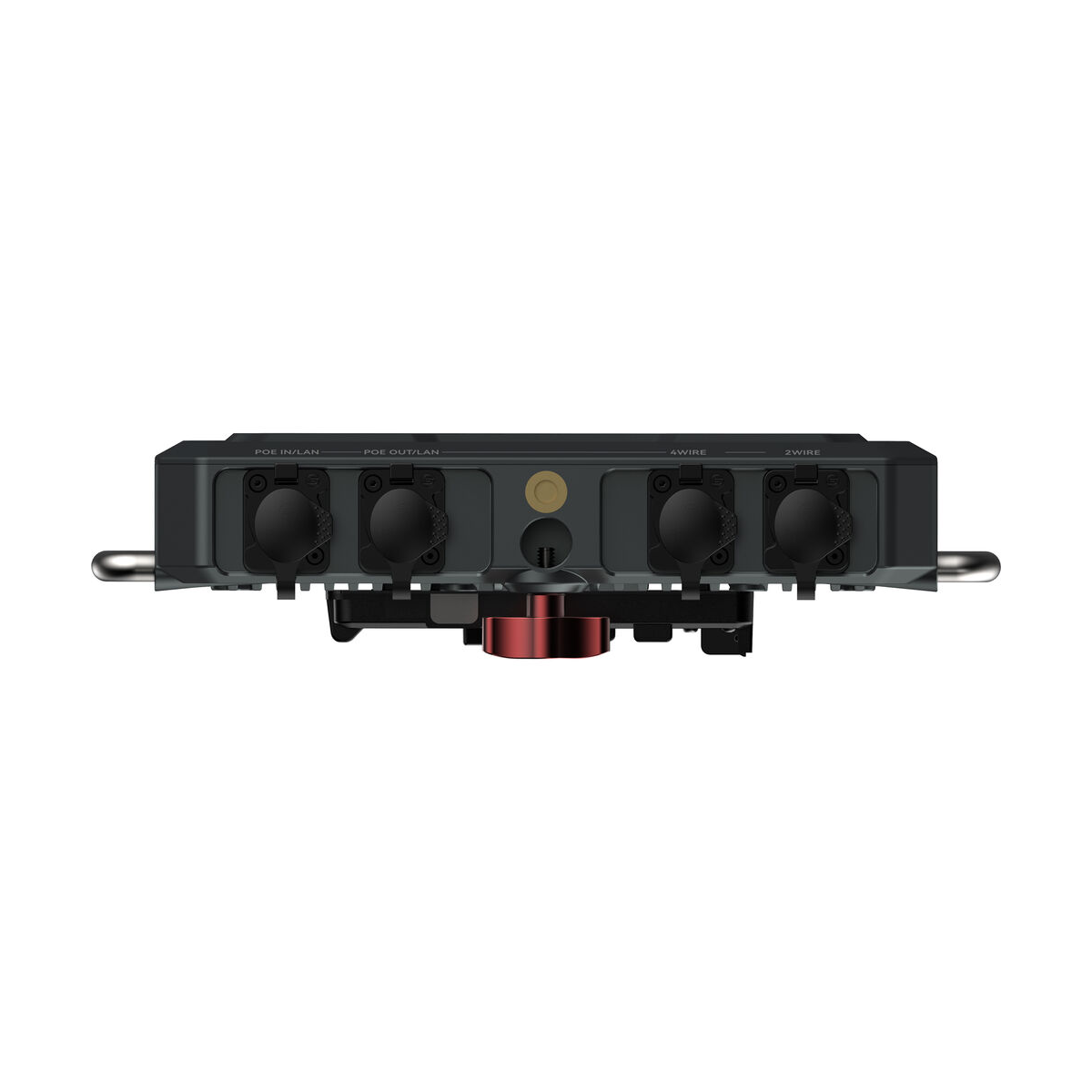

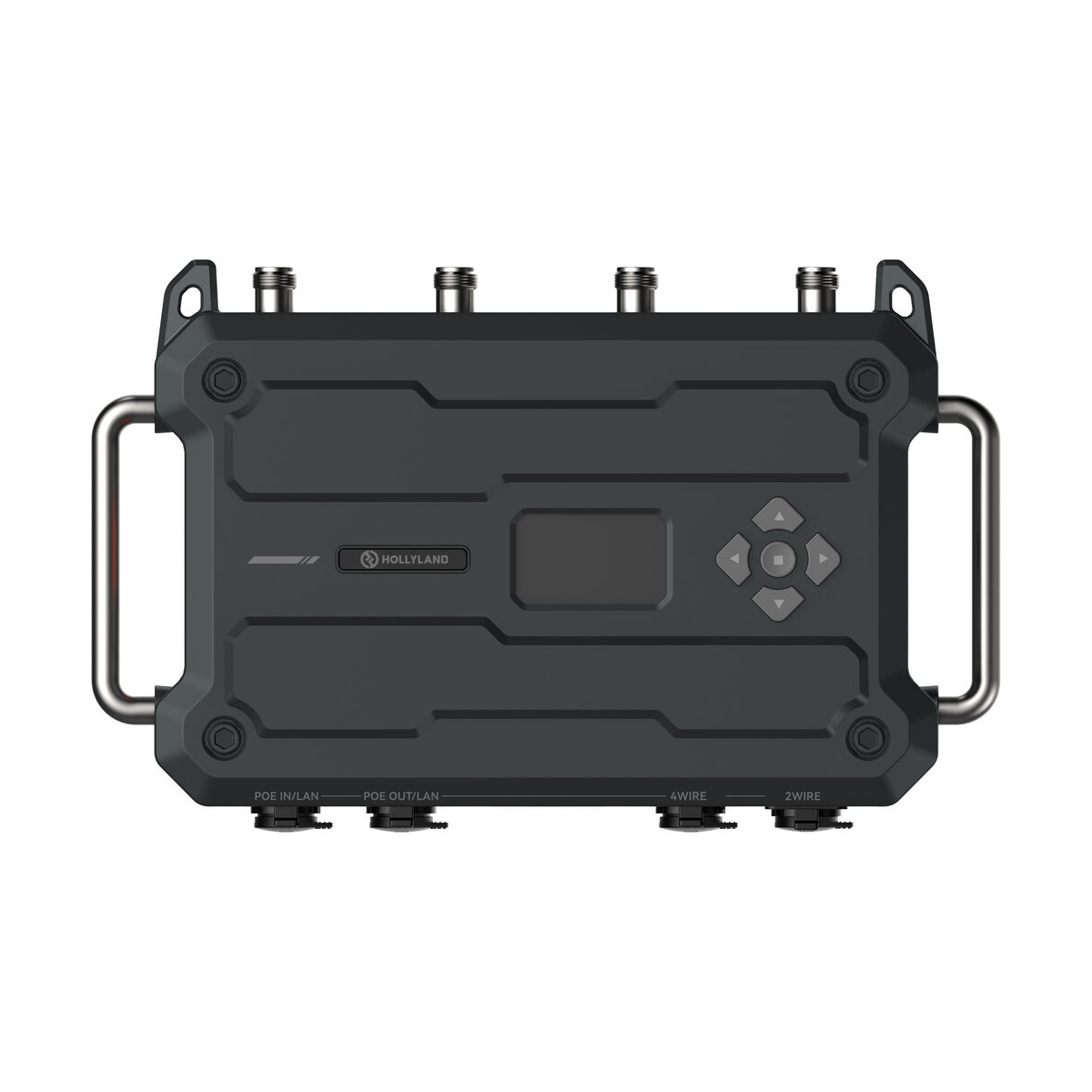

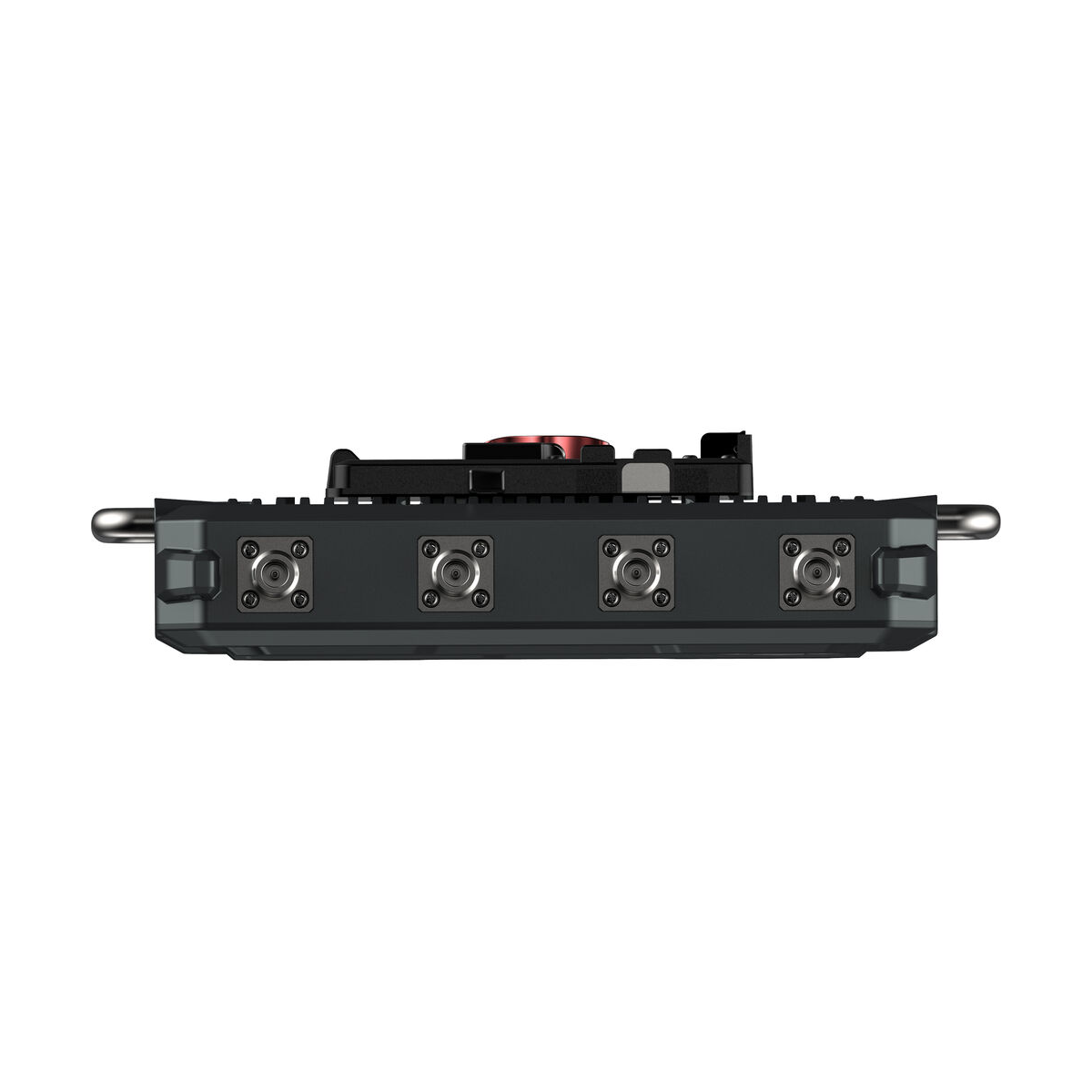

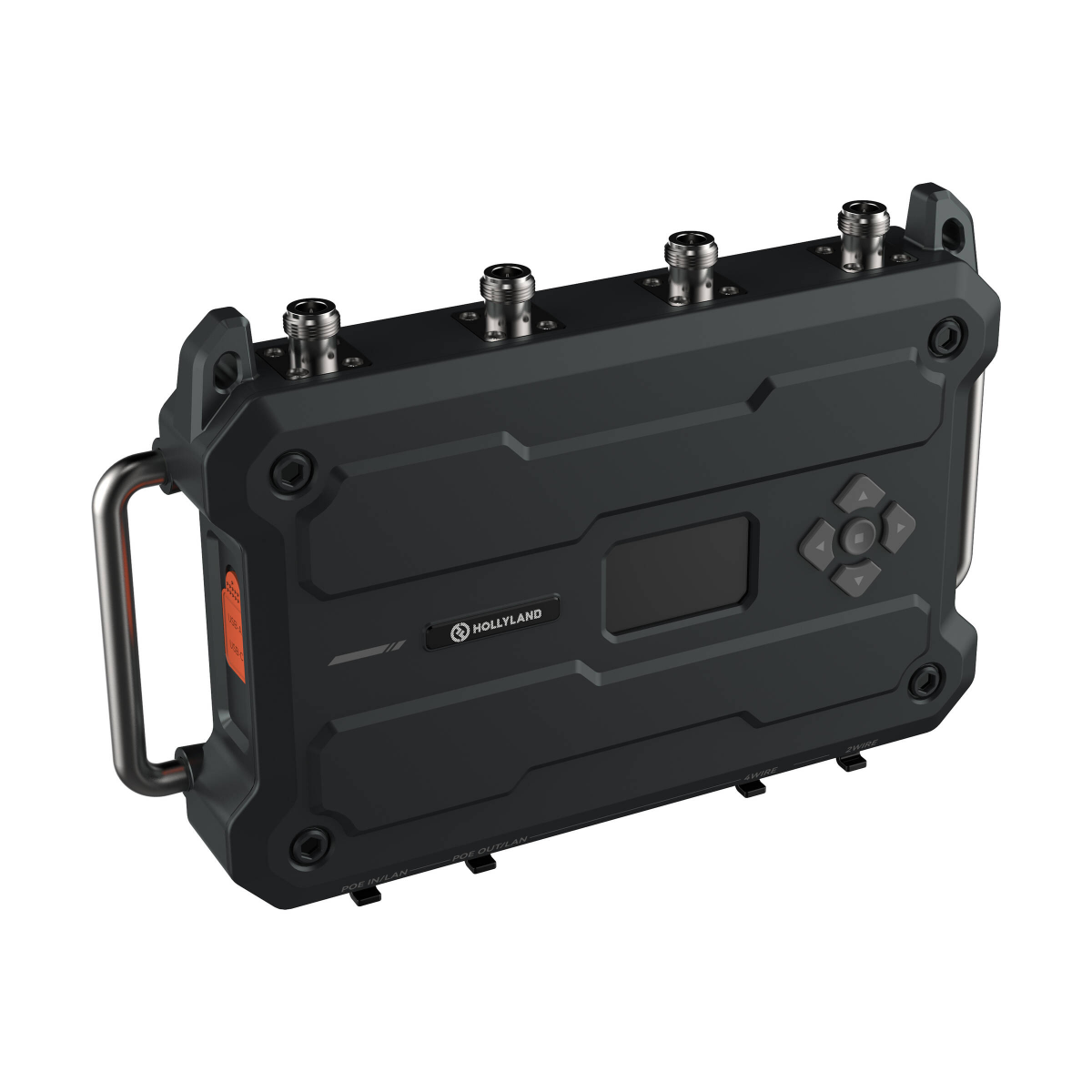

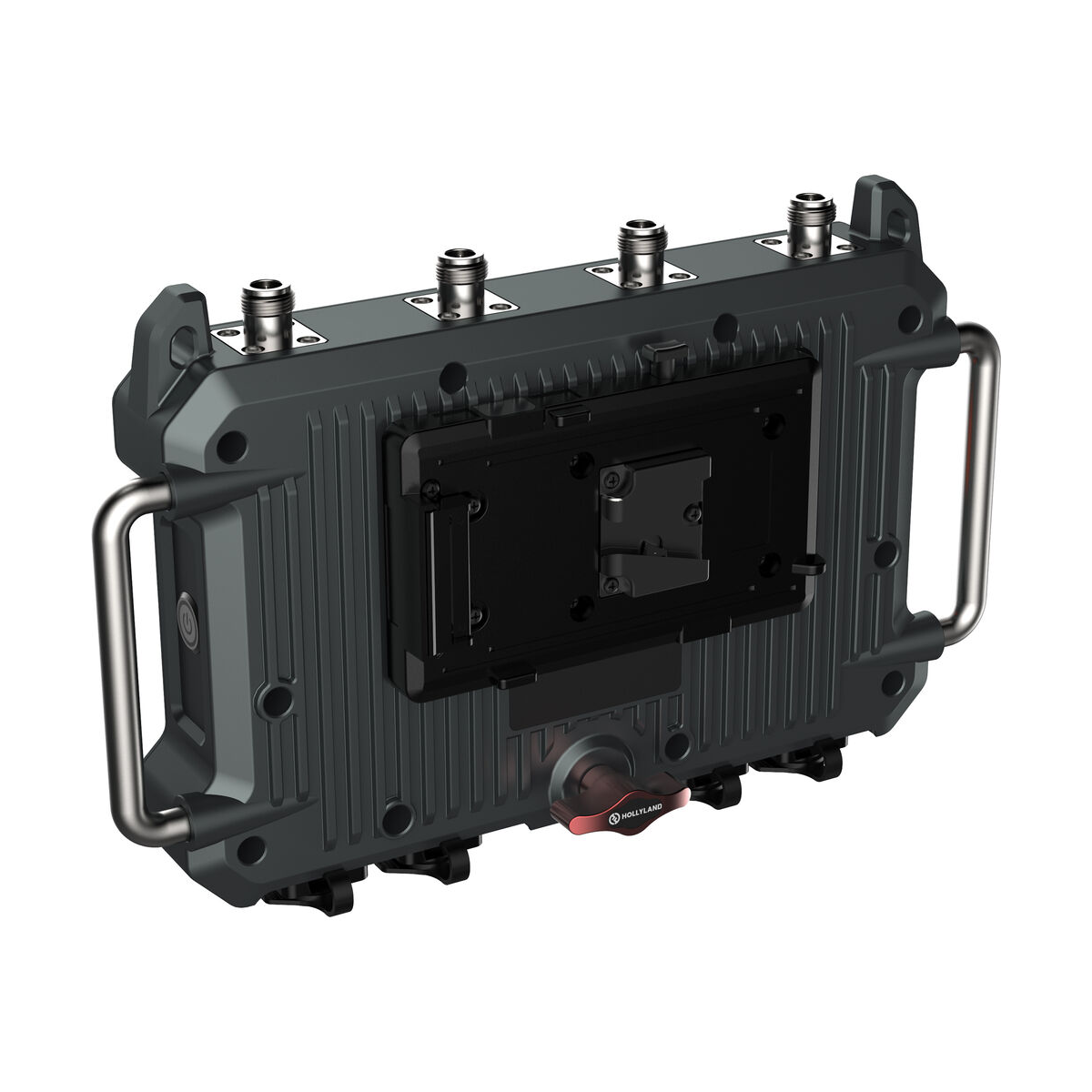

Hollyland Solidcom ANT01 Antenna
Tax included.
Massive Coverage. Modular Power. No Limits.
Skip the central station for smaller gigs. A single ANT01 supports 20 beltpacks independently, while daisy-chaining three units extends support to 30 users. For large-scale broadcast environments, pairing with the Geo Central Station allows the system to scale up to 80 beltpacks across eight antennas.
Maintain crystal-clear communication even as your team moves between zones. Advanced seamless roaming ensures no signal dropouts during transitions. Built for the field, the IP54-rated housing protects internal components from dust and water, making it a reliable workhorse for both indoor studios and unpredictable outdoor locations.
Modernise your setup with native Dante support and wireless control. System parameters can be adjusted instantly via the HOLLYVOX App or a web interface. With cloud communication support, off-site technical teams can even provide remote real-time assistance over the internet, ensuring zero downtime during critical takes.
- Wireless transceiver provides full-duplex communication for up to 20 BPK01 beltpacks without a Geo Central Station
- Link up to 3 units for streamlined support of up to 30 beltpacks
- Pairs seamlessly with the Geo Central Station to support up to 80 beltpacks in full-duplex mode
- Roaming-cascade up to 8 units with the Geo Central Station to deliver wireless coverage equivalent to nearly 790 football fields
- Supports up to 12 groups in standalone mode with 1–3 units
- Maintains stable communication across zones with seamless, real-time roaming
- Hollyland Solidcom ANT01 Antenna
- 4 x Fiberglass Antenna
- XLR Network Cable
- PoE Power Adapter
-
Coverage Radius: 500m (1640ft) Line-of-Sight
-
Operating Frequency: DECT: 1.8-1.9 GHz; BT/WiFi: 2.4 GHz
-
Transmit Power: 24 dBm
-
Modulation Mode: GFSK / OFDM
-
Standalone Mode: Up to 20 Beltpacks
-
Max Cascaded (No Hub): 3 Antennas / 30 Beltpacks
-
Max System Capacity: 8 Antennas / 80 Beltpacks (with Hub)
-
Control Interfaces: HOLLYVOX App, Web UI, Cloud Support
-
Power Options: PoE, V/G-Mount Battery (11V-30V), DC
-
Power Consumption: 15.5 W
-
Environmental Rating: IP54 Dust & Water Resistant
-
Dimensions: 302 x 188.56 x 64.6 mm
- Weight: 1987g
- Explore Hollyland Intercom Systems [ANT01 Antenna]: https://www.hollyland.com/product/solidcom-h1-wireless-intercom-system
