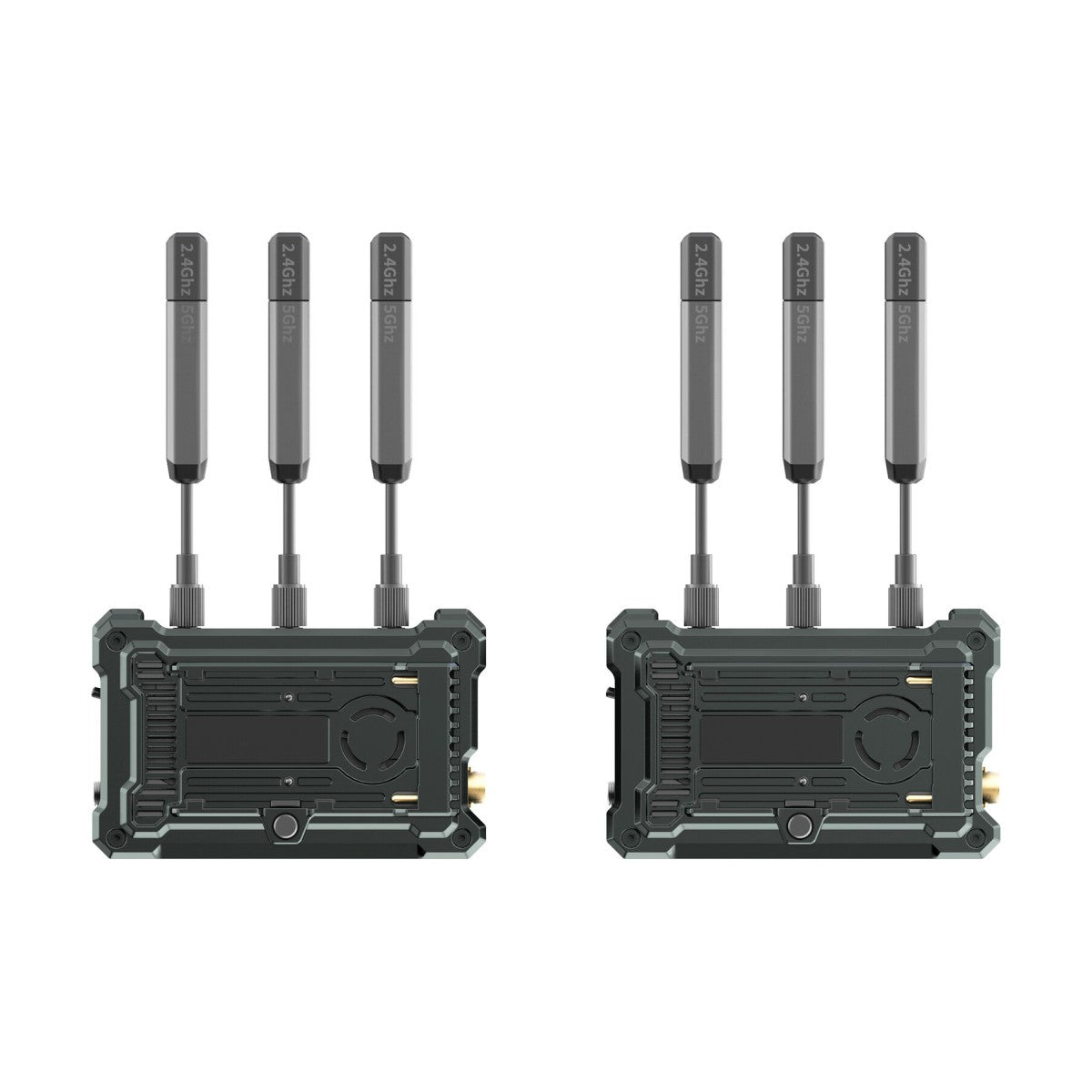

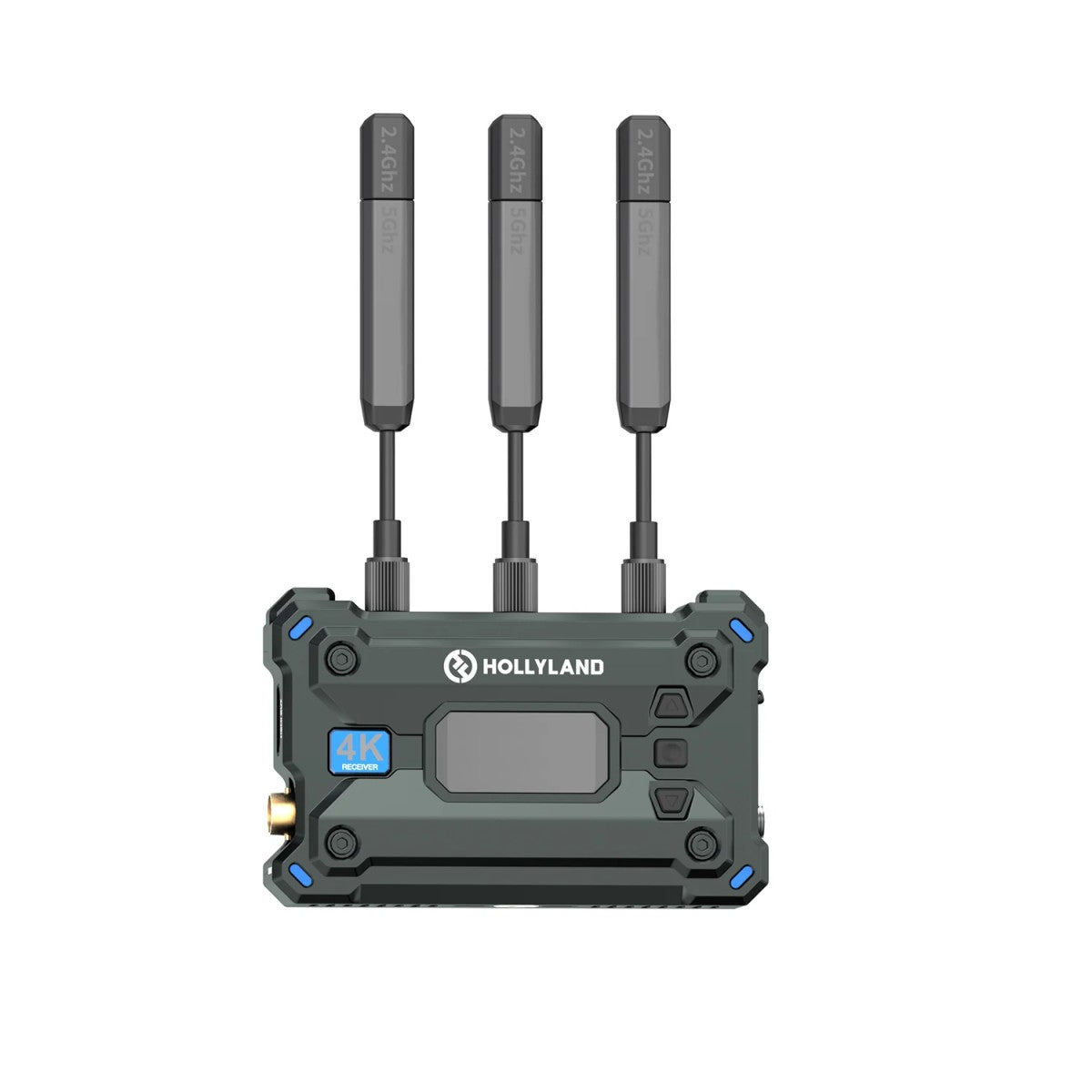

Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmission System (1TX + 1RX)

4K Wireless Mastery: Redefine Your Production Workflow

The Hollyland Pyro S is a groundbreaking 4K HDMI/SDI wireless video transmission system engineered for the rigours of modern production. By combining high-definition clarity with massive transmission range, it serves as the ultimate tool for professional filmmakers, live event broadcasters, and ENG/EFP crews who require real-time, multi-user monitoring without being tethered by cables. Whether you are managing a complex film set or streaming a live corporate event, the Pyro S delivers the stability and precision required to get the job done.

Multi-User Monitoring with WifiBroadcast Technology

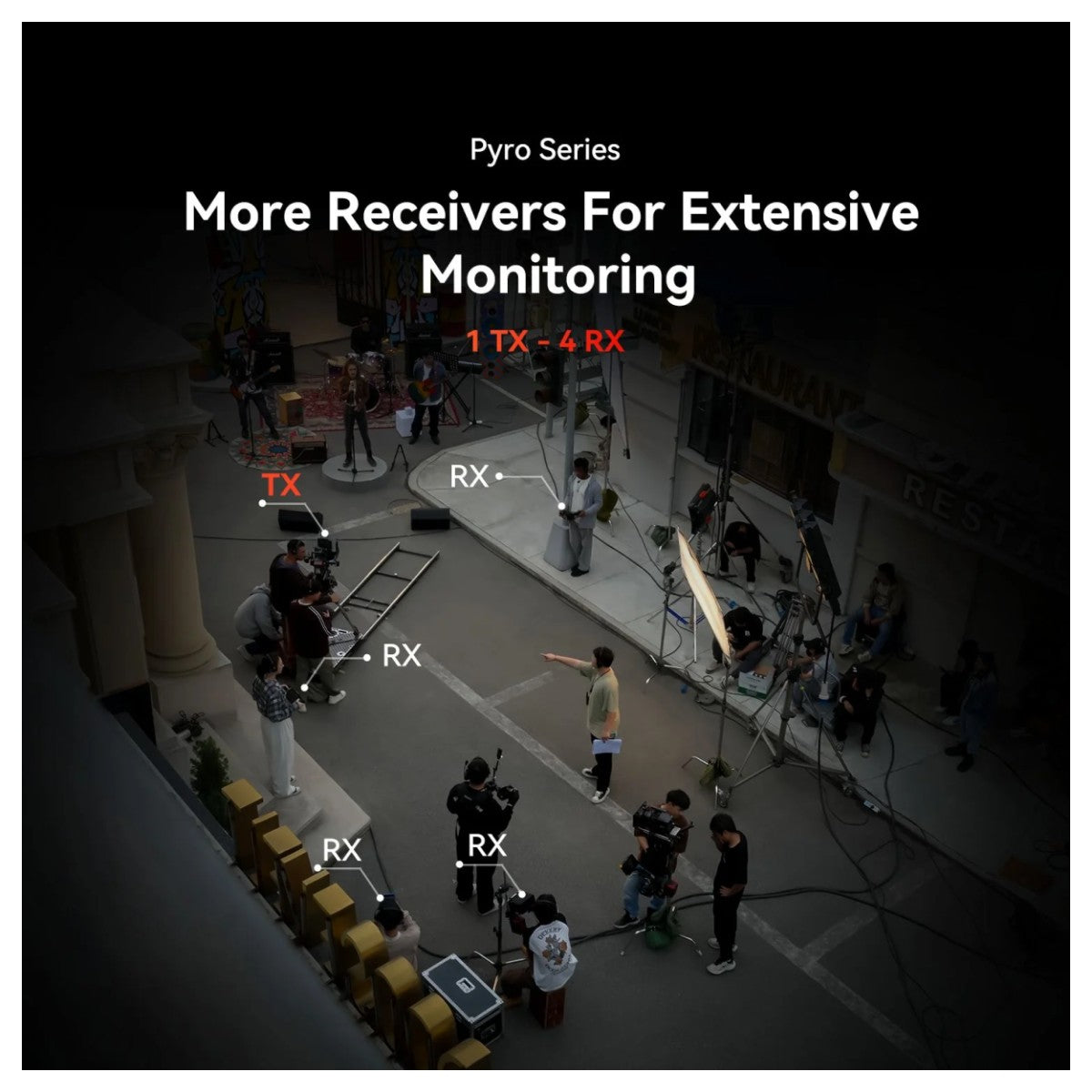

The Pyro S redefines set flexibility by allowing a single transmitter to connect to four receivers simultaneously. Utilizing advanced WifiBroadcast technology, you can provide stable signals to multiple crew members - from the director to the focus puller - ensuring everyone sees the action in real-time. In standard mode, it boasts an incredible line-of-sight range of up to 400 metres (1,300ft), while Broadcast Mode supports a robust 200-metre range for extensive multi-device setups.

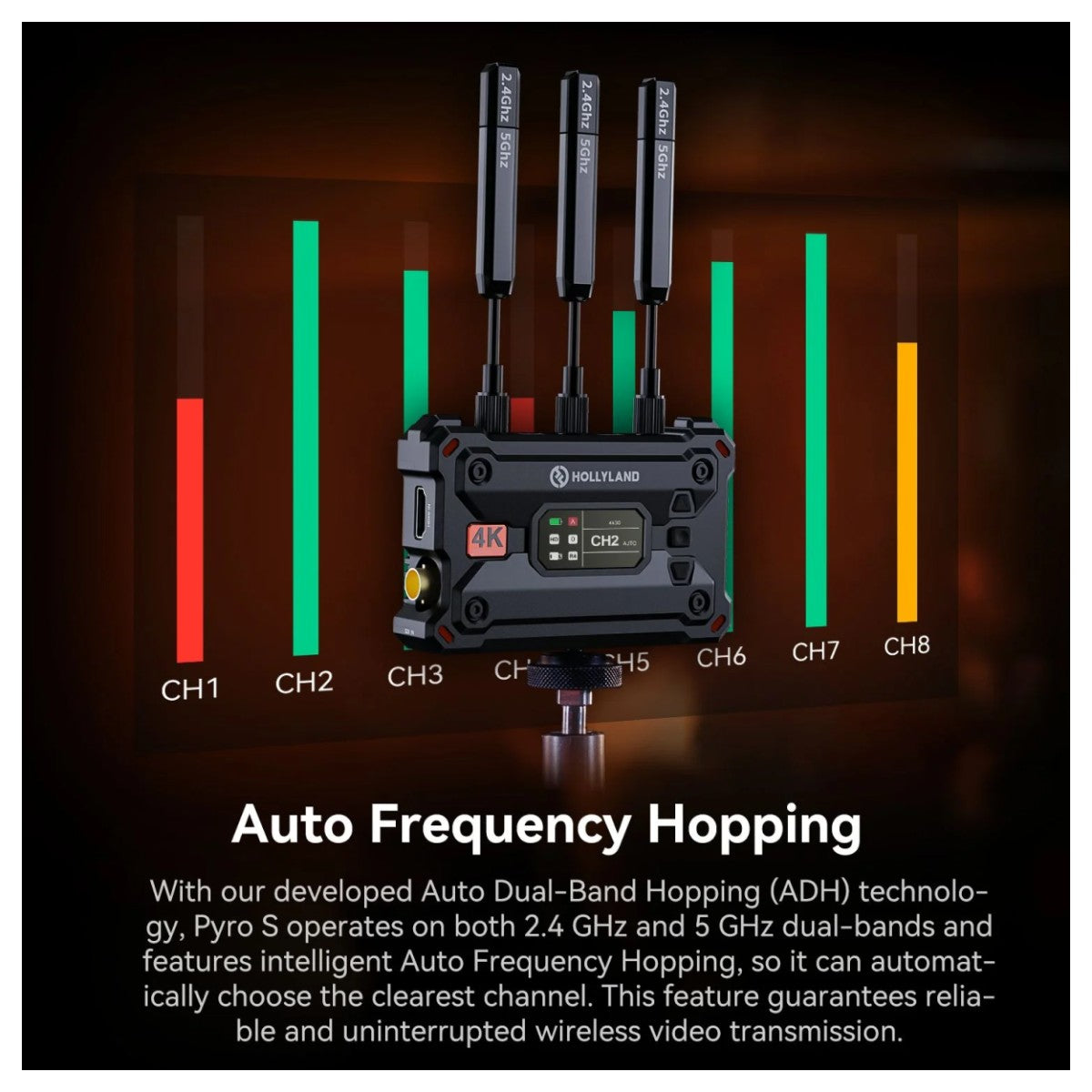

Rock-Solid Stability via Dual-Band Hopping
Say goodbye to signal dropouts in congested environments. The Pyro S features self-developed Auto Dual-Band Hopping (ADH) technology, which intelligently scans and switches between 2.4 GHz and 5 GHz bands to find the clearest possible channel. This dual-band approach, paired with high-gain omnidirectional antennas, ensures high transmission efficiency and minimises interference, allowing you to focus on the creative process rather than technical troubleshooting.

Streamlined Workflow and Field Durability
Built for the professional on the move, the Pyro S is encased in an aerospace-grade magnesium-aluminium alloy shell that is 30% lighter and more robust than standard aluminium models, significantly improving heat dissipation and portability. For those in the streaming space, the built-in UVC and RTMP support allows for plug-and-play connectivity to computers - no capture cards required - making it an effortless solution for high-quality live streaming on platforms like YouTube and Zoom.

Main features:

• Supports simultaneous signal transmission from one transmitter to up to four receivers for flexible onset monitoring.

• Achieves an ultra-long wireless line-of-sight range of up to 400 metres (1,300ft).

• Ensures professional-grade responsiveness with an ultra-low latency of only 50ms.

• Delivers high-clarity 4K30 video via HDMI for superior detail in professional filmmaking.

• Uses Auto Dual-Band Hopping (ADH) across 2.4GHz and 5GHz to automatically eliminate signal interference.

• Features dual HDMI and SDI input/output ports for maximum compatibility with professional cameras and monitors.

• Provides plug-and-play UVC functionality for streaming directly to computers without the need for capture cards.

• Supports direct RTMP streaming to platforms like YouTube, Zoom, and TikTok via a wireless network key.

• Built with a magnesium-aluminum alloy shell that is 30% lighter and offers better heat dissipation than standard models.

• Offers flexible power solutions including DC input, NP-F batteries, and USB-C connectivity.

• Includes a smart channel scan that automatically selects the clearest frequency upon startup for stable transmission.

• Comes ready to use immediately with preset grouping and pairing for fast, manual-free deployment.

• Features a dual-speed fan cooling system to prevent overheating and ensure signal stability during long shoots.
  Equipped with a full-color LCD display for real-time monitoring of signal status, resolution, and battery life.

Tech Specs:

• Video Inputs (TX): 1x HDMI 1.4b, 1x 3G-SDI

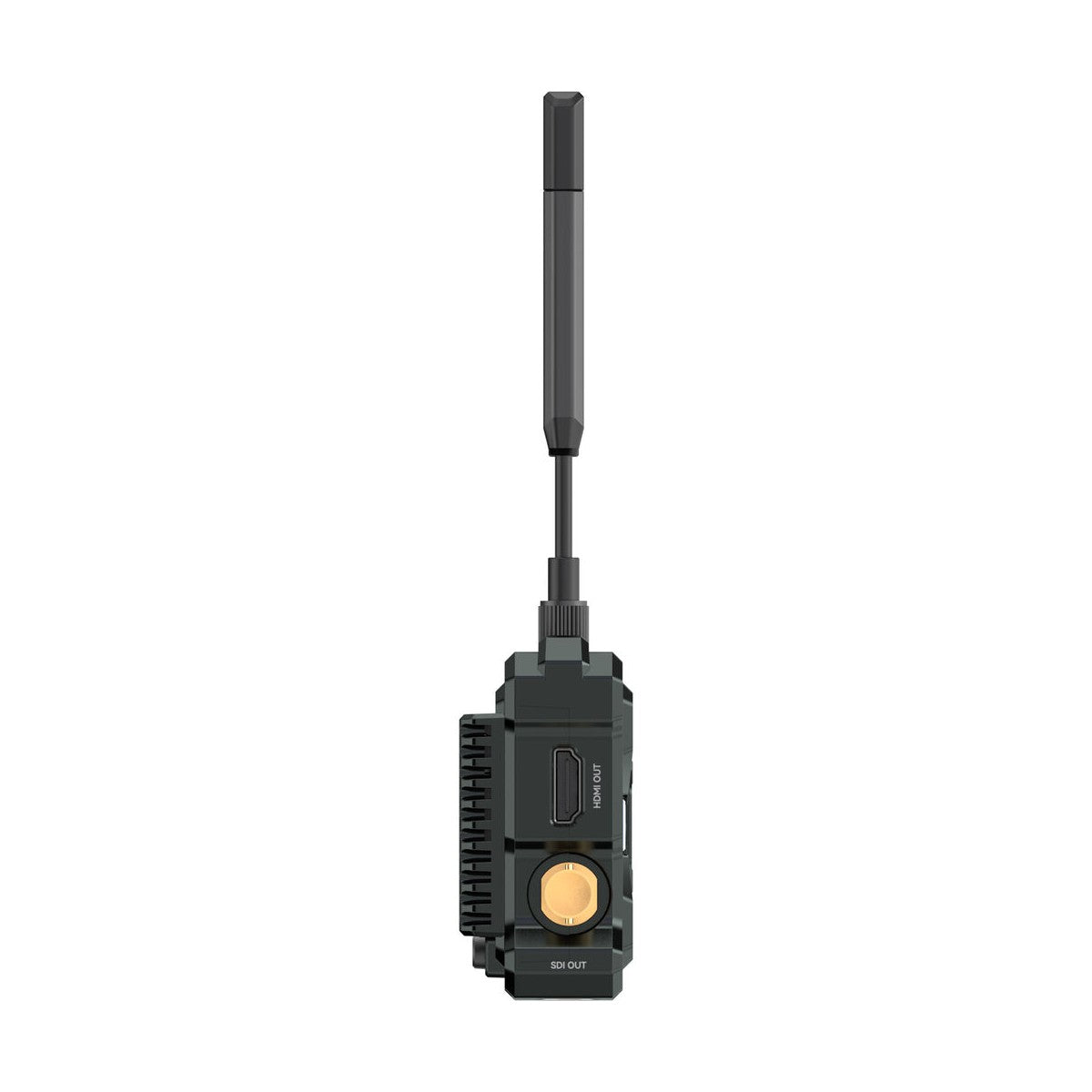

• Video Outputs (RX): 1x HDMI 1.4b, 1x 3G-SDI

• HDMI Resolutions: Up to 3840*2160 (4K) @ 30/25/24 fps

• SDI Resolutions: Up to 1080p @ 60/50/30/25/24 fps

• Latency: < 50ms

• Transmission Range: 400m (1,300ft) LOS; 200m (650ft) in Broadcast Mode

• Frequency Bands: 2.4 GHz & 5 GHz Dual-Band

• Bandwidth: 20 MHz (Normal); 40 MHz (Broadcast)

• Technology: Auto Dual-Band Hopping (ADH)

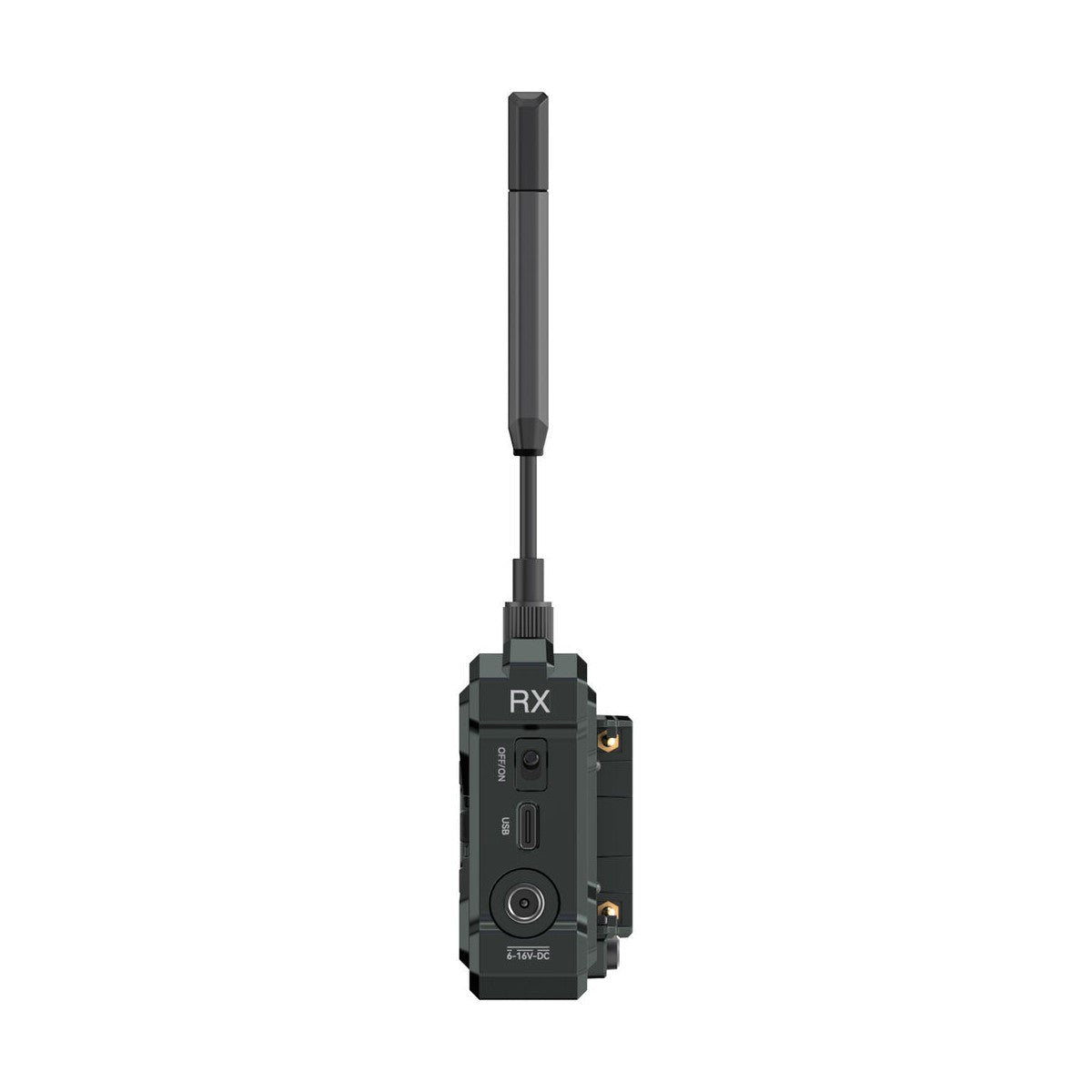

• Power Options: DC Input, NP-F (L-Series) Battery, USB-C

• DC Voltage Range: 6V – 16V

• Power Consumption: TX: < 11W; RX: < 8W

• Display: Full-Colour LCD

• Construction: Magnesium-Aluminium Alloy

• Weight: 207g (per unit)

• Dimensions: 112 x 71.2 x 34.1 mm
