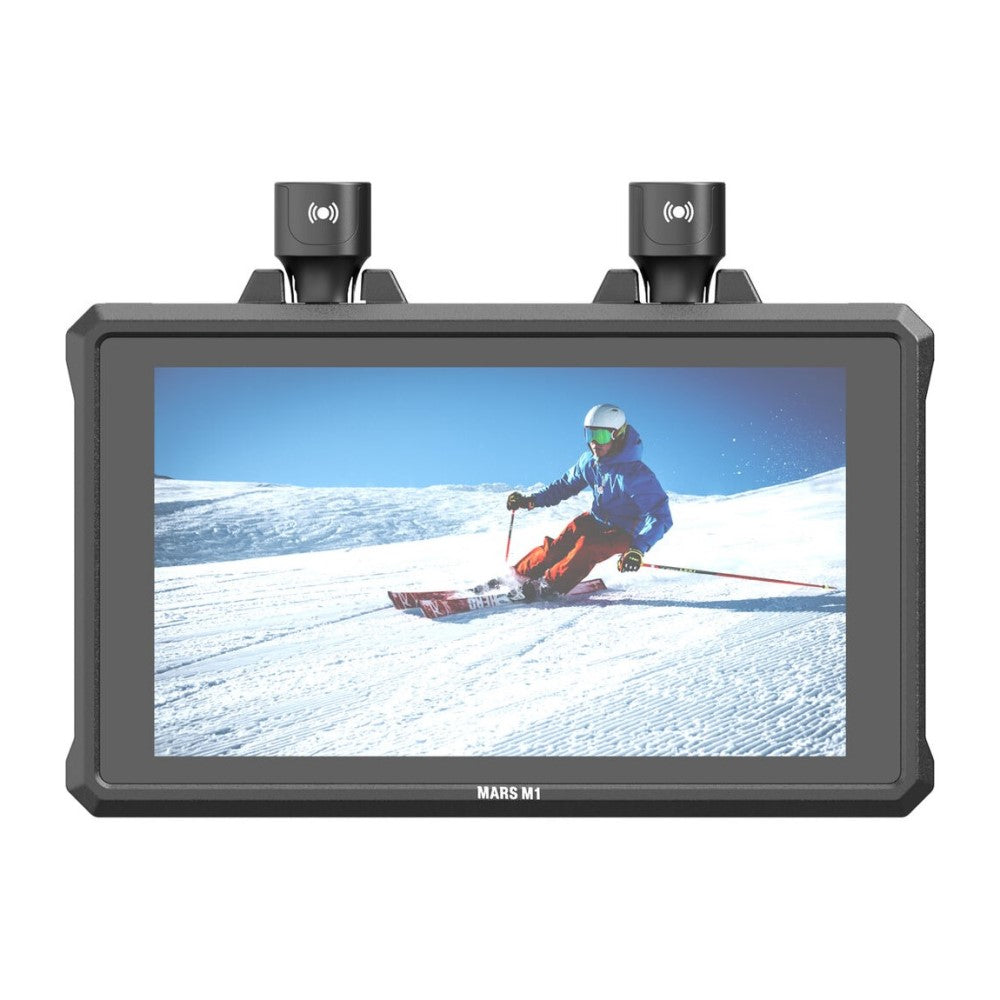

Hollyland Mars M1 5.5" Wireless Transceiver Monitor

Wireless Video Monitoring

The Hollyland Mars M1 is a powerful wireless monitor, integrating transmitter, receiver and monitor functions into one solution. Featuring a 5.5" LCD touchscreen with professional colour calibration performed, 1,000 nits of brightness and Rec. 709 colour gamut, the Mars M1 delivers a pleasant monitoring experience. It can also transmit camera signals at a line of sight (LOS) range of up to 150-meters (450ft) with incredibly low latency of 0.08s, effectively simplifying your device deployment and improving your efficiency during video shooting.

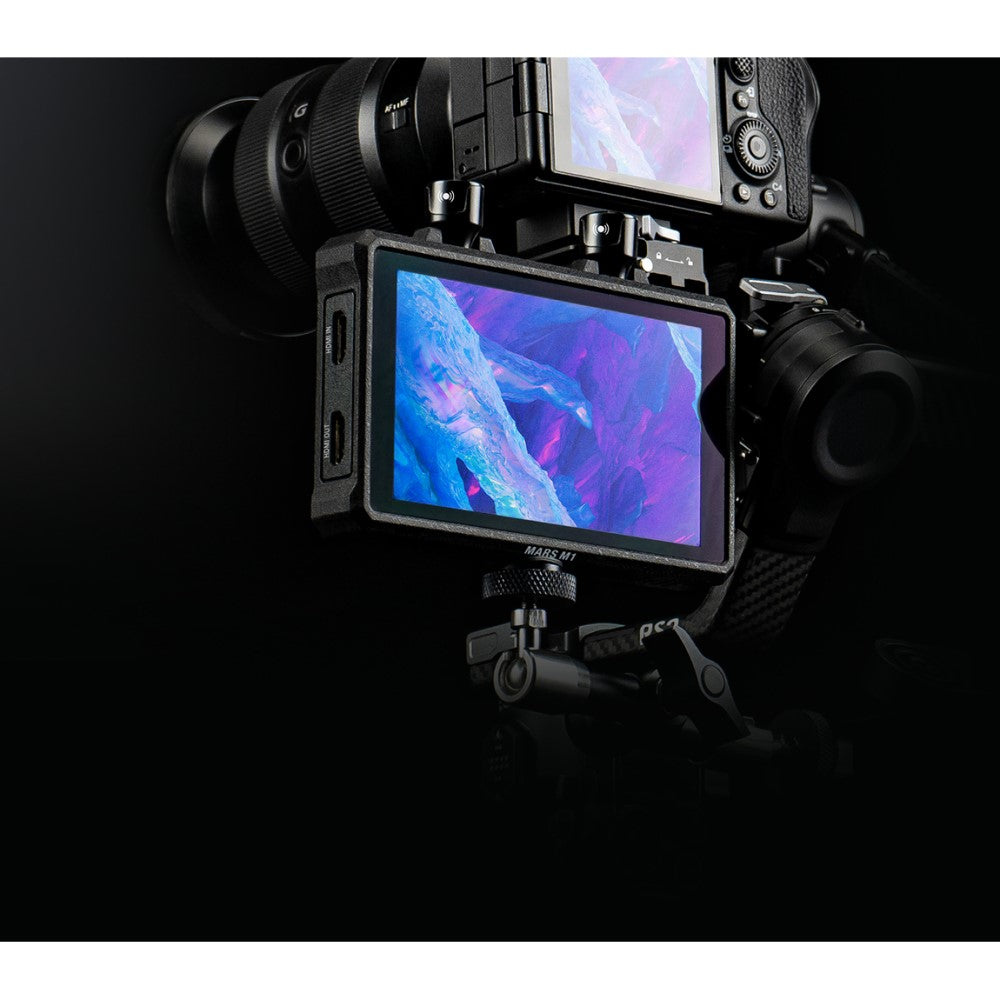

TX, RX, and Monitor—All in One
The Mars M1 functions as an all-in-one transmitter, receiver, and monitor solution. You can switch between the transmitter and receiver modes on the monitoring screen. One transmitter can work with up to two receivers or four mobile apps. The Mars M1 can be used together with the Mars Pro and 4K series to reduce the number of devices required for a more efficient shooting experience.

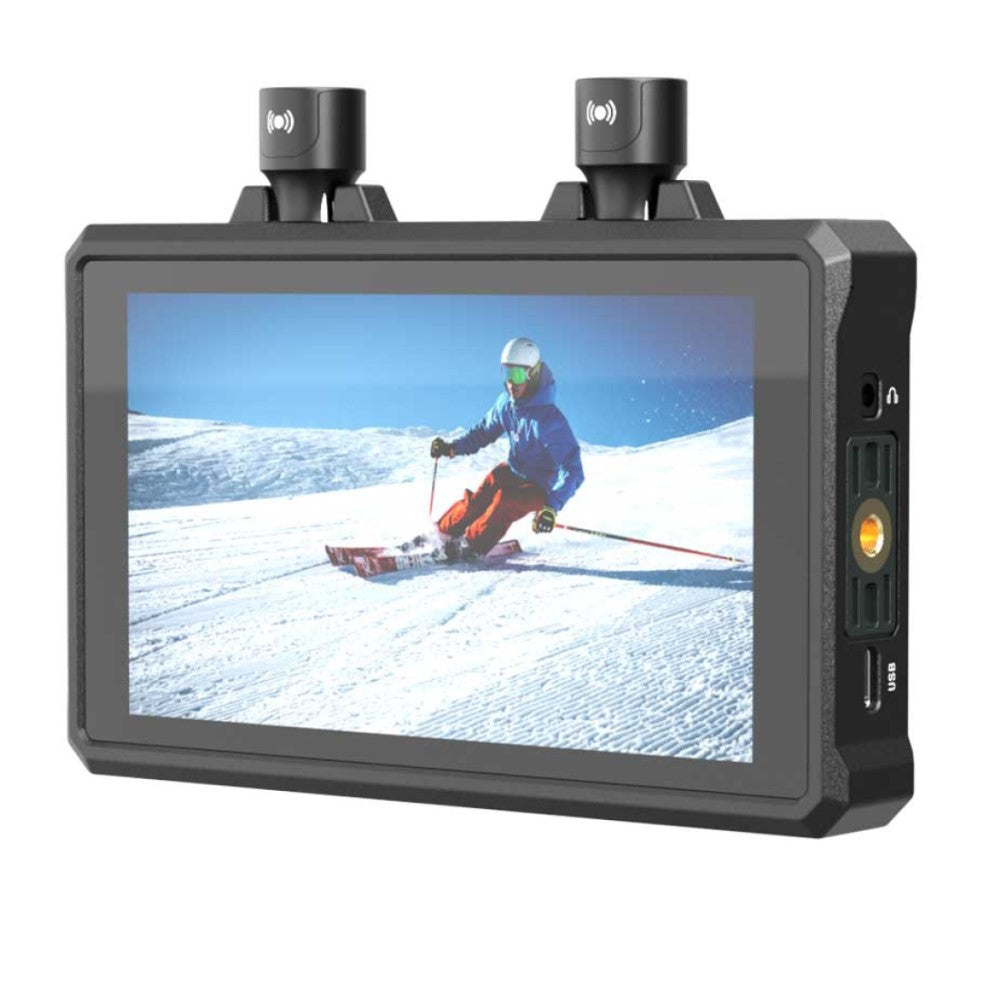

5.5" Touch LCD Screen
The Mars M1 fits a 5.5" touch LCD screen featuring up to 1,000 nits of brightness and professional colour calibration was performed during manufacturing. As well as multiple-level colour temperature adjustments available on site. The screen also supports the Rec. 709 colour gamut for brilliant colour rendition. Five selectable 3D LUT presets are accessible for transferring colours to the monitor.

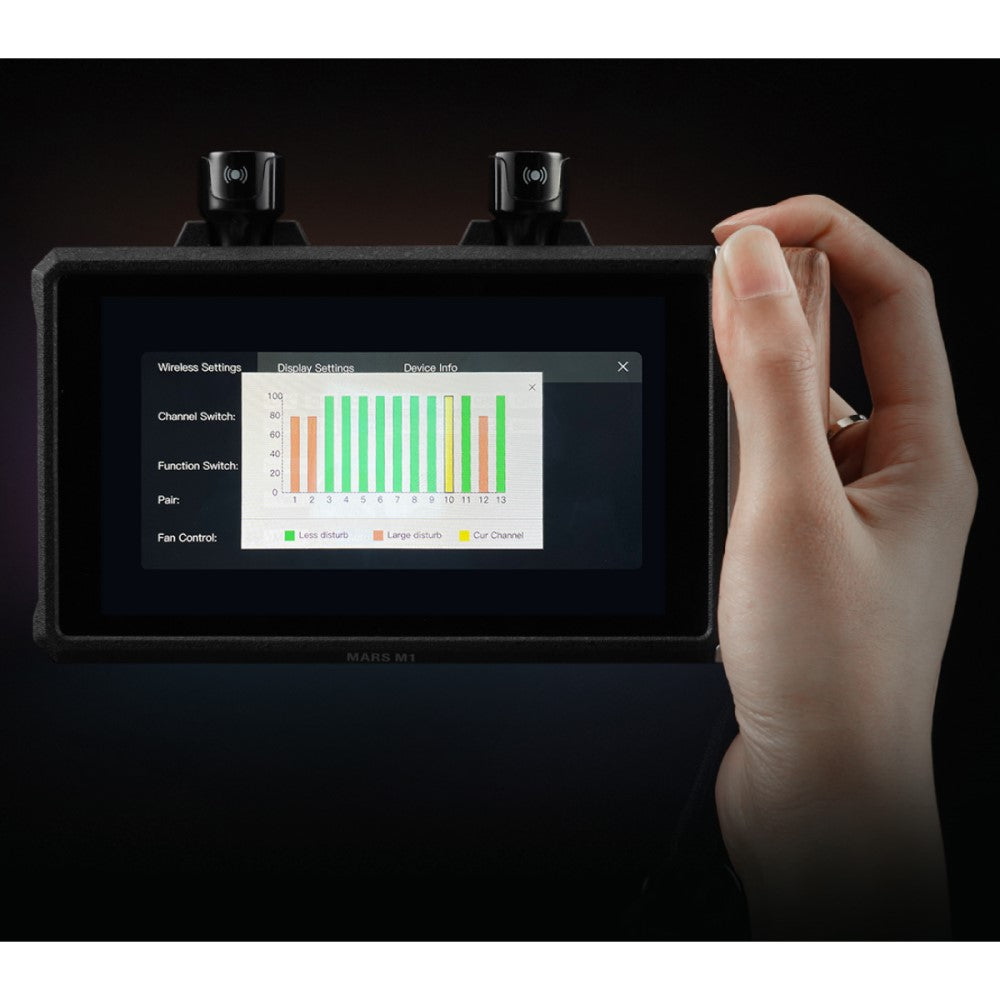

Smart Channel Scan and Selection
Channel assignment options allow for interference-free transmission. A stable connection is possible automatically upon startup. Smart channel scan helps determine which ones are occupied and selectable.

Main features:

Including:

Tech Specs:

• Hardware Platform:  iOS, Android, Camera, DSLR, Video

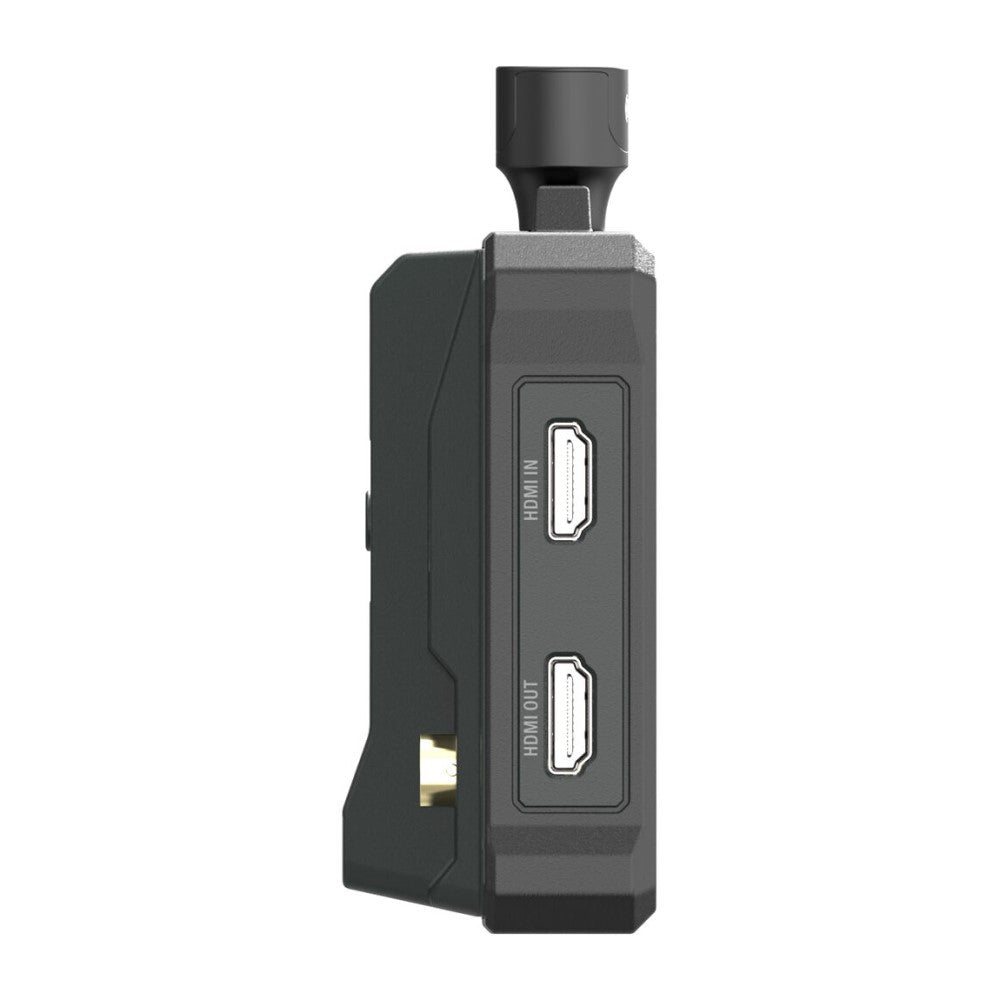

• Video Input: HDMI & SDI
• Video Output: HDMI
• Headphone Input: 3.5mm Jack

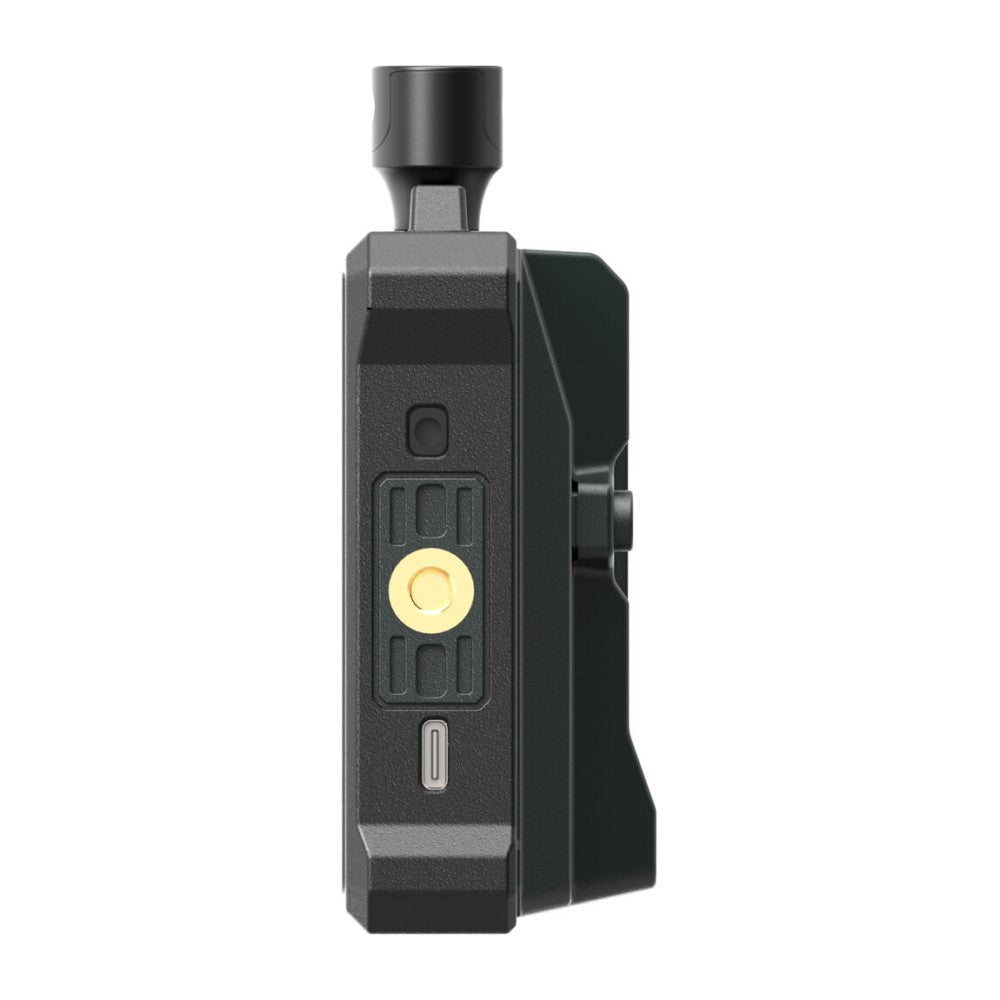

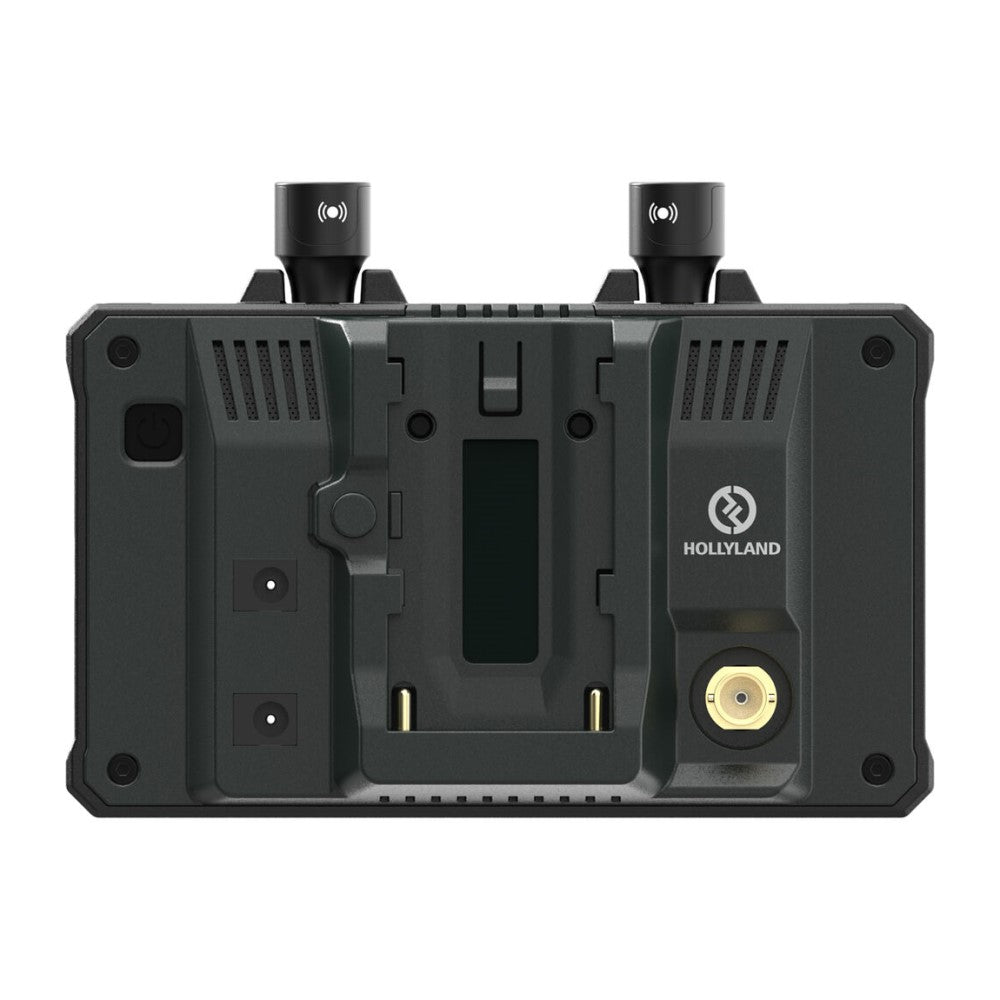

• Interface Types: HDMI, SDI USB-C, DC input, Antenna (RP-SMA)
• Band Frequency: 5.1 - 5.8 GHz
• Bandwidth: 20MHz
• Code Rate: 12 Mbps
• Codec Technology: H.264
• Screen Size: 5.5" touchscreen
• Screen Resolution: 1920x1080
• Pixel Density: 403 PPI
• Aspect Ratio: 16:9
• Brightness: 1000 nits
• Contrast Ratio: 1000:1
• Auto Frequency Hopping: No
• Channel Scan: Yes
• App Monitoring: Yes
• Timecode: Yes
• Transmission Range: 150m (LOS)
• Latency: 0.08s
• Battery Type: Rechargeable Lithium-Ion Pack
• Weight: 380g
• Dimensions (LxWxH): 152 x 96 x 40 mm (Antenna excluded)
• Power Consumption: <14.5W
• Power Supply: USB-C Charger, Battery, DC 7V-16V
