Hollyland Mars 4K UHD Video Transmission System (5GHz)

 Ultra HD Transmission System

The new Hollyland Mars 4K wireless video transmission system is capable of transmitting up to 150-meter line of sight (LOS) range and ultra-low latency of 0.06s. Its upgraded dual-core codec chip supports a data rate ranging from 8 Mbps to 20 Mbps, with 12 Mbps as the default.

The Mars 4K is designed to combine high performance and reliable quality at an affordable price. This package is ideal for Live Broadcasting, Indie Filmmaking, Sports Activities, Education Recording, Wedding Ceremonies and Corporate Events.

The Mars 4K supports 4K UHD video transmission at 30fps for the discerning videographer looking for high-resolution production capability. The Mars 4K also supports FHD and HD formats at varying frame rates–24p, 30p, and 60p.

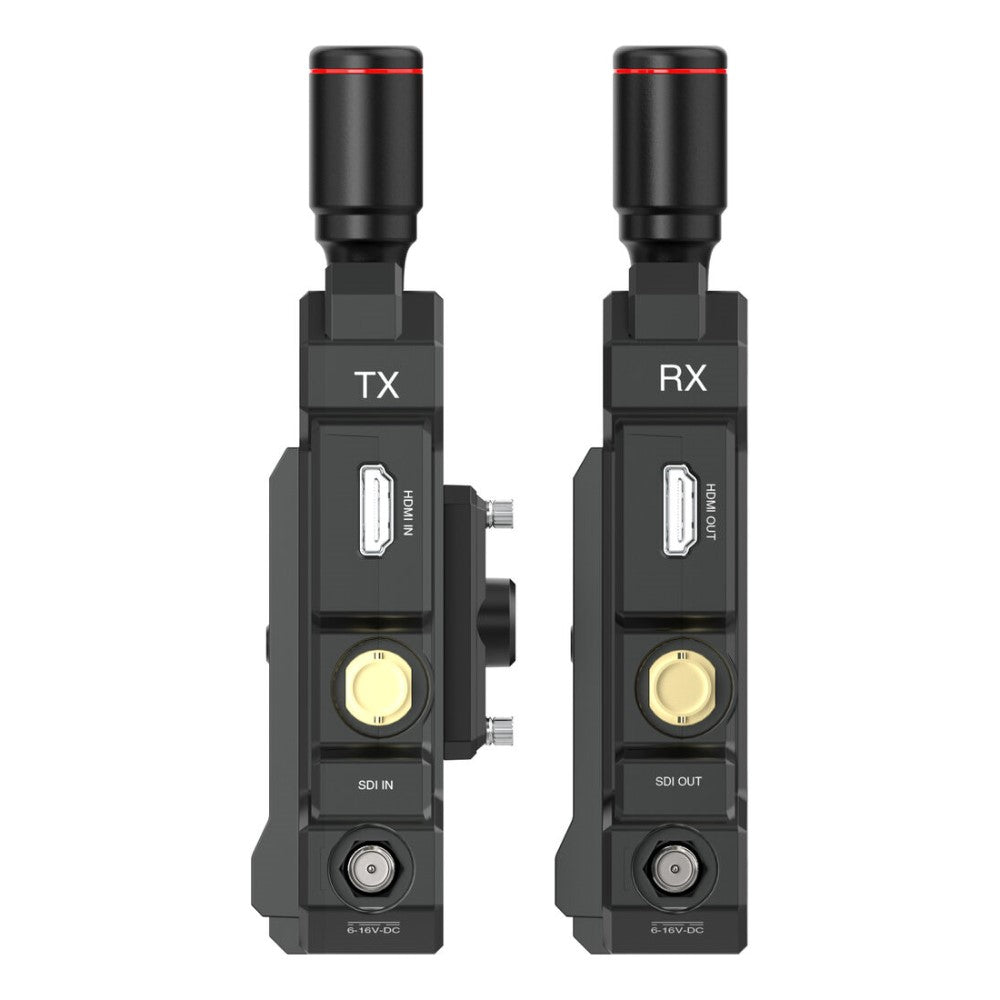

The Mars 4K supports HDMI & SDI input and output for expanded connectivity and compatibility. The SDI provides expanded frame rate flexibility for both broadcast and production frame rate (decimal-point frame rate) standards and compatibility through production and postproduction.

App Monitoring Options
The Mars 4K transmitter is compatible with up to two receivers or four mobile devices with the HolyView App installed. Up to four mobile devices with the app installed to allow a maximum of four parties (such as the director, producer, light control personnel, and audio personnel) on the site to monitor the shooting at the same time.

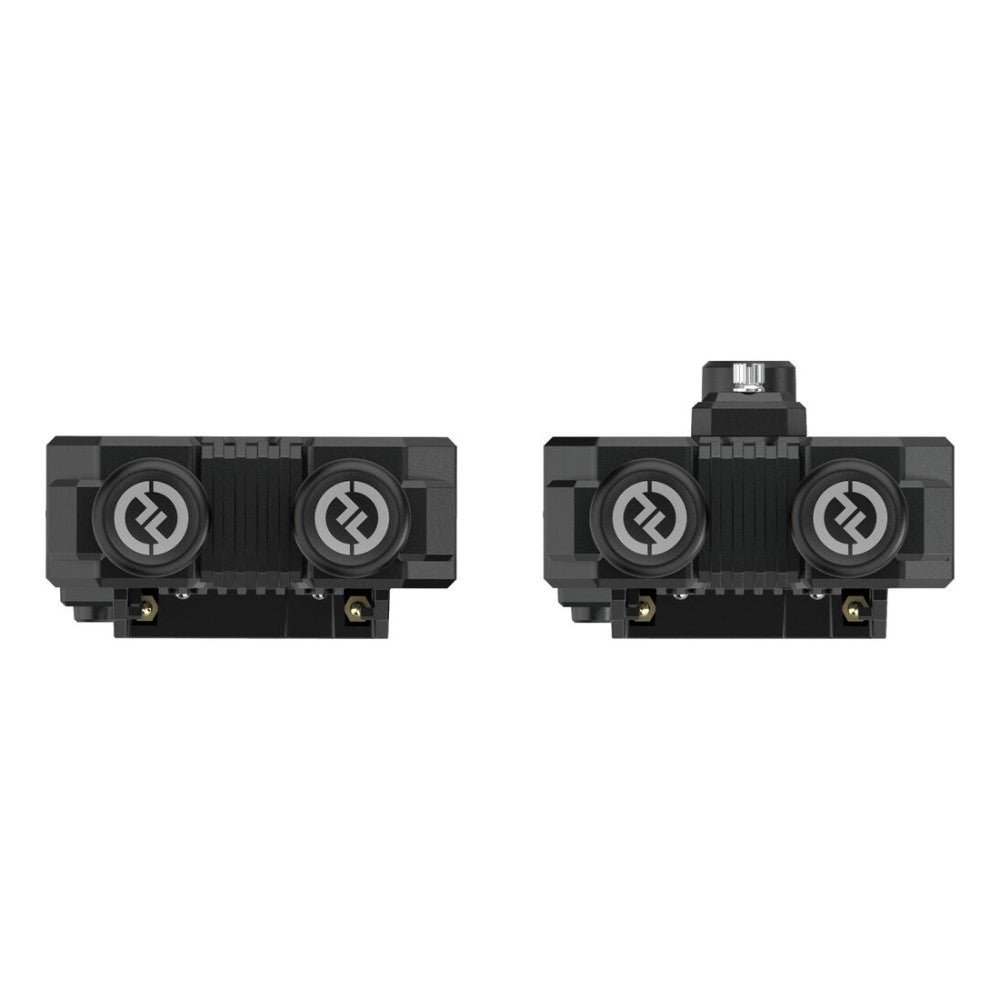

The Mars 4K is featured with superior corrosion and wear resistance for outstanding durability. With disassembly-free, bullet-styled antennas attached, the well-thought-out design form factor optimizes operational functionality for fast configurations.

Smart Channel Scanning
Channel assignment options allow for interference-free transmission. A stable connection is possible automatically upon startup. Smart channel scan helps determine which ones are occupied and selectable.

LCD Touchscreen
The Mars 4K features a colour LCD with a user-friendly UI design that enables quick configurations and status checks. Its uniquely designed rocker-styled button greatly improves the operational setup experience.

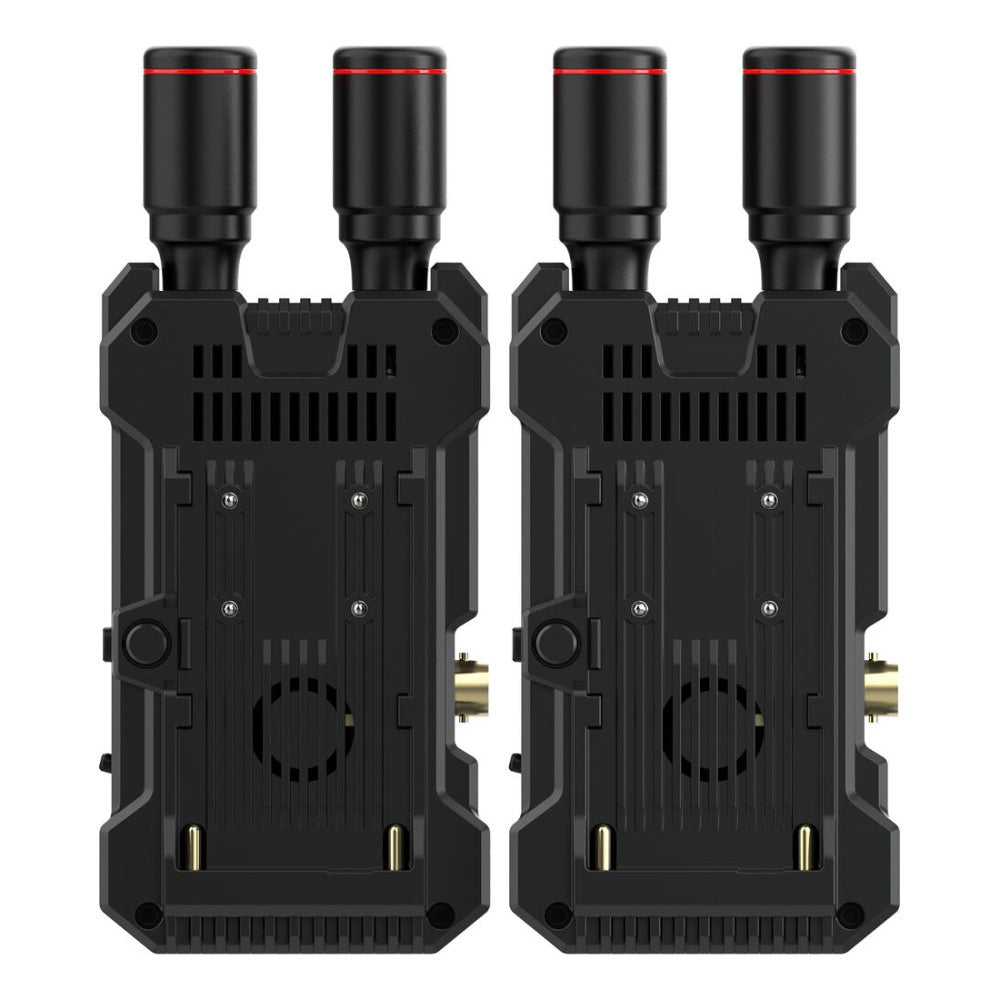

Power can be supplied via power bank, a USB Type-C source, DC adapter or NP-F (Sony L-Series) battery pack - purchased separately.

Main features:

Including:

Tech Specs:

• Hardware Platform:  iOS, Android, Camera, DSLR, Video
• Video Format In/Out: UHD 4K: 30 | HDMI 1080p: 60/30/24 | SDI 1080p: 60/59.94/30/29.97/24/23.98
• Interface Types: HDMI, SDI USB-C, DC input, Antenna (RP-SMA)
• Live Streaming: Yes via App
• Frequency: 5 GHz
• Code Rate: 8-20 Mbps
• Auto Frequency Hopping: No
• Channel Scan: Yes
• App Monitoring: Yes
• Timecode: Yes
• Transmission Range: 150m (LOS)
• Latency: 0.06s
• TX/RX Battery Type: Rechargeable Lithium-Ion Pack
• TX/RX Weight: 233g (each)
• TX/RX Dimensions (LxWxH): 115 x 65 x 32 mm
• TX/RX Power Consumption: <8.5W / <5W
• Power Supply: USB-C Charger, Battery, DC 6V-16V
