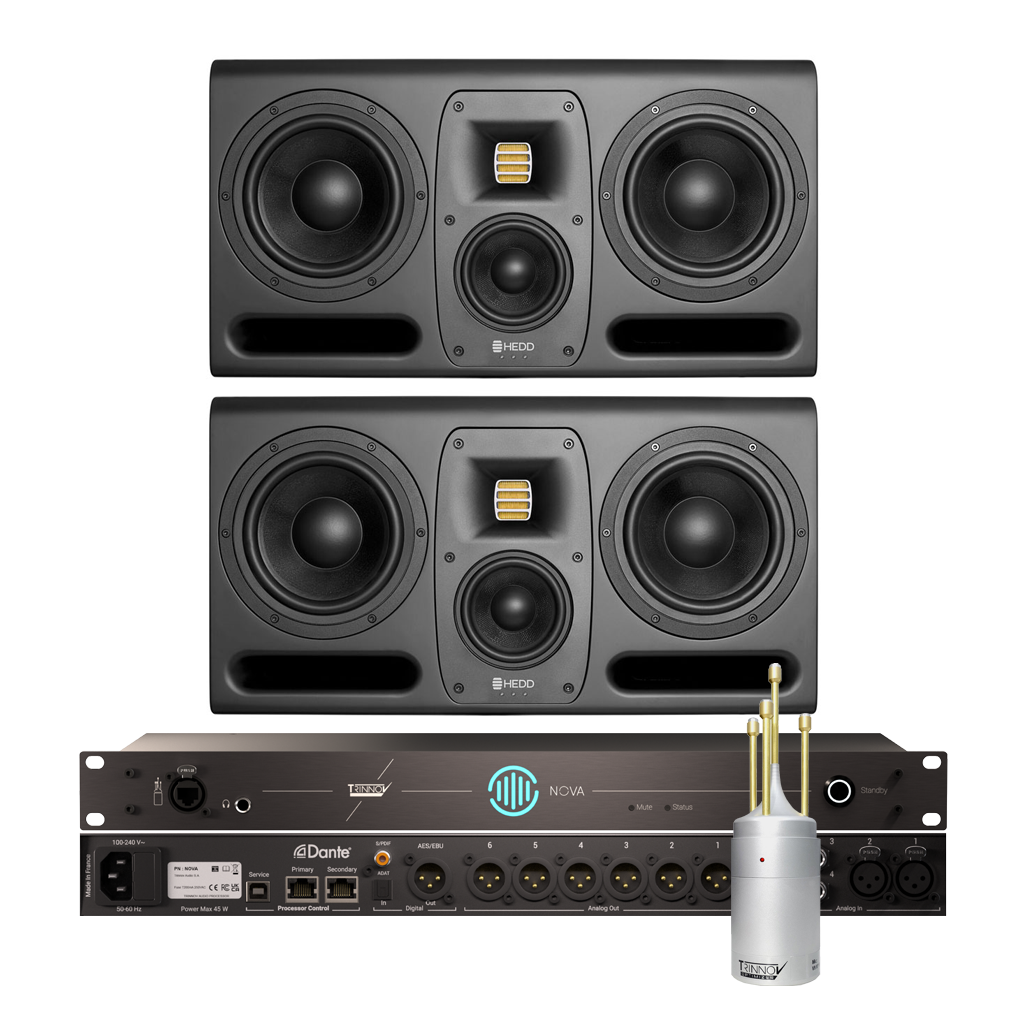

HEDD Audio Type 30 MK2 with Trinnov NOVA 2CH Room Optimizer System

Unleash Perfect Monitoring with HEDD & Trinnov Audio

The new Type 30 Mk2 900w Powerhouse is an active horizontal 3-way main monitor intended for midfield applications. The Type 30 Mk2 delivers the power and accuracy professional engineers demand from a precision reference-grade monitor; reproducing high-resolution, full-bandwidth audio with brilliant clarity. Housing two horizontally aligned 7” woofers, a 4” midrange speaker and AMT tweeter, with ICEpower amplifier (300W per channel) to create a wide frequency range from 32Hz to 40khz.

The Trinnov NOVA is a high-performance 2-channel loudspeaker and room optimization processor, designed to serve as both a cutting-edge monitor controller and an optional primary audio endpoint in a Dante‑based studio network. Its compact 1U fanless rack chassis makes it quietly and efficiently suited to professional mixing and mastering environments.

World-Class Acoustic Optimisation
At the core of the Trinnov NOVA is its proprietary Optimiser technology, a result of decades of research in room acoustics and psychoacoustics. This powerful engine analyses and corrects frequency response, phase alignment, time domain behaviour, and spatial coherence—all in real time. With up to 600ms FIR filter lengths and 64-bit floating-point precision, the NOVA delivers unparalleled monitoring accuracy in any studio environment.

Seamless Dante Integration
NOVA embraces the future of studio infrastructure by offering bi-directional 8-in/8-out Dante audio networking. This allows users to integrate the device effortlessly into modern, networked production environments. With ultra-low latency (~250 microseconds), the NOVA can function as a reliable audio interface or monitor controller, simplifying complex routing without sacrificing performance.

Audiophile-Grade Conversion
Equipped with ESS Sabre DACs and high-resolution 24-bit/192kHz converters, the NOVA ensures pristine audio quality. It maintains ultra-low noise and distortion (THD+N >‑110 dB), making it ideal for mixing and mastering applications. Each component, from ADC to headphone amp, is designed for transparency and linearity.

Scalable, Software-Defined Design
Though it comes standard with 2-channel optimisation, the NOVA is fully license-upgradable to support up to 6 channels, enabling setups from stereo+sub to 5.1 surround. This flexible licensing approach allows studios to scale their systems as needed, extending the longevity and value of the unit.

Advanced Monitor Control Ecosystem
Beyond optimisation, NOVA acts as a full-featured monitor controller. It supports source/monitor switching, preset recall, gain trims, and can be remotely controlled via EUCON, desktop app, iOS app, or Trinnov's La Remote hardware. This integration unifies room correction and monitoring into a single streamlined workflow.

Main features:

• Contains enough I/O to cover stereo to 5.1 monitoring, complete with bass management
• 8 channels of Dante connectivity provides low-latency, bi-directional digital audio via 2 Ethernet ports
• ESS Sabre DAC offers accurate, crystal-clear sound
• 2 channels of Trinnov's industry-renowned Loudspeaker/Room Optimiser processing
• Upgradeable up to 6 channels of Optimiser processing
• Modern web interface with built-in help and an easy-to-navigate menu structure
• Connect, align, and seamlessly switch between sources and multiple sets of monitors, regardless of format or connection
• EUCON compliant and fully compatible with Trinnov's La Remote

Tech Specs:

• Type: Room Optimisation, Dante Interface
• Input Channels: 1 x stereo sources (2-channel)
• Output Channels: 1 x stereo monitors (upgradeable to 6)
• Analogue Inputs: 2 x XLR, 4 x 1/4" TRS
• Analogue Outputs: 6 x XLR
• Digital Inputs: 1 x Coax (S/PDIF), 1 x Optical (S/PDIF, ADAT)
• Digital Outputs: 1 x XLR (AES)
• Headphones: 1 x 1/4"
• Data I/O: 2 x RJ-45 (Dante 8 x 8)
• USB: 1 x Type B (service only)
• A/D Resolution: Up to 24-bit/192kHz
• Form Factor: Rackmount
• Power Supply: Standard IEC AC cable

• Dimensions: 482 x 44 x 192 mm
• Weight: 2.5 kg
• Warranty: 5 years
• Explore Trinnov Room Optermiser Systems [NOVA]: https://www.trinnov.com/en/products/nova/

HEDD T30 Main features:

• Two 7" honeycomb Woofer
• 4" honeycomb Midrange

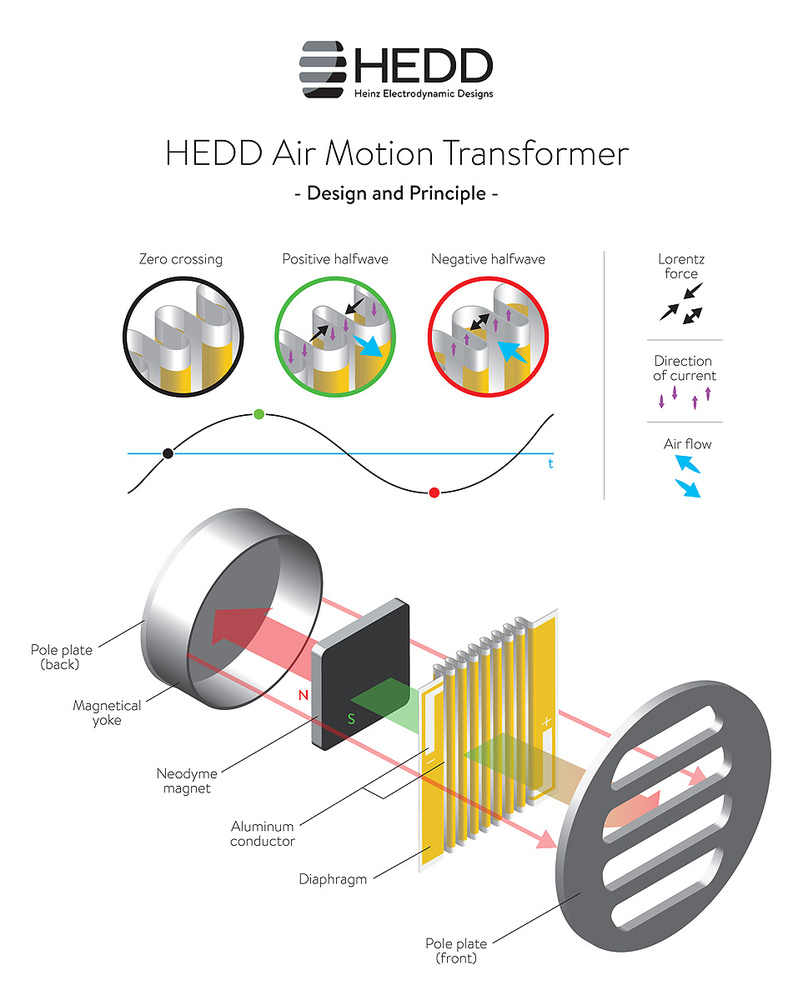

• HEDD Air Motion Transformer tweeter (AMT)
• Onboard Lineariser
• Aesthetics & Unibody build
• CoP Technology - Closed or Ported Functionality
• Linear Sub-Satellite System
• Integrated DSP with AD/DA: 96 kHz, 32 Bit

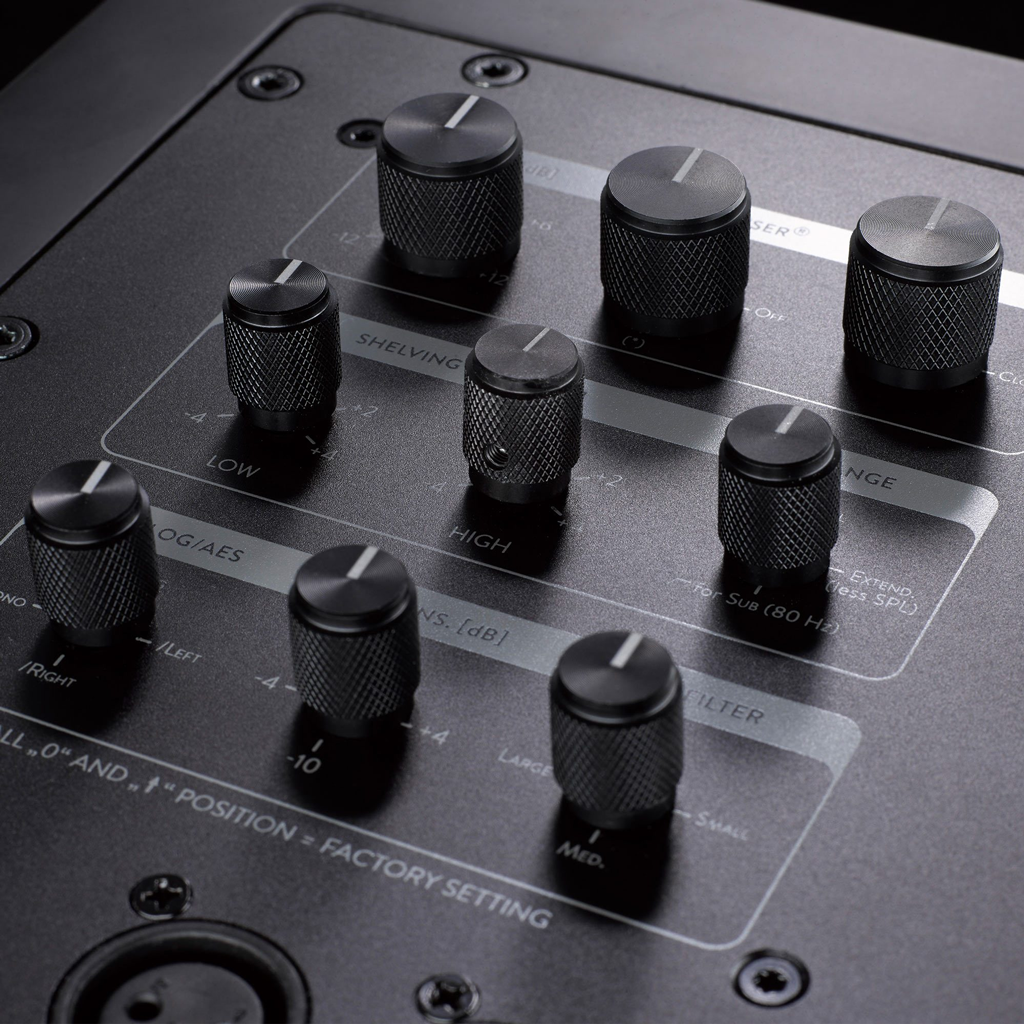

• Adjustable LFE, Shelf and Desk Filters

HEDD T30 Tech Specs:

• Monitor Type: Active

• Power Configuration: 3-way amped
• Bass Driver: 7" honeycomb Woofer
• Midrange Driver: 4" honeycomb Speaker
• Tweeter: Folded ribbon (HEDD AMT)
• Power Amplification: 3x 300W (Max 900W)
• Low Frequency Range (-3dB): 32/26/80 Hz (normal/extended/satellite)
• Frequency Response: 32Hz - 40kHz
• Crossover Frequency:  48 dB/octave @ 250/3.200 Hz
• AD/DA Conversion: 96kHz / 32bit
• Maximum Peak SPL: 125 dB SPL
• Impedance: 22 kΩ

• Input sensitivity (A/D modulation): -10/-4/0/+4 dB
• Input Types: analogue XLR balanced + digital AES IN
• Output Types: digital AES through
• Cabinet: Satin lacquer finish in white
• Dimensions (W x H x D): 53 x 28 x 33.8 cm
• Power Supply: 110-240 V
• Warranty: 2 years
