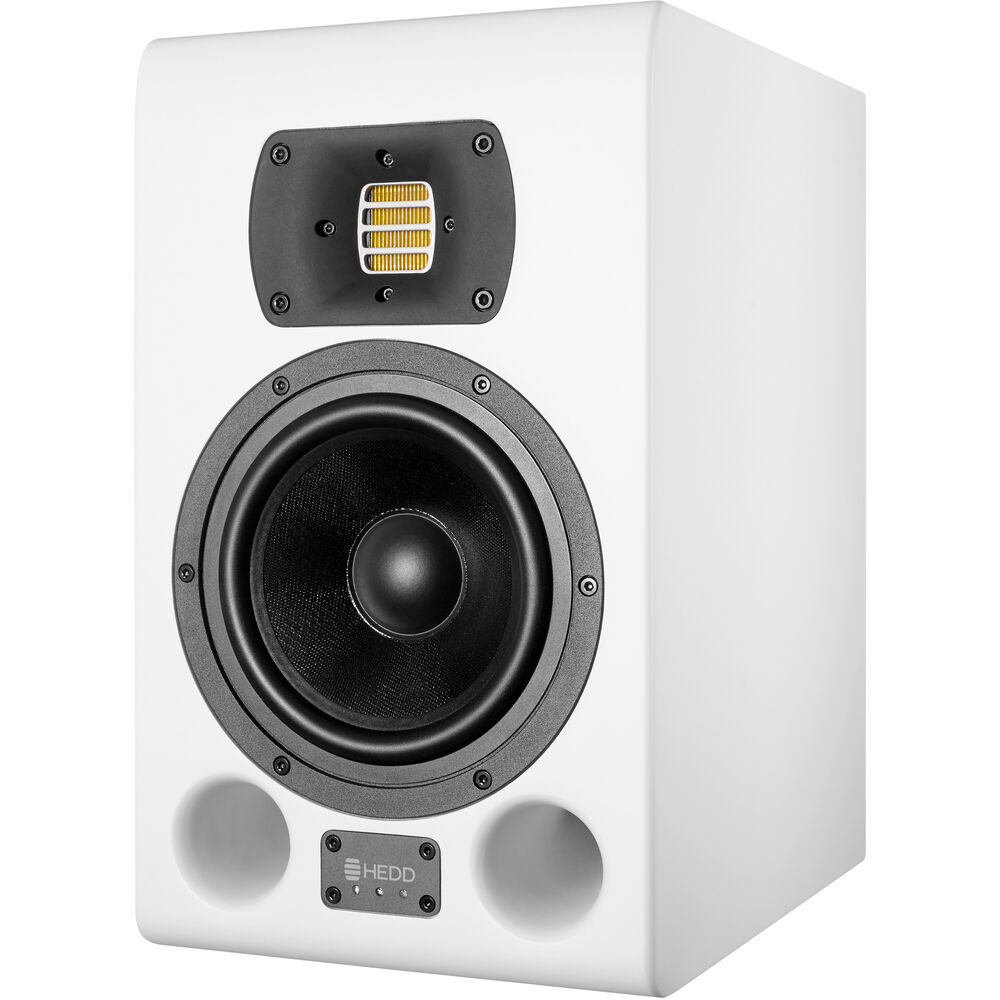

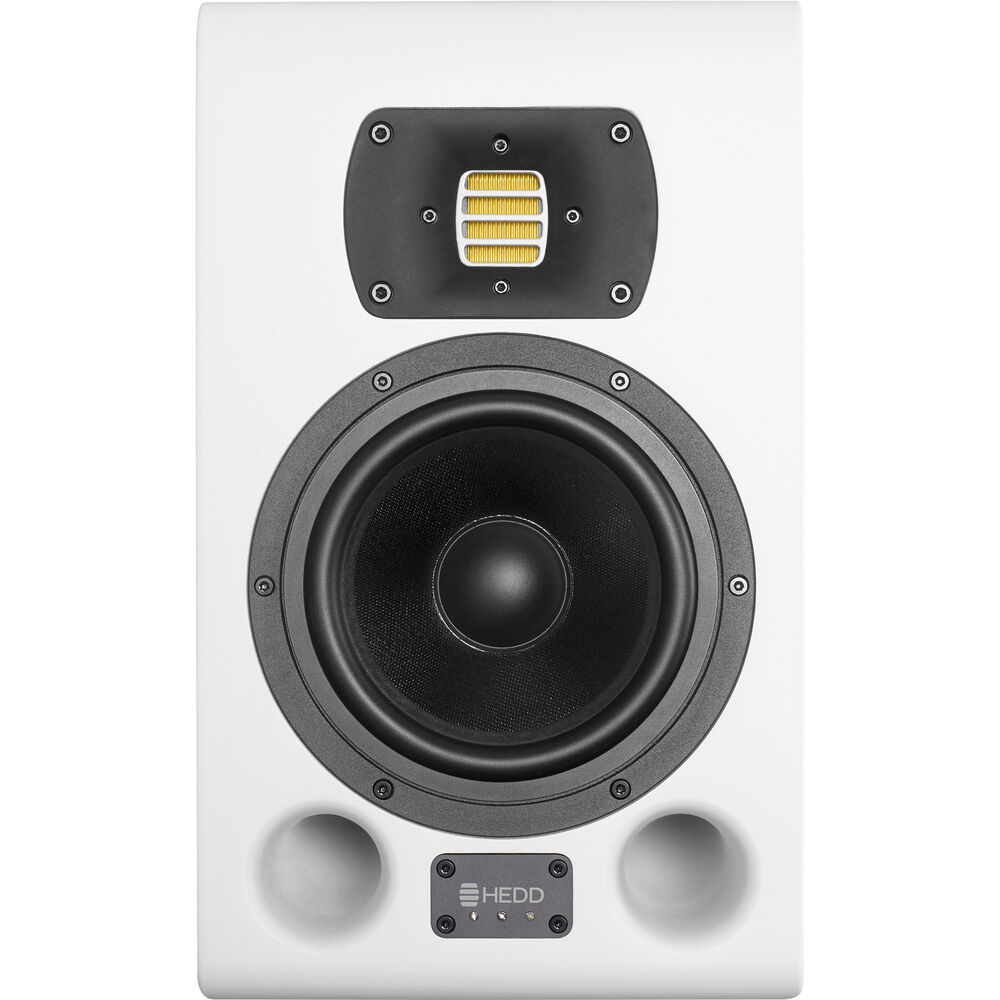

HEDD Audio Type 07 MK2: 200W Active Studio Monitor (Single White)

HEDD | Heinz Electrodynamic Designs

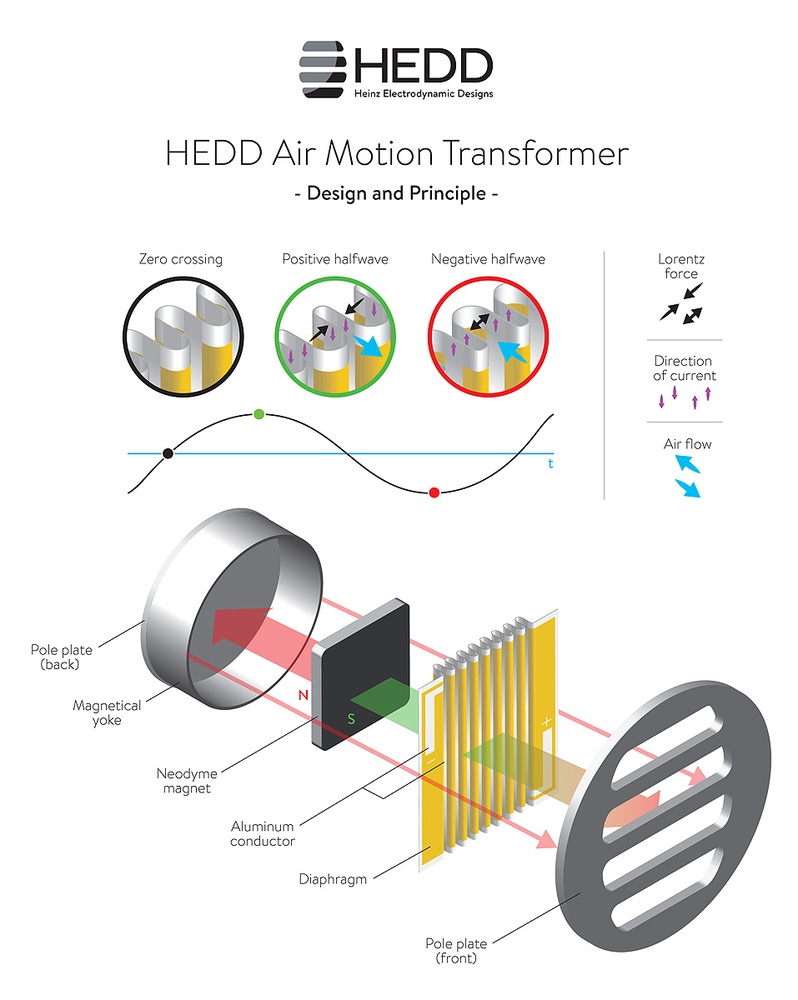

Heinz ElectroDynamic Designs (HEDD) is a high-end audio manufacturer founded by Klaus Heinz (former ADAM Audio developer) and Dr. Frederik Knop. Drawing on a rich history in audio creation and reproduction, the German company builds handcrafted professional studio monitors and headphones in Berlin since 2016. HEDD’s advantage is the in-house developed signature Air Motion Transformer driver, HEDD Lineariser® and CoP Technology, as well as introducing an entire Phase Linear Sub-Satellite System.

The HEDD Type 07 MK2 sets the new Gold Standard Studio Monitor. This 2-Way-System with 7” Woofer and High-Resolution AMT tweeter, delivers 2x 100w amplifiers - of up to 116 dB SPL/pair. The Type 07 MK2 delivers the power and accuracy of a compact nearfield studio monitor suitable for the entire range of professional audio applications, from producing music, to mixing and mastering, to broadcast- and video-editing.

Equipped with a powerful DSP board, HEDD's new Mk2 series enables three exciting features:

1. HEDD Lineariser®

The HEDD Lineariser® function, that is now built-in to the speaker, which flattens the phase response, creating perfect impulse response. This dramatically helps with spatial reproduction opening up the stereo image offered by your speakers.

2. >>CoP<< Technology

HEDD's innovative CoP technology give users (for the time) the option to choose from closed or ported cabinets, so you can adjust the bass response to suit your preferences. The speakers come with removable plugs for the bass ports, combined with DSP-based FIR filtering. By opening or closing the ports and setting the switch at the back accordingly, you can switch between optimum accuracy (closed cabinet) and a dynamic, low-reaching design with increased SPL (ported cabinet).

3. Phase Linear Sub-Satellite System

HEDD Audio introduces a completely phase linear Sub-Satellite System. This feature tries to improve the relationship with HEDD subwoofers using Group Delay Compensation to compensate for the distance between speakers and subwoofers and create Linear Subwoofer / Satellite system. Listeners can compensate eventual distances between subwoofers and satellites to stay with linear phase reproduction for the complete system.

Made in Germany

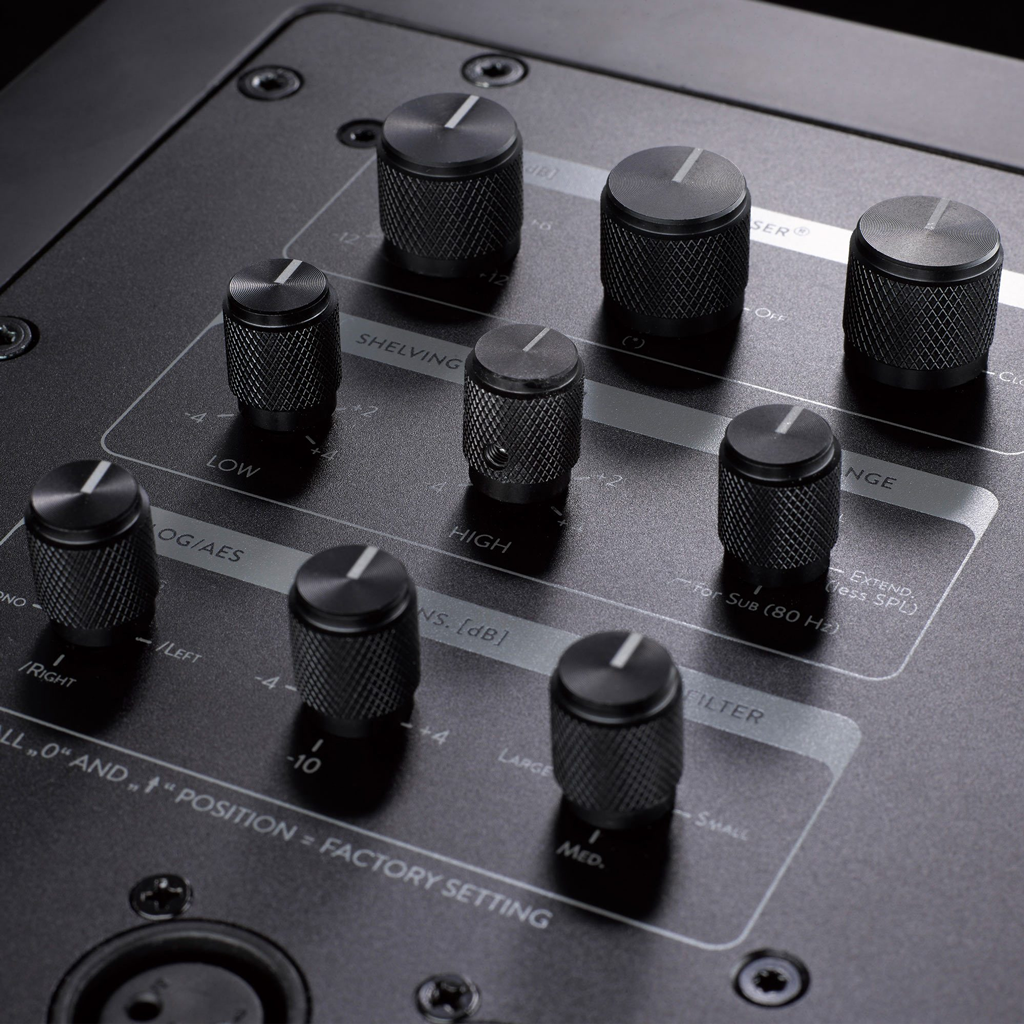

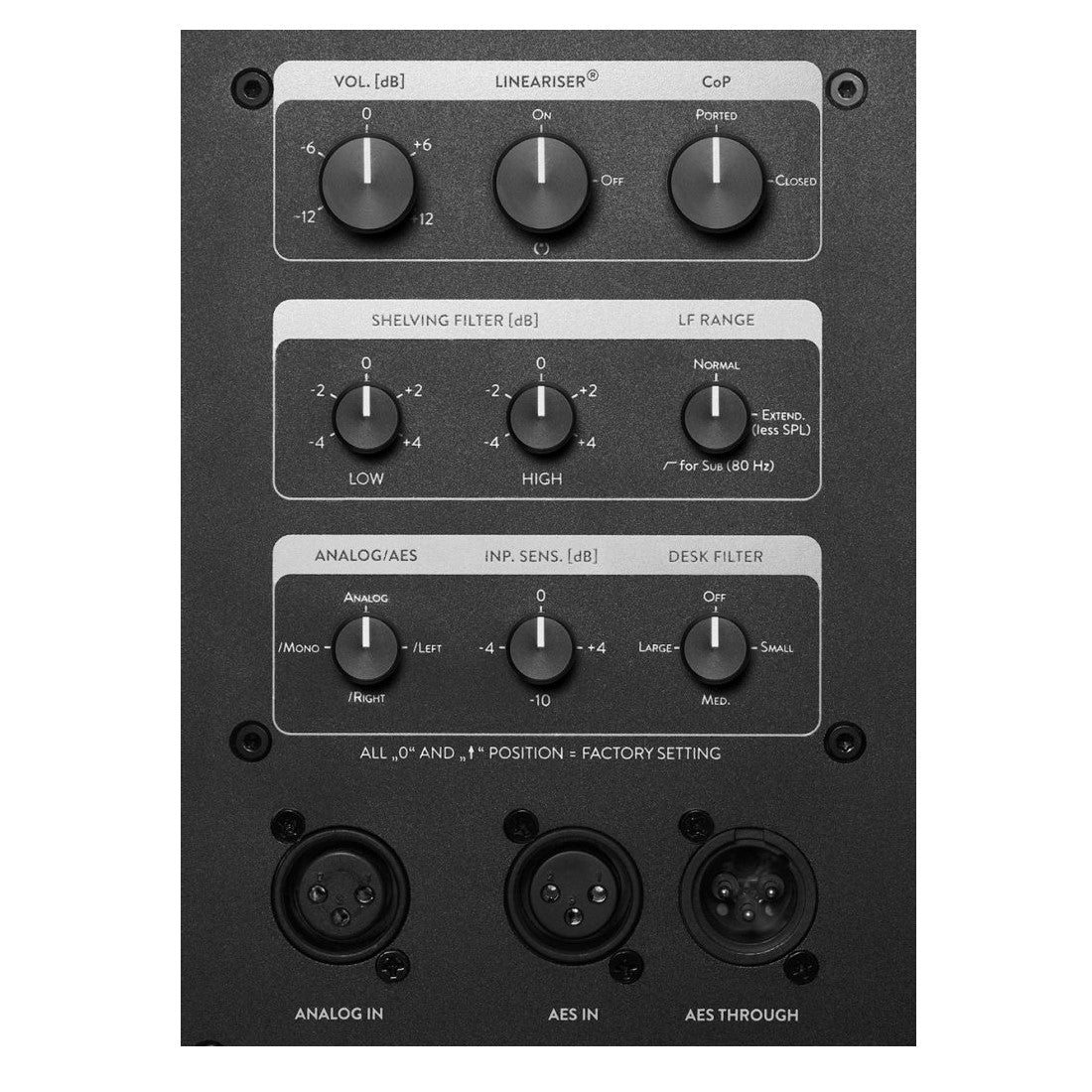

Engineered and tested in Berlin to the highest standards. HEDD's new Mk2 and BASS Series combines handcrafted loudspeakers with cutting-edge innovations across the entire range. Based on a strong unibody casing for better durability and satin lacquer-finished ensures that the cabinet remains stable and provides effortless audio, even at full power. The ICEpower amplifier offers 100W per driver (max 200W) and is universally powered for compatibility anywhere in the world. The rear panel also features a balanced XLR Input and a digital AES input and throughput, as well as a gain trimmer and high-/low-shelf potentiometers.

Main features:

Tech Specs:

• Monitor Type: Active
• Power Configuration: Bi-amped
• Driver Size: 7" honeycomb Woofer + 1.5" voice coil
• Tweeter Type: Ribbon (HEDD AMT)
• Power Amplification: 2x 100W (ICEpower)
• Low Frequency Range (-3dB): 45/38/80 Hz (normal/extended/satellite)
• Frequency Response: 38Hz - 40kHz
• Crossover Frequency:  48 dB/octave @ 2.3 kHz
• AD/DA Conversion: 96kHz / 32bit
• Maximum Peak SPL: 112 dB SPL
• Impedance: 22 kΩ

• Input sensitivity (A/D modulation): -10/-4/0/+4 dB
• Input Types: analog XLR balanced + digital AES IN
• Output Types: digital AES through
• Cabinet: Satin lacquer finish in black or white
• Power Supply: 110-240 V
• Warranty: 2 years

Order HEDD Type 07 MK2 Active Studio Monitor white (single) from Audiosaurus now. The online Pro Studio specialist in South Africa.
