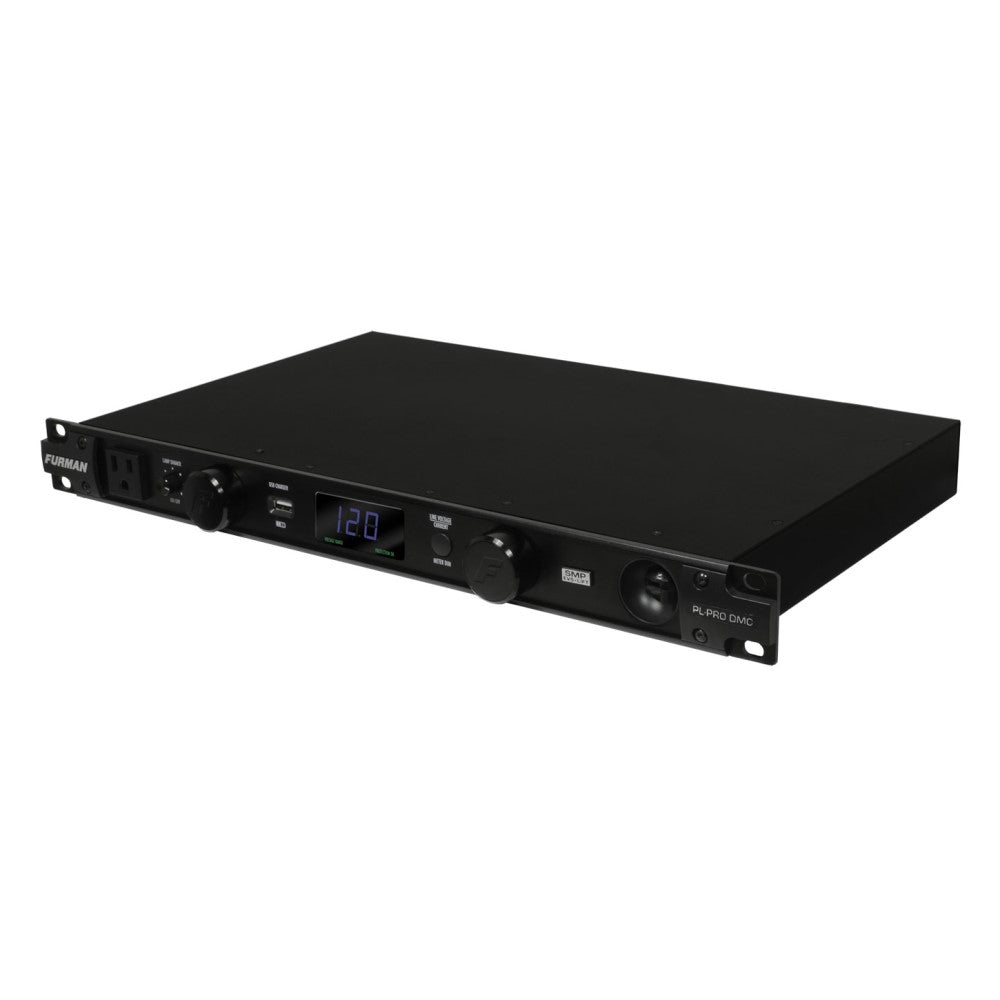

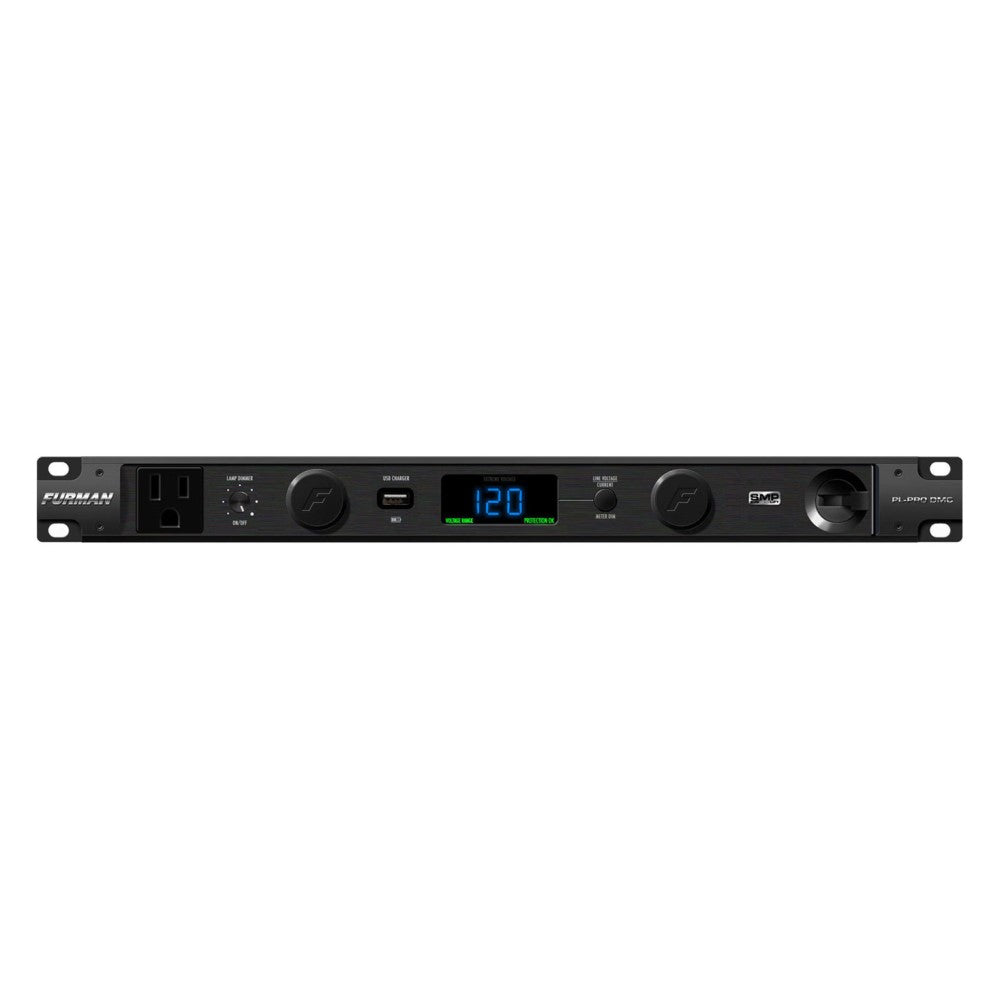

Furman PL-PRO DMC 20A Power Conditioner
Tax included.
Trusted Power Protection
The Furman PL-PRO DMC is the legendary 20 amp power conditioner, featuring Furman's exclusive Series Multi-Stage PROtection Plus (SMP+) with Linear Filtering Technology (LiFT) and Extreme Voltage Shutdown (EVS) for ultra-reliable protection of your gear.
SMP+ (Series Multi-Stage Protection Plus)
Furman’s advanced Series Multi-Stage Protection defends your gear from the spikes and surges that are so common at gigs and practice spots. With Furman’s advanced Linear Filtering Technology, you’ll get a quieter tone without pops, crackles, and the local radio station coming out of your amp.
LiFT (Linear Filtering Technology)
With Furman’s advanced Linear Filtering Technology, you’ll lower the noise floor caused by the dirty AC power coming into your console or DAW. Furman’s advanced Series Multi-Stage Protection keeps your sensitive digital equipment from malfunctioning or burning up due to everyday spikes and surges. With a 15A capacity and eleven total outlets, it’s enough to power your whole home studio.
Extreme Voltage Shutdown (EVS)
Unique to the Furman PL-PRO DMC's SMP+ is its unparalleled clamping voltage (even when tested beyond the grueling specifications of - USA/CIDA's A-1-1 test). While other designs offer clamping voltages that are well above 300VAC peak (far beyond long accepted professional standards), the Furman PL-PRO DMC's SMP+ clamps at 188VAC peak, 133 VAC RMS even when tested with multiple 6000VAC - 3000 Amp surges! This unprecedented level of protection is only available with Furman's SMP+ technology.
Additionally, Furman's trusted over-voltage circuitry protects against all too frequent accidental connections to 208 or 240VAC, by shutting off the PL-PRO DMC's incoming power until the over voltage condition is corrected.
LED Rack Lights
The Furman PL-PRO DMC features LED rack lights which produce virtually no heat and provide an extremely long life span. A dimmer control for the rack lights allows the user to adjust the level of illumination or simply switch the lights off. Additionally, the Furman PL- PRO D II includes a rear mounted BNC jack which accepts any standard (12VAC, 0.5A) gooseneck lamp for rear rack illumination, as well as a front panel switch which controls the gooseneck's operation.
Main features:
- Surge Protection with Furman’s exclusive SMP+ technology provides the highest level of surge & spike protection available.
- Noise Filtration: LiFT offers AC power filtering to ensure clean power for unequalled audio & video clarity.
- Voltage Protection with advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
- Dual smooth track retractable LED lights illuminate equipment in your rack.
- Diagnostic Light: LED status indicators warn you when voltage is outside of nominal range and protection has been compromised.
- USB Charger: front panel convenience charger allows you to charge most media devices or power a USB lamp.

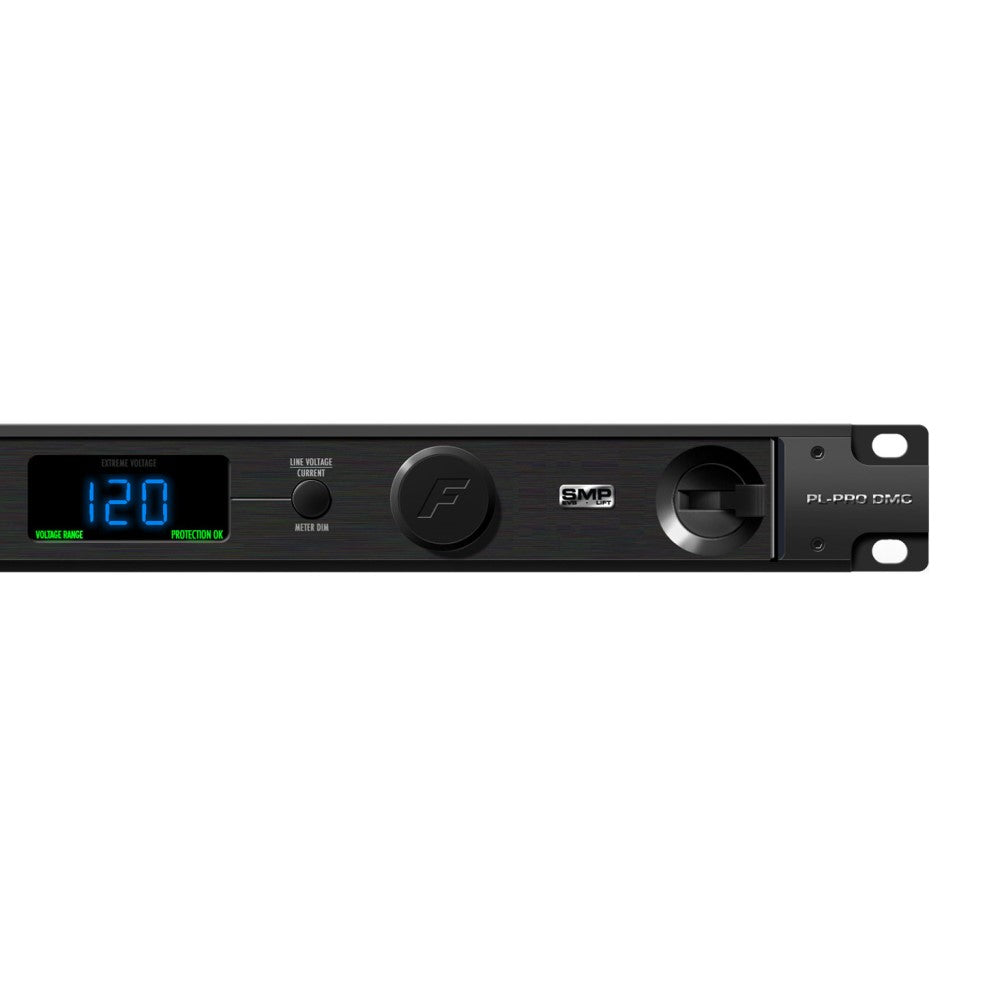

- Large digital Voltmeter/Ammeter, with discrete dimmer button, displays line voltage and true RMS current draw.
- Isolated outlet banks minimize inter-component interference and noise contamination.
- Wall Wart Spacing - Three widely spaced outlets accommodate bulky AC power transformers.
- 20 AMP Rating featuring a high inrush magnetic circuit breaker for added protection.

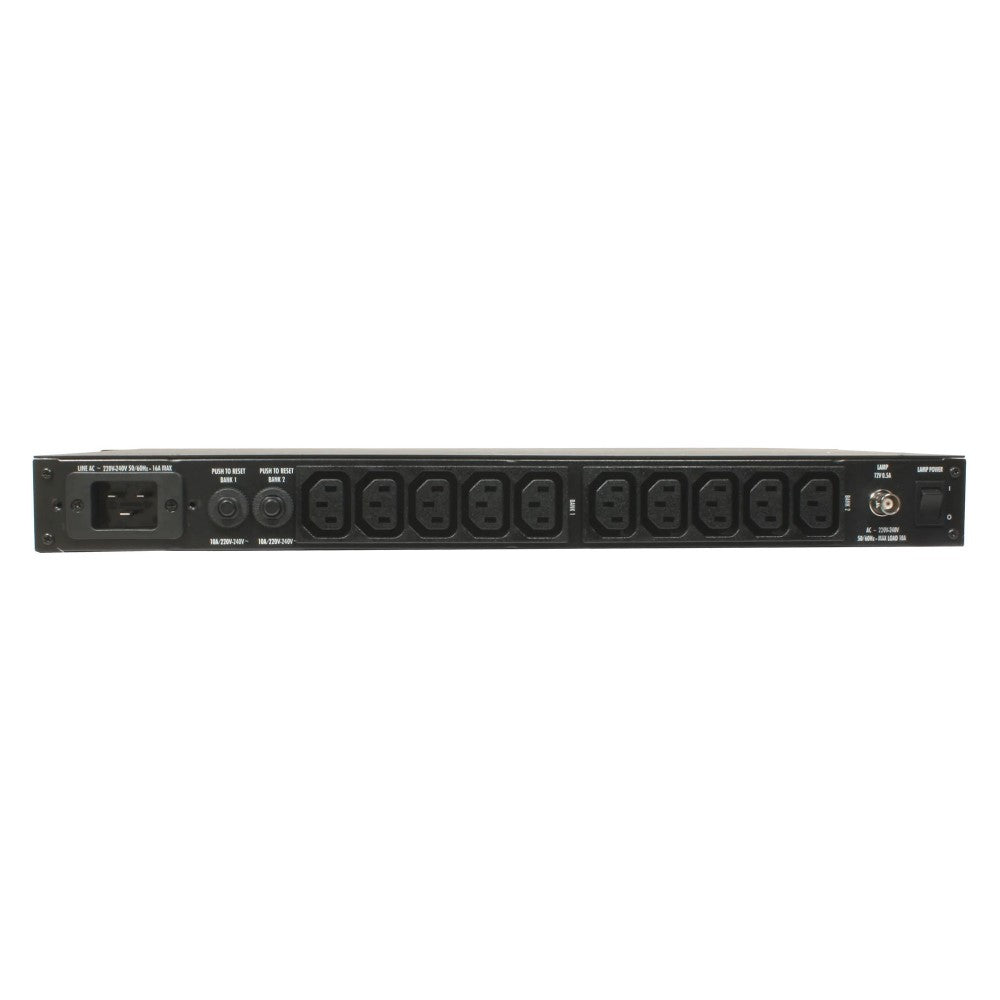

- Nine total outlets (8 rear panel outlets and one front panel convenience outlet).
- Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.
- 5-Year Limited Warranty
Tech Specs:
- Type: Rackmount
- Number of Outlets: 8 x Rear, 1 x Front
- Output Current: 20A
- Operating Voltage: 90 - 139 VAC
- Response Time: 1 nanosecond
- Spike Clamping Voltage: 188 VAC peak @ 3,000 Amps
- Maximum Surge Current: 6,500 Amps
- Noise Attenuation: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz
- Display: LED voltmeter, ammeter, status indicators
- Lights: Pull-out dimmable LED lights, Rear panel BNC connector
- USB: 1 x USB Type A
- Rackmountable: Yes
- Power Source: Fixed AC cable, 20A Receptacle required
- Dimensions (WxDxH): 48 cm x 28 cm x 4.5 cm
- Weight: 5.4 Kg
- Construction: Steel chassis
- Colour: Black, brushed anodized aluminium
- AC Power Cord: 3 m, captive 3/12 AWG
- Power Consumption: 12 watts
- Discover more Furman power conditioners [PL-PRO DMC]: https://furmanpower.com/product/20a-power-conditioner-with-lights-volt-ammeter/
