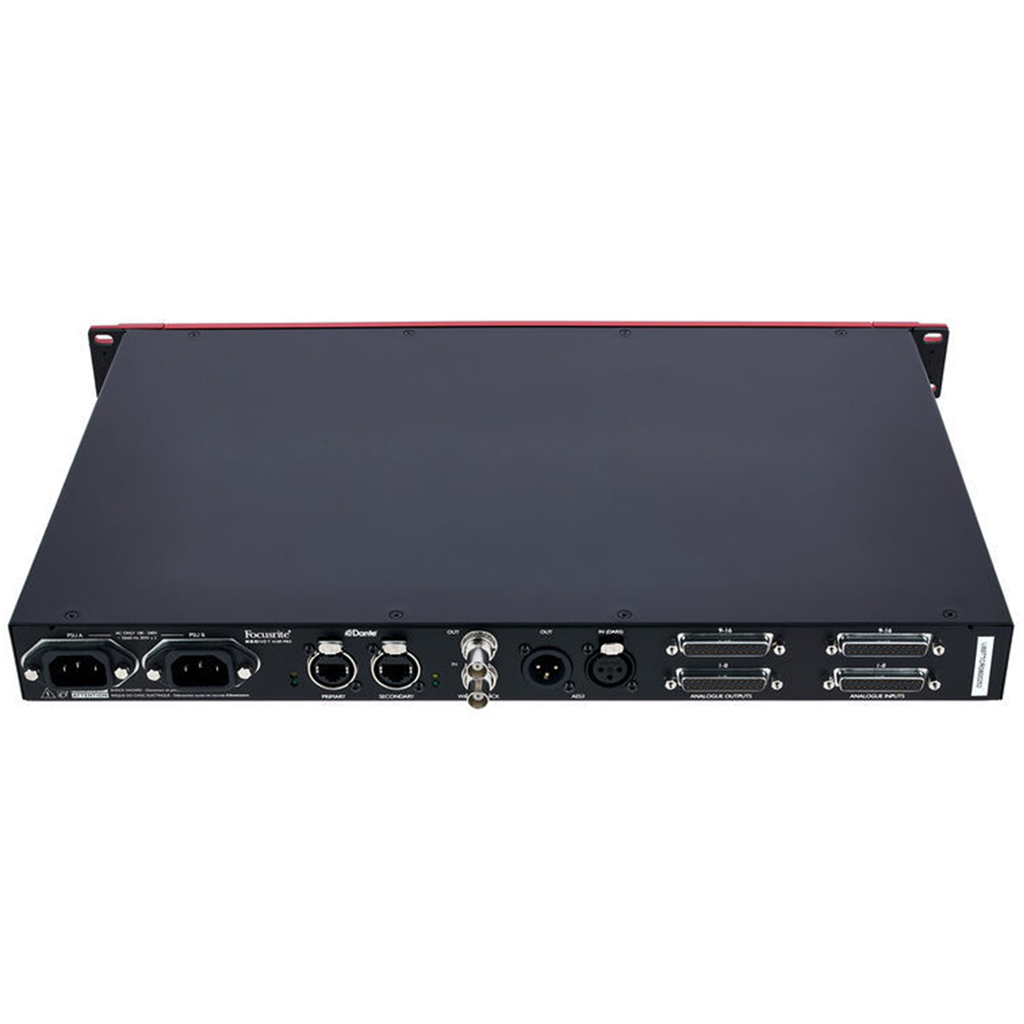

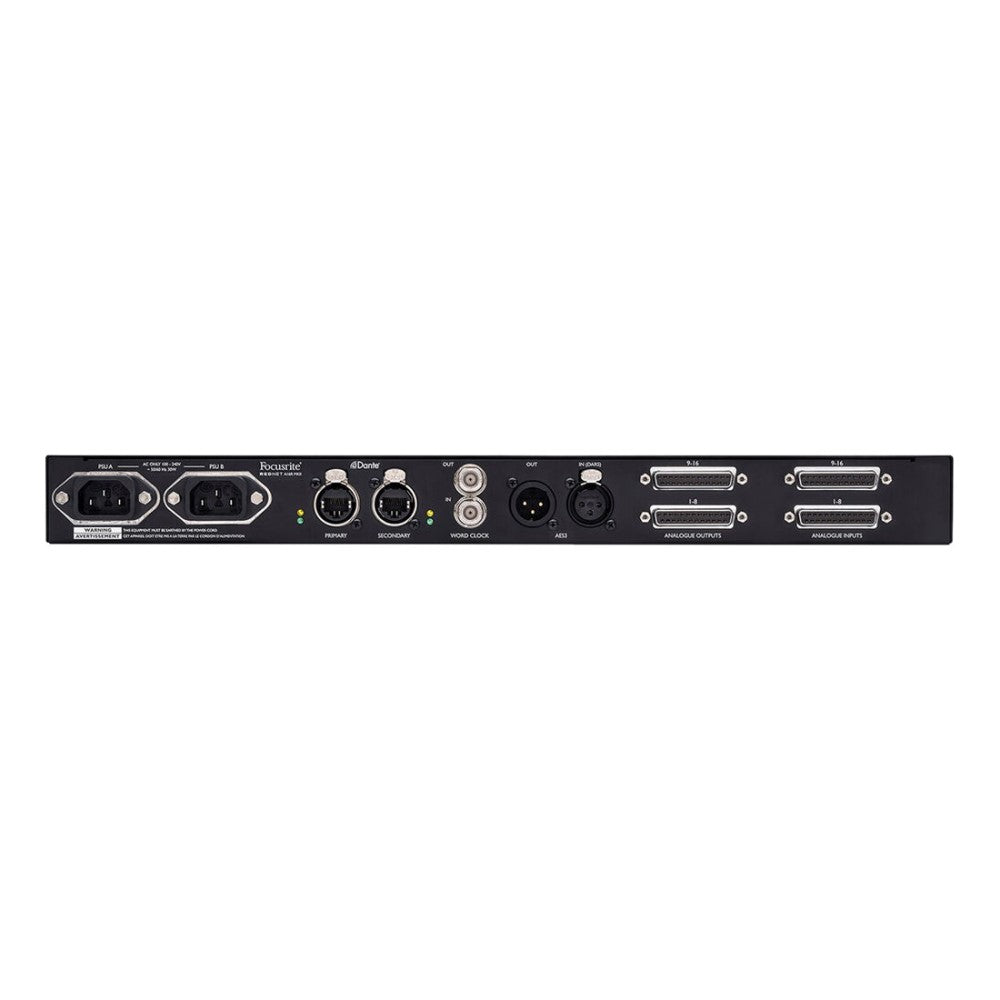

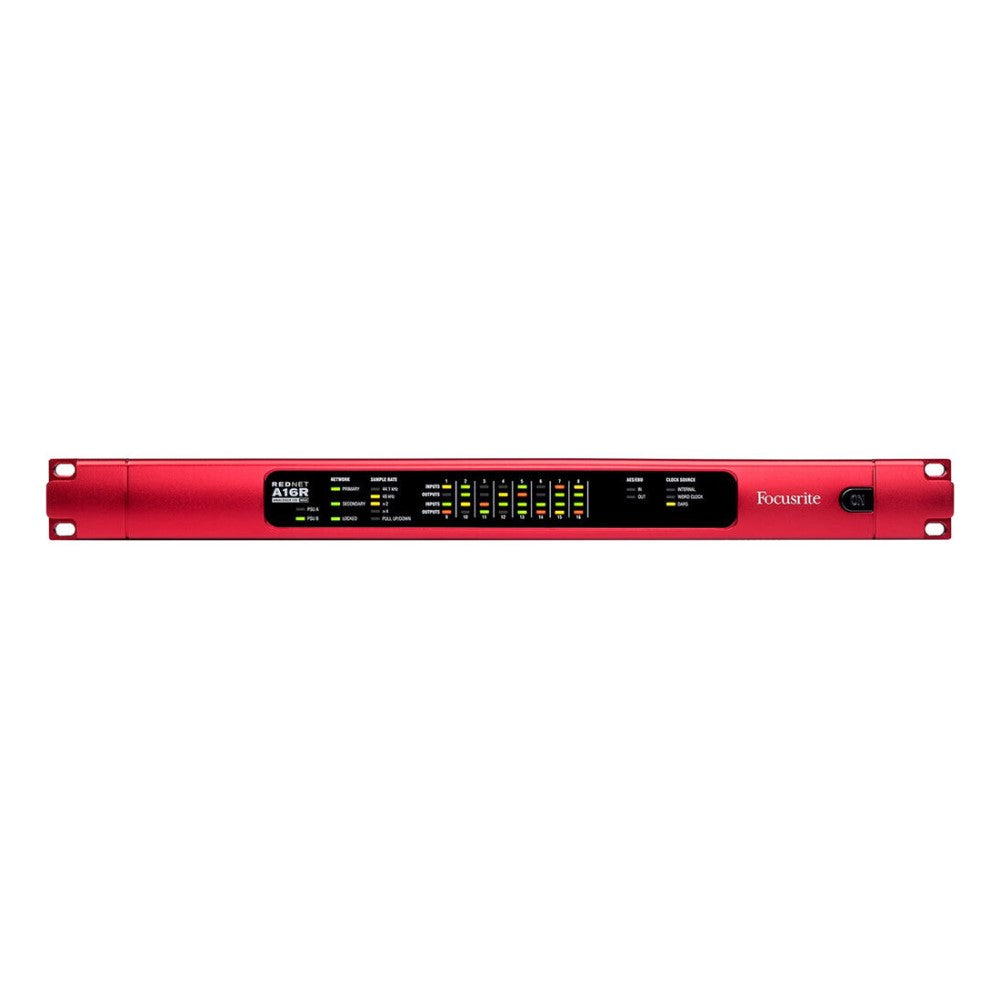

Focusrite RedNet A16R MkII - 16x16 Analogue I/O With Independent Level Control
Tax included.
Description
Audio-Over-IP Control
RedNet A16R is a 1U, 16x16 analogue line-level I/O interface for any Dante™ audio-over-IP network. Featuring network and power supply redundancy, superior analogue circuitry and jitter-eliminating JetPLL technology. RedNet A16R is the ideal choice for providing analogue I/O in many critical-path applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio.
Dante™ & Digital Audio
Focusrite RedNet uses the Dante protocol to connect to your studio network. Dante (Digital Audio Network Through Ethernet) transmits uncompressed, multi-channel digital audio over a standard Ethernet with incredibly low latency. Using Dante is super convenient and requires only a single Cat 5e or Cat 6 cable - not a bundle of cumbersome analogue cables. Plus your interface can be anywhere in the facility allowing you the flexibility to suit either a permanent installation or a repeated strike setup.
Independent Level Control
Individual input and output channel level controls allow for precise adjustment of all I/O levels using RedNet Control. With two power supplies and primary and secondary EtherCON network connectors, the built-in redundancy features allow for silent fail-over in the event of power or network outage, providing reassurance for system technicians.
The XLR input can accept DARS signals in addition to AES3. Word Clock I/O on BNC connectors allows external devices to clock to RedNet A16R MkII, or alternatively allows RedNet A16R MkII to act as a network clock grand master, following an external input.
Main features:
Tech Specs:
- Type: Dante Audio Interface
- Form Factor: Rackmount
- Simultaneous I/O: 16 x 16
- A/D Resolution: Up to 24-bit/192kHz
- Analogue Inputs: 2 x DB-25
- Analogue Outputs: 2 x DB-25
- Digital Inputs: 1 x XLR (AES3)
- Digital Outputs: 1 x XLR (AES3)
- Data I/O: 2 x Ethernet (Dante)
- Network: Dante, RedNet
- Clock I/O: 2 x BNC (1 x word clock)
- Software: RedNet Control
- OS Requirements - Mac: OS X 10.9.5 or later
- OS Requirements - PC: Windows 7 SP1 or later
- Rack Spaces: 1U
- Power Supply: 2 x Standard IEC AC cables
- Dimensions (WxDxH): 265 mm x 135 mm x 58 mm
- Weight: 0.8kg
- Discover more Focusrite RedNet [A16R MkII]: https://pro.focusrite.com/category/audiooverip/item/rednet-a16r-mkii
