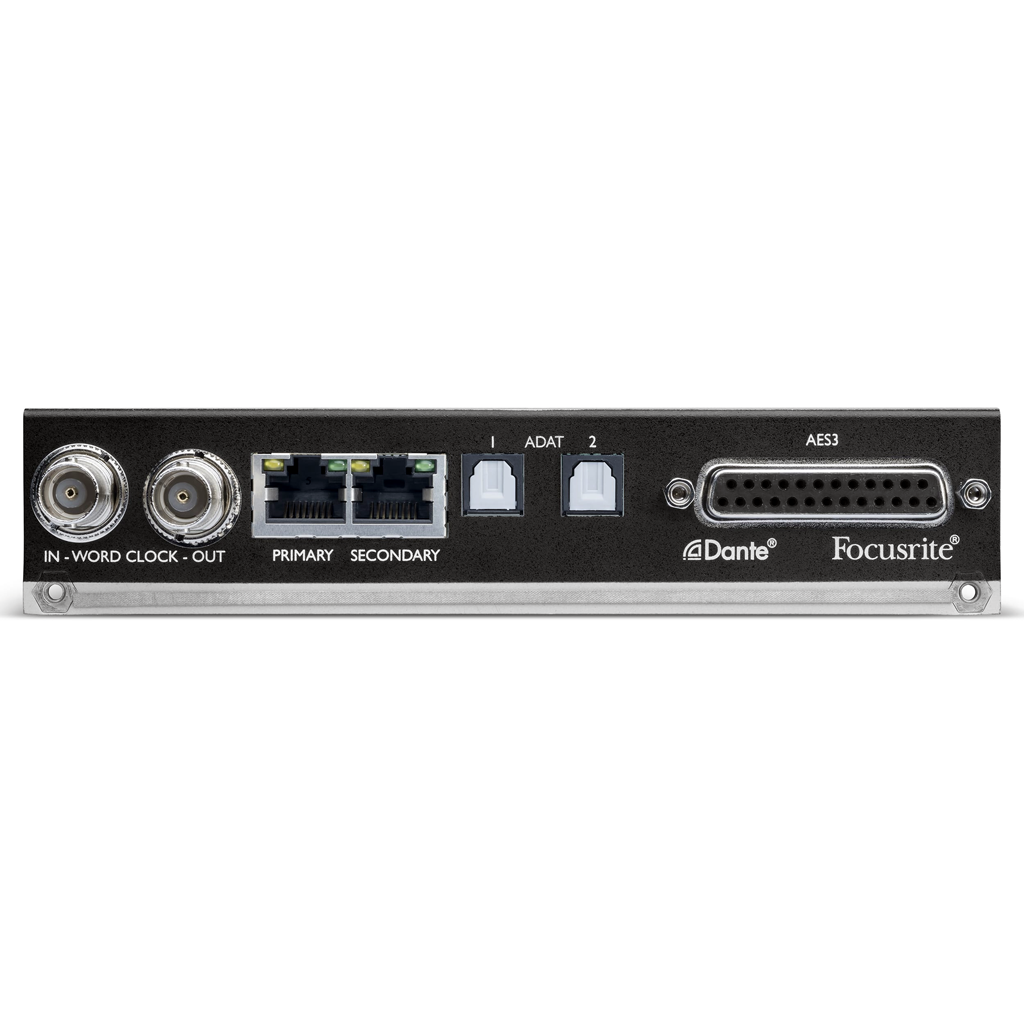

Focusrite ISA ADN8 Eight-channel A-D Card

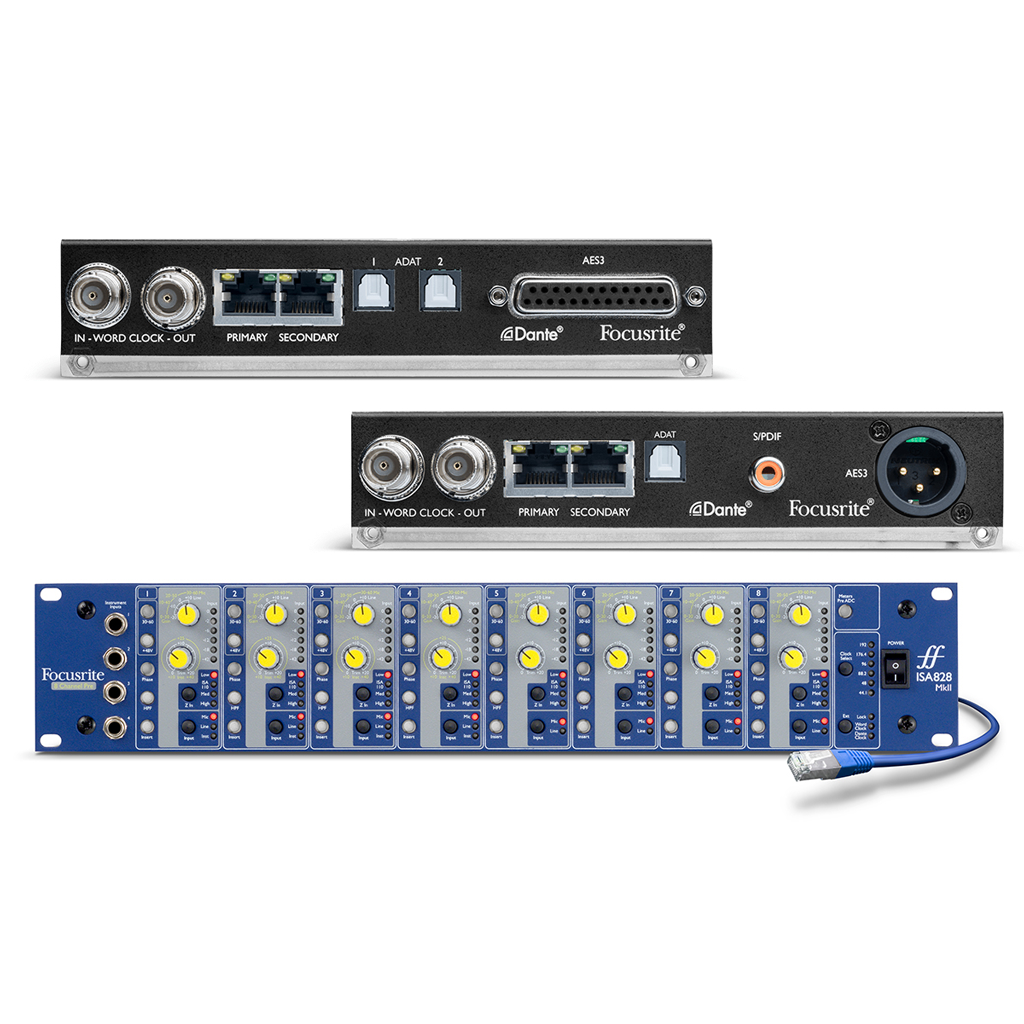

8 channels of high-quality analog to digital converter for ISA 428 MkII and ISA 828 MkII
Sample rates: up to 24-bit/192kHz
Redundant Dante connectivity via primary/secondary Ethernet ports with auto switchover
Industry standard eight-channel AES59 DB-25 output connection for AES3
2 TOSLINK connectors for ADAT (8 channels at up to 96kHz; 4 channels at 192kHz)
Word clock I/O on BNC connectors allows synchronization with many external devices
RedNet Control and Dante Controller software allow Dante routing and control from computer; no hardware patching required
Free Brainworx bx_console re-creation of Focusrite's ISA 110 and ISA 130 modules
3-year worldwide Focusrite warranty
Focusrite ISA ADN8 Eight-channel A-D Card
Dante Connectivity made easy! 8-channel A-D Card for Focusrite ISA 428 MkII and ISA 828 MkII with AES3, ADAT, and Redundant Dante Connectivity. Focusrite ISA...
Vendor :Focusrite
Type :
Dante Connectivity made easy!
8-channel A-D Card for Focusrite ISA 428 MkII and ISA 828 MkII with AES3, ADAT, and Redundant Dante Connectivity.
Focusrite ISA ADN8 Eight-channel A-D Card Features:
Tech Specs
- Type:A/D Card
- Compatibility:Focusrite ISA 428/828 MKII
- Number of Channels:8
- Data I/O:2 x Ethernet (Dante: Primary, Secondary), 2 x Optical Toslink (ADAT), 1 x DB-25 (AES3)
- Clock I/O:In/Out
- Bit Depth:24-bit
- Sample Rate:192kHz
- Manufacturer Part Number: AMS-ISA-ADN8
