Flock Audio Patch LV 64-channel Patchbay - Available Soon

First Digitally Controlled Analogue PATCH for Live Sound

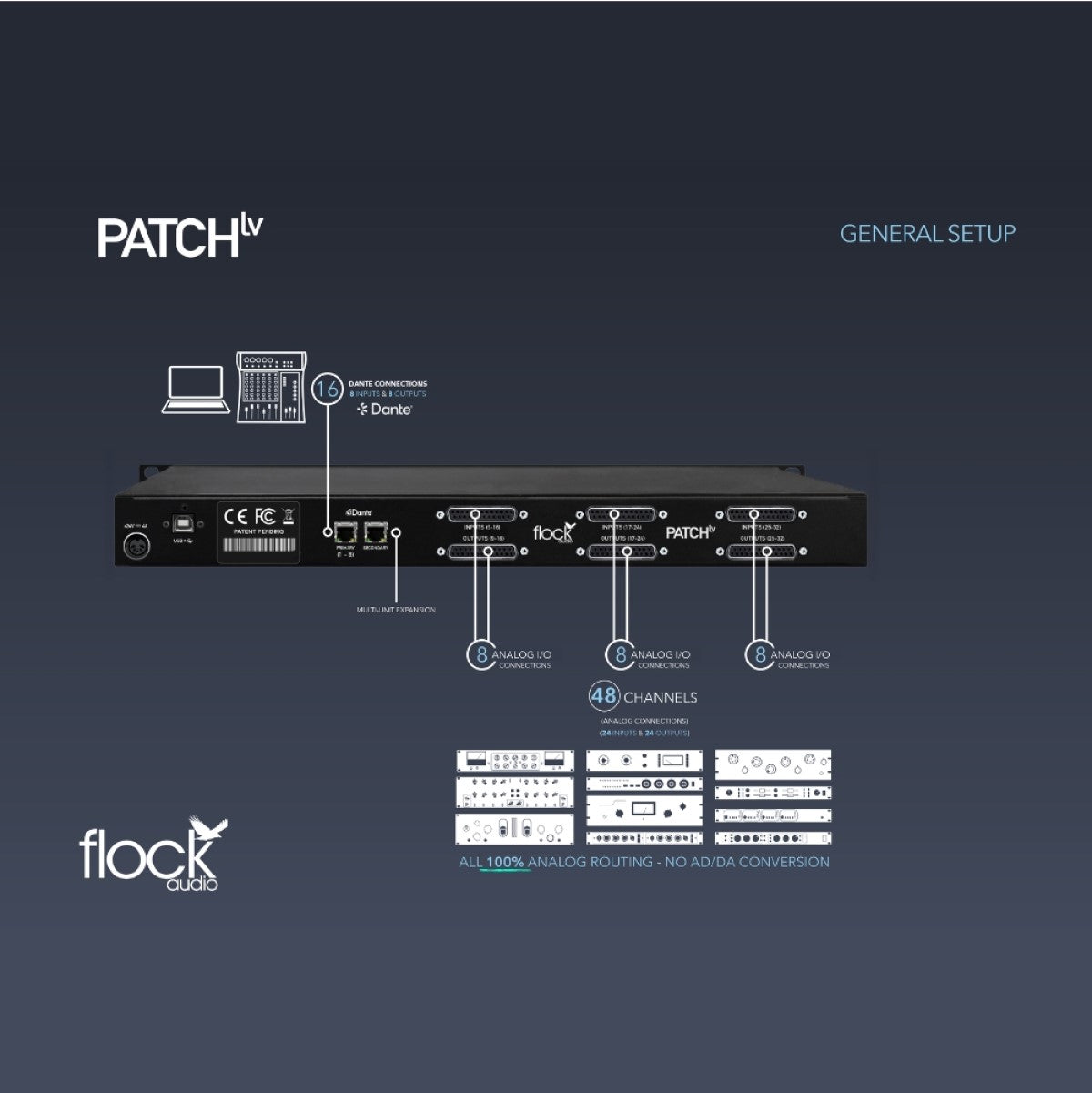

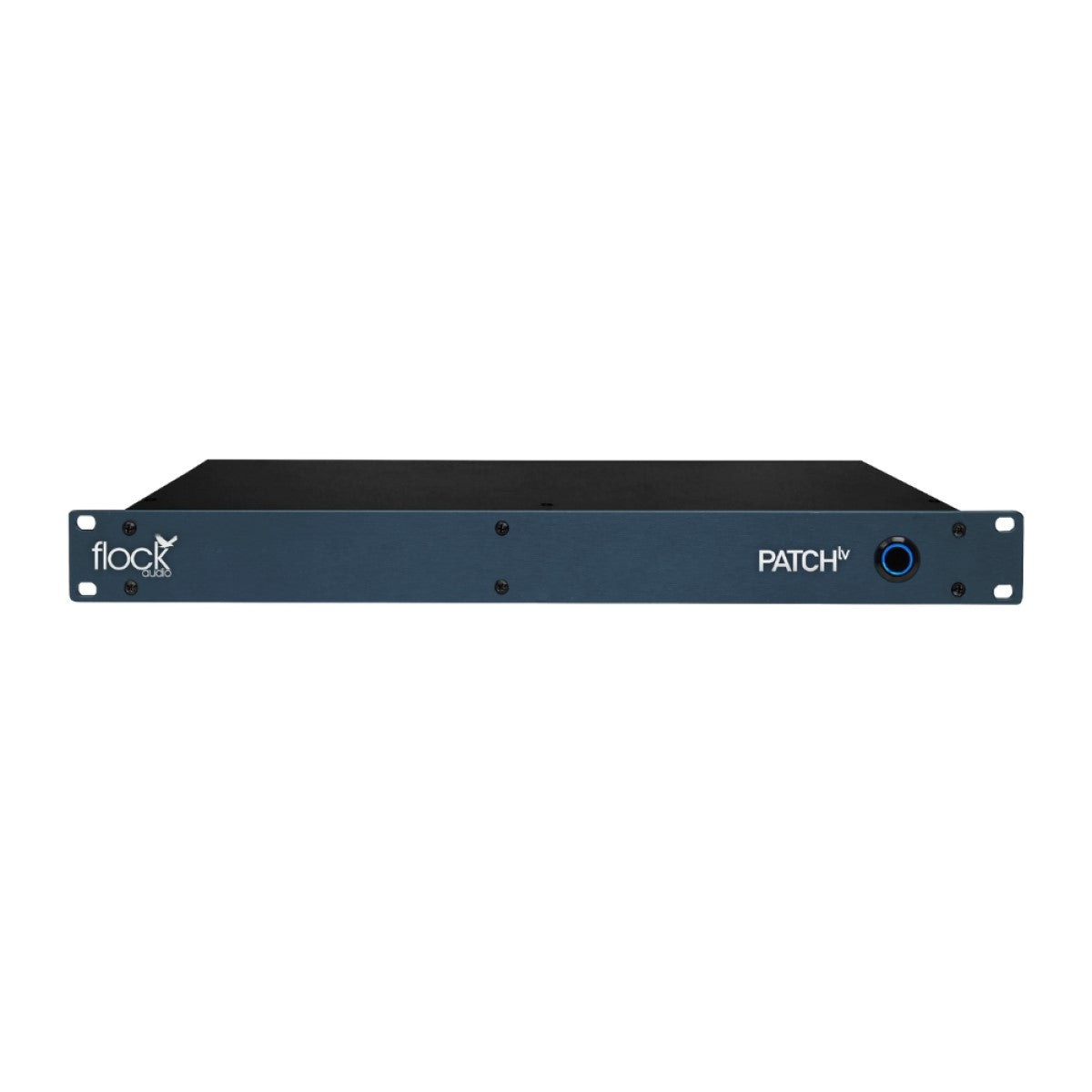

The Flock Audio Patch LV is a 64-channel, fully analogue patchbay tailored for front-of-house engineers. It features patented routing technology, offering 24 x 24 analogue I/O and 8 x 8 Dante connectivity at 32-bit/192kHz. This 1U rackmount system works with the Patch app for macOS/Windows, allowing audio routing without physical cables, thus avoiding issues like oxidation and dust build-up that can degrade audio quality. The Patch LV provides a reliable solution for pristine analogue audio routing.

Main features:

• 64-channel digitally controlled analogue patchbay
• Total point connections: 64
• Dante connections, 32-bit/192kHz: 8 inputs/8 outputs
• Fully analogue patch routing: 24 inputs/24 outputs
• DB-25/D-sub TASCAM standard pinout format connectors (24 ins x 24 outs)
• Patch app routing software (macOS/Windows)
• Create, store, and recall routings in seconds
• Create complex multing combinations without impedance issues
• No AD/DA Conversion, 100% Transparent Analogue Signal Path (24 ins x 24 outs)
• Patented Flock Audio Matrix Technology (24 Ins x 24 Outs)
• Multiple Unit Expansion via Dante for Larger I/O Systems
• External 5-pin 24VDC Locking Power Supply with IEC cable Included (110V/220V)
• Threaded locking USB connector with 10-ft. USB-A to USB-B cable
• Included 6-step Setup Guide, and Hardware Index setup sheet


Tech Specs:

• Number of Points: 64
• Format: Rackmount

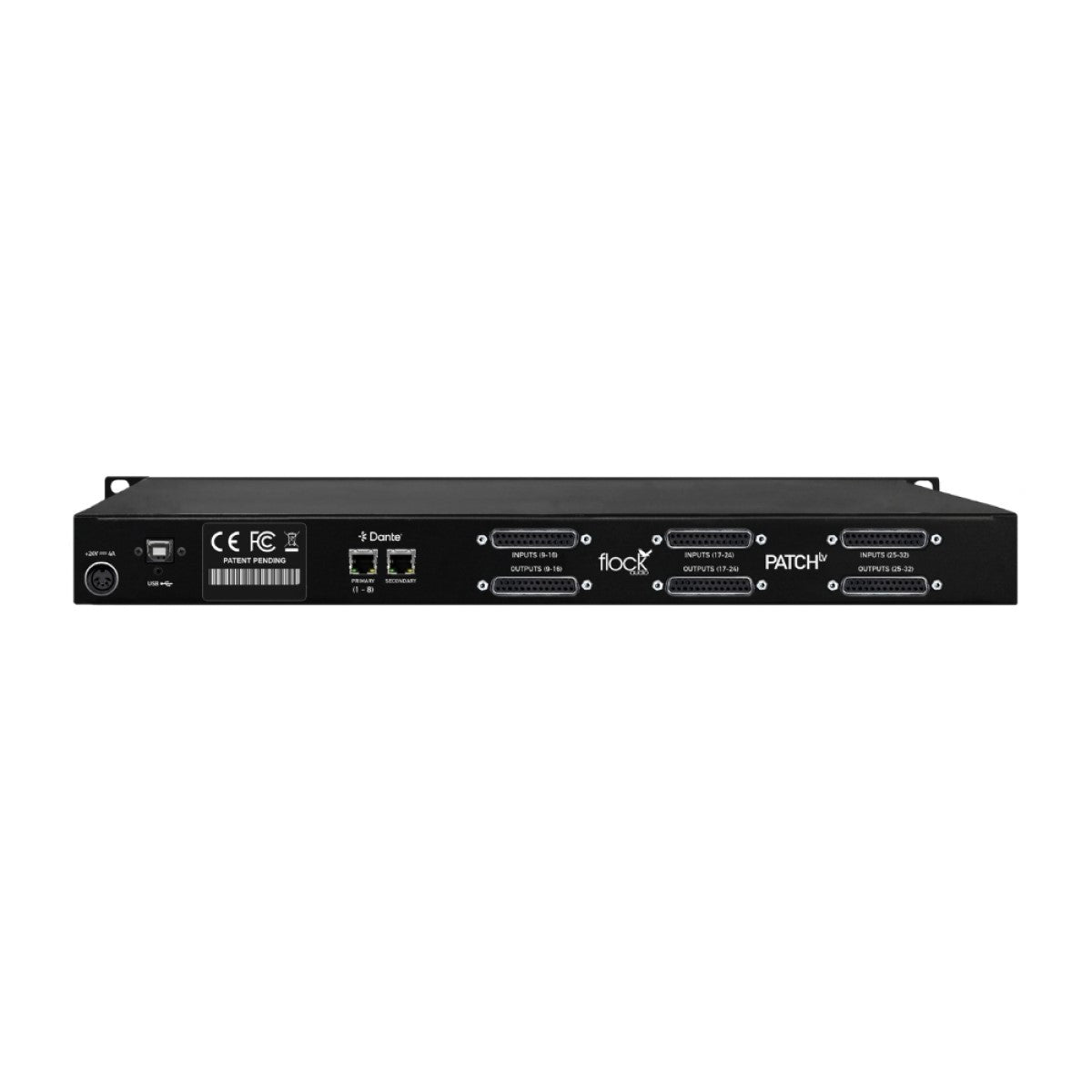

• Connector Types - Back: 3 x DB-25 (in), 3 x DB-25 (out), 2 x RJ-45 (dante)
• Analogue/Digital: Analogue with Digital Control
• USB: 1 x Type USB-B
• Rack Spaces: 1U
• Power Source: 24V DC power supply

• Dimensions (HxLxD):  4.5 x 48.3 x 20.3 cm
• Weight: 6.8 kg

• Discover more Flock Audio [Patch LV]: https://www.flockaudio.com/patchlv
