Flock Audio Patch "LT" 32-point Digitally Controlled Analogue Patchbay

Next Generation Analogue Patchbay

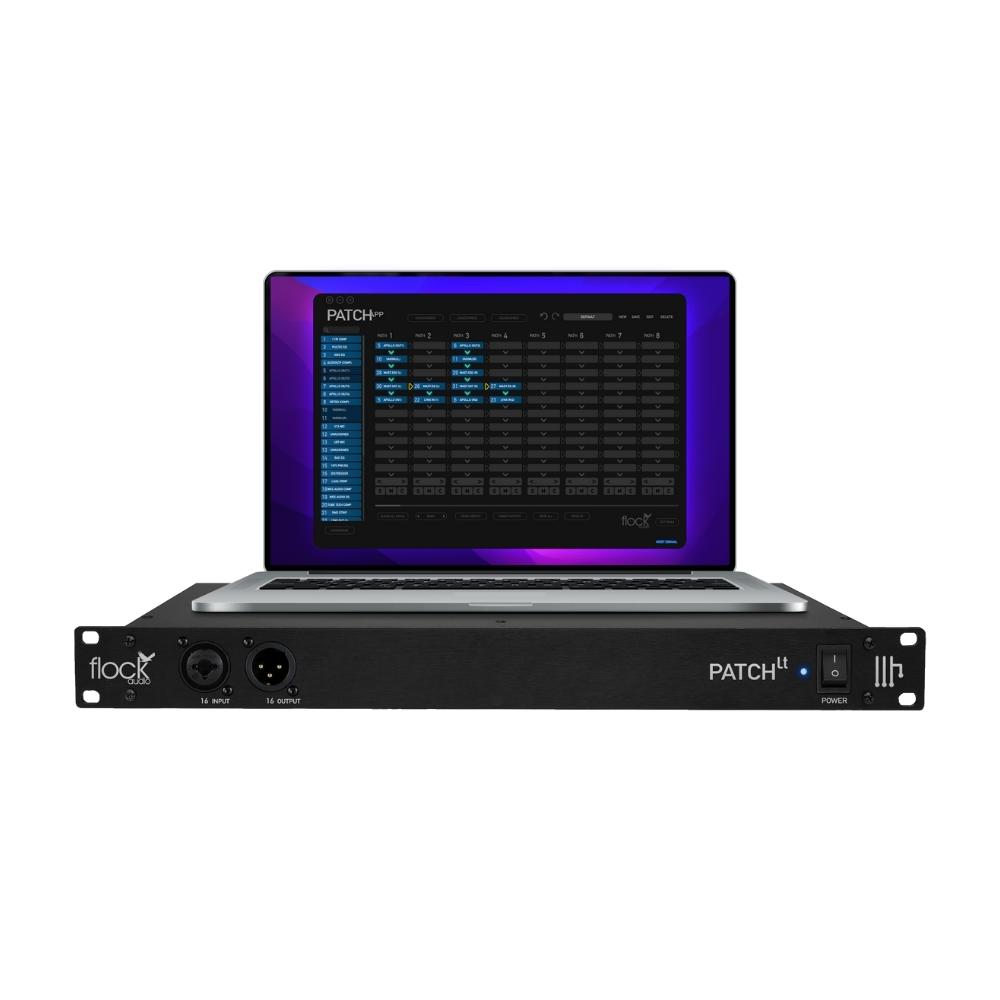

The Flock Audio Patch LT is a digitally controlled analogue patchbay with hardware and software components that allow you to control equipment chain routings throughout your studio with flexibility and recall capabilities never before possible — no patch cables required! The hardware consists of a 32-point analogue patchbay in a rugged 1RU chassis with I/O arranged on rear-panel DB-25 connectors. Control over patchbay assignments and routings is carried out from Patch App, easy-to-use Mac/Windows software that communicates with the patchbay via USB.

Front-panel Connectors

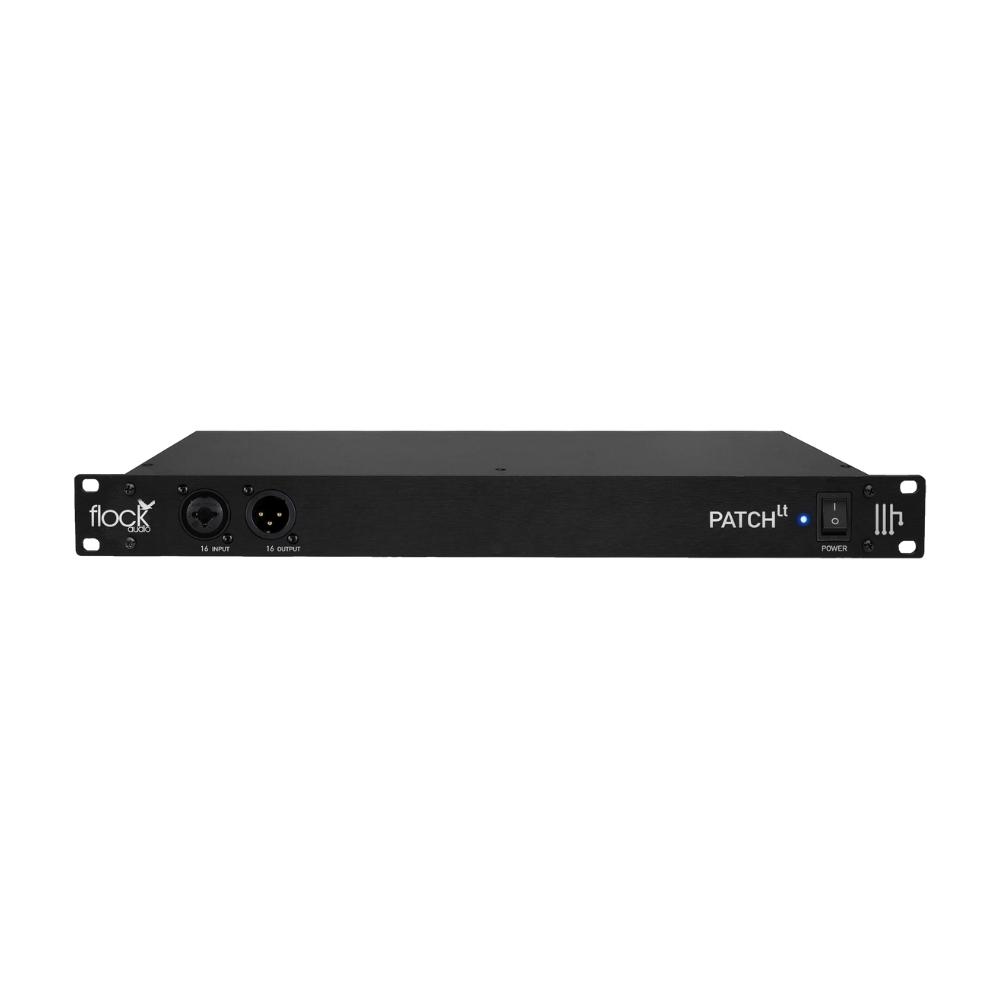

The Patch hardware offers some cool extras. Input and output connections for Channel 16 are located on front-panel 1/4"-XLR combi jacks, so you can instantly patch equipment into your system. These are swappable in software between front and rear panel connectors. And 16 of the Patch’s connections can be supplied with switchable 48V phantom power for microphones that require it. All of this — and more — is controlled through Flock Audio’s companion Patch app.

Digitally Control Analogue Audio Routings
Sound engineers know that a studio patching system is a make-or-break proposition that can either streamline or tie your workflow up in knots. Elegantly designed, finely tuned, and intuitively powerful, the PATCH App brings the simplicity of drag and drop functionality — along with patch storage, full recall, and advanced multing capabilities — to the world of analogue audio routing.

The Flock Audio PATCH app lets you accomplish basic or complex analogue audio routings in seconds. Patch LT uses the same Flock Audio Matrix Technology as the company’s flagship Patch routing system, relied on by audio engineers worldwide

Main features:

• No patch cables required
• 16 channels of onboard 48V phantom power
• Create, store, and recall routings in seconds
• Advanced multing capabilities
• User warning notifications
• Computer control via PATCH App software for macOS and Windows
• Achieve complex routings in seconds
• Front-panel Channel 16 I/O on combi jacks
• 32-point rear-panel I/O DB-25 connectors
• Multiple unit expansion with any Patch system model
• Software and firmware updates
• USB-A to USB-B 2.0 host control
• Rugged 1U rackmount chassis (8" deep)
• External 5-pin locking power supply included

Tech Specs:

• Type: Analogue Patchbay
• Patch Point Connections: 32 Total - 16 Inputs / 16 Outputs
• Format: Rackmount
• Connector Types - Front: 1 x XLR-1/4" combo (input 16), 1 x XLR (output 16)

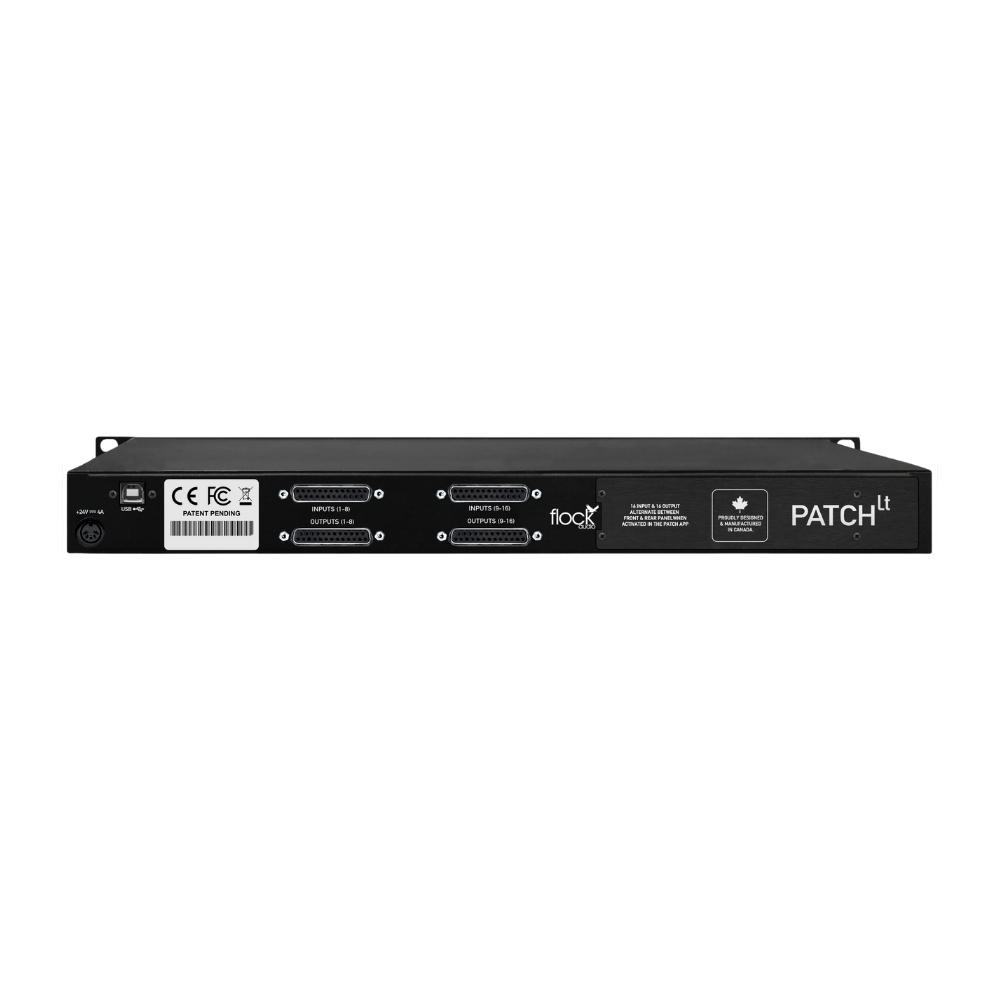

• Connector Types - Back: 2 x DB-25 (inputs 1-16), 2 x DB-25 (outputs 1-16)
• Function Mode: Save/Recall Routings, Multing, Phantom Power, Connect Multiple Patch Units
• Analogue/Digital: Analogue Signal Path, Digital Switching
• USB: 1 x USB-A to USB-B (3m)
• Software: PATCH App (Online Download)
• Compatibility: OSX 10.7 Lion & Newer / Windows 7 & Newer

• Dimension (WxHxD): 48 cm x 4.5 cm x 20 cm
• Power Source: 5-pin DIN power supply (included)
• Warranty: 1 Year Total System + Included Cables
• Discover more about Flock Audio [Patch LT]: https://www.flockaudio.com/patchlt
