Flock Audio Patch XT 192-point Digitally Controlled Analogue Patchbay
Analogue Audio Router Expansion
The Flock Audio PATCH XT System harnesses the advanced analogue routing technology of the PATCH Series of products in a mammoth I/O configuration of 192 points (96 inputs / 96 outputs). Meticulously designed, the PATCH XT was created for power users who need to get the most of out of their analog hardware routings capabilities. Equipped with the same Patented Matrix Technology as our flagship model PATCH, the XT System boasts some sought-after upgrades including Locking USB Host Connector, CAT5 Ethernet Network Host Connector option and beautifully machined anodised panel among many other upgrades.

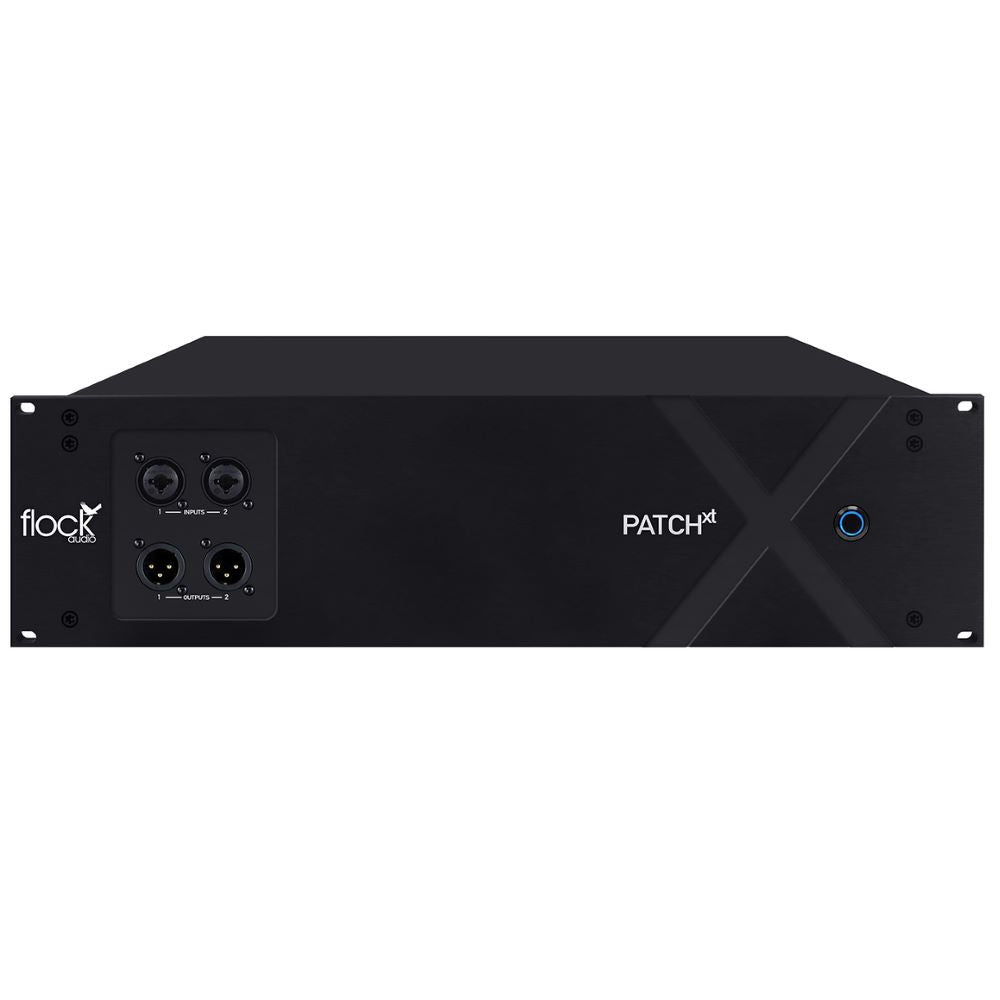

Panel Design & Connectors
The Patch XT hardware offers a few cool extras. Two input and output connectors, Channels 1 and 2, are located on front-panel 1/4-inch-XLR combi connectors, so you can instantly patch equipment into your system. These are swappable in software between front and rear panel connectors. Up to 32 of the Patch XT’s connections can supply switchable 48V phantom power for microphones that require it. All of this is controlled through Flock Audio’s companion Patch app.

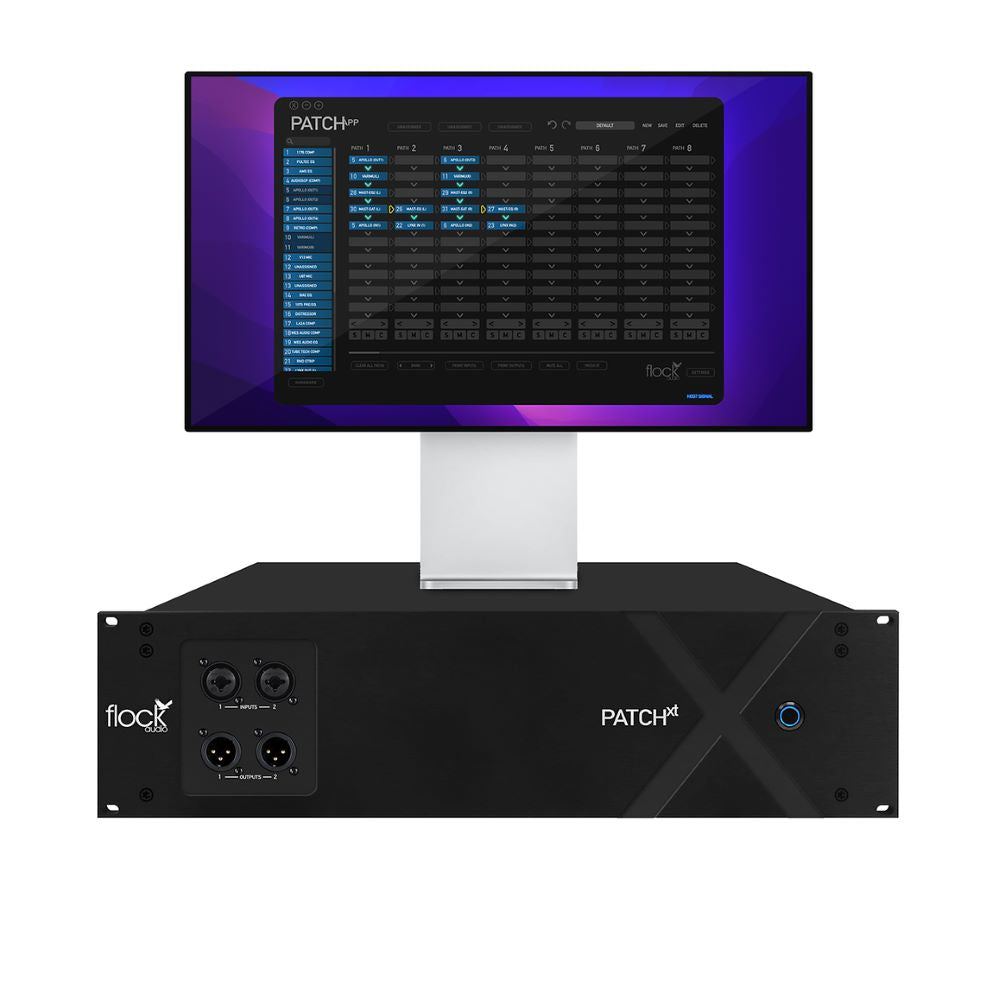

Digitally Control Analogue Audio Routings
Sound engineers know that a studio patching system is a make-or-break proposition that can either streamline or tie your workflow up in knots. Elegantly designed, finely tuned, and intuitively powerful, both the Patch App and Patch App DX bring the simplicity of drag-and-drop functionality along with patch storage, routing recall, and advanced multing capabilities - to the world of analogue audio routing. The Flock Audio Patch App and Patch App DX let you accomplish basic or complex analog audio routings in seconds, with Patch App DX bringing this amazing level of control to your iOS device as well as offering additional options for colour customization, session notes, and more.
- Type: Analogue Patchbay
- Patch Point Connections: 192 Total - 96 inputs / 96 outputs
- Format: Rackmount
- Connector Types - Front: 2 x XLR-1/4" combo (inputs 1-2), 2 x XLR (outputs)
- Connector Types - Back: 12 x DB-25 (inputs), 12 x DB-25 (outputs), 1 x RJ45
- Sleep/Wake Function: Remote Control PXT's On/Off via PATCH APP Software
- Analogue/Digital: Analogue
- Routing System: Patented Flock Audio Matrix Technology
- USB: 1 x Type A (2.0)
- Software: PATCH APP (Online Download)
- Compatibility: OSX 10.7 Lion & Newer / Windows 7 & Newer
- 48v Phantom Power: 32 Channels Independently Controllable
- Power Supply: Internal Power (110V or 220V)
- Dimension (WxHxD): 48.3 cm x 13.3 cm x 30.5 cm
- Weight: 11.3 Kg
- Warranty: 1 Year total system
- Discover more about Flock Audio [Patch XT]: https://www.flockaudio.com/patchxt
