Flock Audio Patch 64-point Digitally Controlled Analogue Patchbay

Analogue Audio Router Expansion

Flock Audio's flagship product the PATCH System was released in 2018 and has been used in countless award-winning studios and post-production suites around the world. The PATCH has quickly made Flock Audio one of the most trusted and highly anticipated brands in the professional audio industry. Built upon our Patented Matrix Technology, PATCH allows creative flexibility and enhanced workflows no matter the analogue source. Join the hundreds of audio engineers who have switched to the new standard in Analogue Audio Routing.

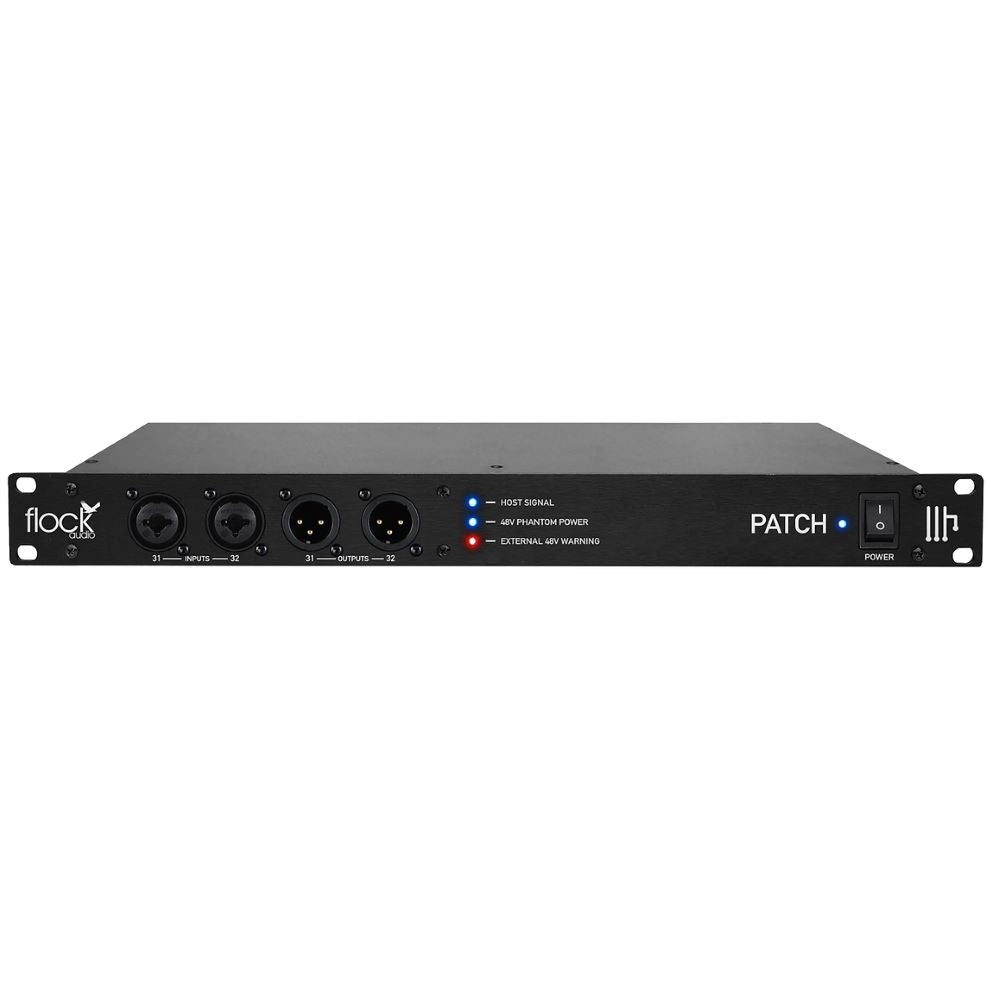

Panel Design & Connectors

The Patch hardware offers a few cool extras. Two input and output connectors, Channels 31 and 32, are located on front-panel 1/4-inch-XLR combi connectors, so you can instantly patch equipment into your system. These are swappable in software between front and rear panel connectors. 32 of the Patch’s connections can be supplied with switchable 48V phantom power for microphones that require it. All of this PLUS more is controlled through Flock Audio’s companion Patch app.

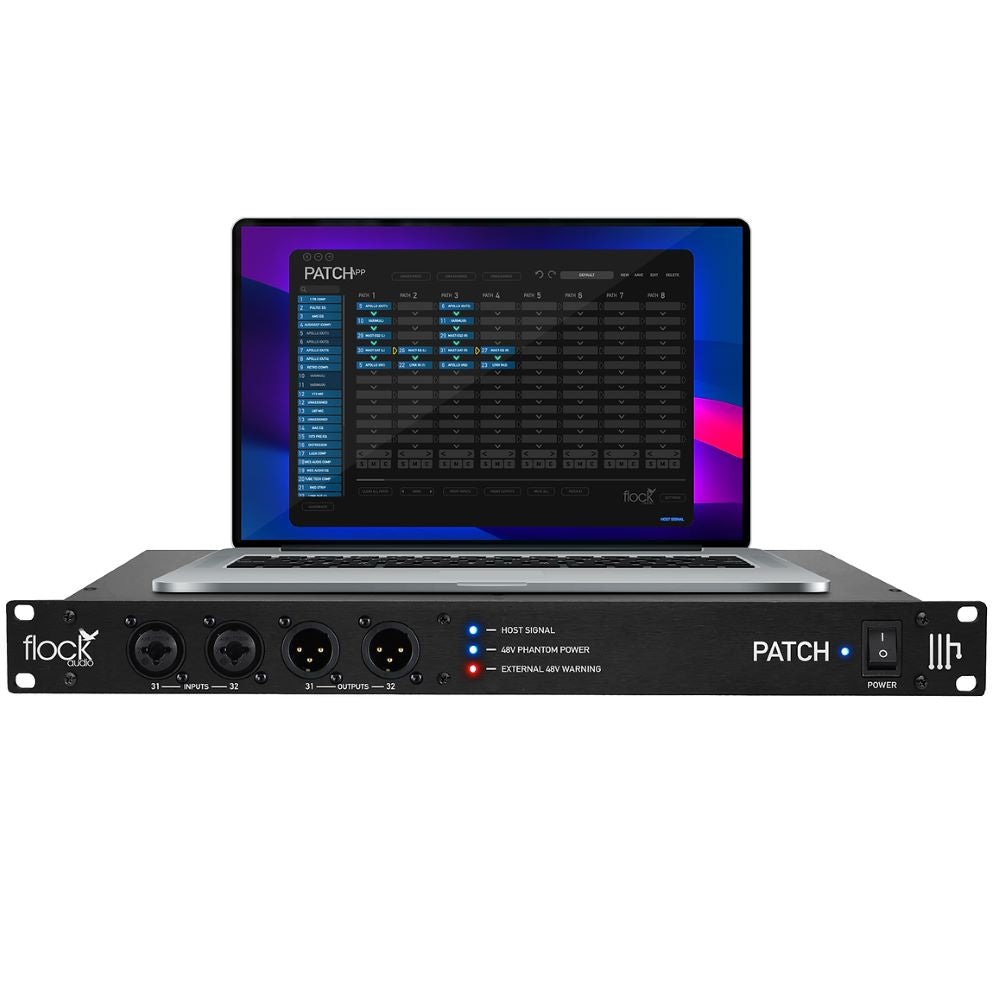

Digitally Control Analogue Audio Routings
Sound engineers know that a studio patching system is a make-or-break proposition that can either streamline or tie your workflow up in knots. Elegantly designed, finely tuned, and intuitively powerful, the Patch app brings the simplicity of drag and drop functionality - along with patch storage, full recall, and advanced multing capabilities - to the world of analogue audio routing. The Flock Audio Patch app lets you accomplish basic or complex analogue audio routings in seconds.

Main features:

• No patch cables required
• 32 channels of onboard 48V phantom power
• Create, store, and recall routings

• Advanced multing capabilities
• User warning notifications
• MacOS and Windows software compatible
• Achieve complex routings in seconds
• Front-panel I/O on combo jacks
• 64-point rear-panel I/O DB-25 connectors
• Multiple unit expansion
• Software and firmware updates
• USB host control

Tech Specs:

• Type: Analogue Patchbay
• Patch Point Connections: 64 Total - 32 inputs / 32 outputs
• Format: Rackmount
• Connector Types - Front: 2 x XLR-1/4" combo (inputs 31-32), 2 x XLR (outputs 31-32)

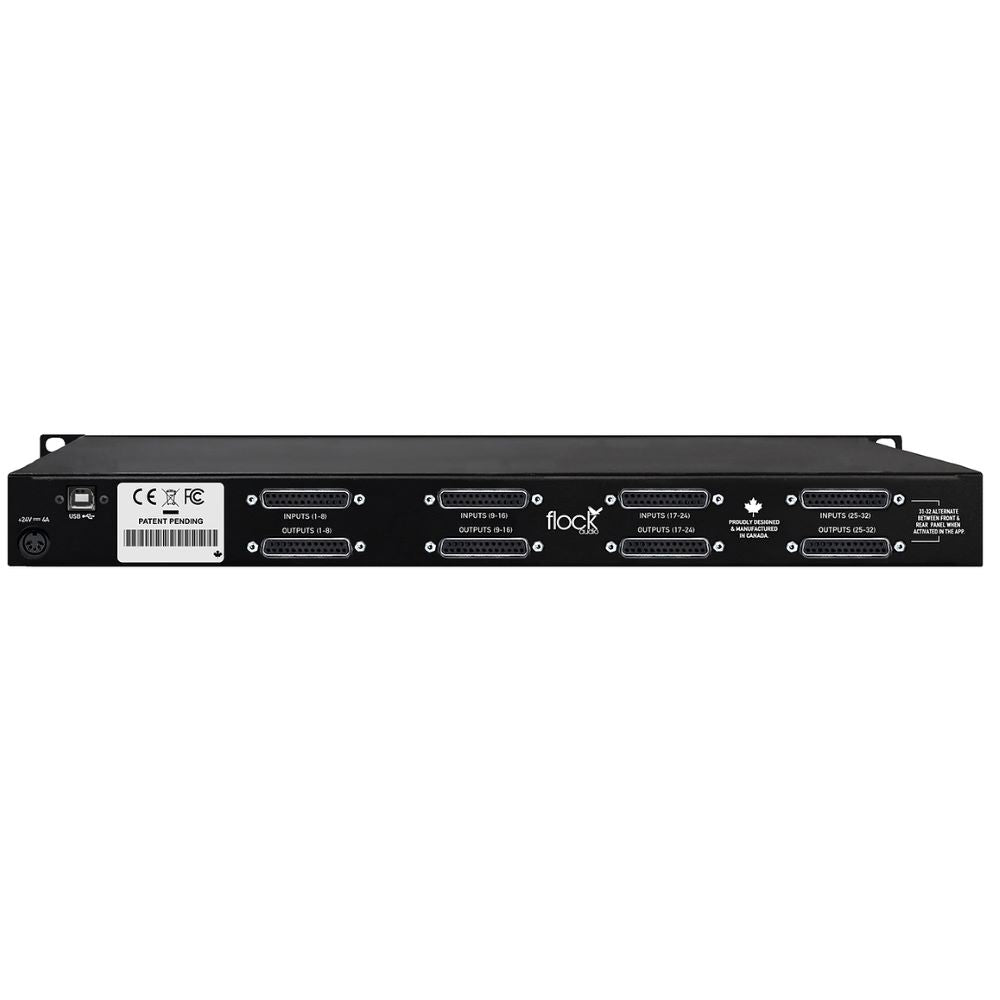

• Connector Types - Back: 4 x DB-25 (inputs 1-32), 4 x DB-25 (1-32)
• Function Mode: Save/Recall Routings, Multing, Phantom Power, Connect Multiple Patch Units
• Analogue/Digital: Analogue Signal Path, Digital Switching
• Routing System: Patented Flock Audio Matrix Technology
• USB: 1 x Type B
• Compatibility: OSX 10.7 Lion & Newer / Windows 7 & Newer
• Power Supply: 5-pin DIN power supply (included)
• Dimension (WxHxD): 48.3 cm x 4.5 cm x 20 cm
• Weight: 6.8 Kg
• Warranty: 1 Year total system
• Discover more about Flock Audio [Patch]: https://www.flockaudio.com/patch
