Flock Audio CX Module - Analogue Audio Router Expansion

Analogue Audio Router Expansion

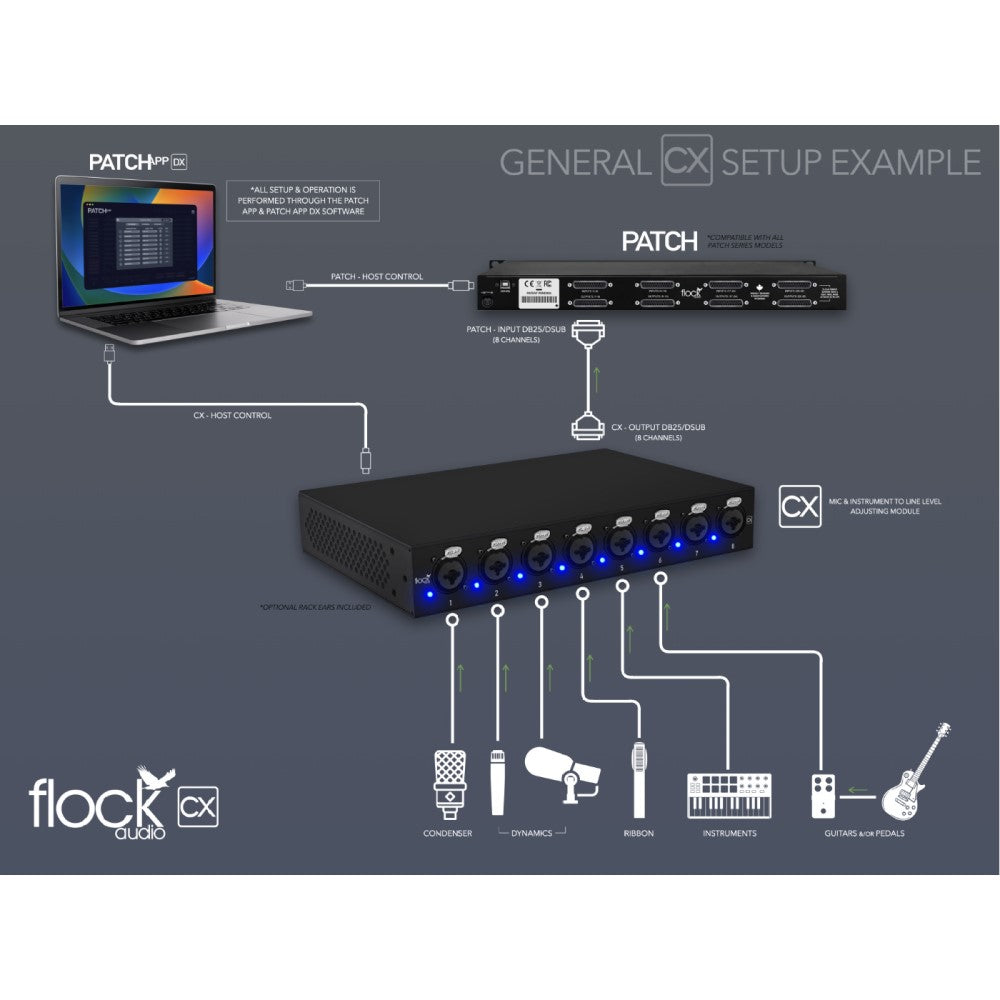

The Flock Audio CX is a 8-channel hardware module compatible with all PATCH Series models allowing all types of analogue audio signals to correctly route through the PATCH Series (+4 Line Level Design) for the cleanest and transparent analogue audio routing experience possible. The Flock Audio CX Module can be controlled and customized via either the Flock Audio Patch App or the Patch App DX. Add the CX input module to your Patch Series setup and enjoy the cleanest and most transparent analogue audio routing experience.

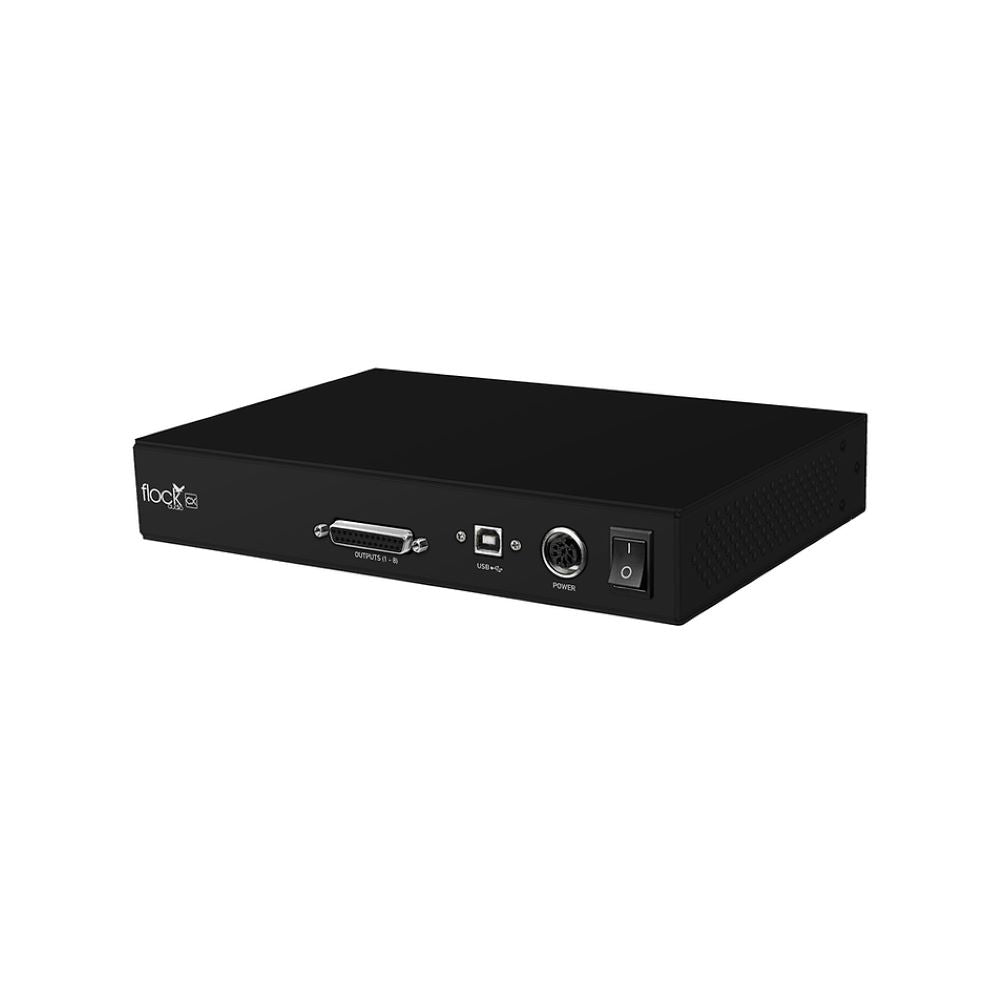

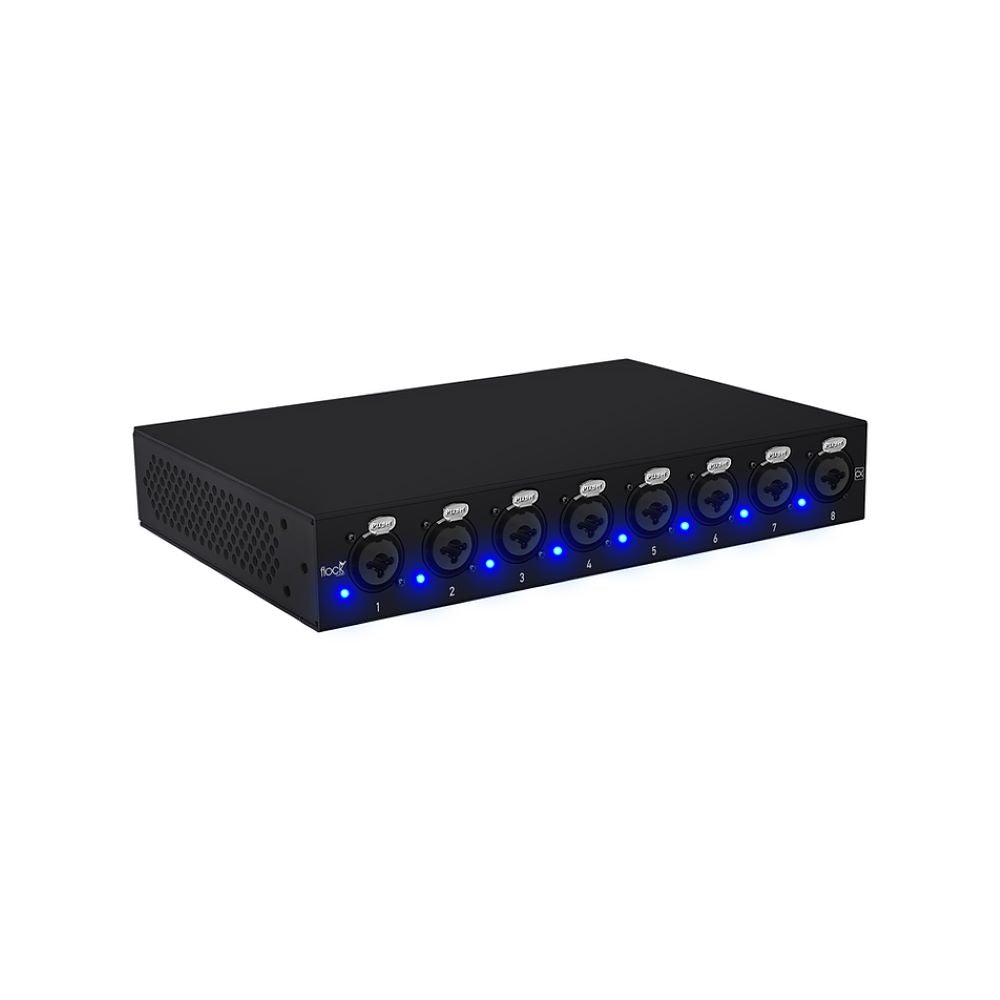

A simple and straightforward modular design hosting 8 total - XLR/Combo latching inputs with 8 accompanied and individually assignable 48V LED indicators, CX’s front panel is perfect balance of function and form. The rear panel includes a single 8-channel DB25/DSUB connector for Line level out to your PATCH Series models inputs. Next to the DB25/DSUB connector is the USB-B connection for hosst control and threaded locking power connector and power switch. CX can easily be placed on a desk, rack top or the floor for easy accessibility. For those preferring rack mounting, optional rack ears are included with each CX Module.

Main features:

Tech Specs:

• Type: 8-channel Preamp Expansion
• Channels: 8
• Inputs: 8 x XLR-1/4" Combo
• Outputs: 1 x DB-25
• Digital Inputs: 1 x USB-B (host control)
• Features: Flock Audio PATCH Series
• Power Supply: Locking External Power Supply (included)
• Dimension (WxHxD): 26 cm x 4.5 cm x 18 cm
• Weight: 2.3 Kg
• Warranty: 1 Year Total System + Included Cables
• Discover more about Flock Audio [CX Module]: https://www.flockaudio.com/cx
