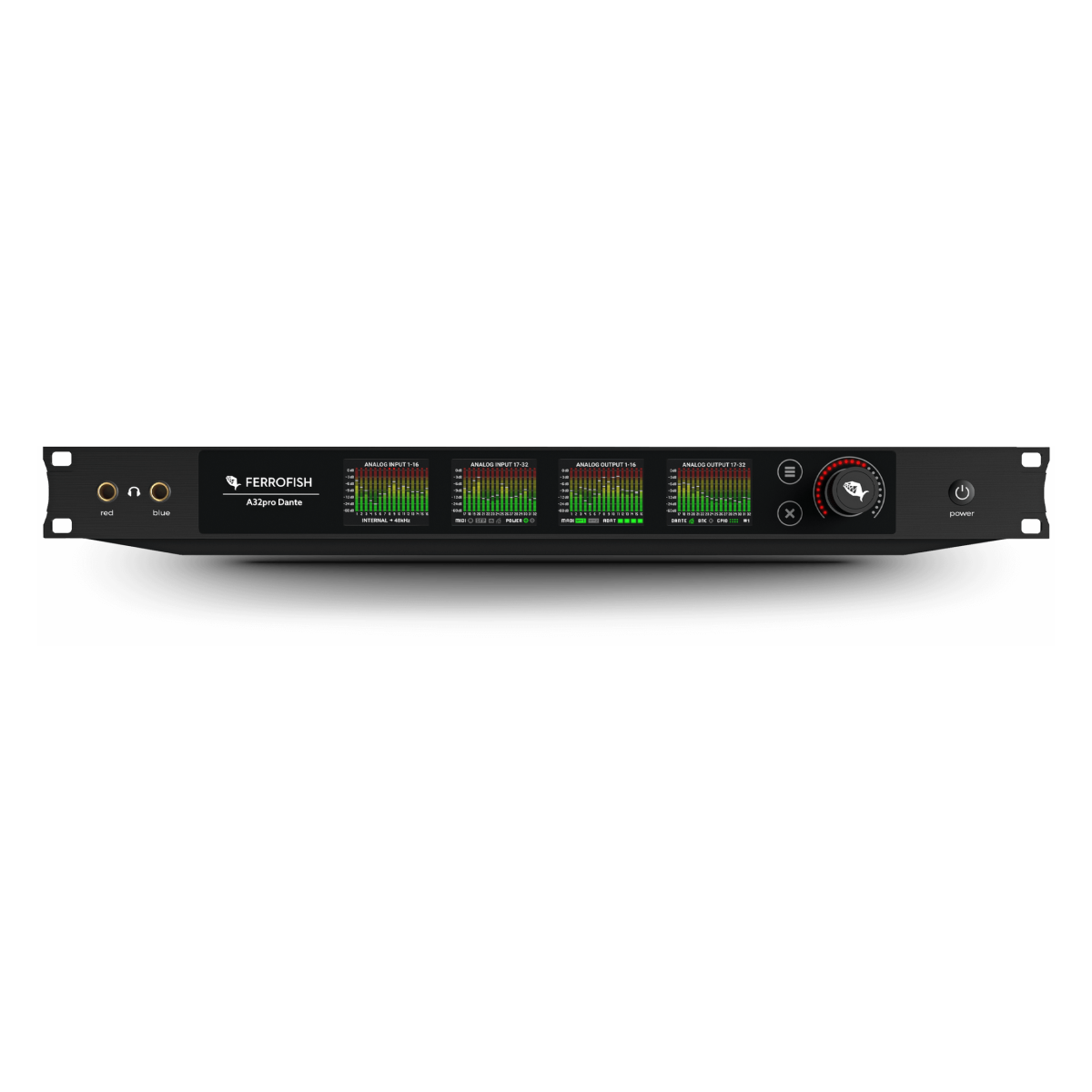

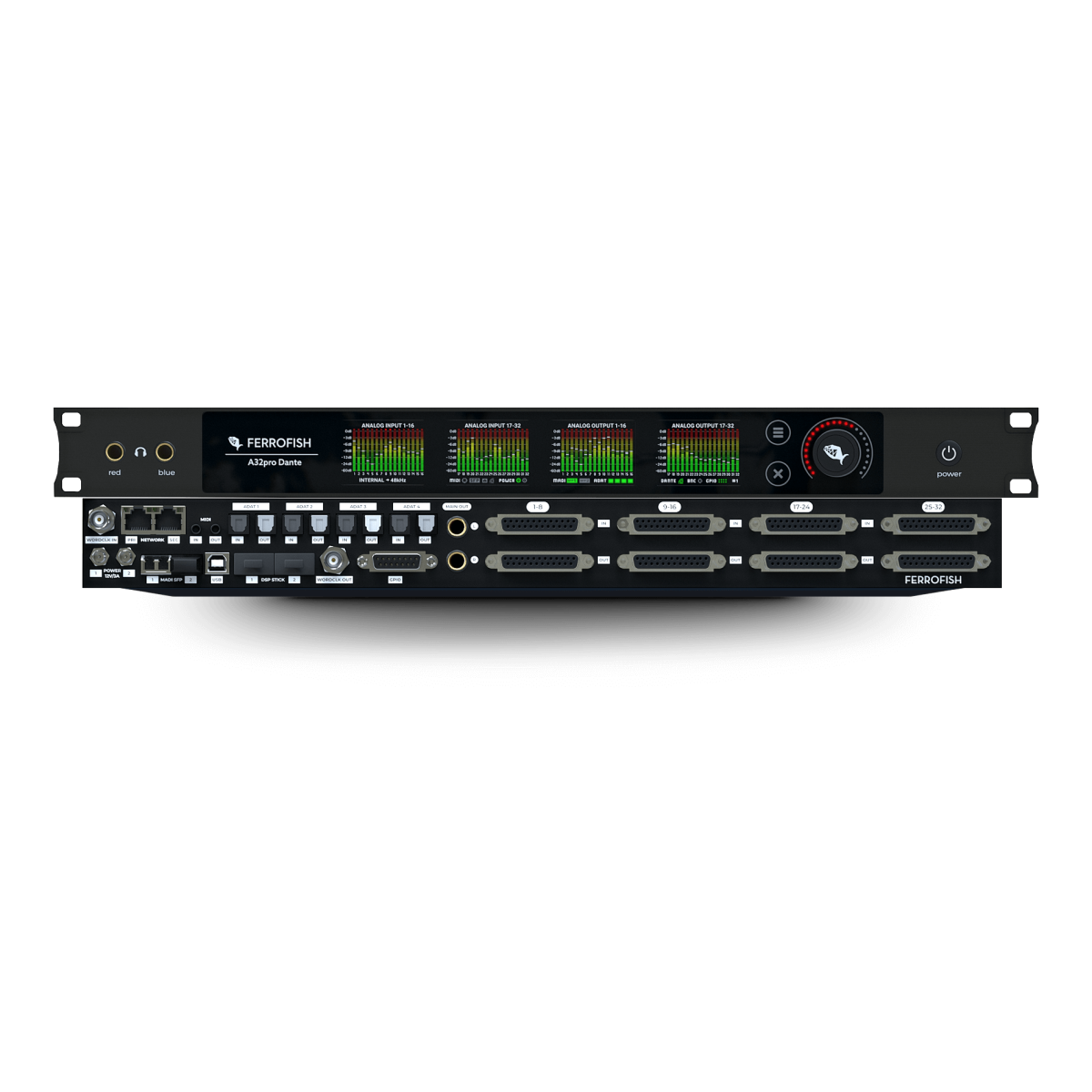

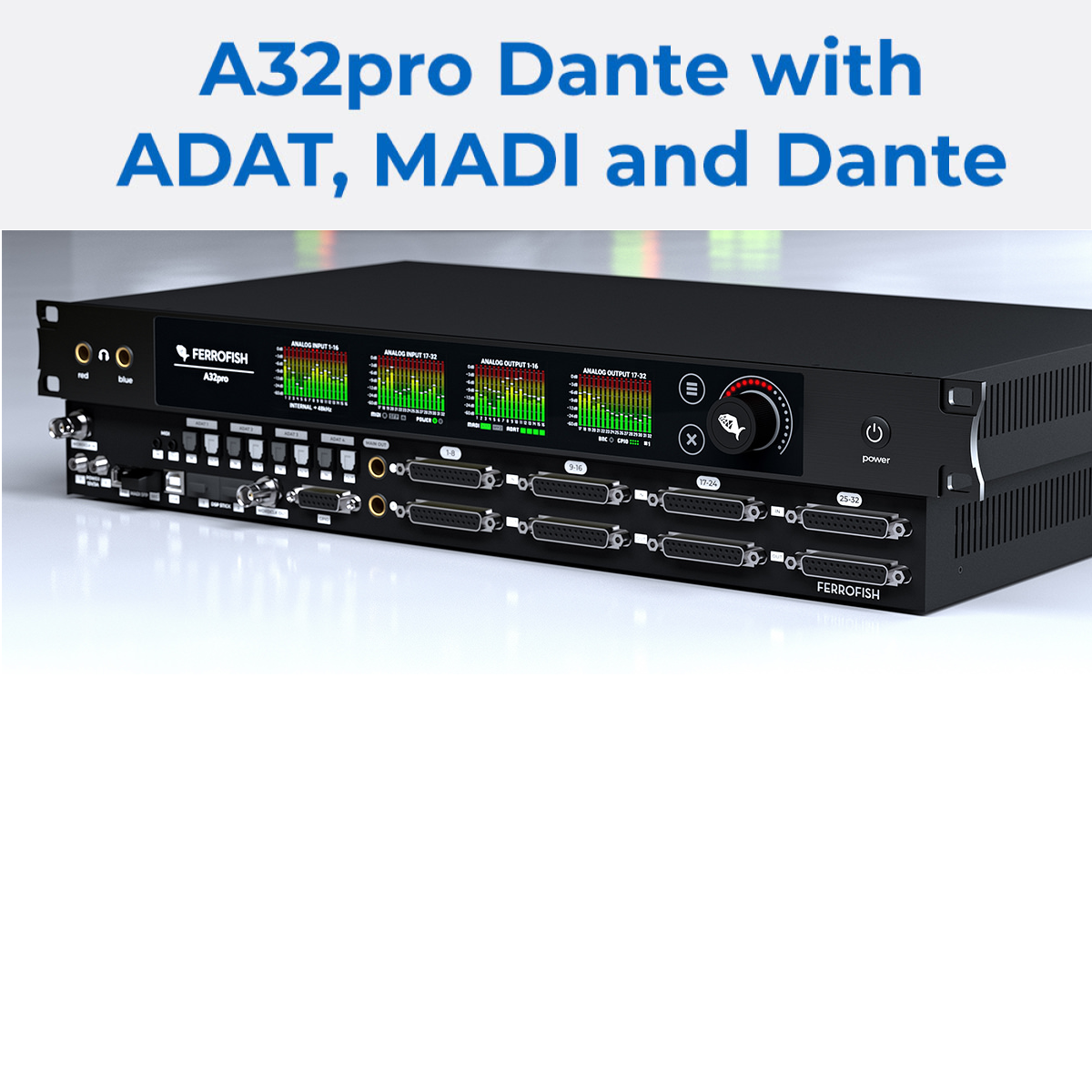

Ferrofish A32pro Dante 32x32 AD/DA Converter and Format Router

The Ultimate Networked Studio Flagship

The Ferrofish A32pro Dante is the definitive choice for high-density audio environments requiring absolute flexibility and reliability. Functioning as both a premier 32x32 AD/DA converter and a comprehensive format router, this 1RU powerhouse processes up to 386 total channels simultaneously. Whether you are a broadcast professional, a mixing engineer at a major facility, or a live sound technician, the A32pro Dante provides a seamless bridge between high-end analogue gear and modern AoIP networks.

Next-Generation 32-Bit ESS Precision
Upgraded from previous generations, the A32pro series now features the latest 32-bit ESS Technology converters. These high-end chips, paired with a temperature-compensated clock and a jitter-reduction PLL, deliver an "honest" and relaxed sound profile that avoids the aggressive "squeeze" found in lesser converters. With support for sample rates up to 192kHz and studio-level headroom of +20dBu, your audio remains open, detailed, and transparent across the entire frequency range.

A New Standard in Visual Workflow
Monitoring 64 channels has never been more intuitive thanks to four high-resolution multitouch TFT screens. This capacitive user interface allows you to view metering for every analogue I/O channel simultaneously and navigate the internal routing matrix with a simple touch. This immediate visual feedback eliminates the need for complex sub-menus or consulting a manual during high-pressure sessions, allowing you to focus entirely on the sound.

Failsafe Redundancy for Mission-Critical Pro Audio
Reliability is the core pillar of the A32pro Dante design, featuring redundancy at every level. Both the Dante network ports and MADI SFP slots are configured for automatic, inaudible failover in the event of signal loss. Furthermore, the unit supports dual redundant power supplies with secure screw-lock connectors, ensuring that your production stays online even if a power circuit or cable fails.

Main features:

• 32 x 32 balanced analogue inputs and outputs on professional D-Sub25 connectors
• Integrated Audinate Dante Brooklyn board with redundant primary and secondary RJ45 ports
• Four capacitive multitouch TFT screens for real-time metering and intuitive unit control
• State-of-the-art 32-bit ESS A/D and D/A converters supporting sample rates up to 192kHz
• Internal routing matrix allowing signal patching in groups of 8 channels across all digital and analogue formats
• Dual MADI SFP slots supporting multimode modules with automatic redundancy switching
• Four pairs of ADAT optical I/O providing 32x32 channels at single sample rates
• Redundant power supply inputs with internal self-resettable polyfuses for maximum uptime
• Two independent high-quality headphone outputs with a dedicated monitoring matrix for any I/O channel
• Flexible remote control options via USB, MIDI, MIDI-over-MADI, or Remote-over-Dante using the RemoteFish app

Tech Specs:

• I/O Configuration: 32 Analogue Inputs / 32 Analogue Outputs
• Analogue Connection Type: 8 x D-Sub25 (Tascam Format Layout)
• Converter Architecture: 32-bit ESS Technology
• Maximum Input/Output Level: +20 dBu
• Gain Adjustment Range: -8 dBu to +20 dBu (1 dB steps)
• Supported Sample Rates: 32 kHz to 192 kHz
• Dante AoIP Network I/O: 64 x 64 Channels (Redundant Primary & Secondary RJ45 Ports)
• MADI Connectivity: Dual SFP Slots (Multimode module included)
• ADAT Connectivity: 4 x Pairs (32 x 32 channels @ 48kHz)
• Wordclock Sync: BNC Input/Output with 75 Ohm switchable termination
• MIDI Interface: 2 x 1/8” (3.5mm) TRS (MIDI 2.0 Type A configuration)
• Jitter Suppression: Digitally controlled PLL (50ps - 100ps typical)
• Onboard DSP Engine: SHARC ADSP-2148x Series processing
• Display Interface: 4 x Color Color TFT Multitouch Screens
• Main Analogue Outputs: 2 x Balanced 1/4” TRS (mirrors red headphone matrix output)
• USB Connection: USB 2.0 (Type-B) for Remote / MIDI control
• Power Management: 12V, 3A via Dual Redundant Sockets
• Chassis Size & Form Factor: 1RU Desktop/Rackmount | 25.3 x 44.4 x 4.4 cm
• Physical Weight: 3.5 kg (approx. 7.7 lbs)
