FBT Vertus CS1000 compact active column line array system
Tax included.
Uncompromising Power, Scalable Precision
The FBT Vertus CS1000 is a professional-grade, bi-amplified integrated system engineered for those who refuse to compromise on audio quality or portable convenience. This compact line array is a powerhouse solution for **live performers, DJs, houses of worship, and corporate installers** who require a system that can be deployed in minutes while delivering controlled directivity and high-fidelity sound. Combining a 1000W RMS Class-D amplifier with a modular design, the CS1000 provides the punch of a dedicated subwoofer and the crystalline detail of a neodymium line array in one elegant, birch plywood package.
Modular Scalability for Any Venue
The Vertus CS1000 is designed to grow alongside your professional requirements. While a single system delivers a potent 129dB SPL, its modular architecture allows you to double the subwoofers and satellites to form a single, coherent solution that increases maximum SPL by 6dB. For large-scale events, you can combine four systems in a two-per-side stereo configuration to achieve a staggering 8,000W peak power, ensuring every corner of the venue is reached with absolute authority.
Elite Neodymium J-Array Engineering
Precision is at the heart of the CS1000’s satellite design, which features six 3” neodymium high-efficiency woofers. These drivers are strategically positioned in a J-array configuration to create a vertical dispersion of 30° and a wide horizontal dispersion of 110°, ensuring consistent coverage without the messy reflections common in standard speakers. This advanced directivity means your audience experiences pristine vocal clarity and musical transparency, whether they are standing at the front or the back of the room.
Tour-Ready Durability and Workflow
The Vertus CS1000 is designed to grow alongside your professional requirements. While a single system delivers a potent 129dB SPL, its modular architecture allows you to double the subwoofers and satellites to form a single, coherent solution that increases maximum SPL by 6dB. For large-scale events, you can combine four systems in a two-per-side stereo configuration to achieve a staggering 8,000W peak power, ensuring every corner of the venue is reached with absolute authority.
Elite Neodymium J-Array Engineering
Precision is at the heart of the CS1000’s satellite design, which features six 3” neodymium high-efficiency woofers. These drivers are strategically positioned in a J-array configuration to create a vertical dispersion of 30° and a wide horizontal dispersion of 110°, ensuring consistent coverage without the messy reflections common in standard speakers. This advanced directivity means your audience experiences pristine vocal clarity and musical transparency, whether they are standing at the front or the back of the room.
Tour-Ready Durability and Workflow

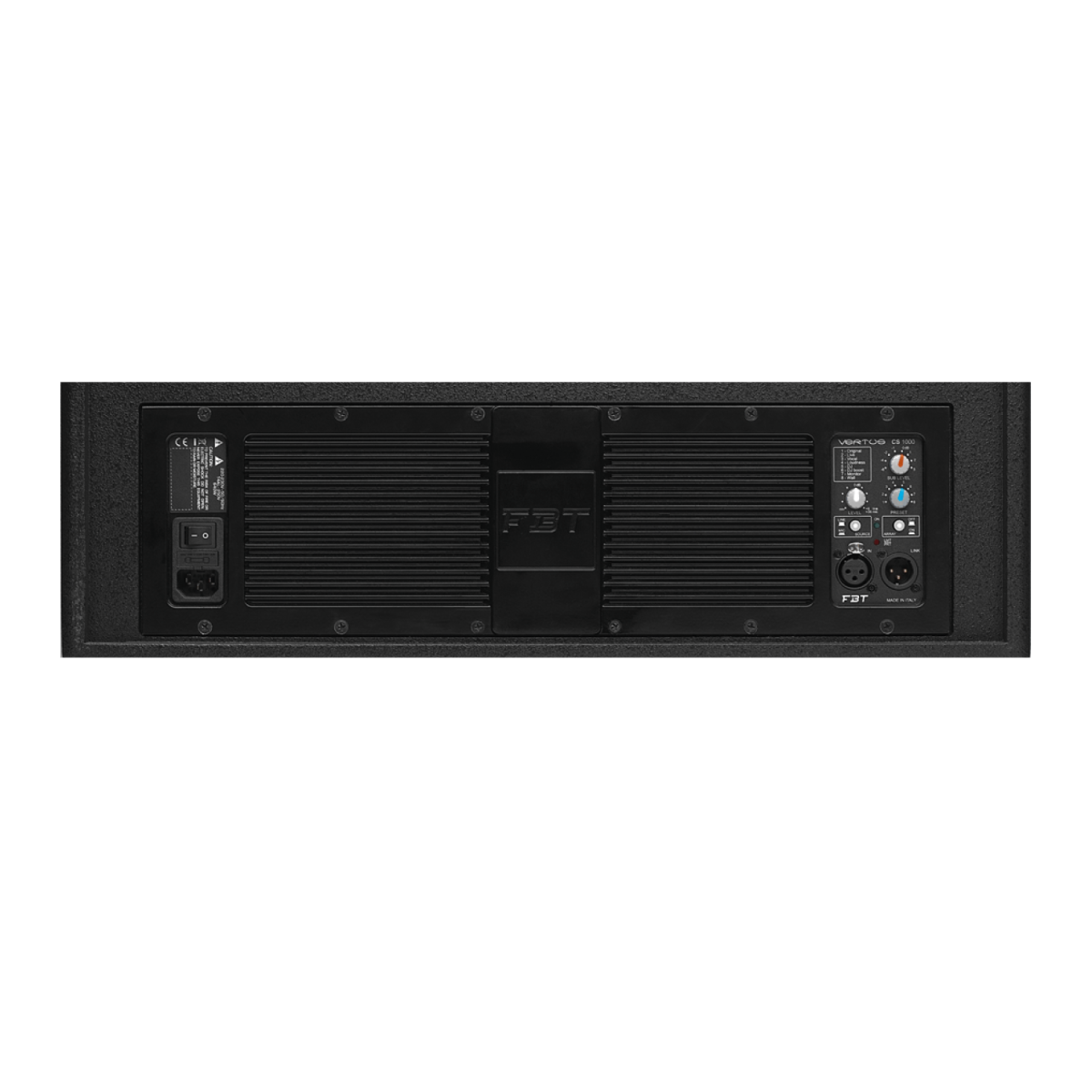

Unlike many plastic alternatives, both the subwoofer and satellite are housed in premium Baltic birch plywood enclosures, providing superior acoustic character and road-hardened durability. The system is a masterpiece of workflow efficiency; the subwoofer features a secure storage compartment that houses the satellite speaker, the telescopic mounting pole, and all necessary cables for effortless transport. With a fanless amplifier module protected by diecast aluminium and eight onboard DSP presets, you have a rugged, "plug-and-play" system that delivers studio-quality sound in any environment.
Main features:
- Bi-amplified Class-D system delivering 1000W RMS and 129dB peak SPL.
- Combination of a 12-inch long-excursion subwoofer and six 3-inch neodymium full-range satellite drivers.
- Advanced J-array satellite configuration providing wide 110° horizontal and 30° vertical dispersion.
- Onboard DSP featuring eight tailored EQ presets for instant acoustic optimisation.
- Professional-grade Baltic birch plywood construction for both the subwoofer and satellite enclosures.

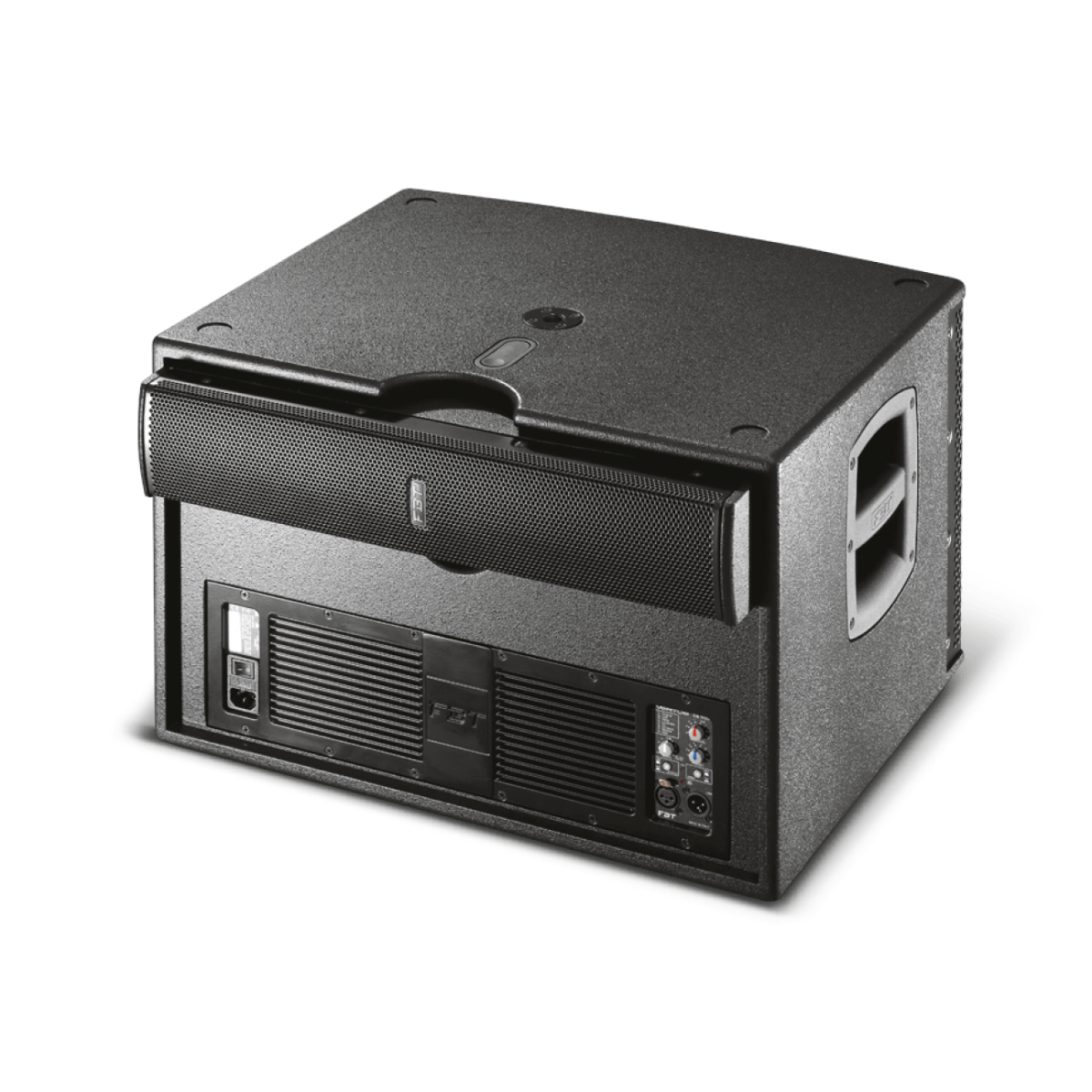

- Intelligent transport design that stores the satellite, pole, and cables inside the subwoofer cabinet.
- Modular scalability allowing for linked configurations reaching up to 8000W peak power
Tech Specs:
- Total Power (RMS): 1000W (600W LF + 400W HF)
- Total Power (Peak): 2000W (1200W LF + 800W HF)
-
Frequency Response: 40Hz – 20KHz (-6dB)
- Max SPL (Cont/Peak): 125dB / 129dB
-
LF Woofer: 12” speaker with 2.5” voice coil
-
HF Drivers: 6 x 3” neodymium with 0.8” voice coils
-
Dispersion (H x V): 110° x 30°
-
Input Connectors: XLR with loop
-
Output Connectors: Neutrik SPEAKON (Satellite link)
-
DSP Features: 8 dedicated presets, HPF, status LEDs
-
Cabinet Material: Baltic Birch Plywood
-
Satellite Dimensions: 105 x 530 x 120 mm
-
Subwoofer Dimensions: 565 x 373 x 450 mm
- Weight: 34 kg
- Discover more FBT Line Array Systems [VERTUS CS 1000]: https://www.fbt.it/product/vertus-cs-1000/
