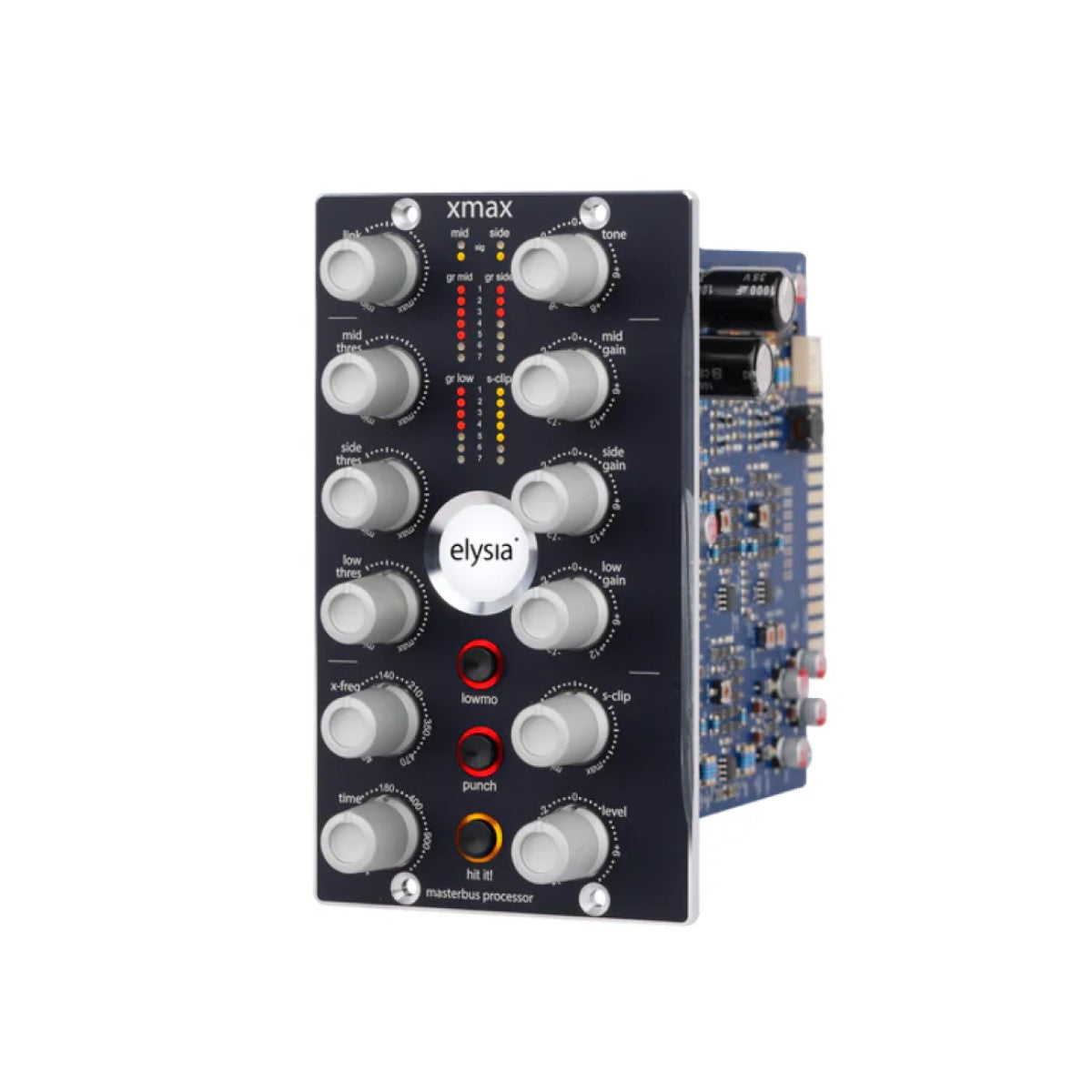

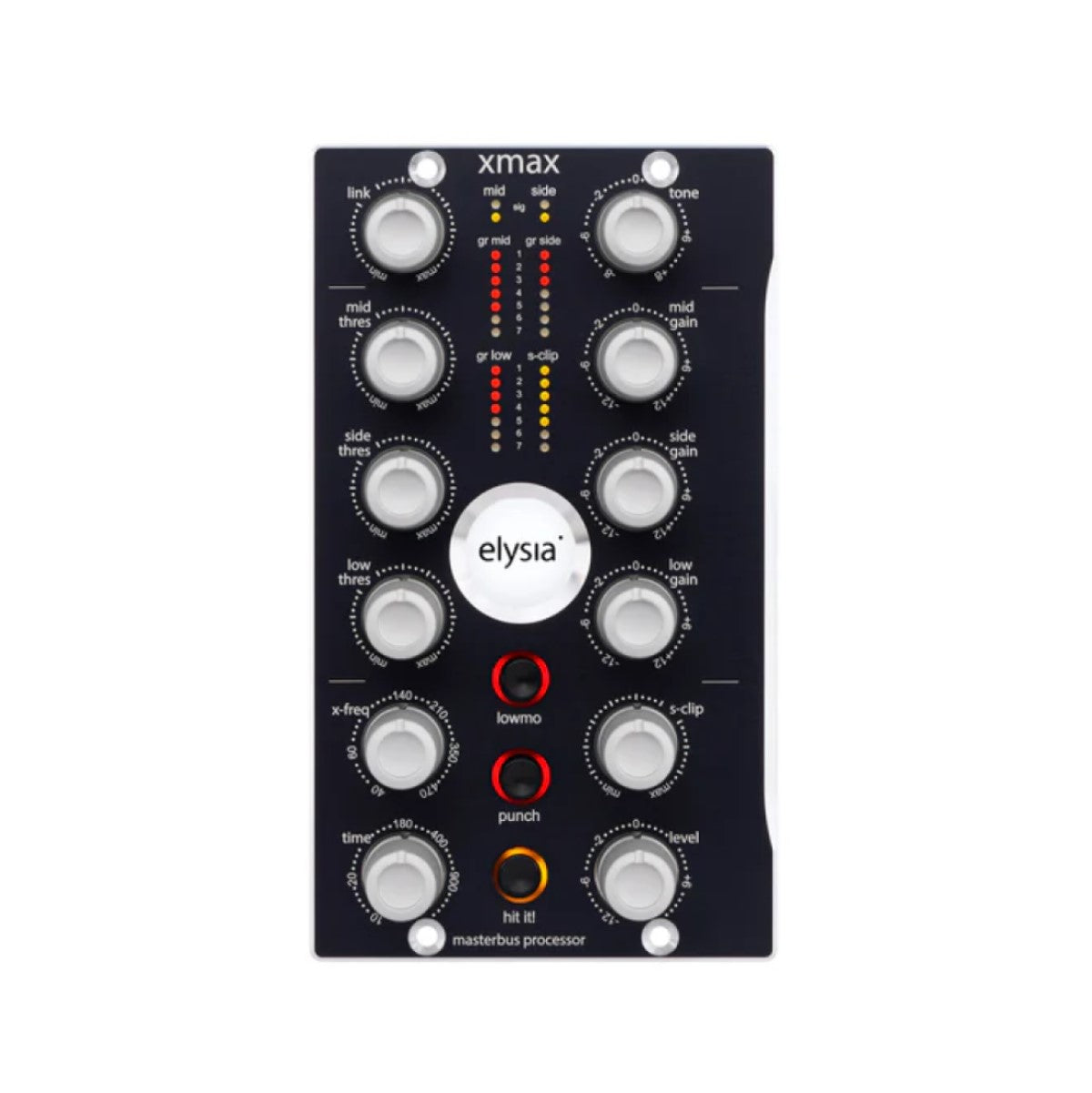

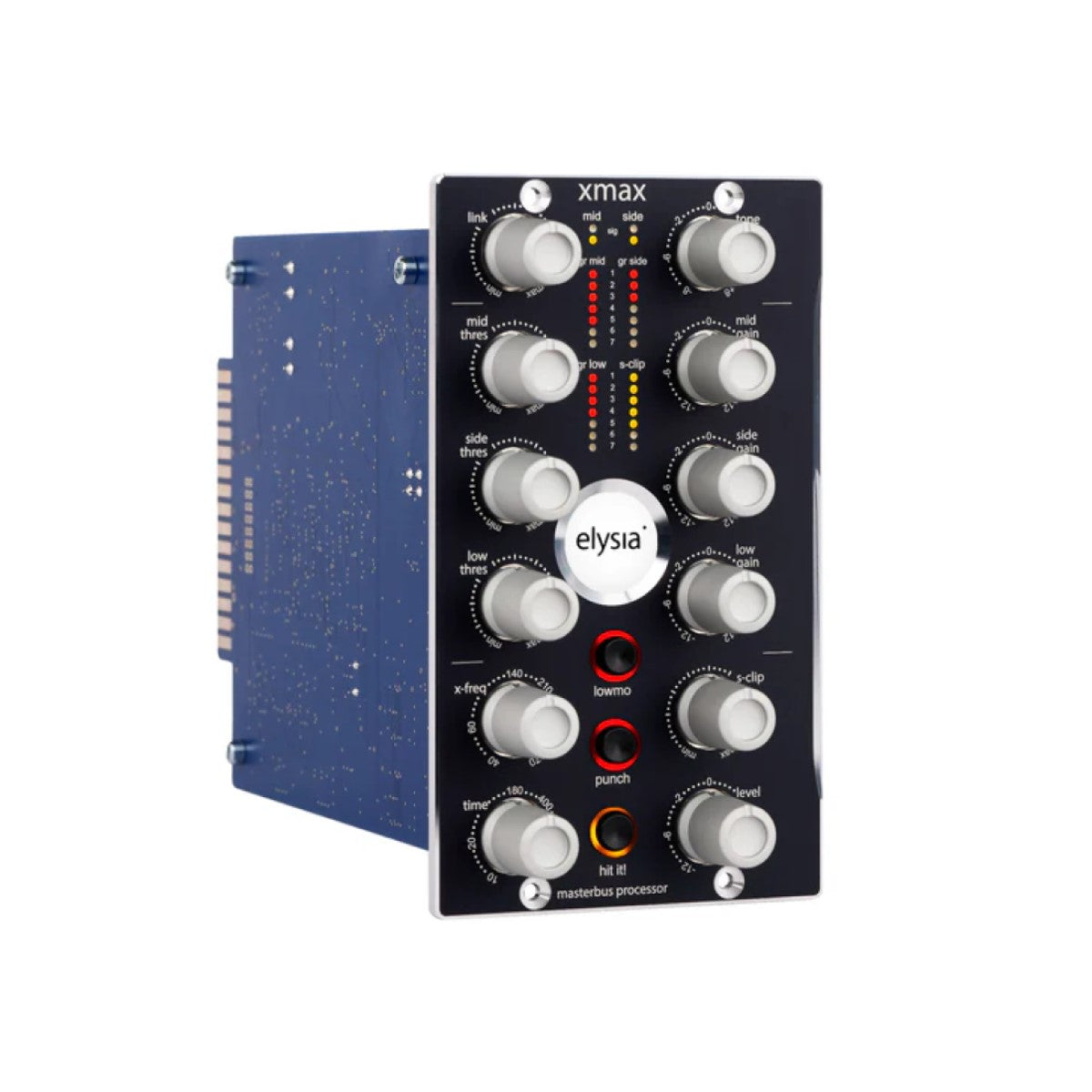

elysia xmax 500: Masterbus Processor

dynamic. transparent. exciting.

The xmax 500 is a top-tier Class-A stereo masterbus processor designed for mixing and mastering. Combining transparency, precision, and flexible control, it enhances your sound in the studio or live.

The core of the xmax is its Class-A circuitry with internal Mid/Side processing, delivering pristine audio quality without compromising the natural integrity of your mix. The multiband compression, split into low, mid, and side bands, allows for detailed control of each frequency range, enabling you to shape your sound with precision.

Multiband Compression
The elysia xmax 500 delivers precise multiband compression with dual ratio settings across three compressors. Its fixed 10ms attack preserves transients while the Auto Fast feature intelligently adjusts timing for dynamic material, eliminating manual attack adjustments while maintaining clarity and preventing distortion.

Variable Crossover Frequency
Adjust low/mid band crossover to precisely shape low-end dynamics. Flexible range of 40 Hz to 470 Hz allows for control of sub/bass and lower midrange frequencies. Ideal for focused, controlled, and powerful low-end energy.

VariLink Function
Take full control over compressor behaviour with adjustable band linking. Choose between independent or fully linked mode with precision and intention. Set the master band and adjust thresholds for a cohesive and musical compression feel across complex mix material. Guide dynamics processing according to musical context with xmax.

Tone Control
Enhance or reduce high frequencies in your sound with ease using the professional-grade Tone control on the xmax Masterbus Processor. Perfect for adding a touch of air to your mix or shaping your overall sound, the subtle yet effective filter offers a range from -8 dB to +8 dB, optimised for natural adjustments. Whether mixing or mastering, quickly achieve the desired tonal balance without relying on external EQ.

Analogue Metering
The xmax has a real-time display for gain reduction across three compression bands - low, mid, and side and the soft clip limiter. The meter shows detailed gain reduction in decibels, giving visual feedback for both subtle and punchy compression. It also displays peak reduction for the limiter to help monitor and control signal peaks without distortion. The display enhances workflow and decision-making for precise dynamics and mix adjustments.

Main Features:

• Stereo master bus compressor for mixing and mastering
• Multiband capabilities facilitate independent processing of Low, Mid, and Side bands
• X-freq control fine-tunes your mix’s low end with unparalleled precision
• VariLink function adjusts the blend percentage between the 3 bands
• S-Clip knob engages a soft clipper derived from elysia’s high-end alpha compressor
• Punch setting increases the compression ratio for added thrust and momentum
• Lowmo button tightens a mix’s lowest frequencies by summing them to mono
• Smart global release makes calibrating the compressor’s behaviour a stress-free endeavour
• 1-knob shelving EQ compensates for compression artefacts
• Class A compressor with a mastering-quality signal path
• Comprehensive analogue metering for signal, clip, compression of the individual bands, and the soft clipper

Tech Specs:

• Type: Master Bus Compressor
• Number of Channels: 2
• Controls: Threshold, Gain, Shape, Control
• Module Slot Size: Double

• Power Consumption: 205 mA
• Weight: 0,47 kg
