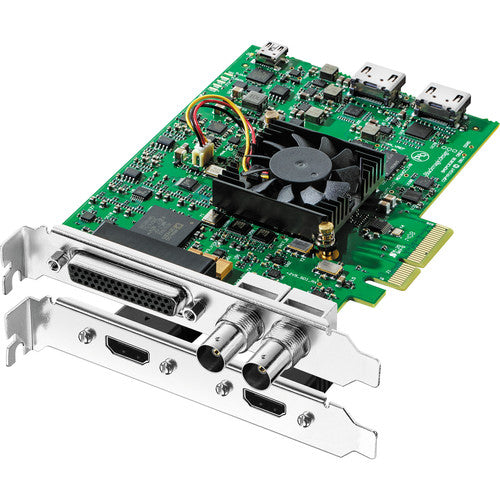

Blackmagic Design DeckLink Studio 4K
Tax included.
If you work with a wide range of analog video and audio gear, and need to move seamlessly between SD, HD, 2K and Ultra HD, then DeckLink Studio 4K is perfect! DeckLink Studio 4K includes a massive number of analog and digital video connections including SD/HD/Ultra HD 6G-SDI, HDMI 1.4b, SD/HD component, composite, S-video, 4 ch balanced analog audio, 2 ch AES/EBU switchable to 6 ch out, black burst and tri-sync reference input, RS-422 deck control connections, keying in SD and a hardware down converter. Perform editing, paint and broadcast design and more with the ultimate future proof design!

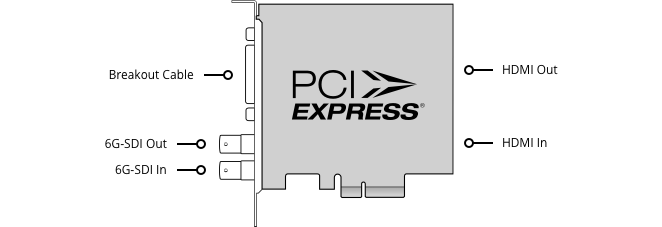

Connections
SDI Video Input
1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4
SDI Video Output
1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4
Analog Video Input
1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video. Component supports HD and SD.
Analog Video Output
1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video, 1 x SD-SDI. Component supports HD and SD.
HDMI Video Input
1 x HDMI type A connector
HDMI Video Output
1 x HDMI type A connector
Analog Audio Input
4 Channels of professional balanced analog audio via 1/4" jack connectors.
Analog Audio Output
4 Channels of professional balanced analog audio via 1/4" jack connectors. Channels 3 & 4 can switch to AES/EBU outputs.
AES/EBU Audio Input
2 Channels unbalanced with sample rate converter.
AES/EBU Audio Output
2 Channels unbalanced. Analog outputs 3 and 4 can switch to AES/EBU outputs for audio 3 & 4 and 5 & 6 output. This provides a total of 6 AES/EBU output audio channels when using this feature.
SDI Audio Input
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
SDI Audio Output
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
HDMI Audio Input
8 Channels embedded in SD, HD, 4K.
HDMI Audio Output
8 Channels embedded in SD, HD, 4K
Sync Input
Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD, 2K or 4K format.
Device Control
Sony? compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control.
Computer Interface
PCI Express 4 lane generation 1, compatible with 4,8 and 16 lane PCIe Slots.
Codecs
Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4.
Software
Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X. Media Express, Disk Speed Test, LiveKey, Blackmagic Control Panel and Blackmagic driver on Windows 7 and Windows 8. Media Express, Blackmagic Control Panel and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation
PCI Express 4 lane generation 1, compatible with 4, 8, 16 lane PCI Express slots on Mac OS X, Windows and Linux. Please check the Support pages to see the full system requirements.
Software Applications
DaVinci Resolve
Fusion
Final Cut Pro X
Premiere Pro CC
Avid Media Composer
After Effects CC
Avid Pro Tools
Steinberg Cubase
Autodesk Smoke
Photoshop CC
www.audiosaurus.co.za
If you would like to confirm availability first or inquire for possible price-matching send us a quick mail.
