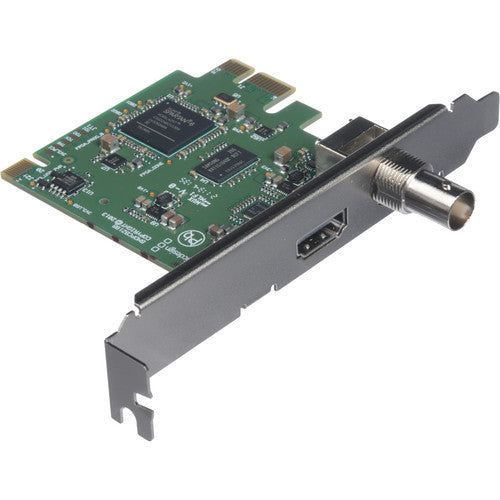

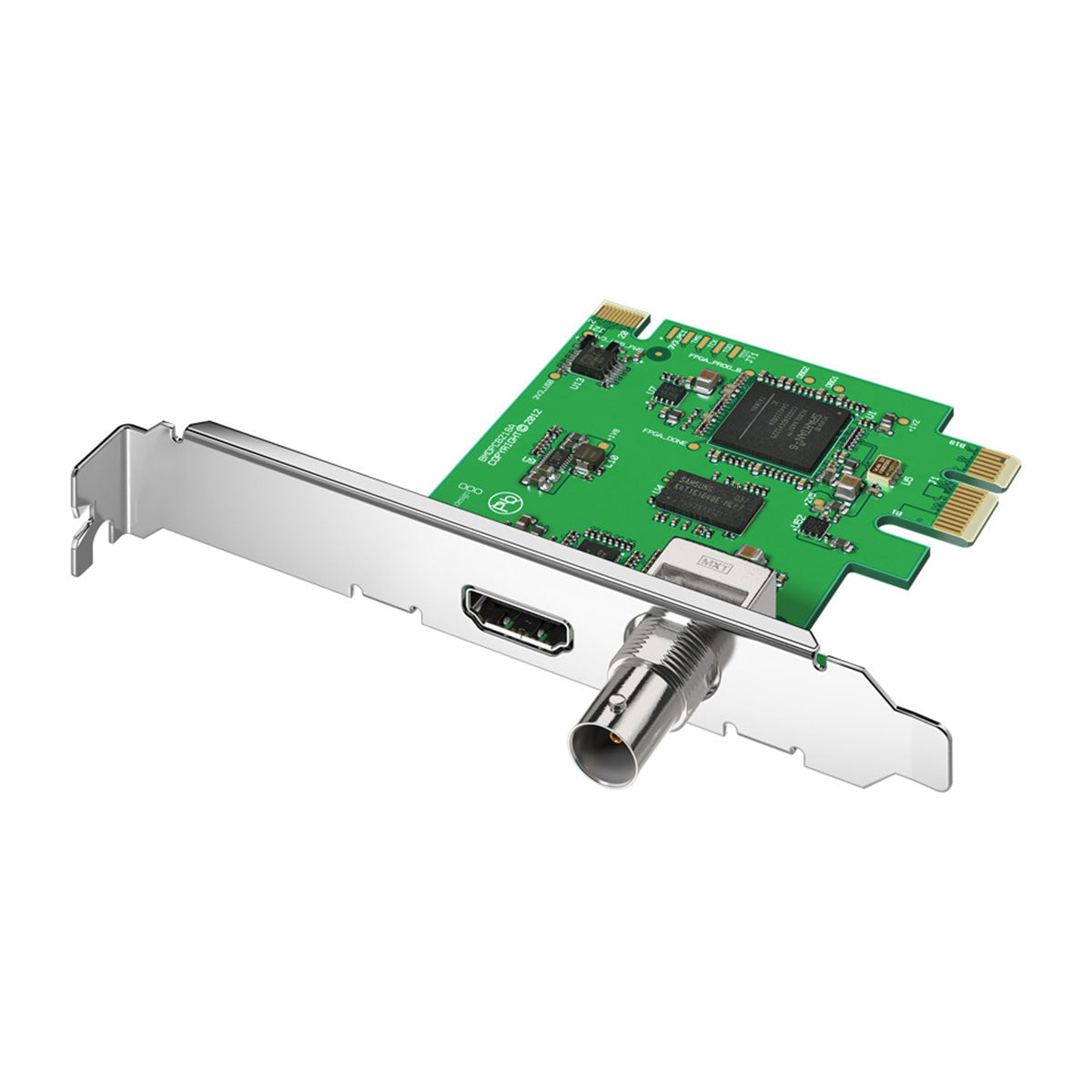

Blackmagic Design DeckLink Mini Monitor
Monitor uncompressed 10-bit video from your computer! Includes SDI and HDMI outputs for connecting to any television or monitor. DeckLink Mini Monitor auto switches between...
Vendor :Blackmagic Design
Type :Capture and Playback
Monitor uncompressed 10-bit video from your computer! Includes SDI and HDMI outputs for connecting to any television or monitor. DeckLink Mini Monitor auto switches between SD and HD so it handles all common video formats. DeckLink Mini Monitor is the perfect solution for monitoring from editing software while you edit! Includes two PCIe shields for both full height and low profile slots.
SDI Video Output
1 x 10 bit SD/HD switchable.
HDMI Video Output
1 x HDMI type A connector.
SDI Audio Output
8 channels embedded in SD and HD.
HDMI Audio Output
8 Channels embedded in SD and HD.
PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCIe slots.
Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.
Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X. Media Express, Disk Speed Test, LiveKey, Blackmagic Control Panel and Blackmagic driver on Windows 7 or Windows 8. Media Express, Blackmagic Control Panel and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS X, Windows 8 and Linux. Mac OS X systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
SD Format Support
625/25 PAL, 525/29.97 NTSC.
HD Format Support
720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60.
SMPTE 259M and 292M.
Television standard sample rate of
48 kHz and 24 bit.
REC 601, REC 709
HDMI automatically configures to connected display.
Pixel for pixel HD resolution input to connected device.
HDMI Color Precision
Multiple Rate support
SDI and HDMI are switchable between standard definitlon and high definition.
Hardware based real time.
HD Down Conversion
Software based down conversion during video playback.
Real Time Effects
Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.
Windows 7, 8.1 and 10, all 64-bit.
FCC, CE and C-Tick
5° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing
DeckLink Mini Monitor
Low profile slot bracket
SD card with software and manual
3 Year Limited Manufacturer's Warranty.
