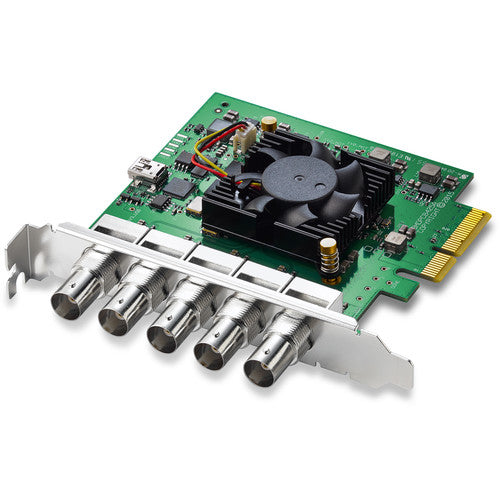

Blackmagic Design Decklink Duo 2
Tax included.
DeckLink Duo is perfect for developers who need two completely independent capture and playback streams in and out of a computer, or two channels of video in a single card. DeckLink Duo is two independent DeckLink SDI style capture and playback cards in one! There are two SDI inputs, and two SDI outputs plus a common tri-sync/black burst reference. DeckLink Duo appears as two independent SDI cards to the computer, but only uses a single PCI Express slot. DeckLink Duo is perfect for servers where there are multiple streams, or simultaneous capture and playback per system.
Connections
SDI Video Input
2 x 10 bit SD/HD independently switchable.
SDI Video Output
2 x 10 bit SD/HD independently switchable.
SDI Audio Input
8 Channels per input, embedded in SD and HD.
SDI Audio Output
8 Channels per output, embedded in SD and HD.
Sync Input
1 x common sync input. Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format.
Computer Interface
PCI Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots.
Codecs
Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.
Software
Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X?. Media Express, Disk Speed Test, LiveKey, Blackmagic Control Panel and Blackmagic driver on Windows 8?. Media Express, Blackmagic Control Panel and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation
PCI Express 4 lane, compatible with 4, 8, 16 lane PCI Express slots. Please see the full system requirements for Mac OS X and Windows 8. Mac OS X systems require a Mac Pro computer with PCI Express slots.
Software Applications
DaVinci Resolve
Fusion
Final Cut Pro X
Premiere Pro CC
Avid Media Composer
After Effects CC
Avid Pro Tools
Steinberg Cubase
Steinberg Nuendo
Photoshop CC
Video Standards
SD Format Support
625/25 PAL, 525/29.97 NTSC.
HD Format Support
720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60.
SDI Compliance
SMPTE 259M and SMPTE 292M.
SDI Metadata Support
VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188. Closed captioning.
Audio Sampling
Television standard sample rate of
48 kHz at 24 bit.
Video Sampling
4:2:2
Color Precision
10-bit
Color Space
REC 601, REC 709
Processing
Colorspace Conversion
Hardware based real time
HD Down Conversion
Built in, high quality software down converter from HD to SD on output. Down converted SD selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
HD Up Conversion
Built in, high quality software up converter from SD to 720HD or 1080HD on input. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom
Cross Conversion
Built-in, high quality software cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback
Real Time Effects
Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Physical Specifications
Operating Systems
Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.
Windows 7, 8.1 and 10, all 64-bit.
Linux
EMC Certifications
FCC, CE and C-Tick
Environmental Specifications
Operating Temperature
5° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
DeckLink Duo 2
SD card with software and manual
Warranty
3 Year Limited Manufacturer's Warranty.
Buy the Blackmagic Design DeckLink Duo from Audiosaurus today! Your online Pro Audio experts in South Africa!
www.audiosaurus.co.za
