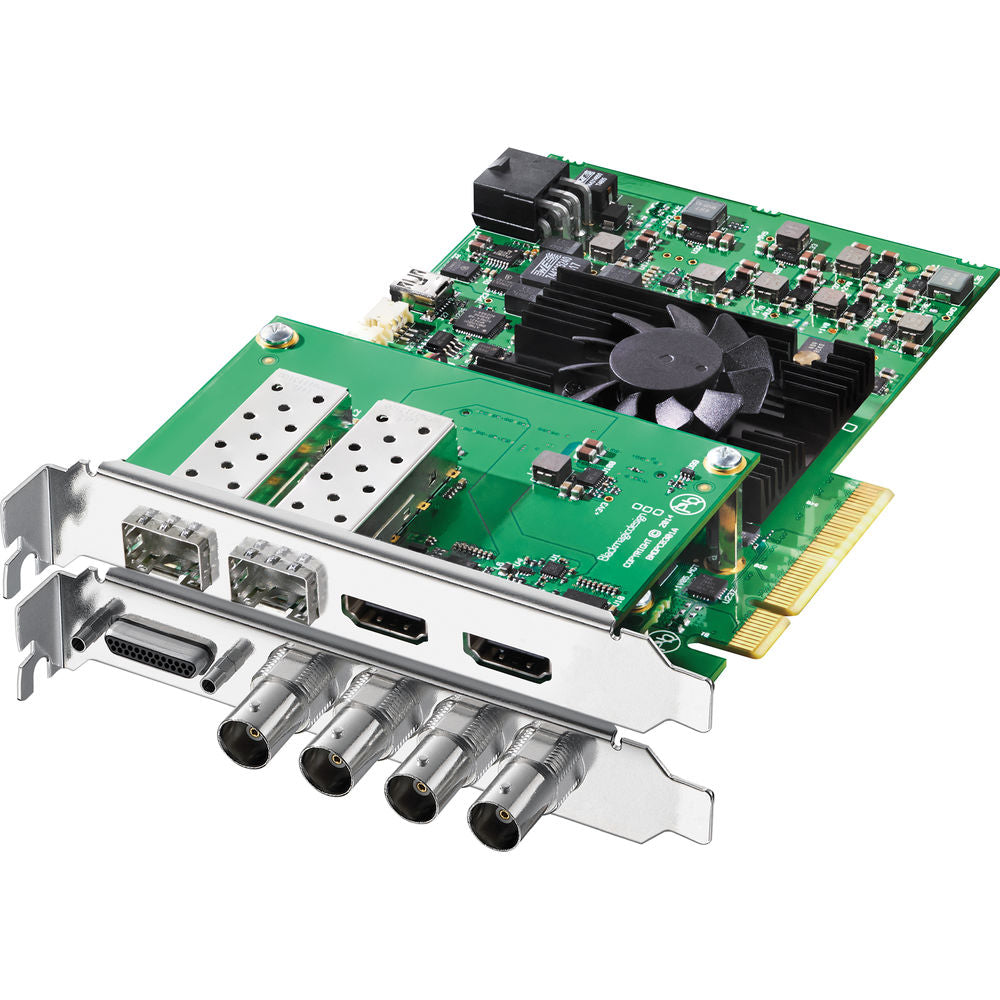

Blackmagic Design DeckLink 4K Extreme 12G
Tax included.
The ultimate digital cinema capture card featuring two full frame DCI 4K inputs and outputs via 12G-SDI! You get dual link multi rate 12G-SDI connections that work with SD, HD and Ultra HD even in Ultra HD 60p, as well as full frame DCI 4K at 4096 x 2160 resolution up to 60p! Capture 10-bit YUV or full colour bandwidth 12-bit RGB. Includes AES/EBU audio, up, down and cross conversion, plus built in 3D stereoscopic output at full bandwidth 4:4:4:4 RGB! No other capture and playback card supports more video formats and video connections!
Connections
SDI Video Input
2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable.
SDI Video Output
2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable.
Analogue Video Input
1 x Component YUV on 3 BNCs switchable to S-Video or Composite. Component supports HD and SD.
Analogue Video Output
1 x Component YUV on 3 BNCs switchable to S-Video and Composite. Component supports HD and SD.
Analogue Audio Input
2 Channels of professional balanced analogue audio via XLR connectors.
Analogue Audio Output
2 Channels of professional balanced analogue audio via XLR connectors.
AES/EBU Audio Input
2 Channels unbalanced with sample rate converter.
AES/EBU Audio Output
2 Channels unbalanced.
SDI Audio Input
16 Channels embedded in SD/HD/2K/4K.
SDI Audio Output
16 Channels embedded in SD/HD/2K/4K.
HDMI Video Input
HDMI type A connector with support for 2160p60.
HDMI Video Output
HDMI type A connector with support for 2160p60.
HDMI Audio Input
8 Channels embedded in SD/HD/4K.
HDMI Audio Output
8 Channels embedded in SD/HD/4K.
Sync Input
Black burst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format.
Device Control
Sony? compatible RS422 deck control port. Serial ports TxRx direction reversible under software control.
Computer Interface
PCI Express 8 lane Gen 2, compatible with 8 and 16 lane PCIe with HDMI or SDI mezzanine card.
Codecs
Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Software
Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video and Blackmagic driver on Mac OS X. Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video and Blackmagic driver on Windows 7 and Windows 8. Media Express, Blackmagic Desktop Video and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation
PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots on Mac OS X, Windows and Linux. Mac OS X systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Software Applications
DaVinci Resolve
Fusion
Final Cut Pro X
Premiere Pro CC
Avid Media Composer
After Effects CC
Avid Pro Tools
Steinberg Cubase
Autodesk Smoke
Photoshop CC
Nuke, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.
Video Standards
SD Format Support
525i29.97 NTSC, 625i25 PAL.
HD Format Support
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Format Support
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Format Support
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SDI Compliance
SMPTE 292M, SMPTE 259M,SMPTE 296M, SMPTE 372M,SMPTE 425M level A, SMPTE 425Mlevel B, SMPTE 435, ITU-R BT.656 andITU-R BT.601.
SDI Metadata Support
VANC capture and playback using up to 3 lines of video in file. HD RP188. Closed captioning.
Audio Sampling
Television standard sample rate of 48 kHz at 24-bit.
SDI Video Sampling
4:2:2, 4:4:4 and 4:4:4:4.
SDI Color Precision
8, 10, 12-bit RGB 4:4:4 in all modes up to UHD 30p, and 8, 10-bit YUV 4:2:2 in all modes
Colour Space
REC 601, REC 709
HDMI Configuration
HDMI 2.0 supports Deep Color, HDR and REC 2020, and automatically configures to connected display.
Multiple Rate Support
HDMI and SDI video connections are switchable between SD/HD/2K and 4K. Component analogue video connections are switchable between SD and HD.
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Processing
Ultra HD Down Conversion
Built in, high quality hardware down converter outputs Ultra HD to HD or HD to SD downconverted signal on SDI B and SD on Composite and S-Video. Switch analogue video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and centre cut 4:3 styles.
HD Up Conversion
Built in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom.
HD Cross Conversion
Built-in, high quality hardware cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback.
Real Time Effects
DaVinci Resolve, Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Colourspace Conversion
Hardware based real time on output.
3D Processing
Dual stream and frame packed capture and playback.
Operating Systems
Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.
Windows 7, 8.1 and 10, all 64-bit.
Linux
EMC Certifications
FCC, CE and C-Tick
Environmental Specifications
Operating Temperature
5° to 40° C (41° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
Physical Specifications
What's Included
DeckLink 4K Extreme 12G
HDMI mezzanine card
SD card with software and manual
Breakout cable for analogue and RS-422 control.
External power cable
Warranty
3 Year Limited Manufacturer's Warranty.
