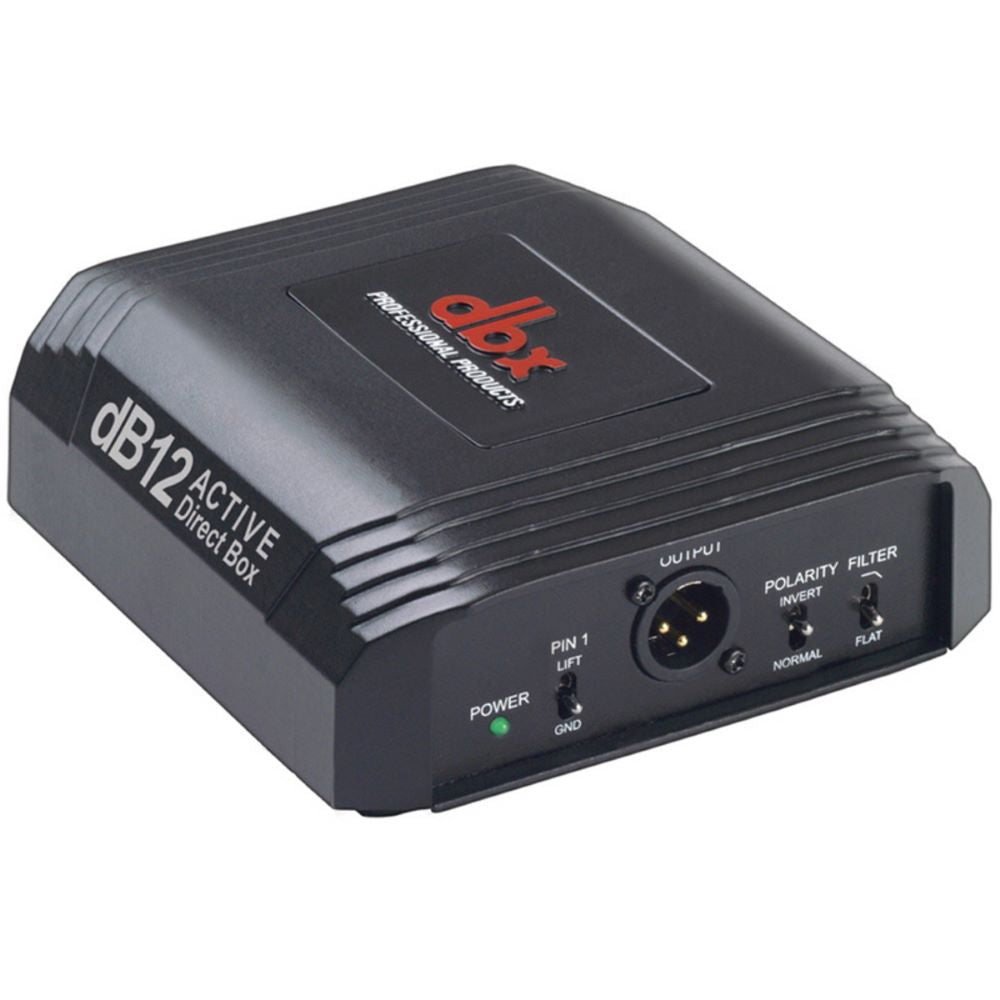

dbx dB12 Active Direct Box

Bullet-proof Performance

The dbx dB12 is a high-performance, active direct box housed in an industrial strength enclosure and includes custom dbx mu-metal-shielded audio transformers, high-quality Neutrik connectors, and low-noise circuitry.

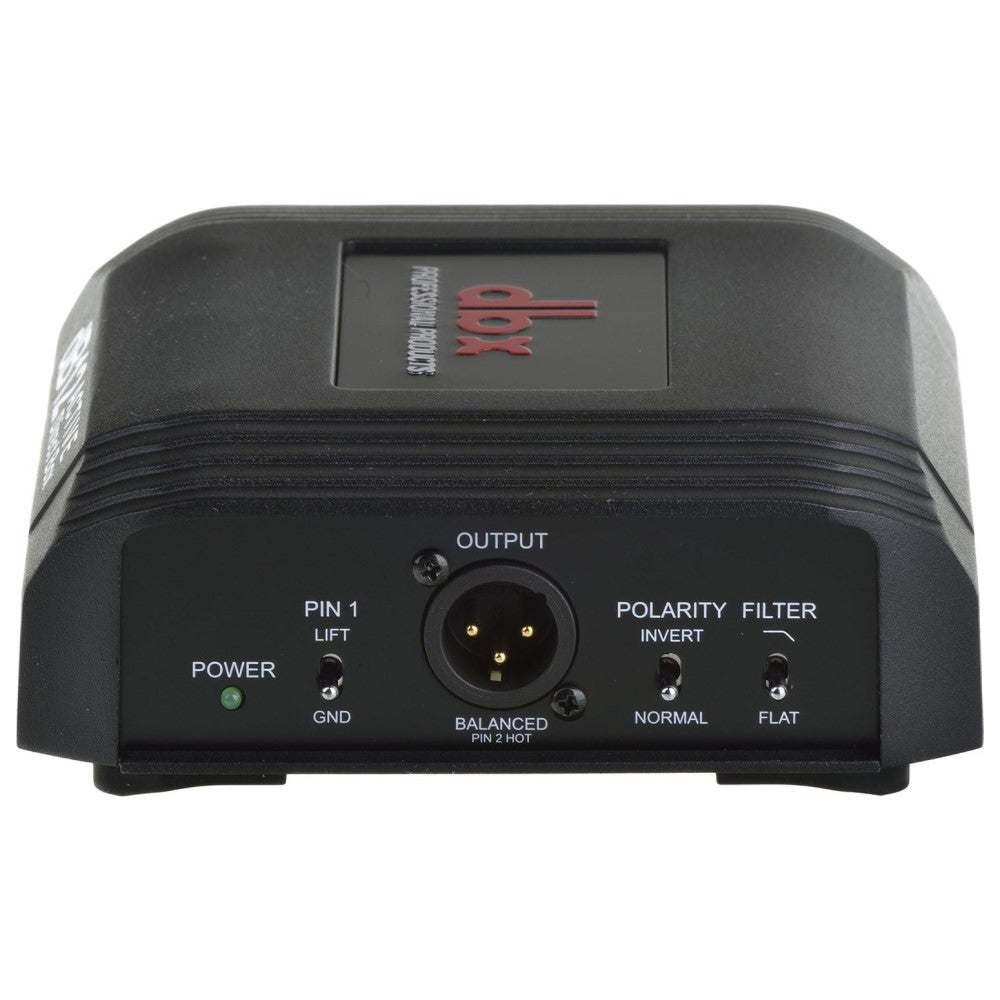

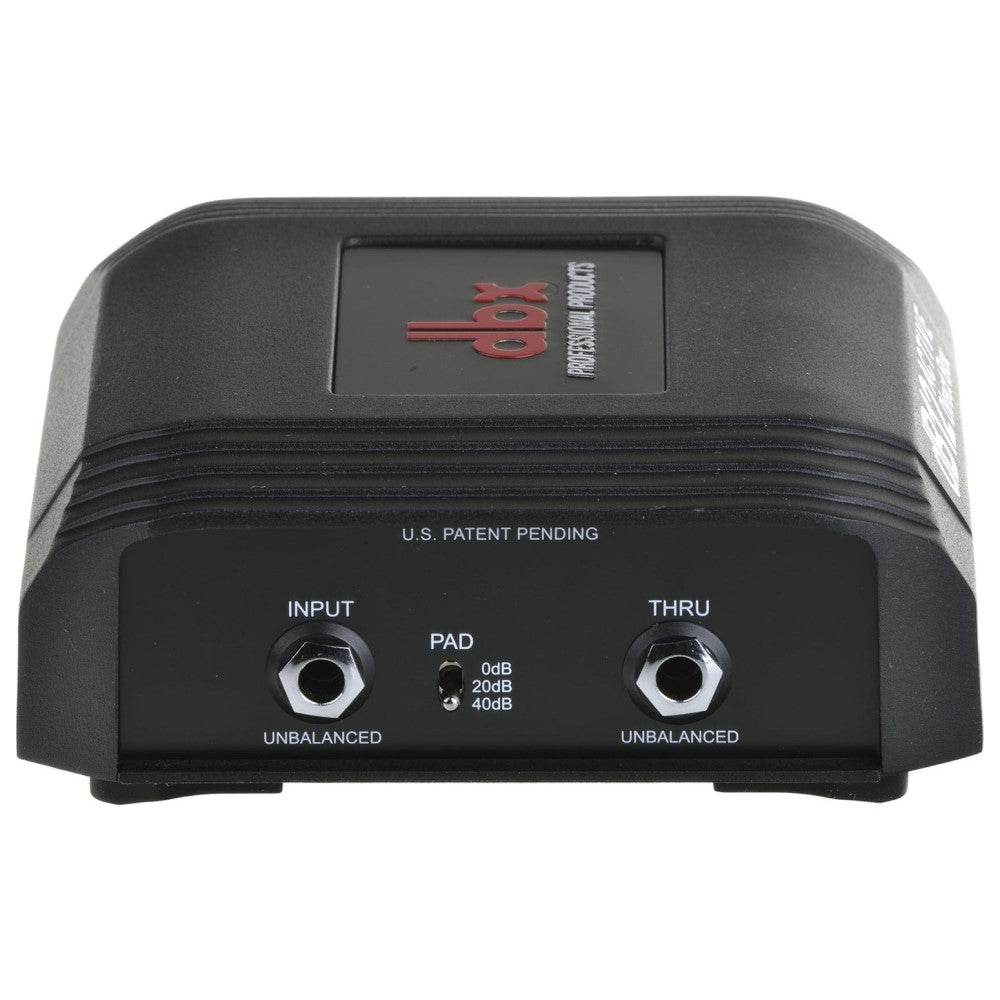

The box includes a pad switch to accommodate instrument, line and speaker level signals. A polarity invert switch can alter the phase relationship between the direct and mic sound, while a ground lift switch helps tame any ground hum or buzz.

While providing a clean signal free from interference, the solid, stable footprint of the enclosure prevents the box from being dragged around the stage, and the unique contoured underside allows the secure stacking of multiple units.

Main features:

Tech Specs:

• Type: Active
• Channels: 1
• Inputs: 1 x 1/4" Jack
• Outputs: 1 x XLR, 1 x 1/4" Jack
• Ground Lift: Yes
• Max Input: +20dBu (0dB pad); +40dBu (20dB pad); +60dBu (40dB pad)
• Output Noise: <-105dB unweighted
• Frequency response: 20Hz to 20kHz, +/-2.5dB
• Phantom Power: +48 volts DC
• Power Source: 9V DC power supply (included)
• Dimensions: 148 x 138 x 56 mm
• Weight: 0.65 kg
• Warranty: Limited 4-Year Manufacturer Warranty
• Discover more dbx Pro Direct Boxes [dB12]: https://dbxpro.com/en/products/db12
•
