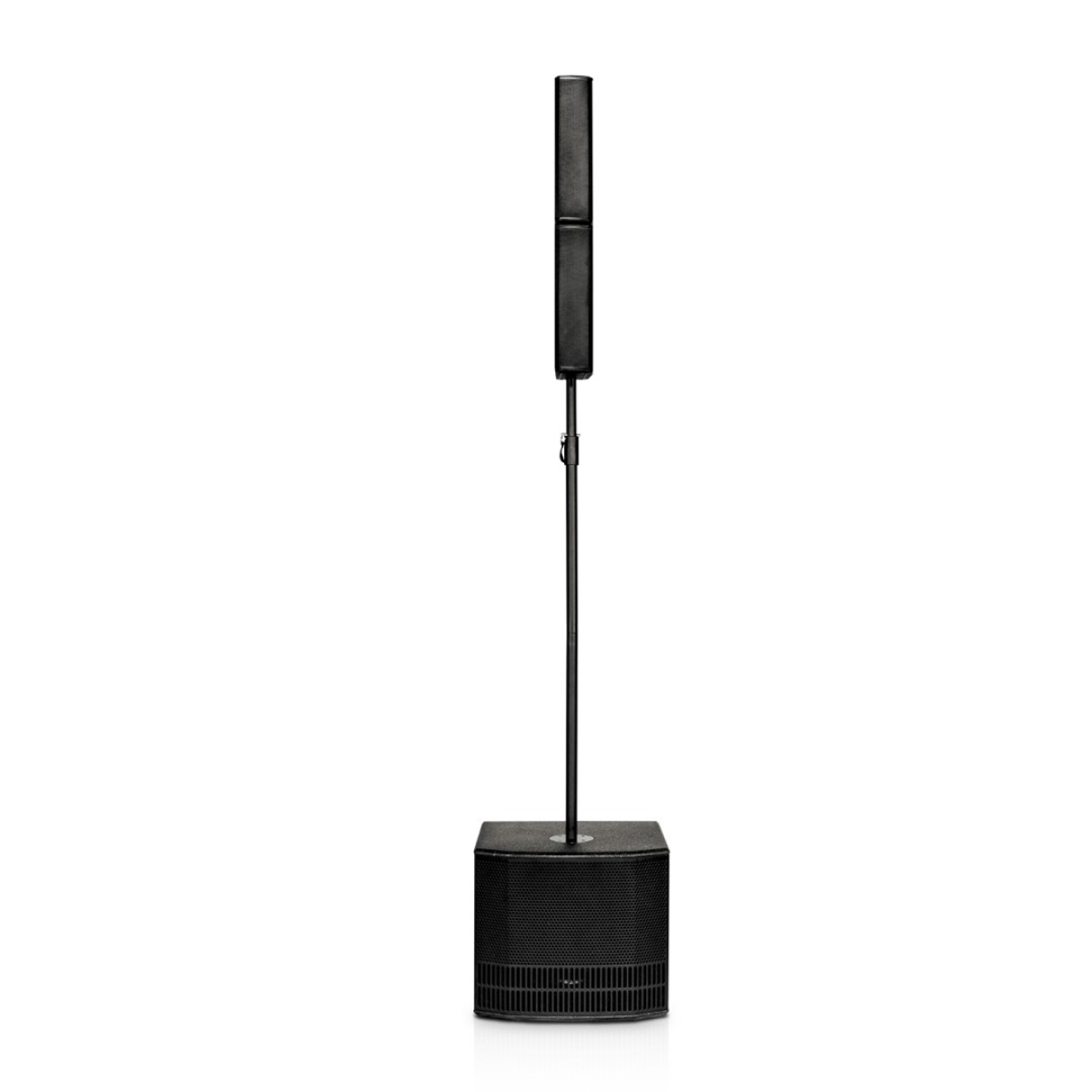

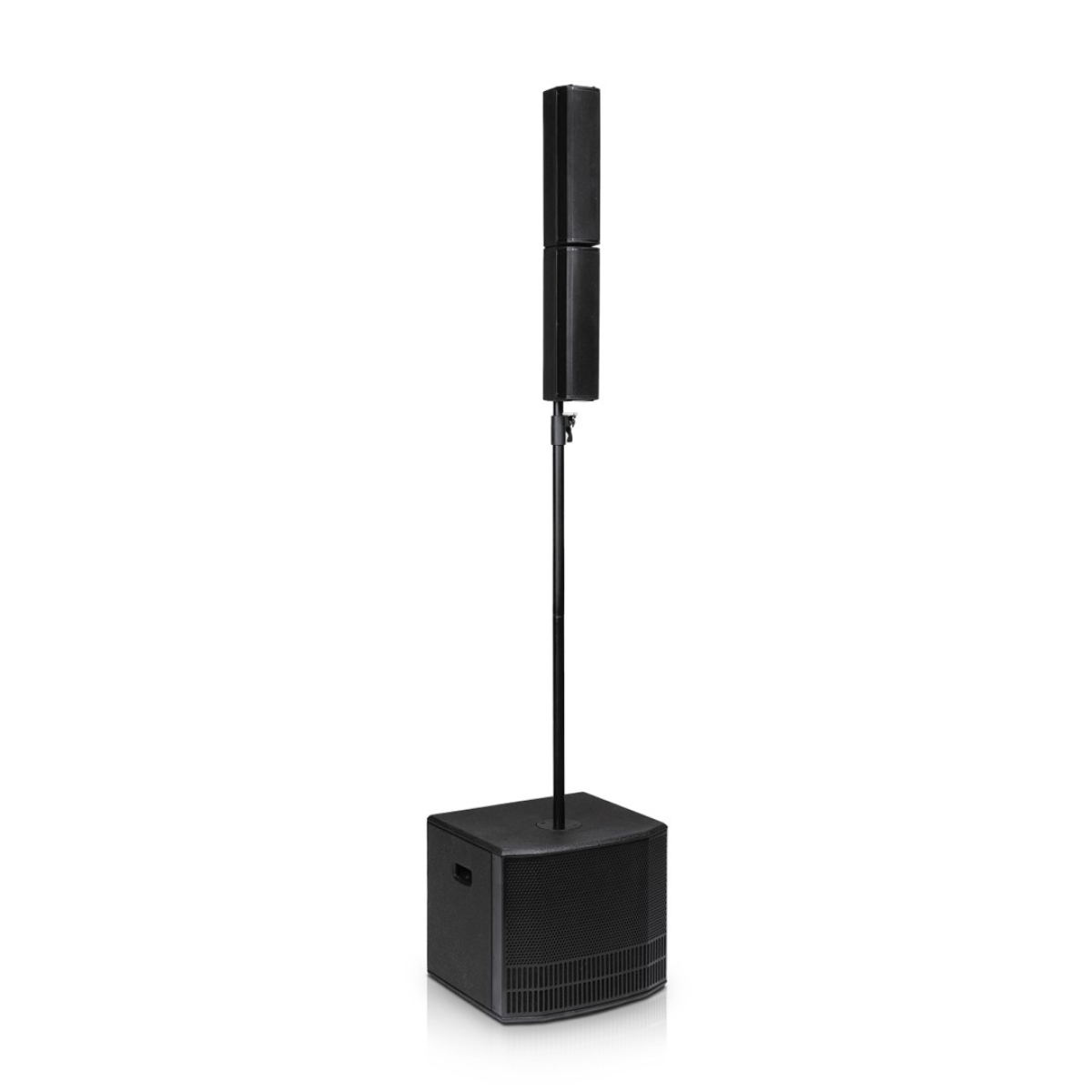

dB Technologies ES 802 Column PA System with Subwoofer

Elite Performance, Effortless Portability

The dB Technologies ES 802 is a professional-grade, bi-amped mono column PA system designed for touring musicians, DJs, and corporate presenters who refuse to compromise on audio quality. Comprising a punchy 12" active subwoofer and twin passive tops equipped with eight 3” neodymium drivers, this system delivers an immersive, rich sound that fills venues with 1200W of peak power. Whether you are performing in a club, hosting an outdoor event, or setting up for a high-stakes presentation, the ES 802 provides the precision, scale, and "plug-and-play" simplicity required for high-impact live audio.

Immersive Coverage with Array Precision
Drawing on experience from the legendary DVA Series, the ES 802 utilizes a Logarithmic Curved Column Array that mechanically aligns the top components to maximise vertical beam coverage. This is paired with a specialised double-ringed phase plug that significantly enhances horizontal dispersion. The result is a crystal-clear, coherent audio experience that ensures every member of your audience—whether seated or standing—enjoys identical sound quality.

Studio-Grade DSP Control
Fine-tuning your sound for any venue is instantaneous thanks to the integrated 24-bit/48kHz DSP controller. The system offers eight factory EQ presets—including dedicated modes for Vocal, Club, and Antifeedback—allowing you to adapt to different acoustics or performance styles with a single encoder. This intelligent processing manages the crossover, frequency response, and dual active limiters, providing professional-level protection and audio transparency at any volume.

Road-Ready Durability and Power

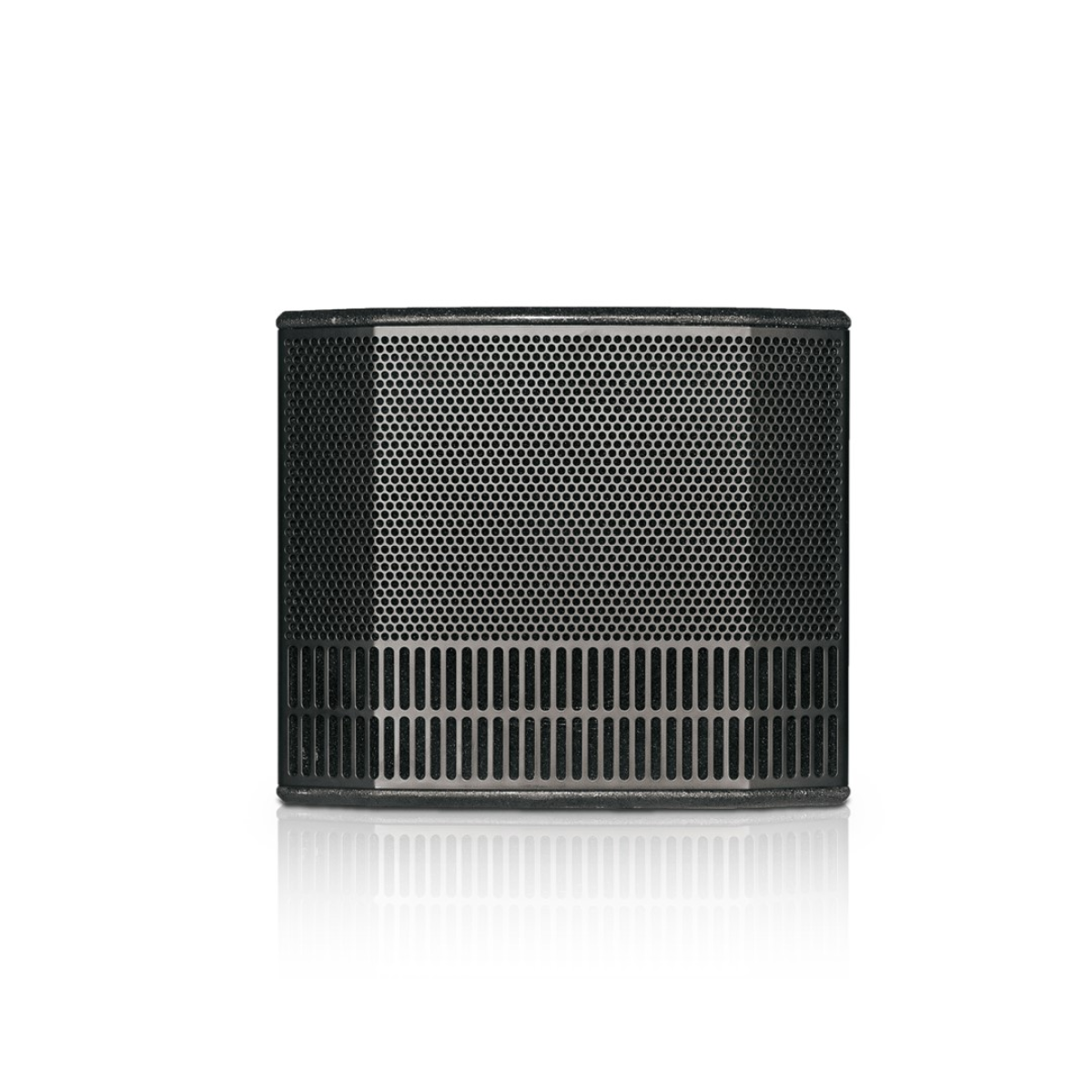

The ES 802 is built to withstand the rigours of professional use, featuring a subwoofer housed in 15mm black-painted birch plywood and tops made from high-grade polypropylene. Powered by a high-efficiency Digipro® G3 Class-D amplifier, the system provides massive headroom and 124 dB SPL while remaining remarkably lightweight. With its scratch-resistant coating and recessed handles, it is the ultimate "workhorse" for mobile performers who need a system that is as easy to transport as it is powerful.

Main features:

• A portable column PA system with size-defying performance
• Comprises 2 passive full-range satellite loudspeakers and a powered subwoofer
• Brawny 1,200W Class D Digipro G3 amplifier achieves a healthy 124dB SPL
• Each satellite is equipped with 8 x 3-in. neodymium mid-woofer drivers
• Logarithmic Curved Column Array technology yields asymmetrical vertical coverage
• Unique double-ringed phase plugs exhibit ultra-wide horizontal coverage
• Generous 37Hz–15kHz frequency response
• 8 EQ Modes — Flat, Bass Boost, Bass Reduction, Playback, Club, Vocal, Monitor, and Anti-feedback — accommodate an endless range of applications
• Flexible combo input
• Combine 2 systems for extended coverage
• Sturdy plywood subwoofer enclosure with a scratch-resistant coating

Tech Specs:

• System Type: Bi-amped Mono Column PA System

• Peak Power: 1200 W

• RMS Power: 600 W

• Max SPL: 124 dB

• Frequency Response: 37 Hz – 15,000 Hz (-10dB)

• LF Driver: 12” Active Subwoofer

• HF Drivers: 8x 3” Neodymium (4 per top)

• Amplifier Class: Digipro® G3, Class-D

• DSP Processor: 24-bit / 48 kHz with 8 EQ Presets

• Input Connectivity: 1x Combo (XLR/Jack), 1x RCA Stereo

• Output Connectivity: 1x XLR Balanced Link Output

• Directivity: 95° x 65°

• Crossover Frequency: 206 Hz

• Subwoofer Material: 15mm Black Painted Birch Plywood

• Subwoofer Dimensions: 465 x 400 x 430 mm

• Top Dimensions: 95 x 360 x 137 mm
• Weight: 16.4 Kg (Subwoofer); 1.9 Kg (Per top unit)
