D'Addario Mic Mute Infrared Sensor System

Performance-First Precision: Total Control, Hands-Free

The D'Addario Mic Mute Infrared Sensor is a smart, inline solution for stage bleed and feedback. By detecting your proximity, it automatically mutes your signal the moment you step away and restores it as you return. It is an essential workflow upgrade for singing drummers, touring vocalists, and presenters seeking a cleaner IEM mix and a professional front-of-house sound.

Smart Proximity Detection
Using advanced infrared technology, the device creates an adjustable active zone up to 60cm in front of the capsule. This allows for a "switchless" talkback or vocal setup where the microphone only activates when you are ready to perform, effectively silencing loud stage elements like drums or guitar amps that would otherwise bleed into the signal.

Seamless Inline Integration

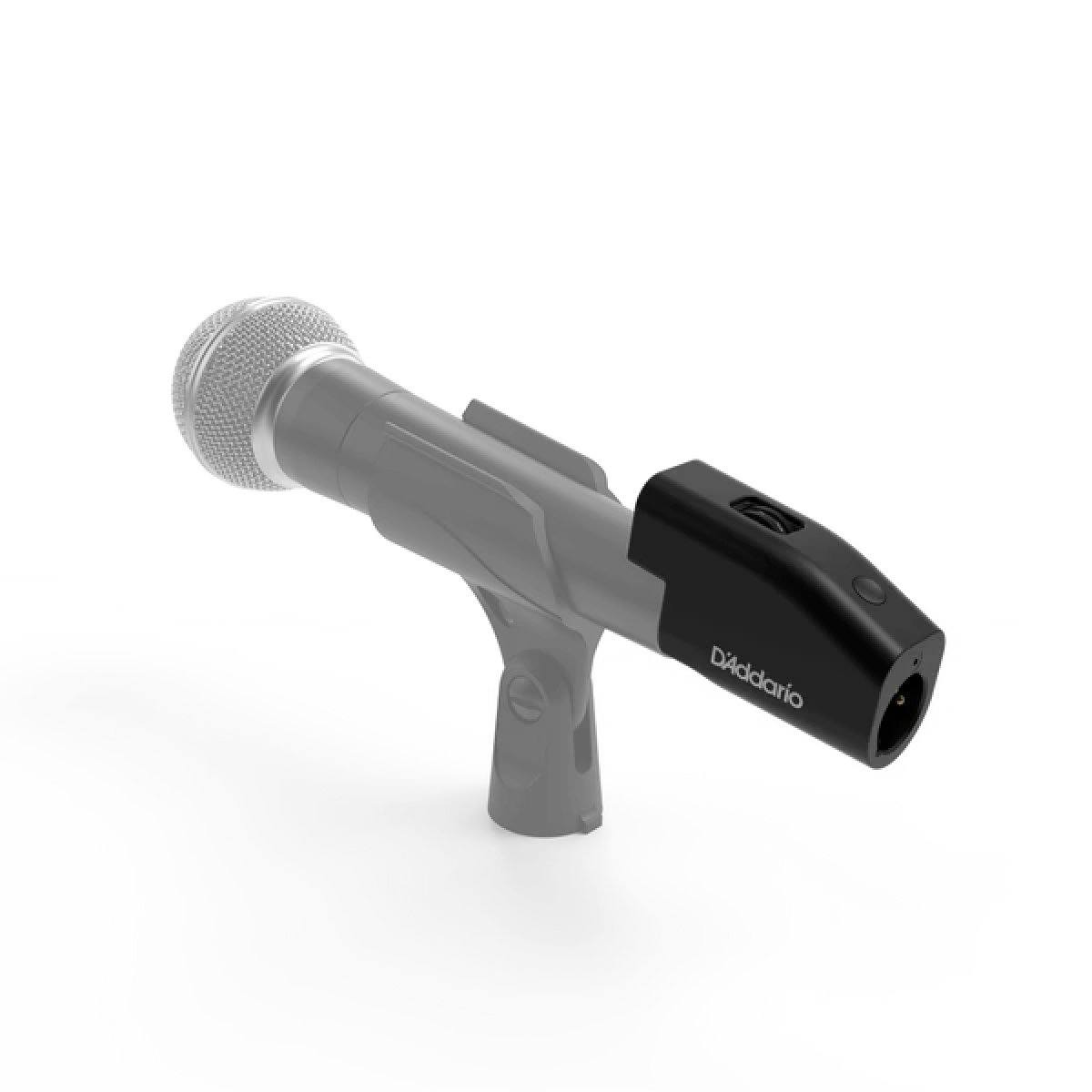

The Mic Mute is designed to be completely unobtrusive, connecting directly to your microphone's XLR output without interfering with standard clips or stands. It draws power directly from 48V phantom power, removing the need for batteries or external power supplies, ensuring reliable performance throughout long sets.

Intuitive On-Stage Adjustability

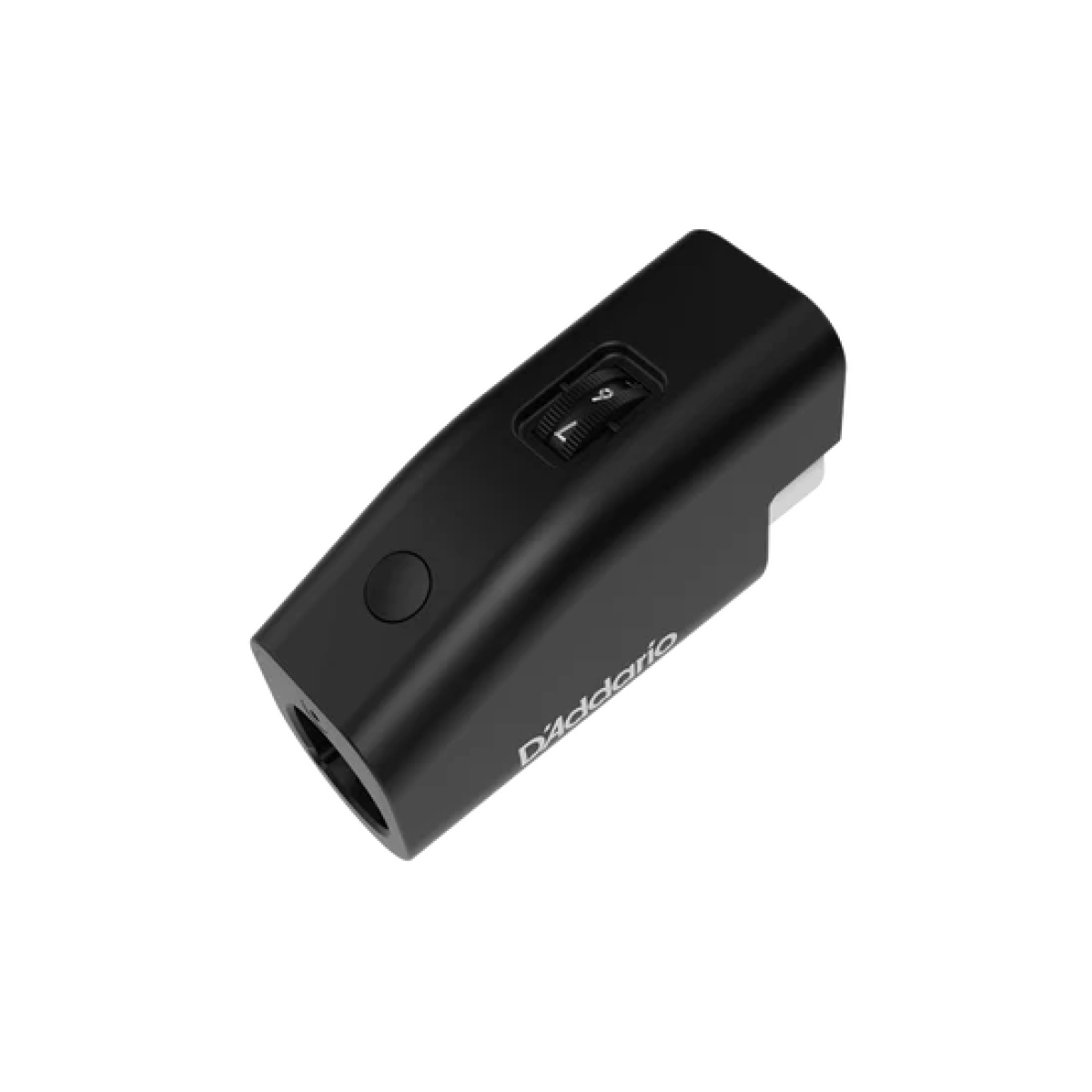

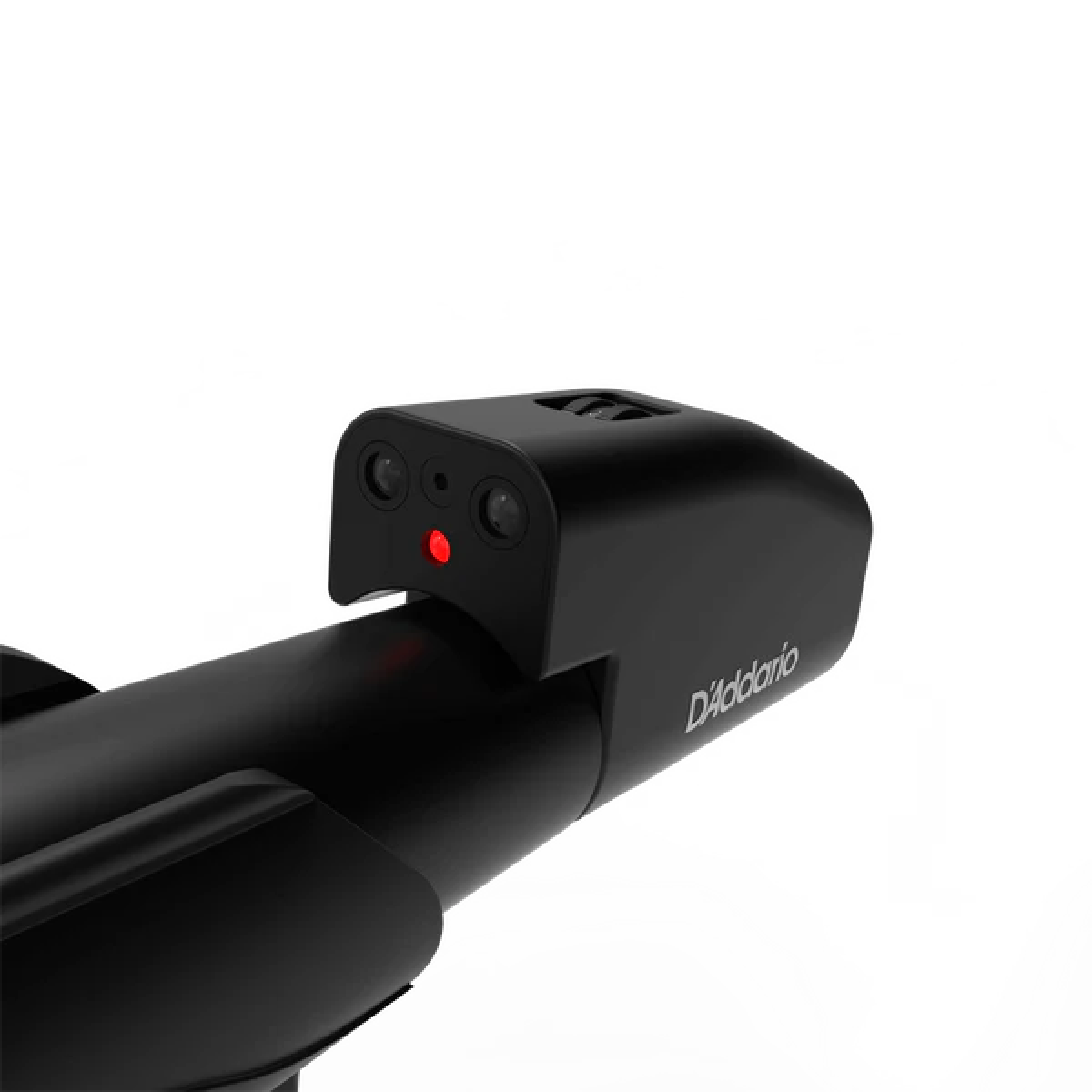

This sensor features a numbered thumbwheel for precise distance calibration on the fly, allowing you to set the activation range from 0 to 60cm. A front-facing red LED provides immediate visual feedback on the microphone's status, while a dedicated bypass button allows you to override the automation for standard operation whenever required.

Main features:

• Automatic microphone muting based on user presence
• Adjustable detection range from 0 to 60cm
• Numbered thumbwheel for precise sensitivity settings
• Fully phantom powered (48V) with no batteries required
• Inline XLR design that integrates with existing cables and stands
• Visual status feedback via front-facing red LED
• Dedicated bypass button to keep the microphone active at all times
• Supplied with a storage bag for safe transport

Package Includes

1x D'Addario Mic Mute Infrared Sensor
1x Storage Bag
1x User Manual

Tech Specs:

• Type / Product: Inline Infrared Proximity Microphone Mute

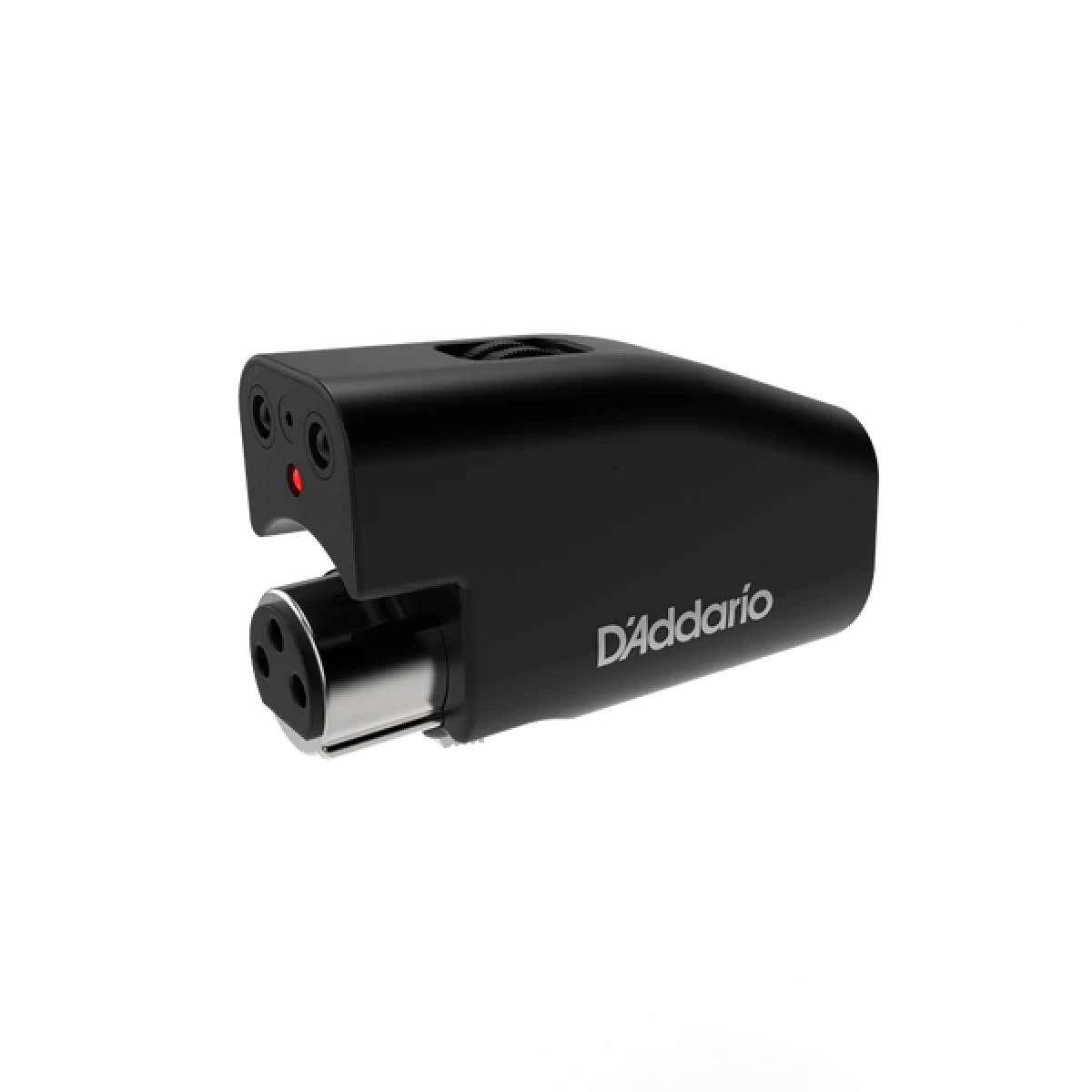

• Input/Output Connectors: 3-pin XLR
• User Controls: Sensitivity Thumbwheel, Bypass Button
• Status Indicator: Red LED (Unmuted status)
• Sensor Technology: Dual Infrared Proximity Sensors
• Detection Range: Up to 60 cm (Adjustable)
• Power Requirement: 48V Phantom Power
• Material: Durable Metal Casing and Rubber
• Weight: Approx. 90 grams
• Dimensions: Approx. 17.5 x 9.3 x 3.4 cm
