Cranborne Audio Camden EC1 Microphone Preamp, Singal Processor & Headphone Mixer

The Ultimate Performer’s Front End

The Camden EC1 is a single-channel award-winning Camden preamp, Mojo analogue saturation processor, and reference-quality headphone amplifier housed in a desktop-friendly half-rack chassis. It delivers professional low-noise and low-distortion performance with frequency and phase linearity across all gain settings, providing a neutral canvas for recording or vintage tonal character via the Mojo circuit.

Pristine Performance with Vintage Mojo
The Camden EC1 achieves near-theoretical limits for noise and distortion. When harmonic character is required, the Mojo analogue saturation circuit provides two distinct styles: Thump for transformer-style low-end weight, and Cream for tube-style smoothness. This saturation is completely variable, allowing you to dial in the exact amount of character needed for any source.

Zero-Latency Monitoring and Headphone Mixing
Designed for musicians and voice-over artists, the EC1 features a high-power headphone amplifier capable of delivering 1.2W per ear. The discrete line mixer allows for zero-latency monitoring of the preamp signal mixed with external DAW playback via the rear-panel Aux Input jacks.

Connectivity and C.A.S.T. Integration
The EC1 includes a dedicated Link output for splitting instrument DIs to amplifiers and a C.A.S.T. Out port. This enables the transmission of balanced analogue audio over shielded Cat 5 Ethernet cables directly to Cranborne 500R8/500ADAT interfaces or N22 breakout boxes.

Main features:

• Discrete, ultra-clean Mic/Line/Hi-Z preamp with acclaimed Camden topology
• Bypassable Mojo saturation circuit with Thump and Cream analog saturation types
• High-power, reference-grade headphone amplifier with two output jacks
• Balanced XLR output and impedance-balanced 1/4-inch output
• Dedicated 1/4-inch Link output for splitting instrument DIs to amps/effects
• External Line Input for connecting mono playback sources into the monitor path
• Selectable 48V phantom power and 80Hz High Pass Filter
• C.A.S.T. Out port for shielded Cat 5 audio routing
• External high-current 24V power supply with latching connector
• Designed and engineered in the UK

Tech Specs:

• Preamp Type: Solid State
• Phantom Power: Yes
• Pads: -10dB
• Polarity Switch: Yes
• EQ: 80Hz High Pass Filter, Mojo Thump/Cream Saturation

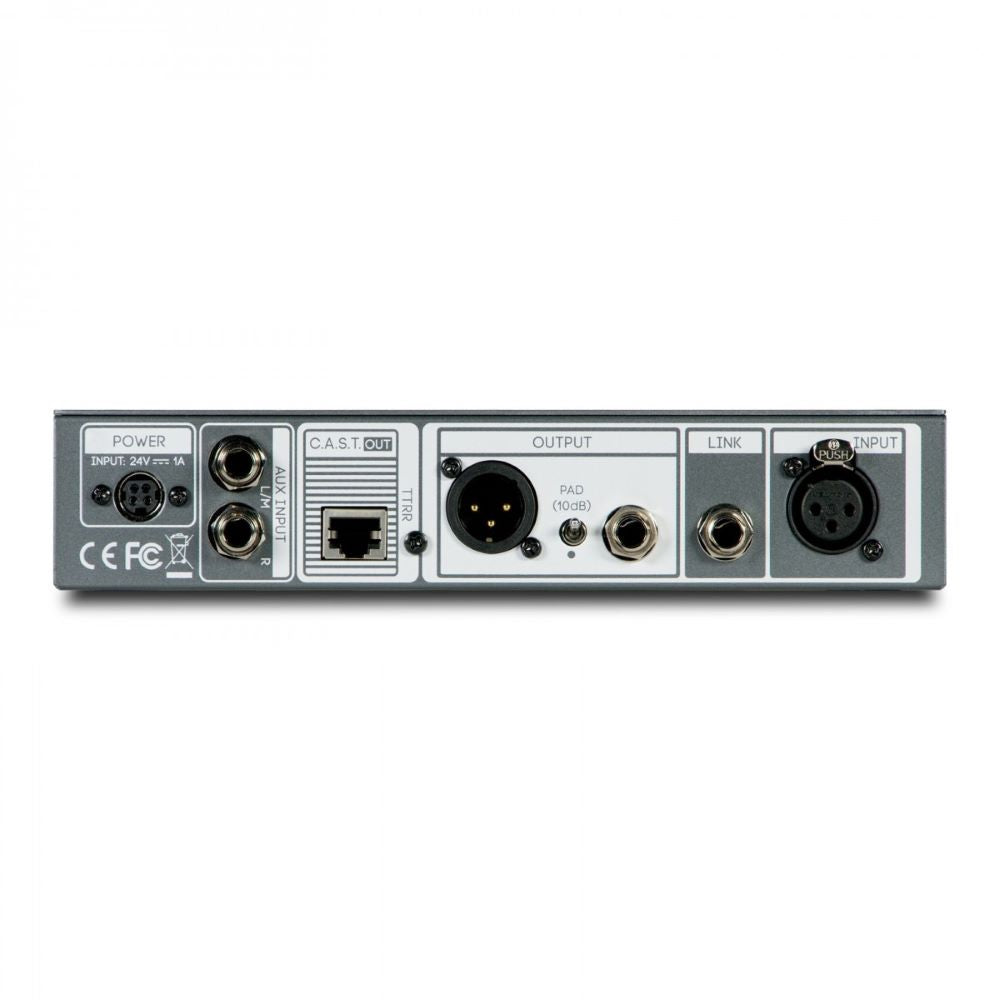

• Analog Inputs: 1 x XLR, 4 x 1/4" (Line/Hi-Z, External Line, Stereo Aux)
• Analog Outputs: 1 x XLR, 2 x 1/4", 1 x Ethernet (C.A.S.T. Out)
• Headphones: 1 x 1/4"
• Frequency Response: 1Hz-1000kHz (±0.7dB)
• Dimensions (WxHxD): 219.9 x 44.5 x 239.8 mm
• Weight: 1.8 Kg
• Discover Cranborne Audio [Camden EC1]: https://www.cranborne-audio.com/camdenec1
