Merging Technologies HAPI MkII Converter (Base Unit)

Merging Technologies HAPI MkII Converter (Base Unit)

The Merging Technologies HAPI MkII is a flexible and transparent 24-bit/192kHz audio interface using the same RAVENNA / AES67 connectivity as the Horus. The Merging Technologies HAPI...

Vendor :MERGING TECHNOLOGIES

Type :Audio interface

R41,999.00

Add to wishlist

The Merging Technologies HAPI MkII is a flexible and transparent 24-bit/192kHz audio interface using the same RAVENNA / AES67 connectivity as the Horus.

The Merging Technologies HAPI MkII is compact and ideally suited for smaller systems and can be used as a primary interface or as part of a larger Horus system providing control room I/O connectivity. The diminutive audio interface is capable of holding both standard and premium analogue cards used in Horus ensuring that users get the exact same sound quality as the highly respected Horus. An optional MADI card is also available for additional digital I/O.

HAPI MkII uses RAVENNA connections which is compatible with AES67 protocols and offers flexible connectivity of every single I/O used across standard networks. Designed to fit in places that are hard to reach, HAPI comes with a web-browser control interface allowing the user to access all the parameters of each HAPI unit via any web-enabled device on a network. HAPI comes with ASIO and Core Audio drivers to work with both Mac and PC audio workstations using the Ethernet socket. Furthermore, HAPI MkII features a second ethernet port connect to another interface and computer without an external switch.

HAPI MkII now includes the ZMAN DSP processor first introduced in the Anubis offering noticeable performance upgrades. Combined with the latest ADA8S and ADA8P and their improved headroom, the HAPI mkII can offer twice the amount of analogue I/O to 16-in/16-out in DSD/DXD format.

Designed to offer the ultimate in flexibility, HAPI can be used with a choice of AC or DC power supplies including battery packs, wall warts to the conventional built-in PSU.

2 Option slots that fit any combo of:

  • 8 Channel Mic/Line Input Card (AD8D / AD8DP)
    • AD8D sample rates from 44.1 -> 192kHz
    • AD8DP sample rates from 44.1 ->384 kHz, DXD/DSD64/128/256
  • 8 Channel Mic/Line Input Card (AKD8D / AKD8DP)
    • AKD8D sample rates from 44.1 -> 192kHz
    • AKD8DP sample rates from 44.1 ->384 kHz, DXD/DSD64/128/256
  • 8 Channel Line Out Card (DA8/DA8P)
    • DA8 Sample rates from 44.1 -> 192kHz
    • DA8P sample rates from 44.1 ->384 kHz, DXD/DSD64/128/256
  • 8 Channel Mic/Line Input & 8 Channel Line Out Card (ADA8)
    • Sample rates from 44.1 -> 192kHz
  • 64 Channels of Pro Tools HD™ connectivity in each card (PT64)
    • Sample rates from 44.1 -> 192kHz
  • The left slot may be fitted with 64 I/O MADI coaxial/optical module (MADM/MADS)



Main Features:

  • Small format Networked Audio Interface
  • Able to hold both the standard and premium analogue cards from the Horus
  • flexible connectivity of every single input and output across standard networks with RAVENNA (AES67 Compatible)
  •  Choice of AC or DC power supplies
  • Completely Controlled over LAN with web-browser based control interface

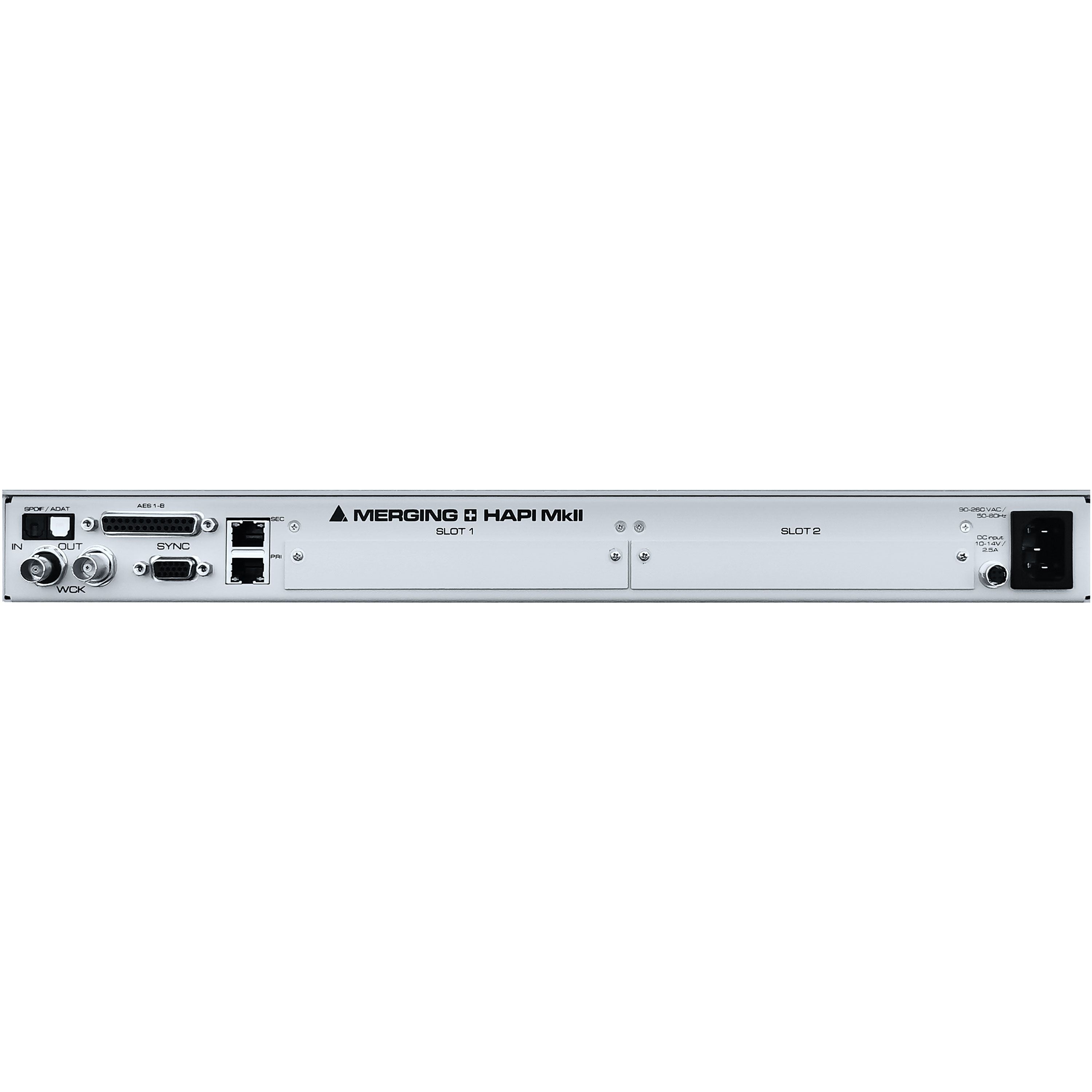

  • 8 AES/EBU I/O (on DSub 25)
  • 8 ADAT or 2 SPDIF I/O (on TOSLINK)
  • RAVENNA - AES67 I/O (on RJ45)
  • SYNC - LTC/MTC/VideoRef/Wck (requires CON-D15-VTC cable)
  • 2 slots for AD8D/AD8P, DA8/DA8P and MADI option cards
  • AC or DC power connections
  • Detachable rack ears for placement in a standard rackmount.
  •

    Tech Specs:

    Digital I/O

    • 8 AES/EBU I/O (D-SUB)
    • 8 ADAT / 2 SPDIF (Switching)
    • RAVENNA / AES67 (RJ45)
    • Word Clock I/O

    Synchronization I/O

    • LTC
    • MIDI
    • Video Reference

    Sample Rate support

    • 44.1 – 384 kHz PCM
    • DXD and DSD64/128/256

    User Interface

    • Remote control over LAN (CAT5E/CAT6)
    • Direct access on unit with rotary control

    Redundant Power Options:

    • Optional DC power input to be used as a redundant or alternate power source
