Blackmagic Design ATEM SDI Pro ISO Video Switcher

Super Portable with Advanced features

The New ATEM SDI Pro ISO is the complete solution to fast and easy live production switchers. Designed for broadcasters and pro podcasters who need extreme portability the ATEM SDI Pro includes 4 3G-SDI inputs with standards conversion, USB webcam output, 2 SDI outputs, Fairlight audio mixer with EQ and dynamics, DVE for picture-in-picture effects, transitions, green screen chroma keyer, 20 frame media library for titles and free ATEM Software Control.

Connect up to 4 Broadcast Quality Cameras
With 4 Video Inputs, the ATEM SDI Pro ISO lets you connect multiple cameras for different and interesting angles of the performance. You can use multiple cameras on location and live stream directly to YouTube or create a broadcast quality link back to a studio with ATEM Streaming Bridge. All video sources will sync to the mixer, even if their video standard is different. So setting up on set is fast and easy. An extra feature of the STEM SDI Pro is the built-in hardware streaming engine for live streaming via their ethernet connections. This means you can live stream to YouTube, Facebook and Twitch in better quality, without dropped frames and with simpler settings.

Monitor Sources and Multiview Button
The ATEM SDI Pro includes a professional multiview that lets you see all video inputs, preview and programs on a single SDI monitor. Simply select M/V button on the front panel to select the multiview. Each camera view includes tally indicators so you know when each source is on-air, and each view also has custom labels and audio meters. Plus the ATEM SDI Extreme models allow you to select up to 16 custom views. Multiview even includes status for recording, streaming and the audio mixer.

Live Production Switcher Control Software
ATEM SDI Pro can be operated from the front panel, or you can control it using the included free ATEM Software Control for Mac or Windows. ATEM Software Control gives you even more control and creative options. You can switch video sources live, load the media pool with graphics, use transitions and keys, change switcher settings and mix audio. For larger live productions, you can even run multiple copies of the software so that more than one person can work on the show at the same time!

Edit Live Separate ISO Recordings
The ATEM SDI Pro ISO and Extreme ISO models allow you to edit your live event as they can record multiple video streams, including clean feeds of all inputs and program, all at the same time. Media pool images used are also saved with the video files. The video files include metadata tags such as synced timecodes and camera numbers. Imagine re-editing your show with new colour grades, effects and graphics

The new ATEM SDI Broadcast Quality Switchers provide you the creative freedom of multi-camera live production in any setting - interviews, advertorials, theatre production, music performances, sports and more! Plus, connect 5G/4G Phones for Mobile Data when on location. The ATEM Pro ISO supports Apple & Android phones to use mobile data via a USB port. Phone tethering works with the latest high-speed 5G/4G phones making the ATEM SDI Pro the perfect mobile production solution.

Main features:

• 4-Channel Live Stream 3G-SDI Switcher
• Program and 4 x Input ISO Recording
• Generates DaVinci Resolve Project
• Live Tally, Stream, and Record Status
• Record Button, Channel Preview Multiview
• 2-Channel Digital Audio Mixer per Source
• 3G-SDI Output, Ethernet ATEM Control
• Media Player, Computer Input Support
• Upstream and Downstream Keyers
• DVE Transition, Chroma/Luma Keyers
• USB Type-C Streaming/Webcam Output
• 12 Months Limited Warranty

Tech Specs:

• Type: Video Switcher
• Channels: 4
• Video Inputs: 4 x SDI (3G), 10-bit HD
• Video Outputs: 2 x SDI
• Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Direct Streaming: Real Time Messaging Protocol (RTMP)
• Audio Recording: 24-bit 48KHz. wav
• Audio Inputs: 2 x 3.5mm
• Audio Mixer: 6 input x 2 channel mixer
• Analogue Input Delay: Up to 8 frames
• MultiView Monitoring: 1 x 10 Views
• USB: USB-C
• Ethernet: 1 x Port
• Timecode Connection: No
• Software: ATEM Software Control
• Operating Systems: Mac & Windows
• Power Source: 12V DC power supply (included)

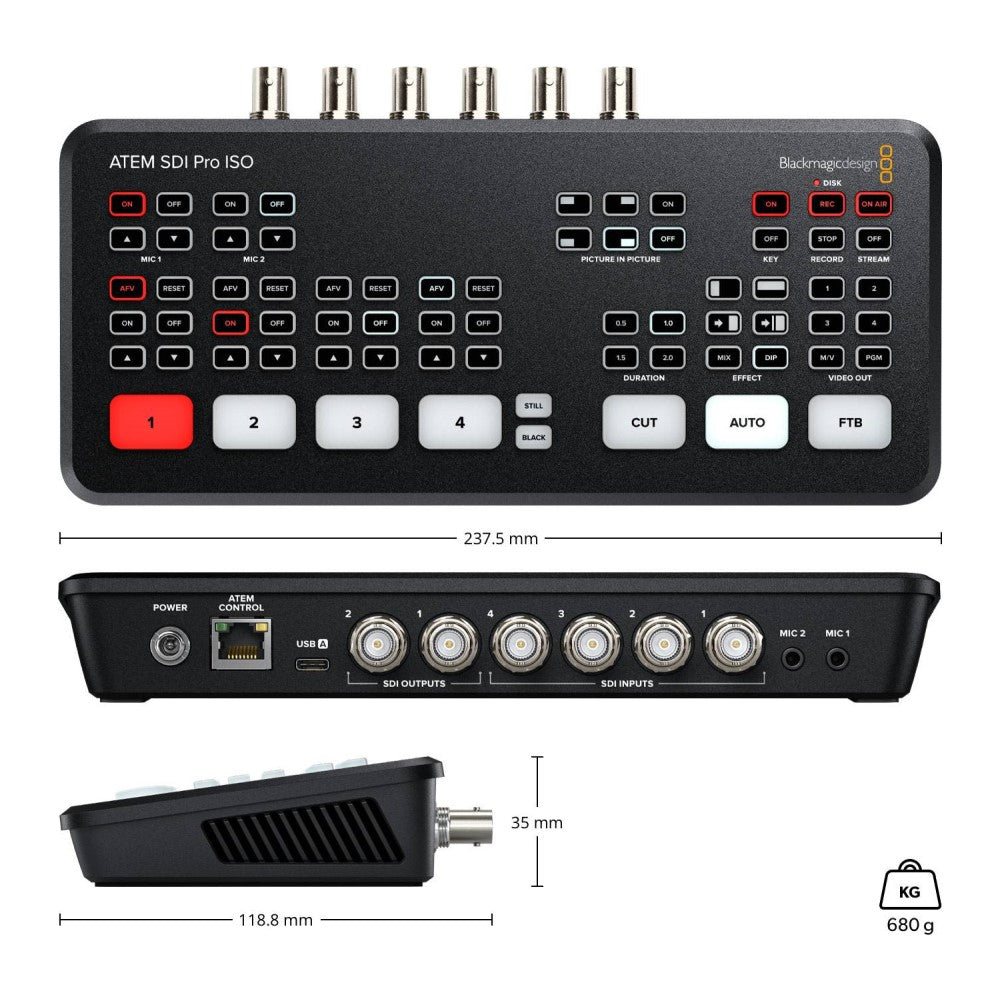

• Height: 35 mm
• Width: 237.5 mm
• Depth: 118.8 mm
• Weight: 680 g
