Blackmagic Design PYXIS Monitor EVF Kit 5"

Total Cinematic Control from Any Angle

The Blackmagic PYXIS Monitor EVF Kit is a comprehensive monitoring solution designed for the Blackmagic PYXIS and URSA Cine camera systems. This kit transforms the high-brightness 5-inch HDR touchscreen into a professional electronic viewfinder, providing cinematographers, documentary filmmakers, and solo operators with a functional extension of their camera. Whether your camera is rigged on a shoulder mount, a crane, or a gimbal, this kit ensures you never lose access to critical settings or framing.

Single-Cable Efficiency
Unlike traditional monitors that require separate HDMI/SDI and power cables, the PYXIS Monitor utilises a single locking USB-C connection. This high-speed interface carries 10-bit HDR video, power directly from the camera, and bidirectional data for full camera control. This reduces cable clutter on your rig and eliminates the need for external batteries, allowing for a lighter and more reliable workflow.

Unrivalled Field Visibility
Designed for the rigours of outdoor production, the 5-inch LCD features a massive 1500-nit brightness level, ensuring the image remains clear even in direct sunlight. The kit includes a removable, foldable sunshade for added protection and visibility. With a built-in accelerometer, the monitor automatically rotates the image when mounted upside down, allowing you to position the screen exactly where the shot demands.

Tactile Professional Integration
Beyond its touchscreen interface, the monitor features three physical, assignable buttons that operators can locate by feel. These can be programmed for essential tools like focus assist, zebra, or false colour, allowing you to make critical adjustments without looking away from the screen. The machined metal design and carbon fibre mounting hardware provide the durability required for professional sets while maintaining a low weight for handheld operation.

Main features:

• 5-inch HDR touchscreen with full 1920 x 1080 resolution
• High-brightness 1500-nit display for exceptional outdoor visibility
• Complete camera control including menus, metadata, and recording status
• Single locking USB-C connection for video, power, and camera data
• Three user-assignable buttons for quick access to monitoring tools
• Integrated rear-facing tally light and internal accelerometer
• Comprehensive mounting kit including carbon fibre rods and a rotating bracket
• Compatible with Blackmagic PYXIS 6K, URSA Cine 12K, and URSA Cine 17K

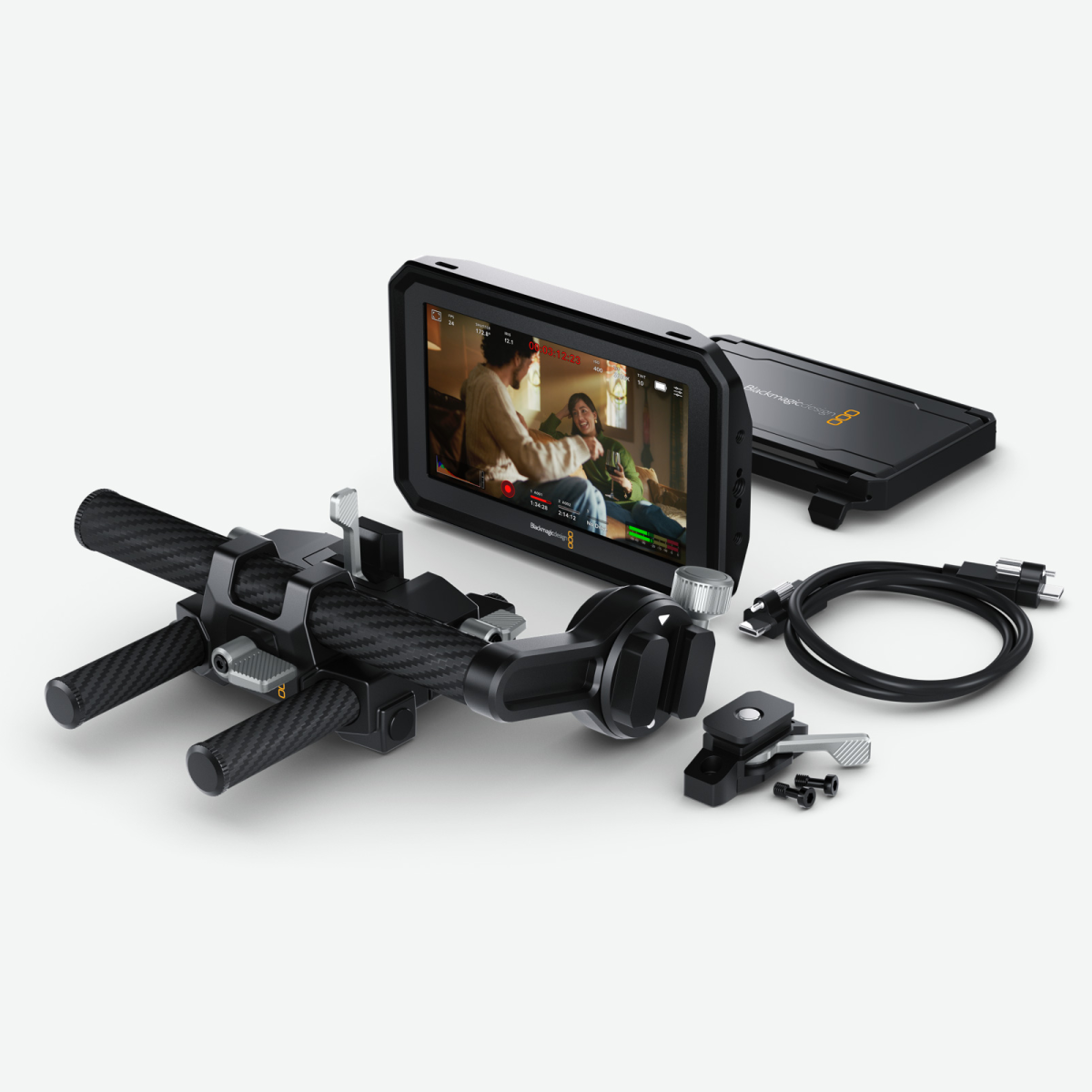

Package Includes

1x Blackmagic PYXIS Monitor
1x Blackmagic PYXIS Clip On Sunshade
1x Blackmagic PYXIS Monitor Swivel Mount
1x Blackmagic PYXIS Monitor Fixed Mount and screws
1x Blackmagic PYXIS Monitor Dovetail Shoe and screws
1x Blackmagic URSA Cine EVF Bracket rod mount
1x Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod
2x Short 15mm carbon fibre rods
1x Long USB-C Viewfinder Cable
1x Short USB-C Viewfinder Cable
1x Welcome Wallet with QR Code for Software Download
1x Blackmagic Design Sticker

Tech Specs:

• Type: EVF monitoring kit with full remote camera control
• Display Size: 5 inch
• Display Resolution: Full 1920 x 1080
• Brightness: 1500 nits
• Display Type: LCD capacitive touchscreen
• Maximum Frame Rate: Up to 60fps
• Interface: USB-C with locking connector
• Mounting Points: 1/4"-20 (bottom & side) with ARRI locating pins; M4 (bottom & side)
• Included Rods: 19mm carbon fibre (main); 2 x 15mm carbon fibre (short)
• On-Screen Controls: Iris, Shutter, ISO, WB, Tint, FPS, Timecode, Media, Audio, Menus
• Operating Temperature: 0° to 40°C
• Weight (Monitor Only): Approximately 210 grams
