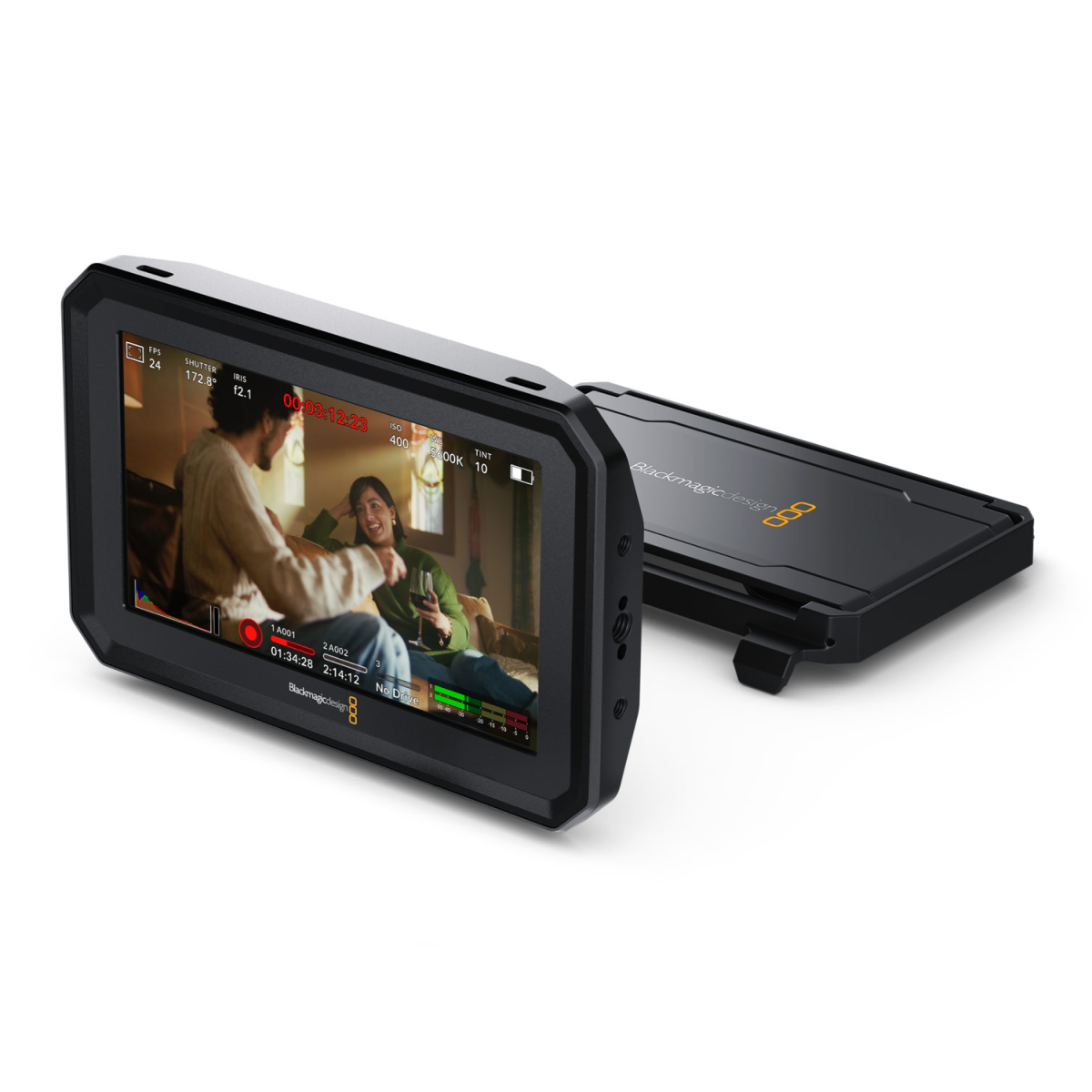

Blackmagic Design PYXIS Monitor

Cinematic Control at Your Fingertips

The Blackmagic PYXIS Monitor is far more than a standard external display; it is a powerful, high-brightness extension of your camera system. Designed specifically for the Blackmagic PYXIS and URSA Cine cameras, this 5-inch HDR touchscreen provides cinematographers and documentary filmmakers with a versatile monitoring solution when internal displays are obscured by complex rigging. Whether you are operating on a sun-drenched set or managing a remote gimbal setup, the PYXIS Monitor ensures absolute precision and total command over your shoot.

Seamless Single-Cable Integration
Streamline your rig with the innovative single-cable connection that handles everything. Utilizing a high-speed USB-C connection with secure locking screws, the PYXIS Monitor draws power directly from the camera while simultaneously transmitting high-definition video and bidirectional control data. This eliminates the need for additional batteries or tangled HDMI and SDI cables, allowing for a cleaner, lighter setup that is perfect for gimbals, cranes, and handheld use.

Precision HDR Visuals in Any Environment
Never miss a detail with the stunning 1500-nit high-brightness display. This HDR-capable screen is engineered for optimal visibility even in direct, harsh sunlight, supported further by a removable, foldable sunshade that doubles as a screen protector during transit. With a full 1920 x 1080 resolution and professional monitoring tools like focus peaking and false colour, you can make critical creative decisions with absolute confidence in your image.

Rugged Reliability and Custom Workflow
Built for the rigours of professional sets, the monitor features a super-strong machined metal design that perfectly matches the industrial aesthetic of the PYXIS camera. Efficiency is at the heart of the design, featuring three assignable function buttons that can be located by feel—even from the front of the monitor—to toggle essential tools like zebra or focus assist. A bright, integrated tally light ensures the entire crew knows exactly when you are rolling, even from a distance.

Main features:

• 5-inch HDR touchscreen with full 1920 x 1080 resolution
• Extreme 1500 nits brightness for uncompromised outdoor visibility
• Single USB-C connection for video, power, and bidirectional camera control
• Full remote access to camera menus, internal settings, and digital slate metadata
• Premium machined metal construction for professional, on-set durability

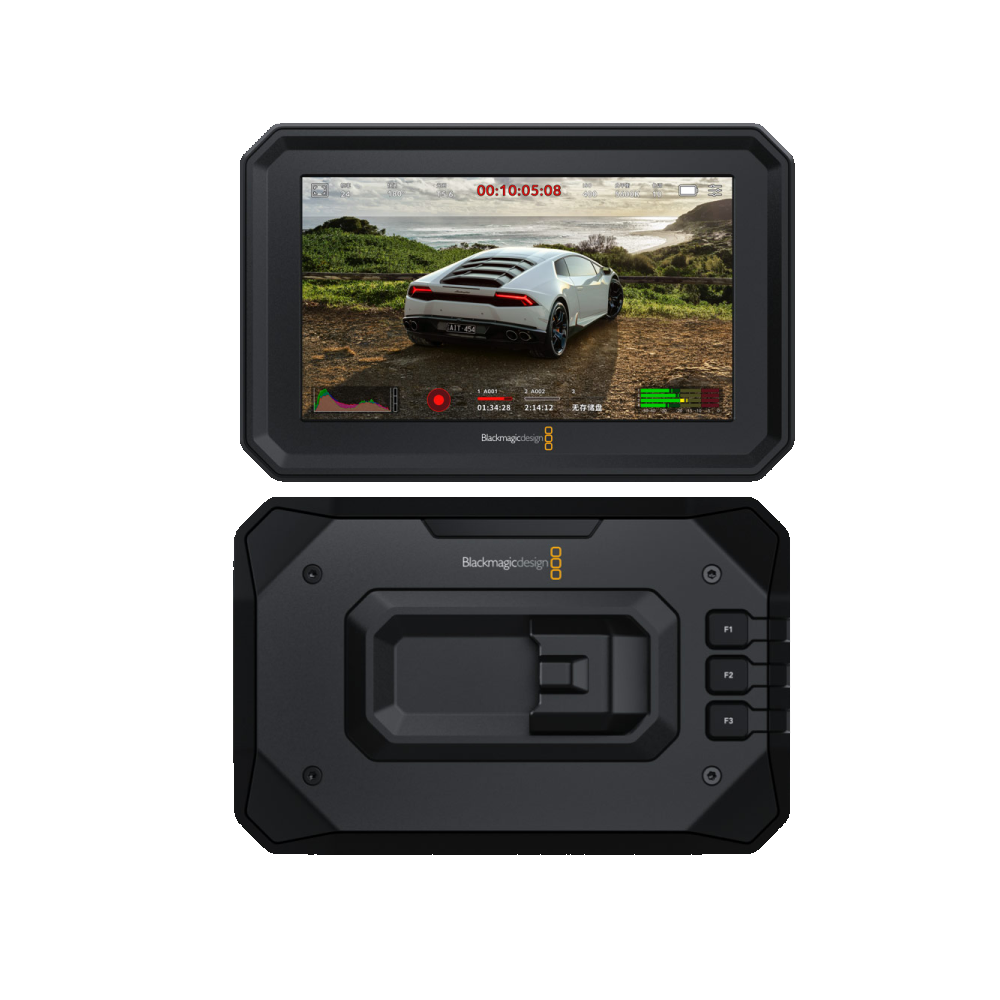

• Three customisable physical function buttons for rapid tool toggling
• Integrated rear-facing LED tally light for instant recording status updates
• Built-in accelerometer for automatic image orientation adjustment

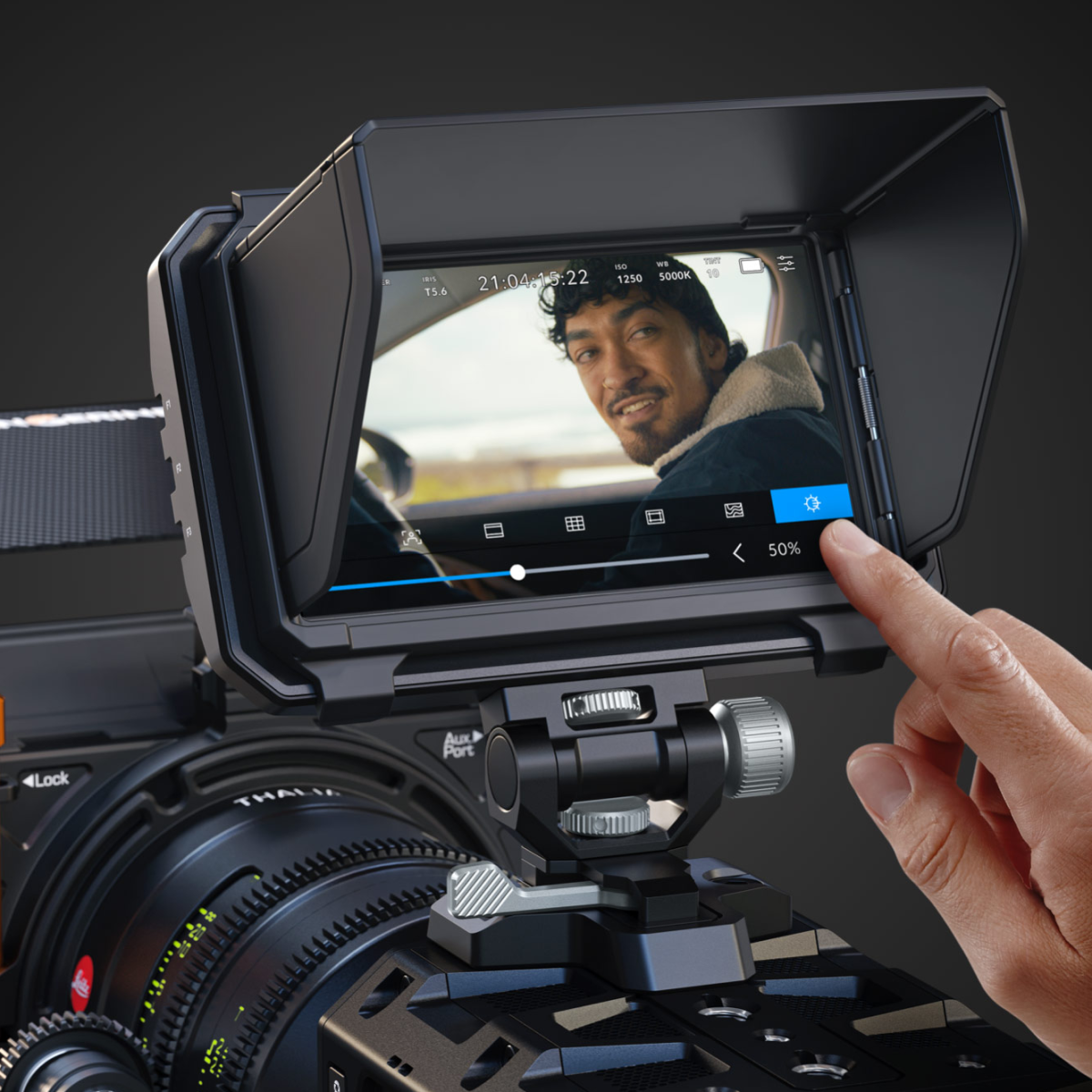

• Removable, foldable sunshade included for enhanced screen protection
• Multiple mounting points featuring industry-standard 1/4"-20 and ARRI locating pins

Package Includes

1x Blackmagic PYXIS Monitor
1x Blackmagic PYXIS Clip On Sunshade
1x Welcome Wallet with QR Code for Software Download
1x Blackmagic Design Sticker

Tech Specs:

• Type: Camera-Top Monitor / Production Monitor
• Display Size: 12.7 cm (5.0 inches)
• Resolution: 1920 x 1080
• Panel Type: LCD capacitive touchscreen
• Brightness: 1500 nits
• Frame Rates: Up to 60 fps
• Video & Power I/O: 1 x USB-C connection with secure locking connector
• Data Connectivity: Metadata transmission and comprehensive camera control via USB-C
• Construction Material: Heavy-duty Machined Metal

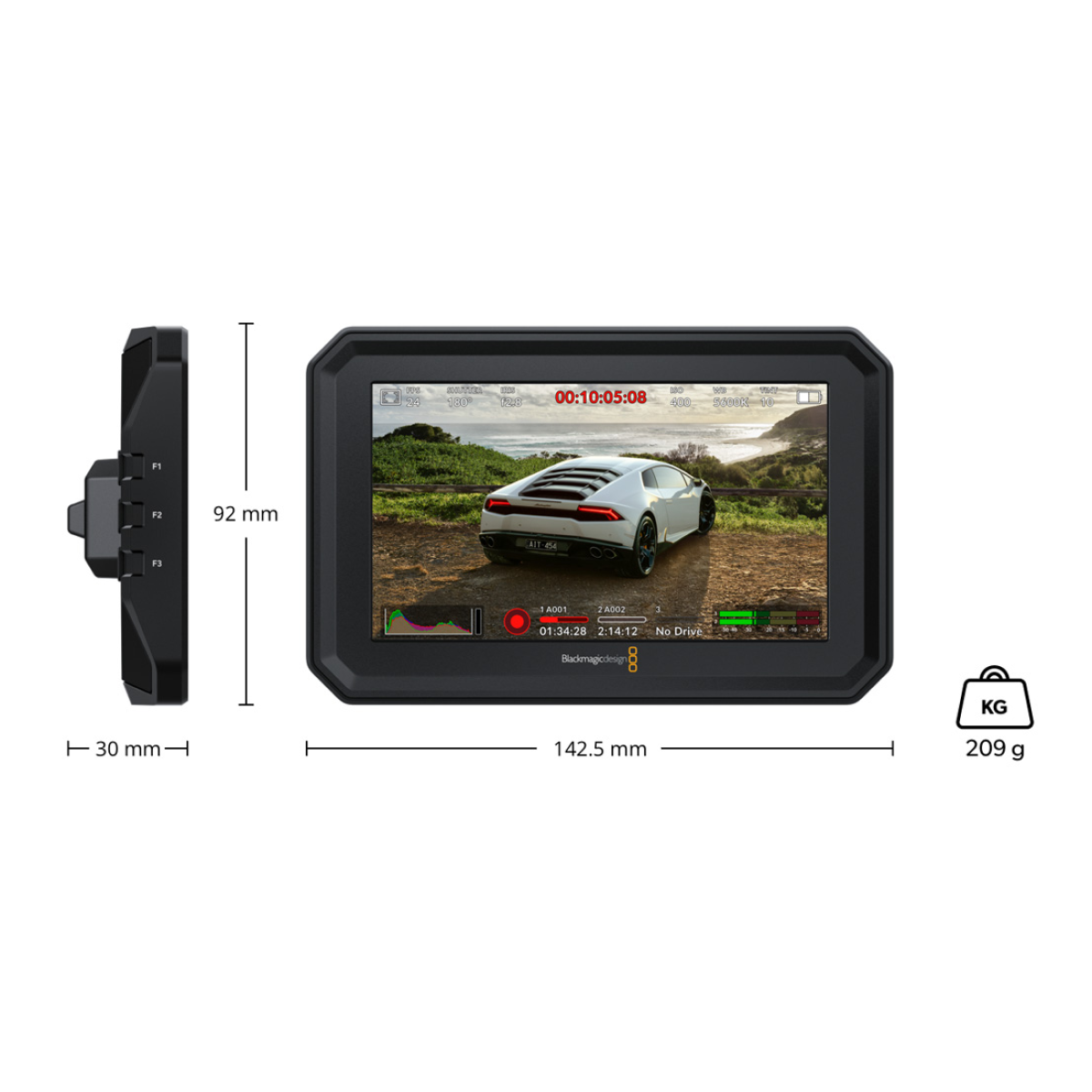

• Dimensions: 30 x 92 x 142.5 mm
• Weight: 209 g
• Mounting Points: 1/4"-20 (bottom and side) with ARRI locating pins; additional M4 mounting points
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 60°C
• Relative Humidity: 0% to 90% non-condensing
• Weight (Monitor Only): Approximately 210 grams
