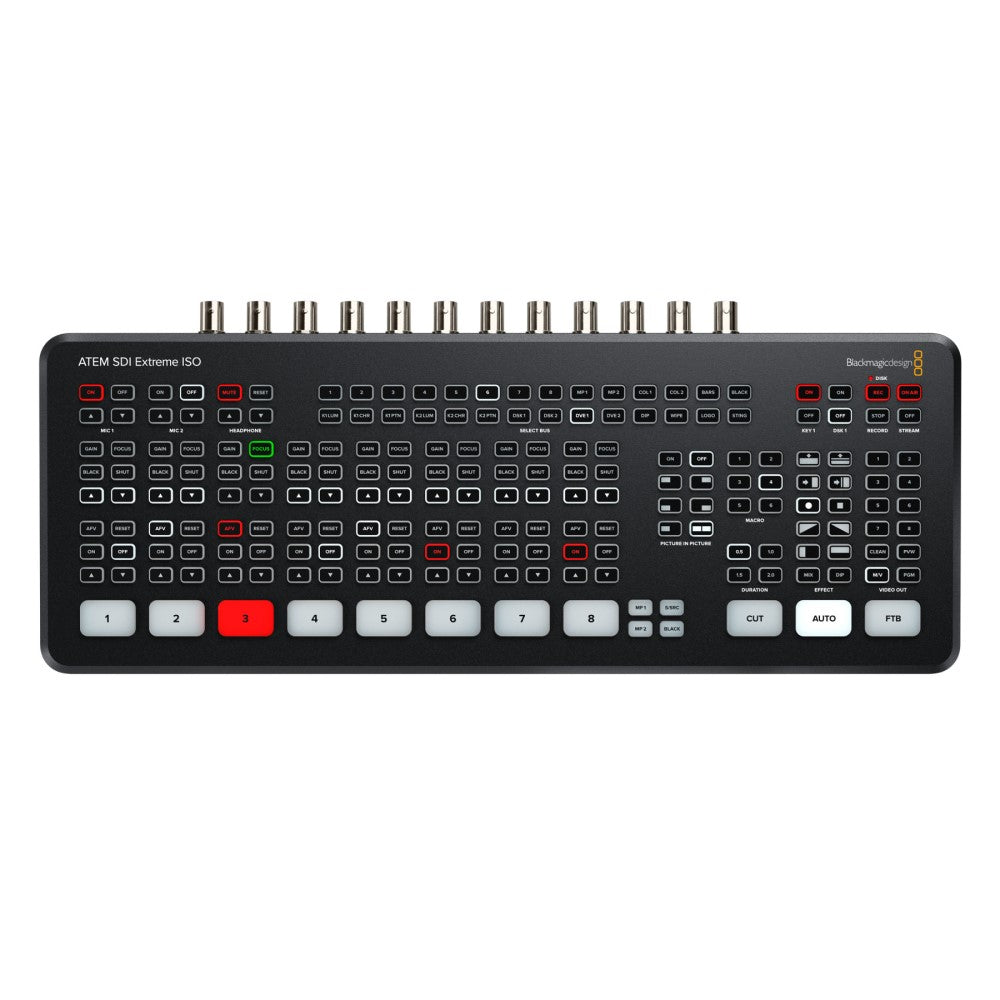

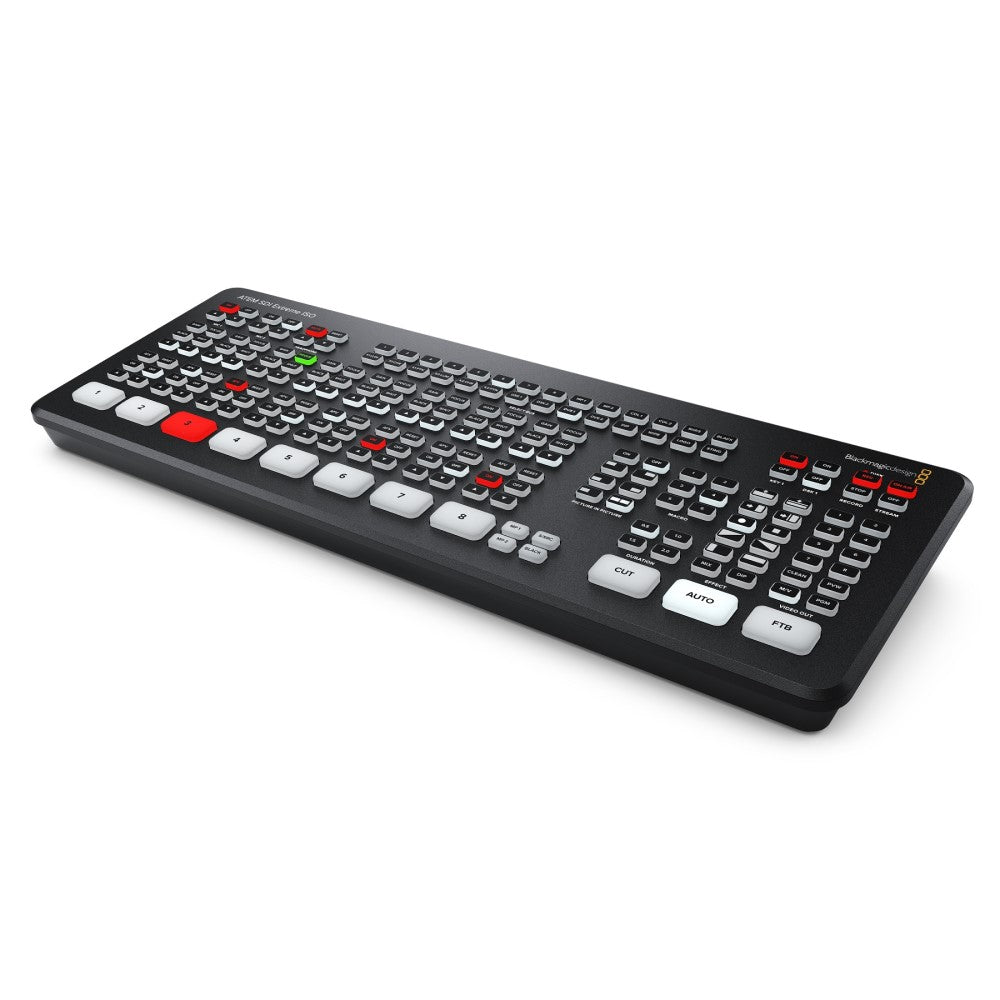

Blackmagic Design ATEM SDI Extreme ISO

Super Portable with Powerful features

Create Professional, Broadcast-quality Programs and Stream them live!
The ATEM SDI Extreme ISO switcher makes it easy to create professional productions using multiple cameras and live switching, thanks to its powerful broadcast-grade switcher. Simply connect a few cameras and you're ready to start live streaming. You can use features such as the DVE for interviews where you need a picture-in-picture effect. There's a wide range of video effects too! To live stream, all ATEM SDI models have a USB output that works like a webcam for streaming software, or the ATEM SDI Pro and Extreme models can live stream directly via Ethernet or using a smartphone. Separate microphone inputs are included for great sound when doing interviews.

Effortless Live Streaming
Live stream via Ethernet on ATEM SDI Pro and Extreme models, or phone tether for remote streaming via mobile data on ATEM SDI Pro and Extreme models. Records to USB disks in H.264 on ATEM SDI Pro and Extreme models. Supports connecting up to 8 cameras or computers. The ATEM Streaming Bridge is a video converter that lets you receive a H.264 stream from any ATEM SDI Pro or ATEM SDI Extreme and convert it back to video.

Monitor Sources and Multiview Button
The Blackmagic Design ATEM SDI Extreme ISO includes a professional 16-way multiview that lets you see all video inputs, previews and programs on a single SDI monitor. Simply select M/V button on the front panel to select the multiview. Each camera view includes tally indicators so you know when each source is on-air, and each view also has custom labels and audio meters.

Edit a Live Production!
ATEM SDI Pro ISO and Extreme ISO models have been designed to integrate into DaVinci Resolve so you can spend time making your program absolutely perfect. When recording "ISO" files, a DaVinci Resolve project is saved along with separate files for each video input, so the live event can be reconstructed as an edit timeline. This means with a single click, you can open your live event and see it transformed into edits with all cuts, transitions and media on the timeline. With the combination of ATEM SDI ISO models and DaVinci Resolve, it’s easy to make quick changes and upload, or major creative enhancements, to your live event.

The ATEM SDI ISO Broadcast Quality Switchers provide you the creative freedom of multi-camera live recording in any setting - interviews, advertorials, theatre production, music performances, sports and more! Plus, the ATEM SDI ISO supports Apple & Android phones to use mobile data via a USB port when out on location. Phone tethering works with the latest high-speed 5G/4G phones making the ATEM SDI ISO the perfect mobile production solution.

Main features:

• 8-Channel Live Stream 3G-SDI Switcher
• Program and 8 x Input ISO Recording
• Generates DaVinci Resolve Project
• Live Tally, Stream, and Record Status
• Record Button, Channel Preview Multiview
• 2-Channel Digital Audio Mixer per Source
• 3G-SDI Output, Ethernet ATEM Control
• Media Player, Computer Input Support
• Upstream and Downstream Keyers
• DVE Transition, Chroma/Luma Keyers
• 2 x USB Type-C Streaming/Webcam Output
• 12 Months Limited Warranty

Tech Specs:

• Type: Video Switcher
• Channels: 8
• Video Inputs: 8 x SDI (3G), 10-bit HD
• Video Outputs: 4 x SDI
• Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Direct Streaming: Real Time Messaging Protocol (RTMP)
• Upstream Keyers: 4
• Downstream Keyers: 2
• Chroma Keyers: Up to 4
• Linear/Luma Keyers: Up to 4
• Transition Keyer: DVE
• Num. Layers: 9
• Pattern Generators: 5
• Colour Generators: 2
• Audio Recording: 24-bit 48KHz. wav
• Audio Inputs: 2 x 3.5mm
• Audio Output: 1 x Headphone

• Audio Mixer: 11 input x 2 channel mixer
• Analogue Input Delay: Up to 8 frames
• MultiView Monitoring: Up to 16 views
• USB: 2 x USB-C
• Ethernet: 1 x Port
• Timecode Connection: No
• Software: ATEM Software Control
• Operating Systems: Mac & Windows
• Power Source: 12V DC power supply (included)

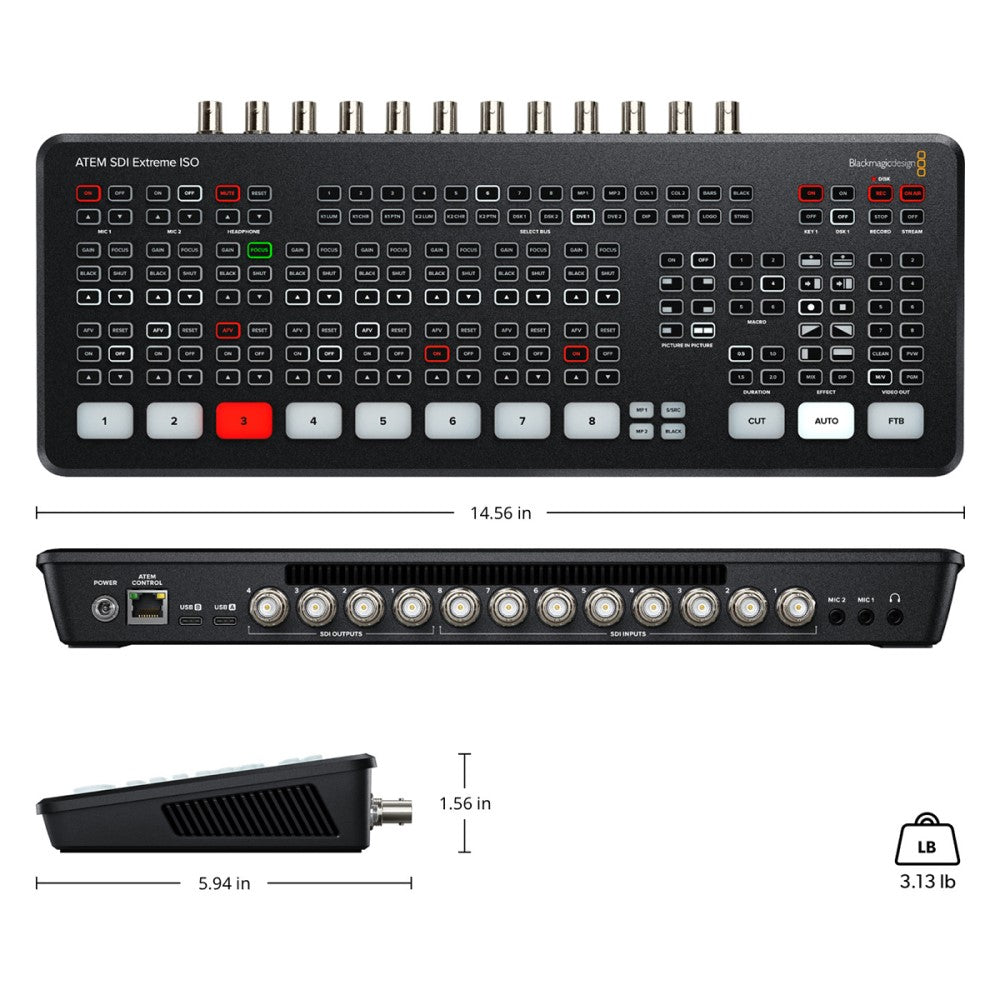

• Height: 39.6 mm
• Width: 370 mm
• Depth: 151 mm
• Weight: 1.42 kg
