Blackmagic Design ATEM Mini Extreme ISO G2 Live Switcher - Coming Soon

Advanced ISO Recording for Post-Production Freedom
This model features ISO recording, capturing all 8 inputs and the program output as separate video files. This enables full creative control in post-production, making it ideal for multicam editing workflows in DaVinci Resolve.

Built-In Streaming and Multiview Monitoring
With a built-in hardware streaming engine, you can go live directly to platforms like YouTube or Facebook without needing a computer. The multiview output lets you monitor all sources, preview, and program feeds on a single screen - perfect for live event management.

Professional Audio and Connectivity
Equipped with XLR combo inputs, 32-channel MADI audio, and USB-C webcam output, the ATEM Mini Extreme ISO G2 ensures high-quality audio and flexible connectivity. It also includes Thunderbolt and 10G Ethernet for ultra-fast recording and network access.

Broadcast-Grade Effects and Keying
Enjoy advanced production tools like 4 upstream and 2 downstream keyers, chroma keying, 2 DVEs, and SuperSource layouts. These features allow for dynamic picture-in-picture effects, green screen compositing, and professional transitions.

Main features:

• 8 HDMI Inputs: All inputs are standards-converted, allowing seamless switching between different video formats and resolutions.
• ISO Recording: Simultaneously records all 8 inputs plus the program output as separate video files, perfect for post-production editing.
• Built-in Streaming Engine: Stream directly to platforms like YouTube, Facebook, and Twitch via Ethernet without needing a computer.
• 3 HDMI Outputs: Independently assignable for program, multiview, or clean feeds.
• Multiview Support: Monitor all sources, preview, and program on a single screen with customizable layouts.
• Professional Audio Inputs: Includes 2 XLR combo inputs with phantom power and a 32-channel MADI digital audio input.
• USB-C & Thunderbolt Ports: For webcam output, external drive recording, and high-speed data transfer.
• 10G Ethernet Port: Enables ultra-fast access to network storage for recording and playback.
• Advanced Effects & Keying: Features 4 upstream and 2 downstream keyers, 4 chroma keyers, 2 DVEs, and multiple pattern and colour generators.
• Control Options: Use the integrated control panel, ATEM Software Control, or connect to external hardware panels.

Ideal For:

• Live streaming events, webinars, and conferences
• Multi-camera productions for YouTube or social media
• Professional broadcast environments
• Hybrid events and remote productions

Tech specs:

• Type: Compact Live Switcher
• Channels: 8 x Video In, 3 x Video In, 26 x Audio
• Video Format: Up to 1080 (60fps)
• Video Inputs: 8 x HDMI
• Video Outputs: 3 x HDMI (assignable)
• Audio Inputs: 2 x XLR-1/4" Combo (+48V phantom), 1 x BNC (MADI)
• Headphones: 1 x 1/4" TRS
• USB: 2 x USB-C 3.1 Gen1 (1080 webcam, external device recording) 1 x Thunderbolt
• Other I/O: 1 x RJ45 (10G ethernet, recording), 1 x RJ45 (10G ethernet, streaming/conrol)
• Effects: Up to 4 x Chroma/Linear/Luma Keyers
• Software: ATEM Software Control Panel
• Features: Internal Timecode Generator, ISO Recording to CFExpress Card Slot or External Drive via USB-C, 2 x Media Players, Direct Streaming
• Power Source:12V DC Power Supply (included)

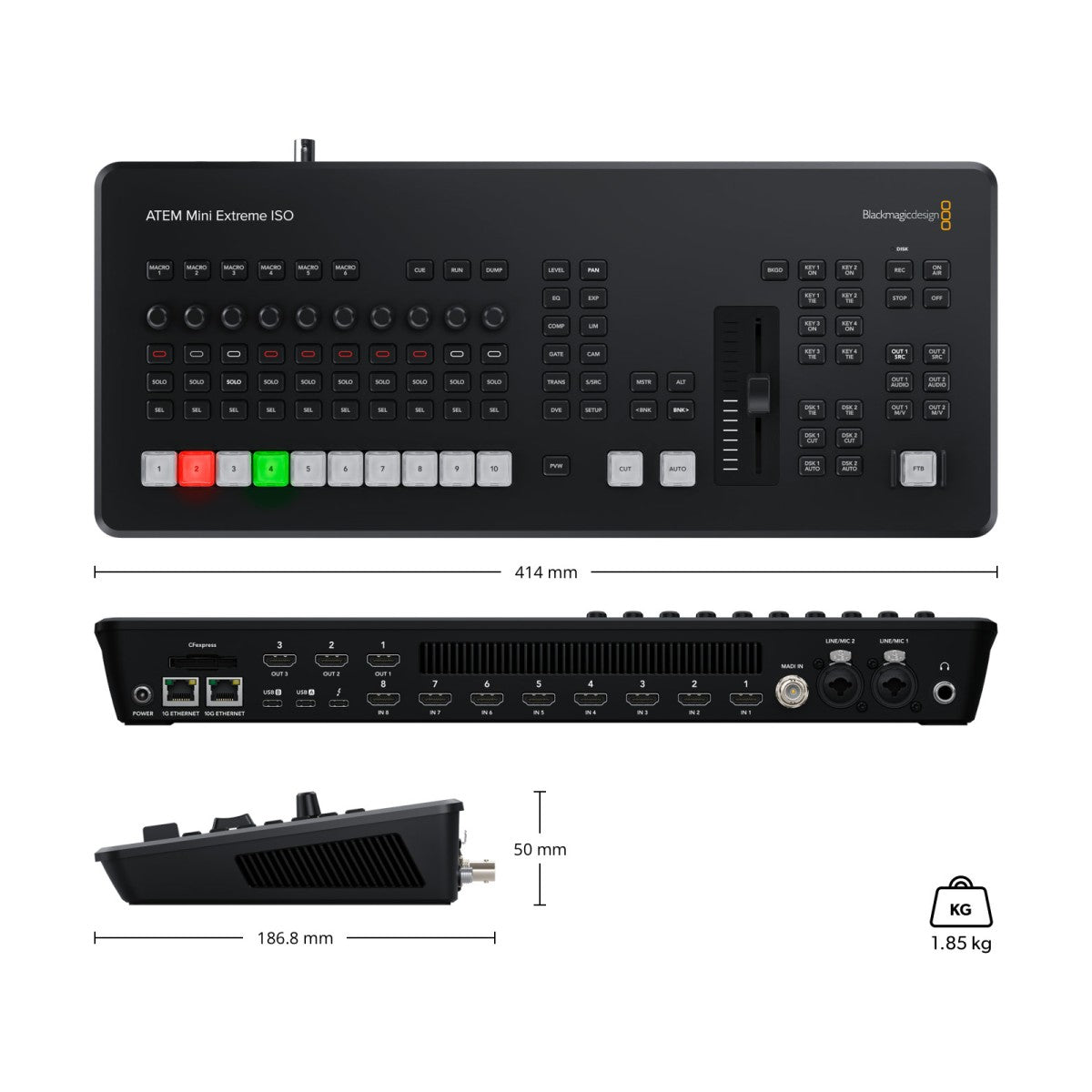

• Dimensions (HxWxD): 50 x 414 x 186.8 mm
• Weight: 1.85 Kg
• Discover more Blackmagic Design Switchers [ATEM Mini Extreme ISO G2]: https://www.blackmagicdesign.com/sa/products/atemmini
