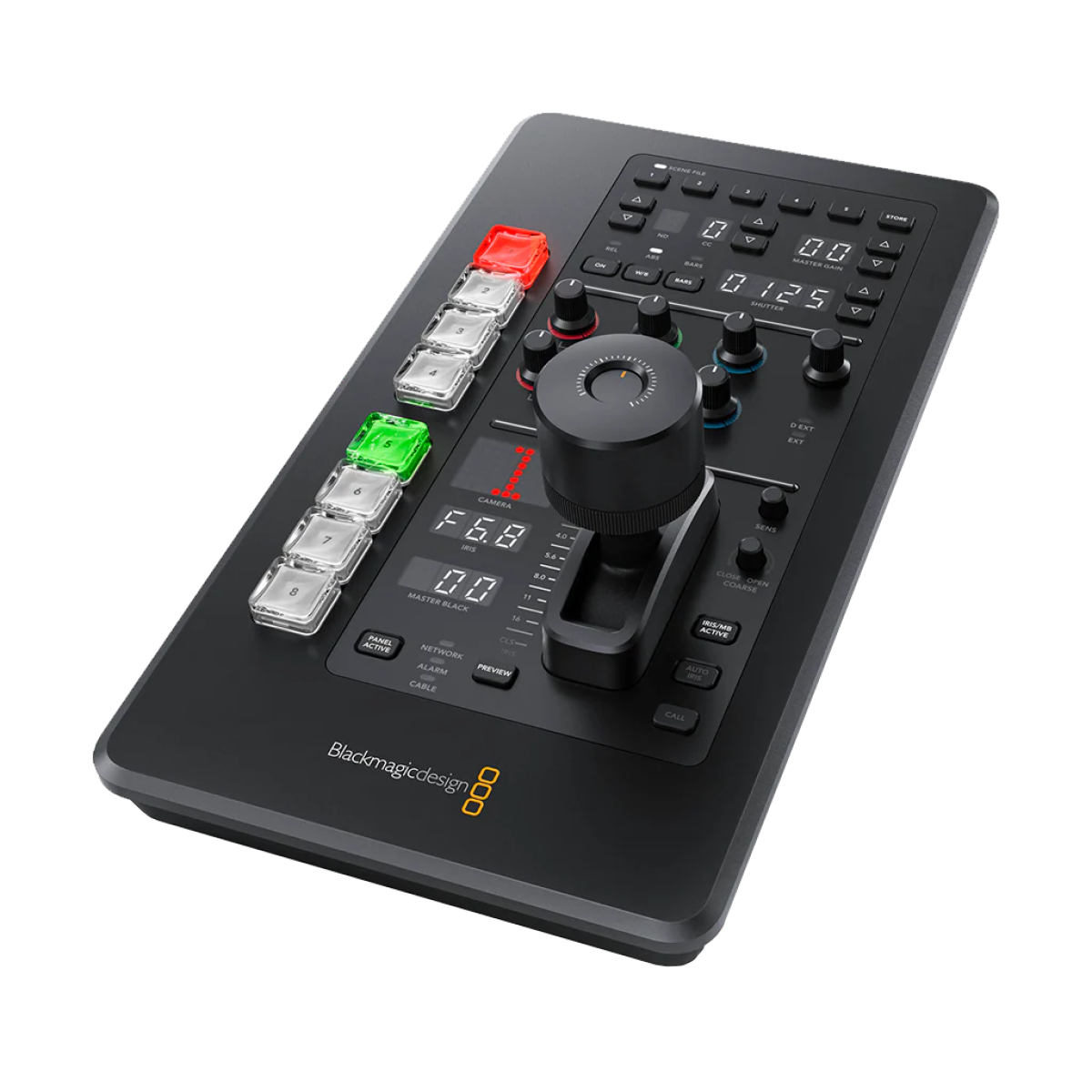

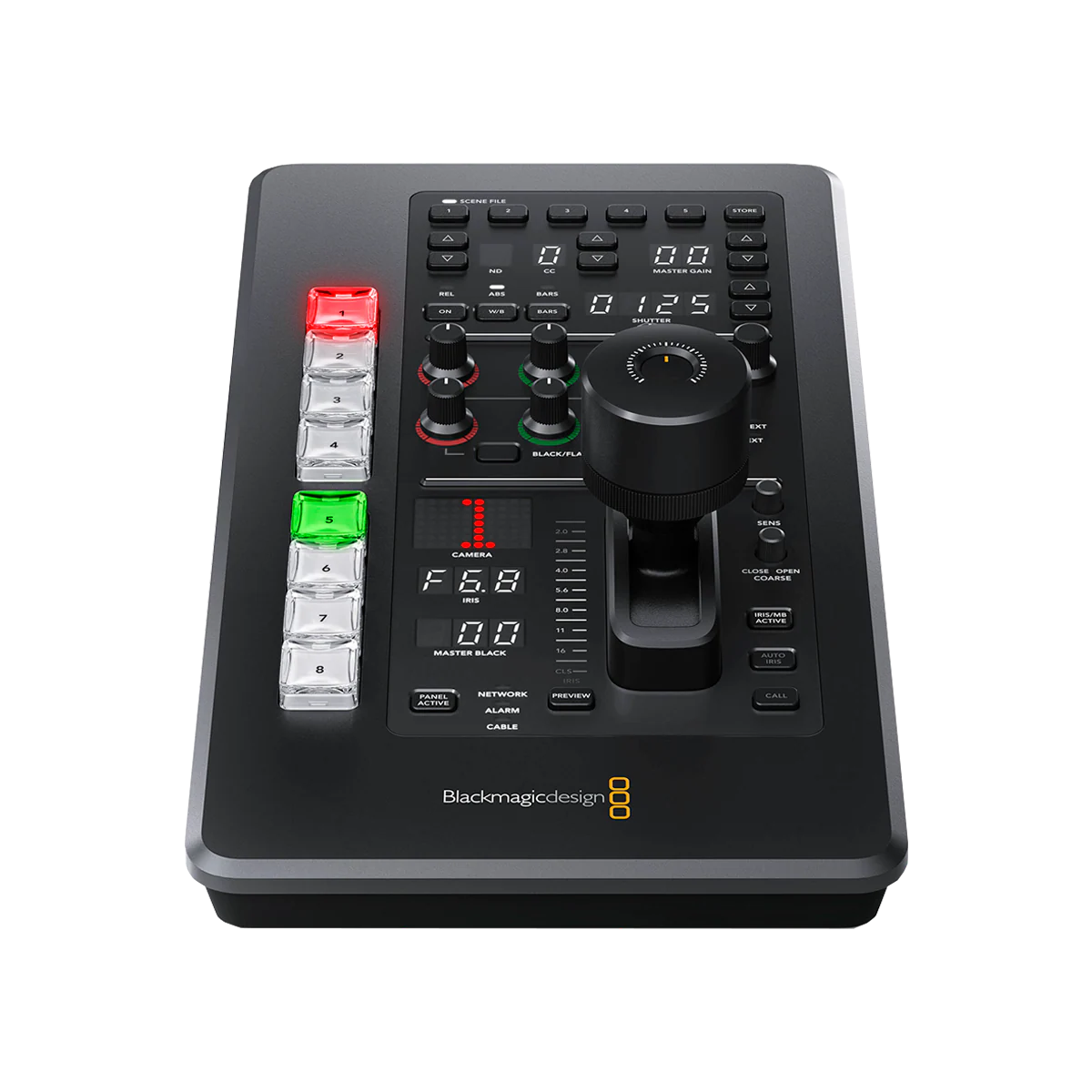

Blackmagic Design ATEM Micro Camera Panel

Professional Broadcast CCU Control in a Portable Form Factor

The ATEM Micro Camera Panel is a highly portable, broadcast-grade camera control unit (CCU) designed to provide physical tactile control over your remote camera settings. Perfectly suited for live streamers, event technicians, and corporate AV professionals, this panel allows a single operator to monitor and adjust critical parameters such as iris, gain, and colour balance. By centralising these controls, camera operators are free to focus on framing and composition while you ensure a consistent, professional look across all sources.

Precision Tactile Engineering
The panel features a high-quality 3-axis joystick and a smooth, machined metal control specifically for adjusting iris and pedestal with extreme accuracy. Unlike software-only interfaces, these weighted physical controls provide the immediate, fine-tuned response required for live broadcast environments. Dedicated knobs for red, green, and blue gain allow for instantaneous colour tint adjustments to match multiple cameras perfectly during a live show.

Wireless Freedom and Versatility

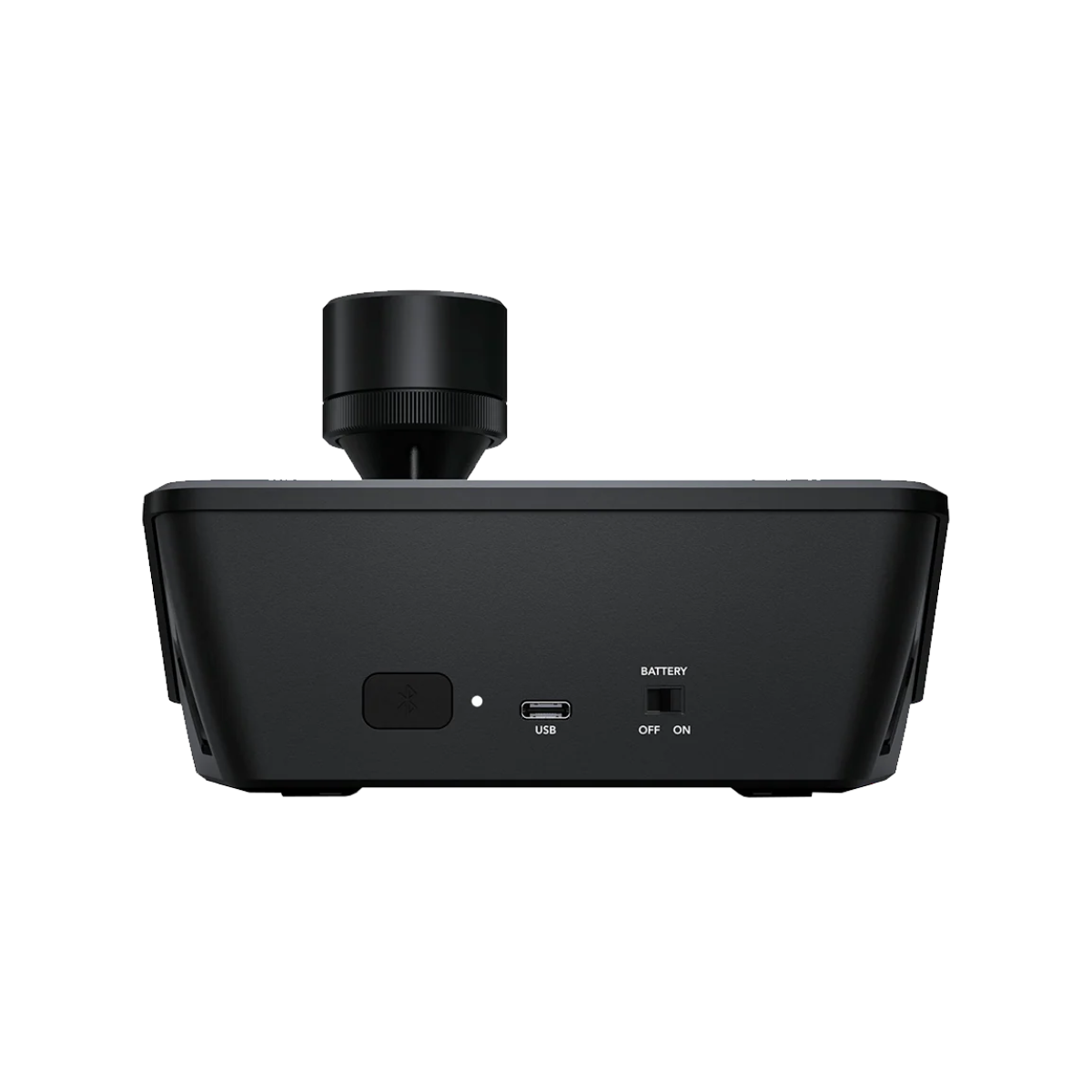

Equipped with an internal battery and Bluetooth 5.1 LE, the ATEM Micro Camera Panel offers a completely wireless workflow, allowing you to position your CCU station anywhere on set. For permanent installations or charging, the USB-C port provides a stable wired connection and power supply. This flexibility makes it an essential tool for mobile fly-away kits and dual-operator setups where space and cable management are at a premium.

Main features:

• Control iris, pedestal, gain, and shutter speed for up to 8 cameras from a single portable station
• High-precision 3-axis joystick for intuitive iris and master black adjustments
• Eight assignable NKK camera selection buttons with red and green tally status LEDs
• Wireless connectivity via Bluetooth 5.1 LE or wired connection through USB-C
• Internal battery provides a minimum of 3 hours of operation for remote location work
• Full remote colour correction capabilities, including RGB balance and white balance range from 2500K to 10,000K
• Save and recall up to 5 scenes per camera for rapid setup during fast-paced productions
• Universal compatibility with all ATEM switchers and Blackmagic Design cameras

Package Includes

1x ATEM Micro Camera Panel
1x USB-C to USB-C Cable (1m)
1x Welcome Wallet with QR Code for Software Download
1x Warranty & Safety Information Manual

Tech Specs:

• Type: Portable broadcast-grade camera control unit (CCU)
• Computer Interface: USB Type-C (for configuration and wired operation)
• Bluetooth Connection: Bluetooth 5.1 LE
• Firmware Updates: 1 x USB-C port for software setup utility updates
• Camera Selection: 8 x NKK buttons (assignable via setup utility)
• Tally Indicators: Green (Off Air), Red (On Air)
• Physical Controls: 3-Axis Joystick, Preview Button, Iris Control (Auto/Coarse)
• Iris Range: CLS f/32 to f/1.2
• Gain Range: -12dB to +32dB
• ND Filters: 0, 2, 4, 6
• Shutter Range: 1/24 to 1/2000
• White Balance Range: 2500K to 10,000K
• Scene Recall: 5 presets per camera
• Power Supply: Internal rechargeable battery or USB-C external supply
• Power Consumption: 4W maximum
• Battery Life: Minimum 3 hours continuous normal use
• Operating Temperature: 5°C to 40°C
• Relative Humidity: 0% to 90% non-condensing
