Bettermaker Mastering Compressor

DAW controllable mastering analog compressor with stereo, dual-mono, M/S modes plus digital recall, saturation module, and internal and external sidechain.

The Bettermaker Mastering Compressor is an advanced analog VCA compressor with PEAK or RMS detection and switchable forward/backward feed. All parameters are digitally controlled via front panel and/or DAW (with dedicated plug-ins). It features stereo, dual-mono and mid/side operation modes with focus and sidechain preview function. Firmware expansion packs allow you to configure the compressor in your own way! Includes the famous BM, SG and DX modes.

Analogue & Digital Sections
The sound of the Compressor is of course based on the quality of its analog audio path. But all the control and user interactions are performed in the digital domain. This allows us to incorporate options and possibilities not found in any standard analog compressors:

- Save and recall presets from on-board memory (400 slots available)
- Instant reset of all parameters
- Rapid, precise and repeatable adjustments
- Precisely linked stereo operation with the ease of a single control
- DAW automation and recall of all available parameters

The digital section of the Mastering Compressor is based around high speed, 32-bit micro-controller, with dedicated firmware programmed into its memory (with the possibility of updating the firmware via USB connection). It's responsible for controlling the VCA, the user interface, presets management, audio measurement, USB connectivity and other Mastering Compressor functions.

The use of separate ground planes for analog and digital section results in perfect noise isolation between these two worlds. High quality switching power supply, designed by Bettermaker, was used to provide low hoise, hum free power to all analog and digital components.

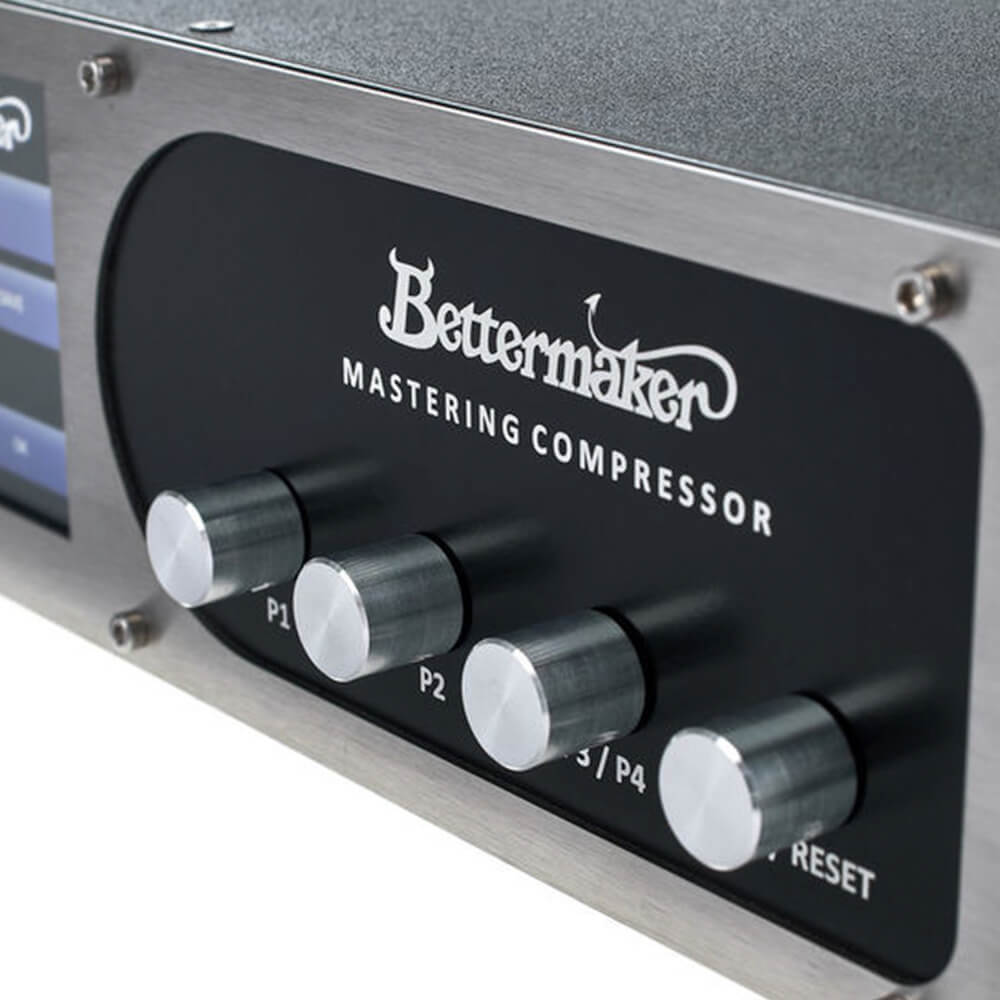

Front Panel & LCD Touch Screen
The front panel of the Mastering Compressor is build around big LCD touchscreen, that allows you to control almost all functions available in the device. Apart from that, you can also monitor input/output levels, amount of gain reduction applied by the compressor or store and recall presets using on-screen QWERTY keyboard.

Bettermaker Mastering Compressor Features:

• Pure analog signal path
• Adjustable 15 – 30 Hz high pass filter at the compressor input
• Dry/wet MIX control for parallel compression
• HPF, LPF and fully configurable parametric filter in sidechain with option of hardware insert
• Adjustable drive (for odd/even clipper) and THD function for harmonically rich sound
• Range Setting – limit the maximum amount of gain reduction!
• Onboard measurement of PEAK/RMS levels
• 100% analog audio signal path
• Total recall and A/B comparison
• Five-inch capacitive touchscreen with backlight (Mastering Compressor), six encoders with push- button action for ease of control (Bus Compressor)

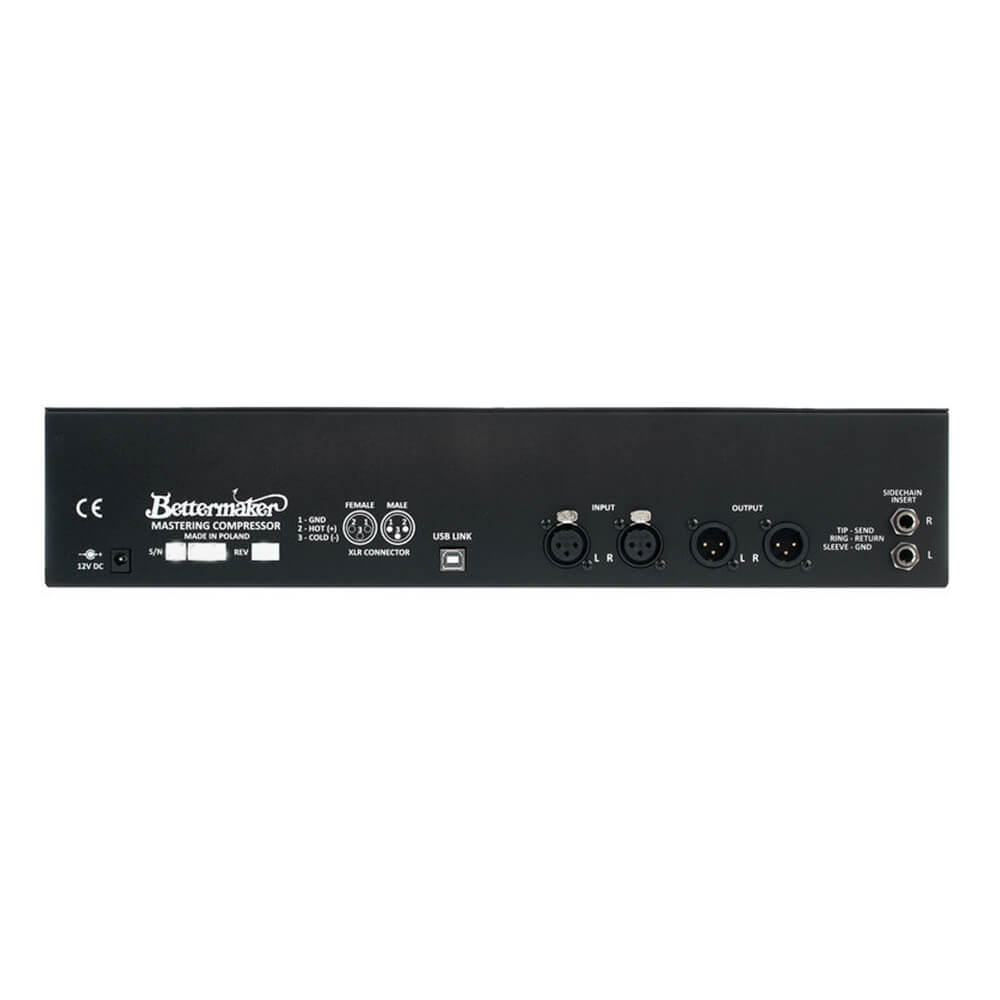

Tech Specs

• Processor Type:Analog Mastering Comp with Digital control
• Number of Channels:Stereo
• Analog Inputs:2 x XLR
• Analog Outputs:2 x XLR
• USB:1 x Type B
• Rack Spaces:2U
• Power Supply:IEC AC cable
• Manufacturer Part Number:Mastering Comp
